• Model NO.：SWD8
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Semi U
• Operating Weight：35.5ton
• Ripper：Optional Single Shank or Three Shank
• Warranty：One Year
• Blade Capacity：11.2m3
• Engine Type：Six-Cylinder,Water-Cooled Turbocharged,Mechanical
• Transport Package：Naked
• Specification：35.5 ton
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：500 Unit Per Year

Basic Info.

Model NO. SWD8 Condition New Color Yellow Engine Cummins Blade Type Semi U Operating Weight 35.5ton Ripper Optional Single Shank or Three Shank Warranty One Year Blade Capacity 11.2m3 Engine Type Six-Cylinder,Water-Cooled Turbocharged,Mechanical Transport Package Naked Specification 35.5 ton Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 500 Unit Per Year

Product Description

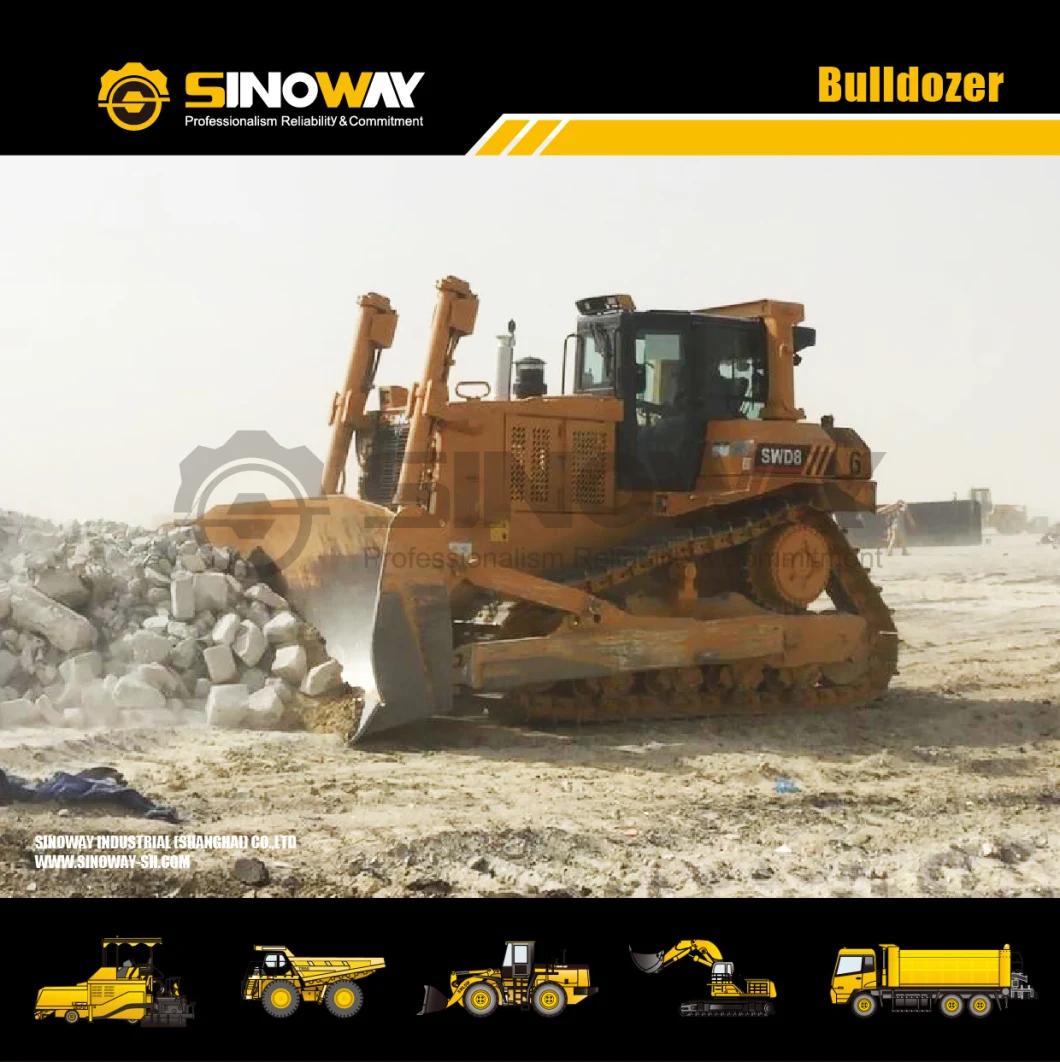

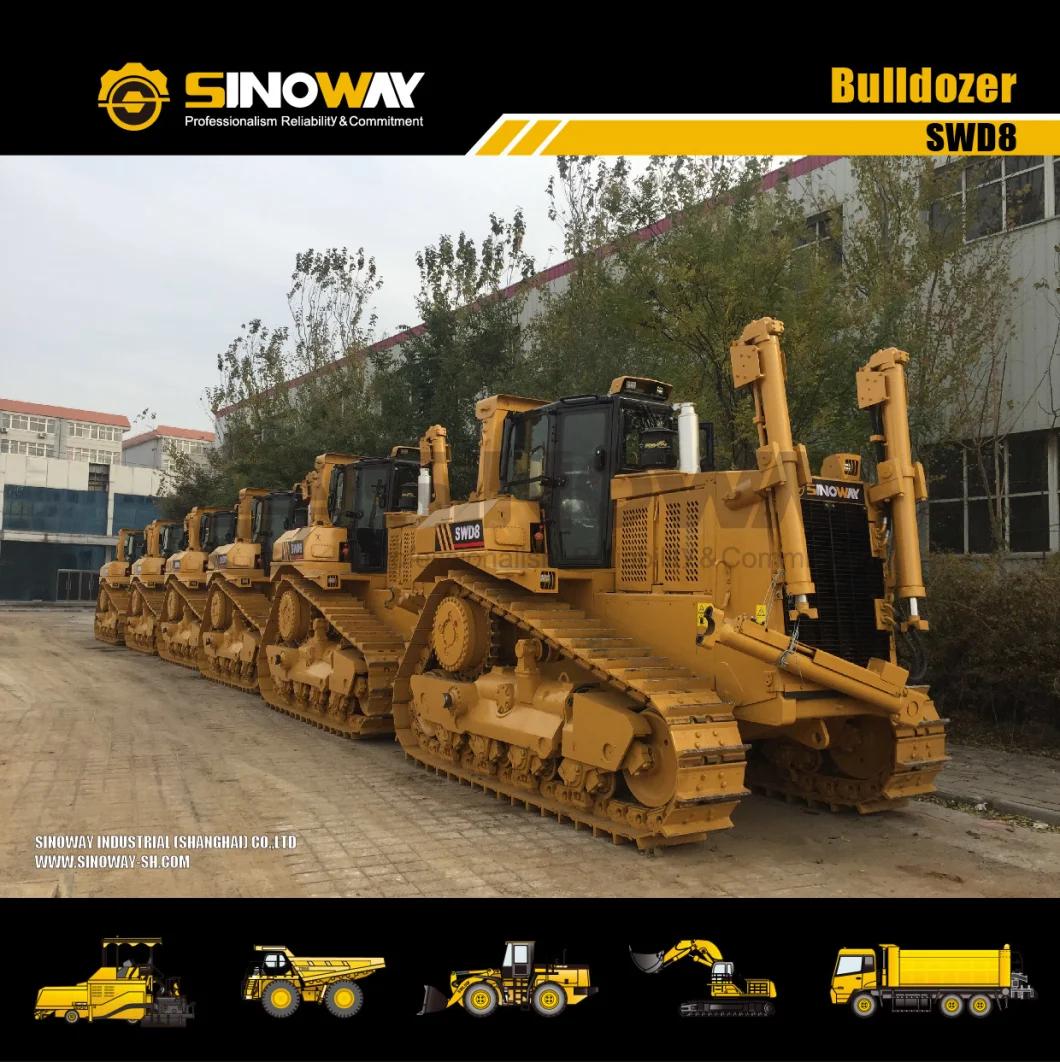

Machine Show


Why Our Bulldozers


Specification

Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	1900rpm
Implement Hydraulic System
Hydraulic flow rate	220L/min
Hydraulic pressure	21MPa
Pump type	Double vane pump
Control valve	Hydraulic operated
Under Carriage System
Sprocket	Elevated
Number of track rollers (each side)	8
Number of carrier rollers (each side)	(4 single, 4 double)
Number of front idler (each side)	12
Track type	Single grouser
Track tension	2083mm
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	44
Track length on ground	3252mm
Ground clearance	556mm
Main Technical Specification
Operating weight(without ripper)	33000Kg
Ground pressure(without ripper)	0.093MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	6105×3990×3600mm
Max. tractive force	380KN
Working Equipment
Blade type	Semi-U
Width	3940mm
Height	1690mm
Max. digging depth	582mm
Max. lift above ground	1288mm
Tilting angle	12°
Blade capacity	11.2m3
Transmission System
Gear box	Power separating hydraulic mechanical type
Torque converter	Torque divider combined
Transmission assembly	Integrated bevel gear, multiple stage planetary gear box, speed changing control valve
Final drive	Two stage planetary reduction gear mechanism
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.9/4.8
Forward/Reverse II	6.8/8.4
Forward/Reverse III	10.8/13.9
Service Capacities
Fuel tank	625L
Implement hydraulic	100L
Engine crankcase	41L
Cooling system	121L
Roller frames (each)	65L
Power train	150L
Pivot shaft compartment	15L
Final drives (each)	15L
Steering clutch	Oil-type, free-adjustment, multiple disc, pressed hydraulically
Steering brake	Pressed by spring, separated hydraulically,costant meshed type
