• Model NO.：LG946L
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：Nude Package
• Specification：7295*2766*3340 mm
• Trademark：LIUGONG
• Origin：China
• Production Capacity：15sets,Mon

Basic Info.

Model NO. LG946L Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Transport Package Nude Package Specification 7295*2766*3340 mm Trademark LIUGONG Origin China Production Capacity 15sets/Mon

Product Description

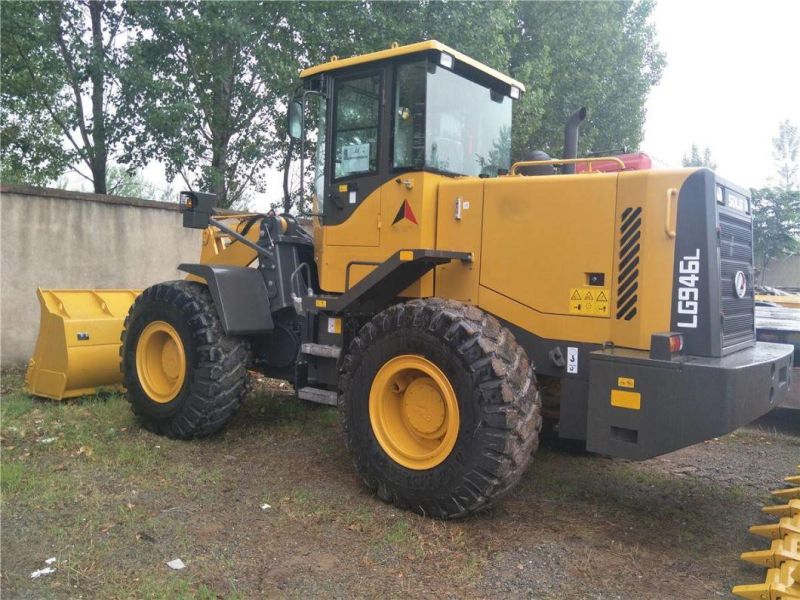

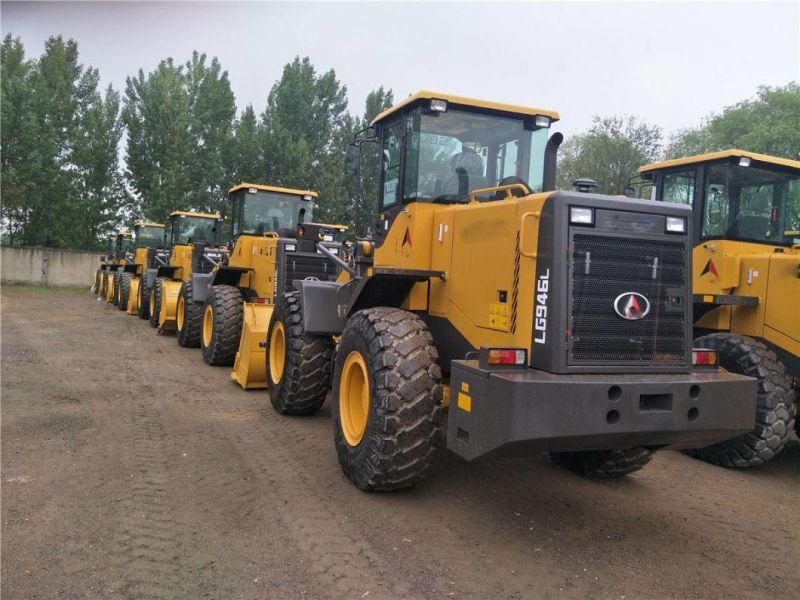

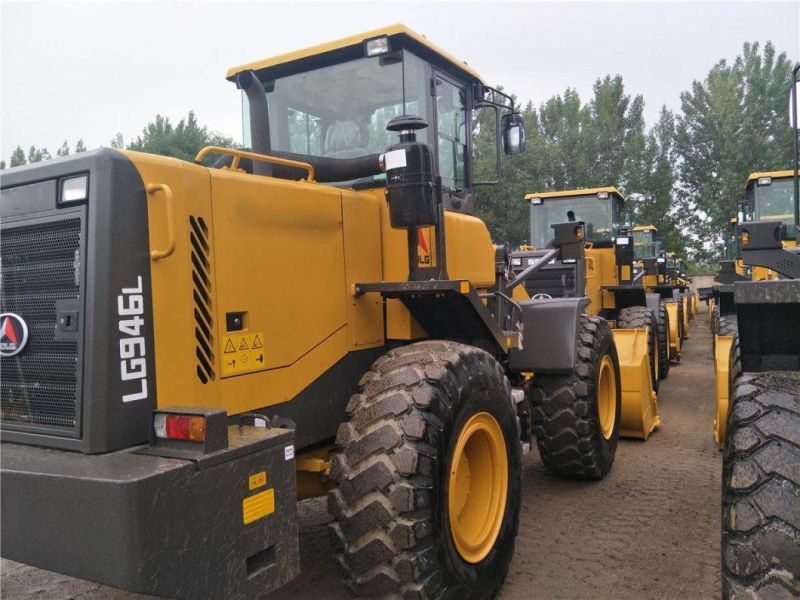

LG956F Wheel LoaderLG946L is a loader for loading and unloading loose materials, with high reliability and high cost performance, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
1. Energy-saving large torque engine meeting the requirements of China II emission standard is provided, which realizes a perfect matching with high-efficient and large-capacity torque converter and 1st generation of energy-saving technology, improves operating efficiency, reduces energy consumption and realizes a comprehensive energy saving of more than 10%.
2. 5-ton transmission case and reinforced drive axle is configured, with large bearing capacity and high reliability.
3. New steel structure cab is adopted, which has wide vision, large operation space, fully-covered cab internal trimmings, good sealing performance, standard air conditioning and comfortable driving environment; The ROPS&FOPS cab can be installed optionally and is of good safety.
4. Electrical apparatus element is of high-end and mature system, which makes the electrical system more stable and reliable.
5. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate.
6. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
7. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high load factor and high reliability. New shift bracket of patent is provided for auxiliary appliance up to ISO international standard.

MODEL	LG946L
Operating weight (kg)	13000
Rated loading weight (kg)	4000
Rated bucket capacity (m3)	2.0
Engine model	WEICHAI
Rated power (kw/rpm)	129/2200
Travel speed (km/h)
Max. traction force (Kn)	≥120
Max. break-out force (Kn)	≥125
Tire
Overall Dimensions (LxWxH)	7295*2766*3340
Dumping clearance(mm)	3235
Dumping reaching(mm)	1055-1065
