Air Tamping Machine--D9 Tamping Machine
Fuzhou Golden Moral Imp & Exp Co., Ltd.- Type：Air Tamping Machine
- Shotcrete Type：Optional
- Machining Process：Optional
- Structure：Optional
- Productivity：50m²,h
- Feeding Height：1370mm
Base Info
- Model NO.：D9 air tamping machine
- Vibrating Amplitude：Optional
- Certification：CE
- Condition：New
- Color：Optional
- Weight：10kg
- Length：1200mm
- Piston Stroke：120mm
- Piston Dia：32mm
- Transport Package：Cartons
- Specification：CE
- Trademark：GM
- Origin：China
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. D9 air tamping machine Vibrating Amplitude Optional Certification CE Condition New Color Optional Weight 10kg Length 1200mm Piston Stroke 120mm Piston Dia 32mm Transport Package Cartons Specification CE Trademark GM Origin China Production Capacity 10000PCS/MonthProduct Description

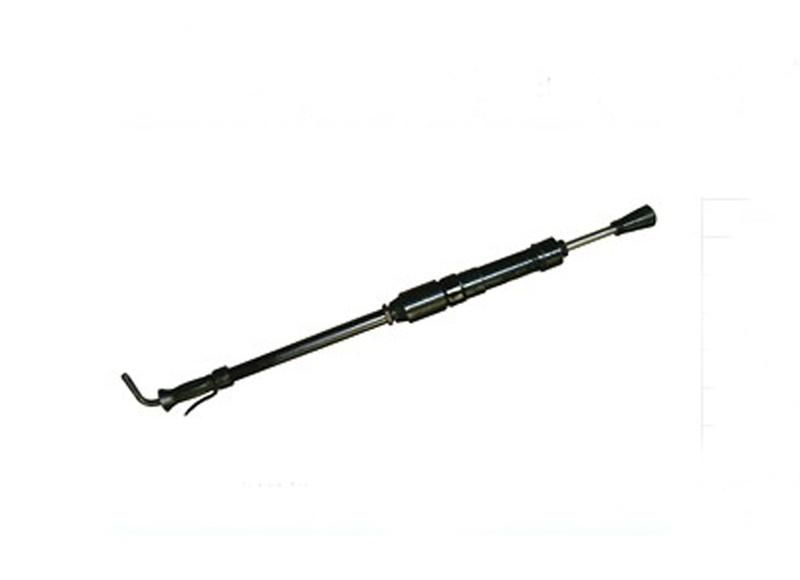

Air tamping machine is used for sand casting mould workshop, repairing the lining of steel making furnace and impacting the concrete on buildingAir Tamping Machine--D9 tamping machine
D9 tamping machine:
Weight: 10kg Length: 1200mm
Piston stroke: 120mm Piston dia: 32mm
Impact frequency: 10Hz Air consumption: 15L/s
Ari hose size: 13mm 16mm Working pressure: 0.63MPa
Other model of air tamping machine:
D3 Tamping machine:
Weight: 3.5kg
Length: 410mm
Piston stroke: 92mm
Piston dia: 22mm
Impact frequency: 15Hz
Air consumption: 10L/s
Ari hose size: 13mm 16mm
Working pressure: 0.63MPa
D4 Tamping machine:
Weight: 4.5kg Length: 525mm
Piston stroke: 90mm Piston dia: 22mm
Impact frequency: 15Hz Air consumption: 10L/s
Ari hose size: 13mm 16mm Working pressure: 0.63MPa
D6 tamping machine:
Weight: 6.5kg
Length: 1140mm
Piston stroke: 120mm
Piston dia: 25mm
Impact frequency: 10Hz
Air consumption: 15L/s
Ari hose sizeL 13mm 16mm
Working pressure: 0.63MPa
D3
| Weight | 3.5kg |
| Length | 410mm |
| Piston stroke | 92mm |
| Piston dia | 22mm |
| Impact frequency | 15Hz |
| Air consumption | 10L/s |
| Ari hose size | 13mm 16mm |
| Working pressure | 0.63MPa |
D4
| Weight | 4.5kg |
| Length | 525mm |
| Piston stroke | 90mm |
| Piston dia | 22mm |
| Impact frequency | 15Hz |
| Air consumption | 10L/s |
| Ari hose size | 13mm 16mm |
| Working pressure | 0.63MPa |
D6
| Weight | 6.5kg | |
| Length | 1140mm | |
| Piston stroke | 120mm | |
| Piston dia | 25mm | |
| Impact frequency | 10Hz | |
| Air consumption | 15L/s | |
| Ari hose size | 13mm 16mm | |
| Working pressure | 0.63MPa |
D9
| Weight | 10kg | |
| Length | 1200mm | |
| Piston stroke | 120mm | |
| Piston dia | 32mm | |
| Impact frequency | 10Hz | |
| Air consumption | 15L/s | |
| Ari hose size | 13mm 16mm | |
| Working pressure | 0.63MPa |
