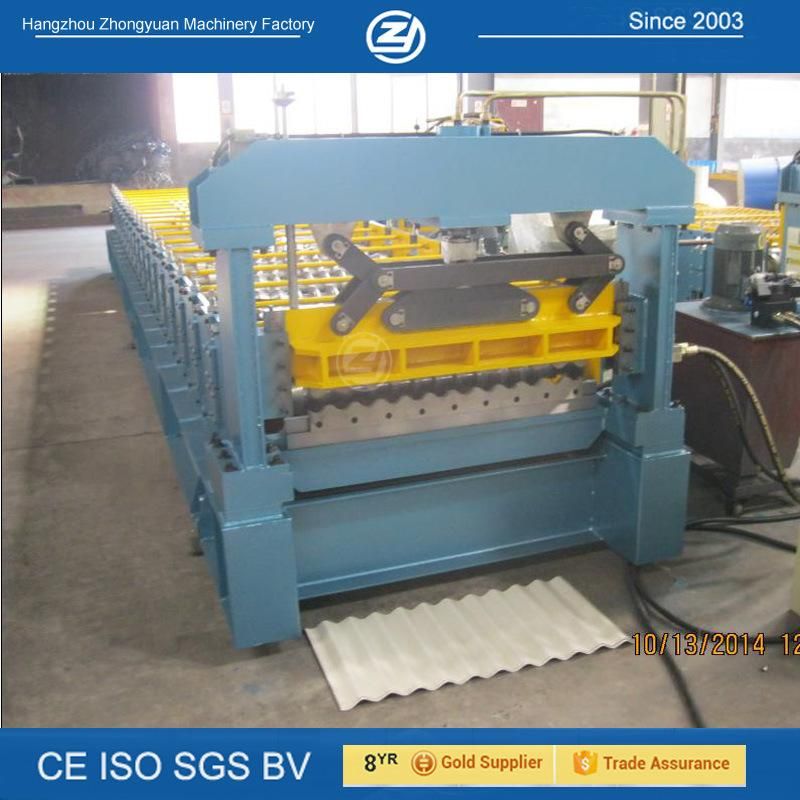

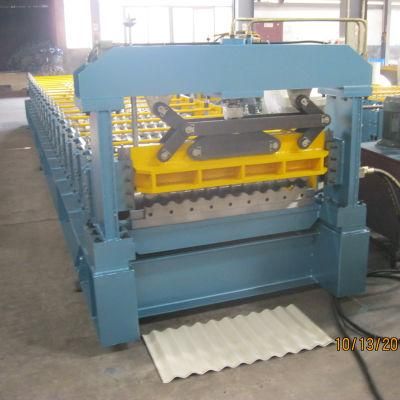

CNC Corrugated Metal Roller Cold Roof Panel Roll Forming Machine for Building Material China Manufacturer with ISO9001/Ce/SGS/Soncap
Hangzhou Zhongyuan Machinery Factory- Control System：Mitsubishi PLC & Converter
- Guarantee Time：First Year Free, Lifetime Services

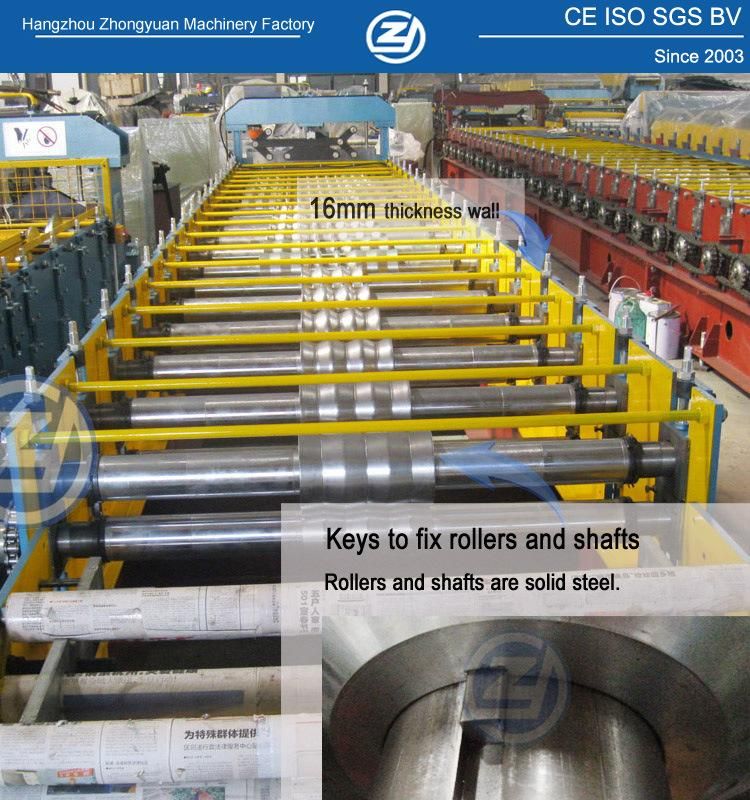

- Shafts for Rollers：Grand Twice, ID72mm Solid Steel
- Cutting Style：Automatic Hydraulic Cut to Length
- Operation Language：English or as Per Client`S Required
- Machine Size：8000*1600*1400mm
Base Info
- Model NO.：Corrugated Roll Forming Machine
- Delivery Time：About 50days
- Machines Weight：About 8t
- Rollers Material：No.45 Forged Steel with Hard Chrome
- Cutter Material：Cr12 Mould Steel with Quench Treatment
- Transport Package：1*40gp Container for One Machine
- Specification：CE SGS BV
- Trademark：Zhongyuan
- Origin：China
- HS Code：84552210
- Production Capacity：15 Sets,Month
Description

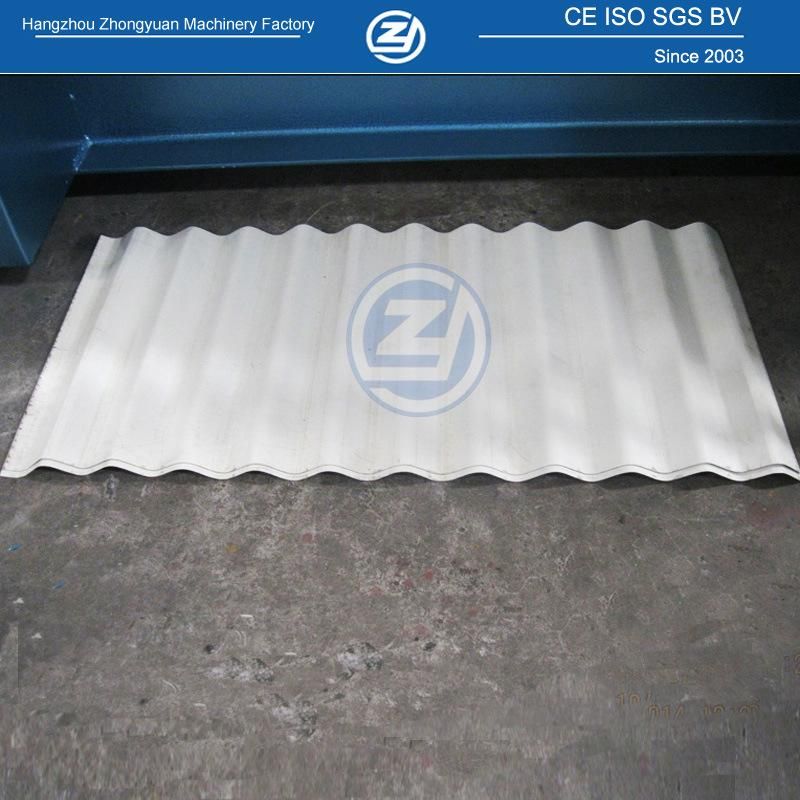

Gorrugated Roof Panel Roll Forming Machine for sale
Technical parameter Item Specification
Raw Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.4-0.7 Yield strength(mpa) 235-550 Roller material 45# steel , coated with Chrome Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder Forming speed(m/min) About 20-25 Output speed(m/min) About 12 for 6m length sheet Speed adjusting mode Mitsubishi frequency transformer Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Nemicon Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 7.5 KW Total power(kw) 9.7 KW Machine Size 8000*1600*1400mm
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

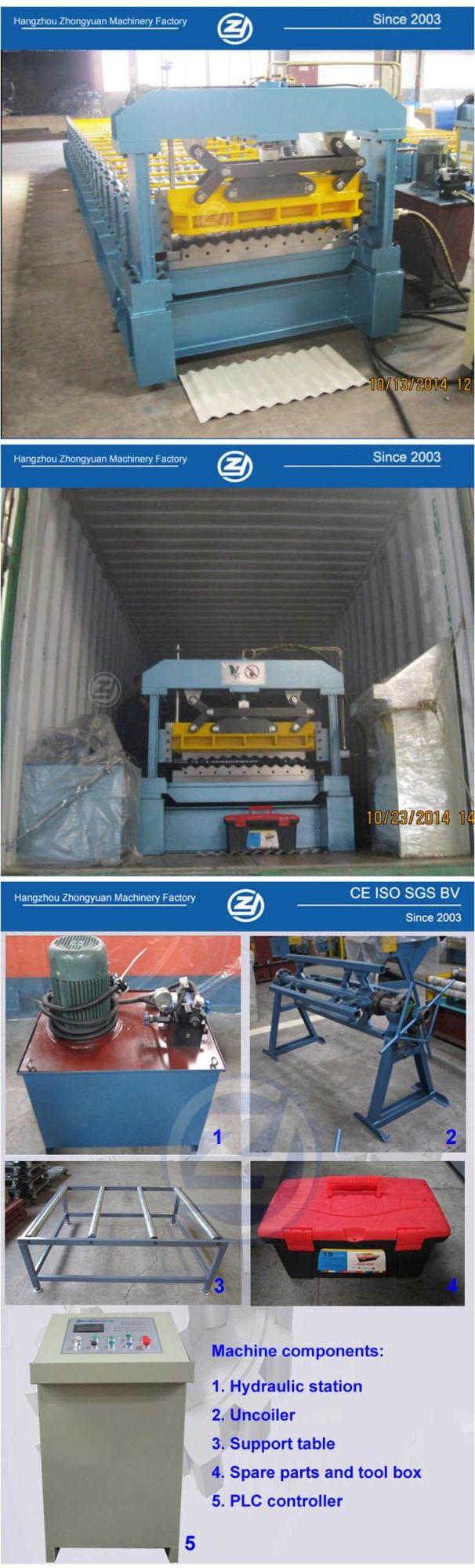

Components of machine Decoiler (manual decoiler and hydraulic decoiler for option) 1set Feeding & guiding device 1set Main roll forming machine 1set Hydraulic cutting system 1set Controlling system 1set Run out table (auto. Stacker for option) 1set
About Hangzhou Zhongyuan Machinery factory
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
7. Machine original brand: Zhongyuan
8. Set up business relationship with companies in more than 20 countries
