Pile Length 6m Hydraulic Mechanical Solar Impact Hammer Solar Pile Driver Used in Piling Projects in Farms, Pastures, Orchards, etc
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Drop Hammer
- Power Source：Diesel
Base Info
- Model NO.：HWL600R
- Motor Power：85kw
- Noise：Lower Noise
- Certification：CE, ISO 9001:2000
- Condition：New
- Model：Hwl600r
- Impact Frequency (BMP)：350-800
- Drill Rod Diameter (mm)：75,85,100
- Rotation Angle：360
- Track Shoe：350mm
- Walking Motor Total Emissions：<11500
- Walking Motor Reated Pressure：18MPa
- Overall Machine Weight：5.6t
- Application：Solar Pile Driver
- Piling Speed：2.7m,Min
- Engine Power (Kw)：85
- Engine Rated Speed (R/Min)：2600
- Track Shoe Width (mm)：350
- Track Single (Section)：42
- Rated Pressure of Walking Motor (MPa)：30
- Transport Package：Standard Export Packing
- Specification：4650*2150*2700mm
- Trademark：HW
- Origin：China
- HS Code：8430100000
- Production Capacity：100 Set,Sets Per Month
Description
Product number
HWL600R
Hydraulic hammer model (mm)
75/85/100 optional
Hydraulic hammer flow (L/min)
50-110
Impact frequency (bmp)
350-800
Drill rod diameter (mm)
75/85/100
Walking motor torque (N.m)
<11500
Pile height (mm)
According to the slide
Sliding guide frame inclination angle (°)
(Left) 5(Right) 5
Frame rotation angle (°)
360
Hydraulic system pressure (mpa)
22
Gear pump displacement (ml/r)
40+40+25
Traveling speed (km/h)
3
Vehicle weight (kg)
6200
Engine power (kw)
85
Engine rated speed (r/min)
2600
Track shoe width (mm)
350
Track single (section)
42
Total displacement of walking motor (ml/r)
53
Rated pressure of walking motor (mpa)
30
Travel motor reduction ratio
1:54.4
Dimensions (mm)

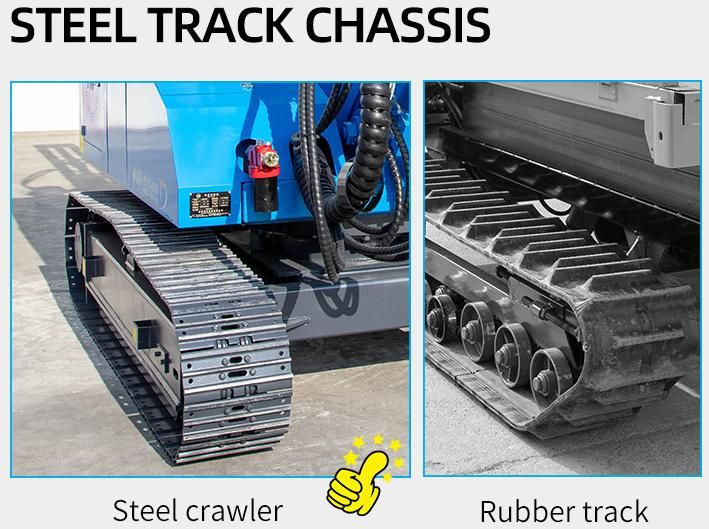

Steel track chassis
The engineering steel crawler chassis makes pile
driver walking and work more stable and reliable than
the rubber crawler.

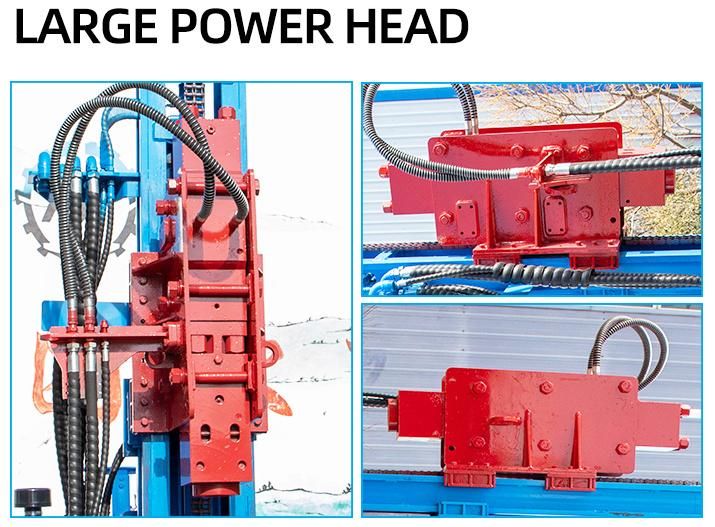

Large power headThis pile driver equipped with a large power head, the

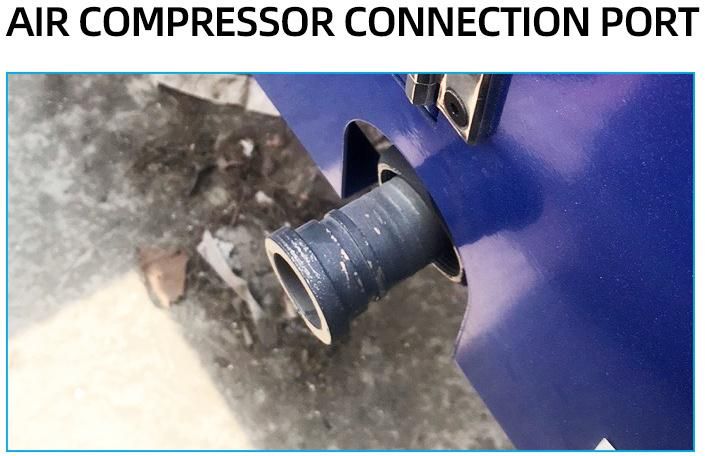

size of the pile cap can be customized.Air compressor connection port
In addition to piling, this machine can also be
connected to the air compressor for drilling hole

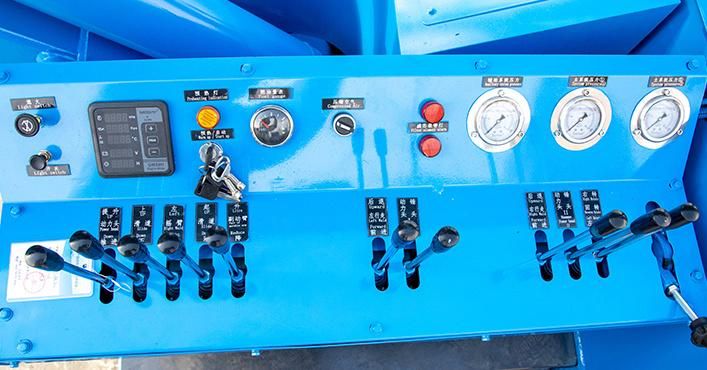

Centralized operation control platformThe centralized operation control platform makes the
operation more simple and convenientWorking Practice

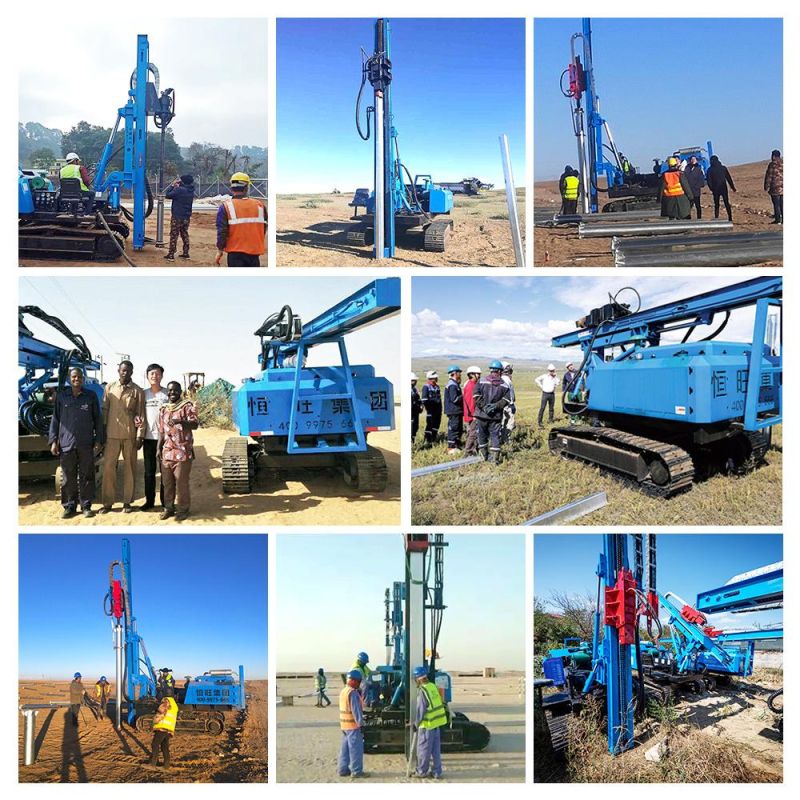

The following practical pictures of photovoltaic pile drivers are feedback from customers in Vietnam, Saudi Arabia, Romania, Mexico, South Africa, the Philippines, Malaysia, Colombia and other countries.
We also have many practical videos of pile drivers sent by customer service.
If you are interested, you can Contact us and send it to you! ! !

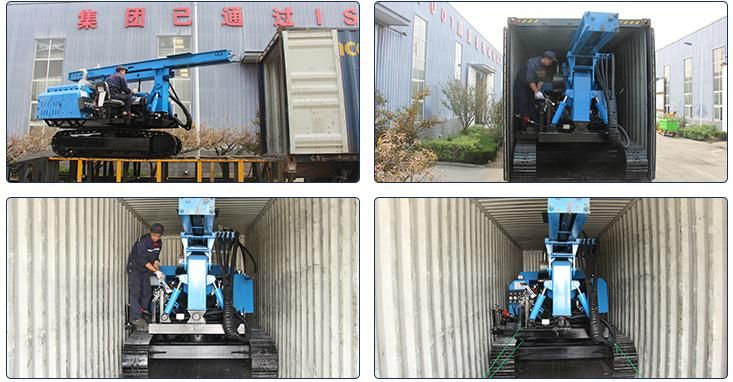

Packing & Delivery
One set pile driver need load into one 20f container,2 sets of pile driver can be load into one 40HQ container.
Customer visit
With the implementation and promotion of One Belt And One Road strategy, hengwang group grasps this important development opportunity, actively carries out cross-border e-commerce business, and expands overseas market.Currently, its business covers more than 40 countries and regions including Japan, Brazil and southeast Asia.Welcome friends from all over the world to visit, we with the quality and technology of pile driver machine equipment, won the trust of many customers.

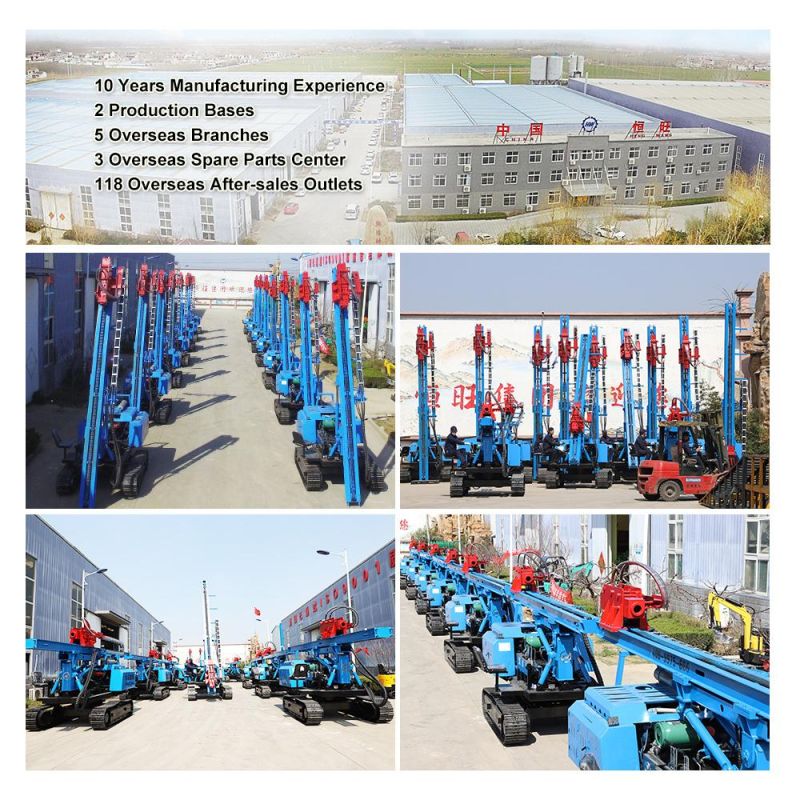

Our Company
Shandong Hengwang Group Co.,Ltd
Shandong Hengwang Group co.,ltd is the professional manufacturer of pile driver. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ?
Q:Are you manufacturer?
A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packagesbefore you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed
for anew one.And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE, IS09001.
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/TII:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
Contact now
