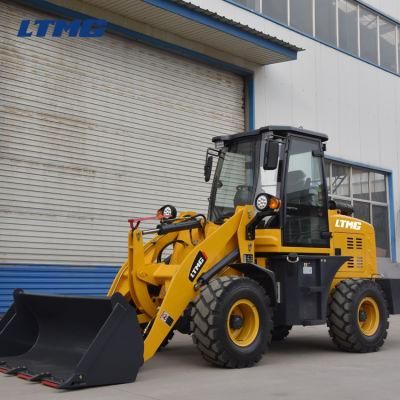

Chinese 936 Wheel Loader with Rock Bucket and Joystick

Xiamen LTMG Machinery Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Load：3 Ton
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：LT936
  • Type：Small Loader
  • Engine：Cummins or Weichai Deutz
  • Rated Power：92kw
  • Bucket Capacity：1.7 M3
  • Operating Weight：10, 100 Kg
  • Tire Type：17.5-25
  • Wheelbase：2850mm
  • Warranty：1 Year , 2000 Working Hours
  • Maximum Dumping Height：3400mm
  • Engine Power：74~147kw
  • Attachment：Snow Blade, Glass Fork, Log Grapple, etc
  • Transport Package：Container or by Bulk
  • Specification：7200mm*2350mm*3200mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：800units,Year

Description

ModelLT936Operating  weight10,100 kgRated load3,000 kgBucket capacity1.7m³Engine modelDeutz WP6G125E22Rated engine power92kwRated rotate speed2200r/minMaximum torque500N.mBreakout force98KNForward 10-8km/hForward 20-13.5km/hForward 30-25km/hForward 40-36km/hReverse 10-9.5km/hReverse 20-30km/hGrade ability28°Overall length7200mmOverall width2350mmOverall height3200mmWheel base 2850mmTrack base 1800mmMinimum ground clearance450mmMaximum dumping height3400mmMaximum dumping reach1290mmRaise time ≤6.8sTotal ≤12.5sFuel Tank180LTyre type17.5-25

Product Features

1. Quick hitch for special needs such as the log grapple, block fork, snow blade, grass fork,enlarged bucket and teeth etc.

2. Weichai-Deutz Deutz WP6G125E22 92KW Engine, low RPM speed Engine, strong power, energy conservation and environmental protection. DF-Cummins engine, Steyr engine, Shangchai engine is optional.

3. To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

4.The maximum dumping height is 3400mm. Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.

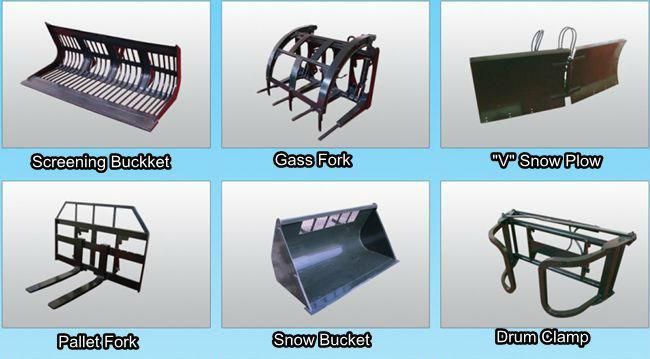

5.Optional attachment:Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Chinese 936 Wheel Loader with Rock Bucket and JoystickChinese 936 Wheel Loader with Rock Bucket and Joystick
Chinese 936 Wheel Loader with Rock Bucket and Joystick
Chinese 936 Wheel Loader with Rock Bucket and Joystick
Chinese 936 Wheel Loader with Rock Bucket and Joystick

Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year or 2000 hours (which occurs first) period quality warranty.Detail clauses and policies please see to our website and product's quality certificate.

Chinese 936 Wheel Loader with Rock Bucket and Joystick
FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
