• Model NO.：XLZ2303
• Automatic Grade：Semi-Automatic
• Product Capacity：40～400t,h
• Certification：ISO9001: 2000
• Condition：New
• Transport Package：Nude Package
• Specification：2.3m
• Trademark：Sinomada
• Origin：China
• HS Code：8429521200
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. XLZ2303 Automatic Grade Semi-Automatic Product Capacity 40～400t/h Certification ISO9001: 2000 Condition New Transport Package Nude Package Specification 2.3m Trademark Sinomada Origin China HS Code 8429521200 Production Capacity 50000pieces/Year

Product Description

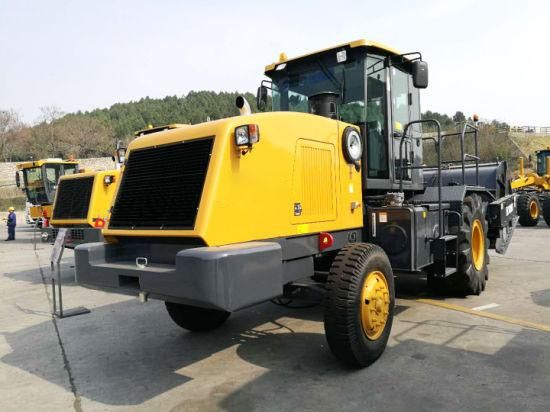

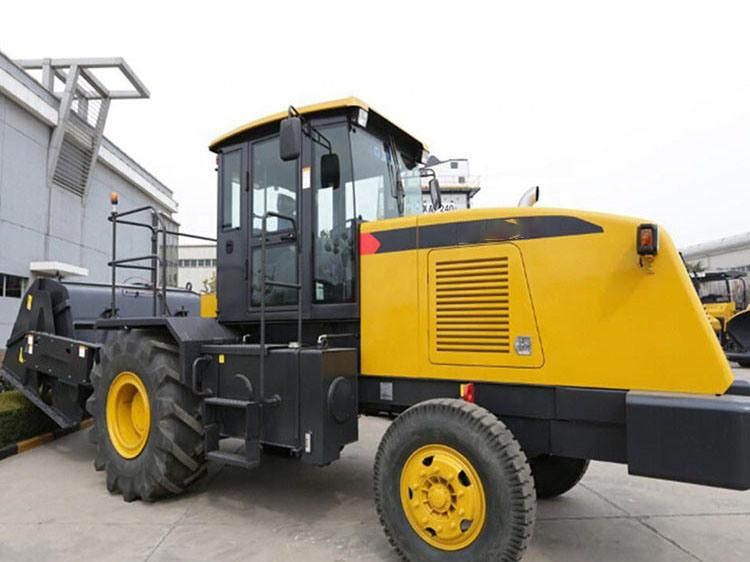

Road Construction Machinery New Soil Stabilizer 2.3m XLZ2303
* The undercarriage system has two speed modes (high speed mode and low speed mode); it adopts dual full-bridge driver and four-wheeled walking mode. Its low-pres- sure wide-base big tread pattern tires have a good road holding capacity.

* Sprinkling system has the functions of sprinkling water. The sprinkling system can manually and intelligently control flow of sprinkled medium.

* Automatic depth control: built- in sensor of hydraulic cylinder is used for detection, and milling depth can be displayed on display.

* The intelligent control system can achieve on-line display, fault diagnosis, fault alarm, maintenance. hints and other advanced functions in working mode and walking mode; at the same time, various data can be directly read through display.

Item	Unit	XLZ2303
Milling width	mm	2300
Maximum milling depth	mm	400
Cutter spacing	mm	17
Diameter of milling wheel (with cutter)	mm	1380
Manufacturer		Imported Cummins
Cooling type		Water-cooling
The quantity of cylinder stator		6
Rated power	kW	447
Engine speed	rpm	2100
Oil consumption: Full load	kg/h	98.3
Working speed	km/h	0-2.5
Traveling speed	km/h	0-10
Theoretical gradeability (working gear)	%	40
Front axle load	kg	21000
Rear axle load	kg	10000
Shipping weight	kg	29500
Working weight	kg	/
Fuel tank	L	1000
Hydraulic oil tank	L	400
Water tank	L	750
Voltage of electric system	V	24
Machinery(length*width*height)	mm	10193x3161x3450
