• Model NO.：B350X55X88
• Link：88
• Overall Length：4840mm
• Transport Package：Pallet or Bare Package
• Specification：B350X55X88
• Trademark：PY
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. B350X55X88 Link 88 Overall Length 4840mm Transport Package Pallet or Bare Package Specification B350X55X88 Trademark PY Origin Shanghai China HS Code 8431499900 Production Capacity 3000PCS/Month

Product Description

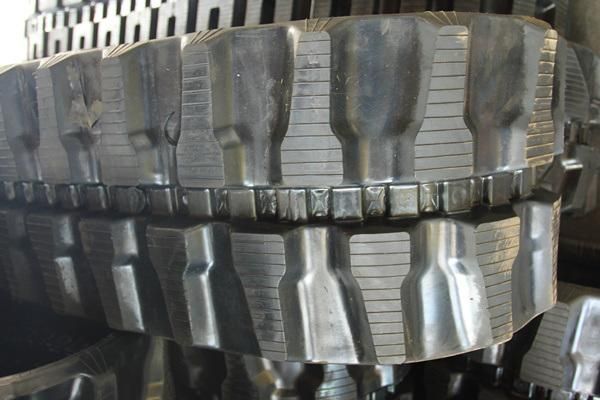

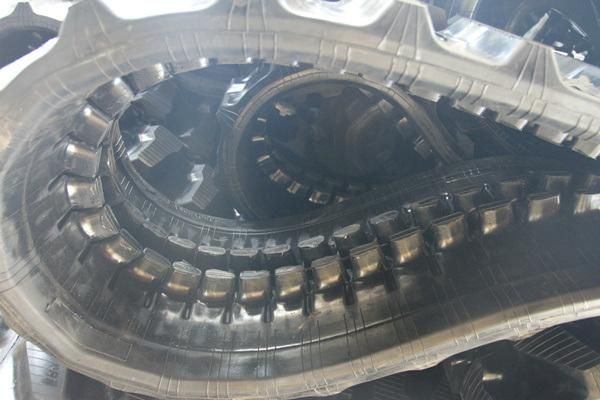

ΔWe can ensure the rubber track B350X55X88 can be fit E42(or replacement size 300X55X88).

If this is not the rubber track or machine you want to fit,please message me with your excavator brand and model.

ΔHow to Measure Rubber Tracks?
To check for the size of your existing rubber track you will need to measure followings:

1.     Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)

2.    Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you).  This distance is known as the pitch of the track.

3.   Count the total number of links(also called metal pieces or lugs) inside of the track in one row.

So the measurement of a track is Width x Pitch x Links.


ΔInterchangeable Track Designs
Interchangeable guide type replacement tracks were originally designed for use on equipment with undercarriages designed for steel tracks but now most can interchange with rubber.  Interchangeable type rubber tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 47, 48, 48.5, 60, 52.5, 53, 54, 54.5, 55, 55.5, 56, 71, 72, 72.5, 73.5,74,75.5, 76,79, 81,81.5, 83.5, 86,88,90,92, 96, 100,101,101.6,106,107,108,109,110,125,142,144,150,152.4,225millimeters.

ΔConventional Track Designs
Conventional guide type replacement tracks are designed for use on equipment with undercarriages designed for rubber tracks.  Conventional type tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 29-114,or more,that can be customized.

ΔRubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.

MODEL	ORIGINAL SIZE	REPLACE SIZE	ROLLER
E42	350X55X88	300X55X88	B1

ΔPackaging:
products wrapped by stretch film, packed by pallet or ply-wood case; or as requested.

ΔShipping:
1. Delivery time: Usually 5 working days from the date of receiving full payment.
2. We can arrange ocean or air shipping as requested from any port of China.

ΔOur Service:
1. OEM or ODM service is available.
2. One year warranty.
3. Well-trained and experienced staff to answer all your questions when see your message.
Professional sales team keep on providing you reliable products with the best price.
4. Life-long free technical consultant available.
