• Model NO.：PF-5510
• Certification：ISO9001: 2000
• Condition：New
• Material：Rubber and Steel
• Width：483mm
• Pitch：152.4mm
• Links：52
• Warranty：12months
• Weight：315.64kg,PC
• Transport Package：Wooden Pallet
• Specification：483*152.4*52
• Trademark：POOYERT
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. PF-5510 Certification ISO9001: 2000 Condition New Material Rubber and Steel Width 483mm Pitch 152.4mm Links 52 Warranty 12months Weight 315.64kg/PC Transport Package Wooden Pallet Specification 483*152.4*52 Trademark POOYERT Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 Pieces/Month

Product Description

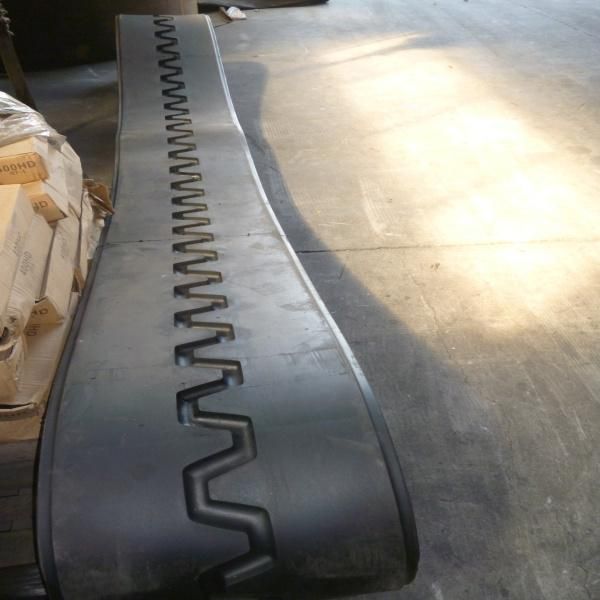

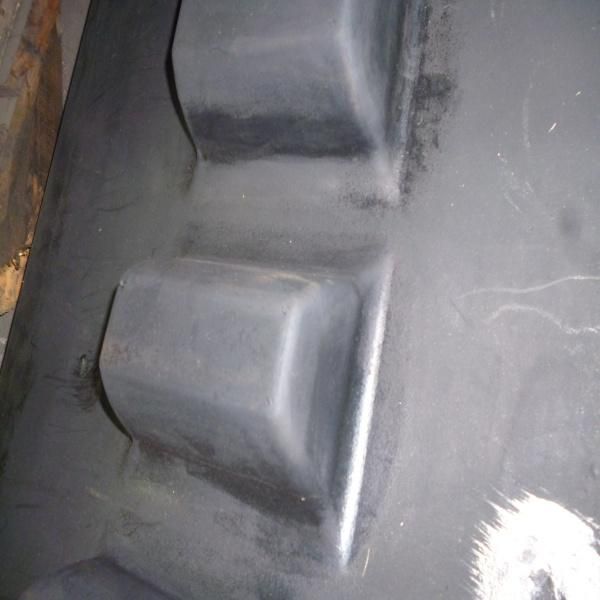

Asphalt Paver Blaw Knox PF5510 Rubber Track (19" width)

following models can be fit:

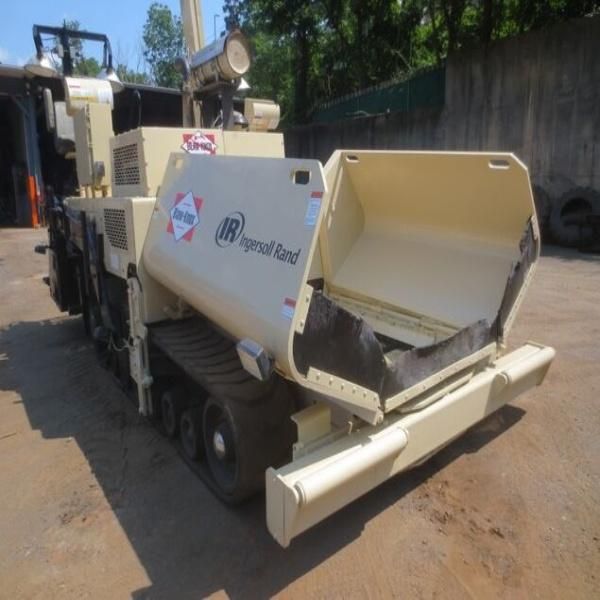

• Blaw Knox PF5510
• Ingersoll-Rand PF5510
• Volvo PF5510

Product Information:
High Quality Construction Machine Paver Rubber Crawler (483-152.4-52)



1. Small order accept
2. Fast delivery
3. Advanced technique

Specifications:
1. Characteristics of High Quality Construction Machine Paver Rubber Crawler (483-152.4-52):
1). Rubber track with Less damage to the ground surface
2). Low noise rubber track
3). High running speed rubber track
4). Less vibration rubber track;
5). Low ground contact specific pressure rubber track
6). High tractive force rubber track
7). Light weight rubber track
8). Anti-vibration rubber track

2. Conventional type or interchangeable type rubber track

3. Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, carrier vehicle, agriculture machinery, paver and other special machine.

4. The gap between iron cores is very small so that can support the track roller completely during driving, reduces the shock between machine and rubber track.

5. The length can be adjusted to meet your needs. You can use this model on robot, rubber track chassis.
Any problem please contact with me.

Parameters:


Size	Weight for Each Link	Size	Weight for Each Link	Size	Weight for Each Link
130*72	0.36	WD300*72	1.459	400*144	7.75
150*60	0.52	B300*84	2.88	400*144Y	7.41
150*72	0.55	T300*86	3.13	420*100	5.3
170*60	0.48	300*109KW	3.38	450*71	4.45
180*60	0.56	K300*109	3.56	DW450*71	4.82
180*72	0.64	300*109N	3.32	450*73.5	4.57
180*72K	0.87	300*109W	3.21	450*76	5.27
H180*72	0.77	320*52.5	1.69	450*81.5	5.24
190*60	0.59	320*54	1.81	450*81N	5.19
190*60	0.59	B320*84	2.95	450*81W	5.02
190*72	0.72	B320*86	2.99	450*83.5	5.47
200*72	0.84	B320*86SB	2.99	450*83.5Y	5.67
200*72K	1.07	B320*86C	3.01	450*84	4.22
230*48	0.87	B320*86Z	3.12	B450*86	4.33
230*48K	1.06	B320*86CM	3.01	B450*86SB	4.3
230*72	1.09	B320*86R	2.99	B450*86C	4.31
230*72K	1.34	T320*86	3.22	B450*86Z	4.51
230*96	1.77	T320*86MB	3.3	B450*86CM	4.37
230*101	1.92	T320*86SB	3.27	B450*86R	4.3
250*47	1.11	T320*86C	3.25	450*90	4.07
250*48.5	1.13	T320*86Z	3.53	KU450*90	3.9
250*52.5	1.04	320*90	2.85	450*110	6.9
250*52.5K	1.31	320*100	2.67	T450*100MB	5.3
250*72	1.17	320*100W	3.01	T450*100	5.09
B250*72	1.03	320*106	3.63	T450*100SB	5.16
250*96	2.21	350*52.5	1.85	T450*100C	5.2
250*109	2.39	350*54.5	2.31	T450*100Z	5.55
260*55.5	1.48	350*56	2.05	450*163	10.47
260*96	1.91	350*75.5	3.58	485*92W	7.62
260*109	2.16	350*90	1.85	500*71	7.5
280*72	1.43	350*100	3.69	500*90	5.38
280*106	3.05	350*108	3.92	500*92	7.81
300*52.5KB	1.67	350*109	4.12	500*92W	8.6
300*52.5KW	1.71	370*107	4.68	500*100	6.34
300*52.5N	1.44	400*72.5KB	3.44	500*146	9.97
300*52.5W	1.56	400*72.5KW	3.72	600*100	8.3
JD300*52.5N	1.54	400*72.5N	3.48	600*125	10.39
K300*52.5	1.72	400*72.5W	3.85	650*110	13.34
KB300*52.5N	1.55	400*72.5Y	3.62	650*120	13.75
300*53	1.81	400*74	3.4	650*125	15.8
300*55	1.88	400*75.5	4.09	700*100	10.9
300*55.5	1.95	400*86	4.14	700*125	14.29
300*71	3.31	400*90	2.22	750*150	21.34
300*72	1.77	400*107	4.95	800*125	19.14
		400*142	7.12	K800*150	21.55
ASV TRACK				M800*150	20.05
280*102*37	1.36	PAVER TRACK		900*150	31.23
380*102*42	1.9	356*152.4*46	4.81	1000*150	33.3
460*102*51	2.41	483*152.4*52	6.07
460*102*56	2.49	460*225*36	7.79	SPECIAL TRACK
460*102C*51	2.44			6"*3.5"*28	0.41
510*102*51	2.6			10"*3.5"*28	0.51

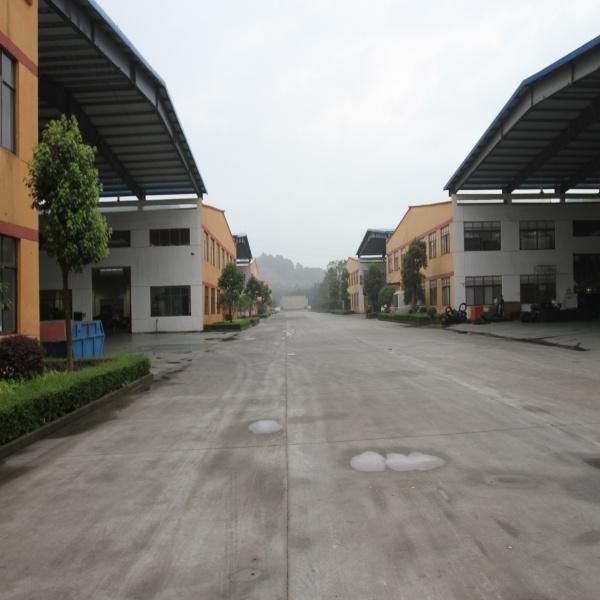

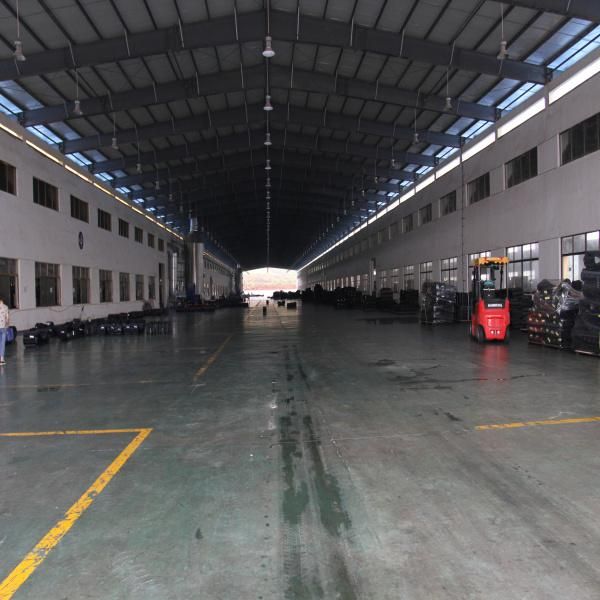

Workshop:
