• Model NO.：LW500FN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：Suit for Export
• Specification：7910× 3016× 3515mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：1000,Year

Overview Product Description

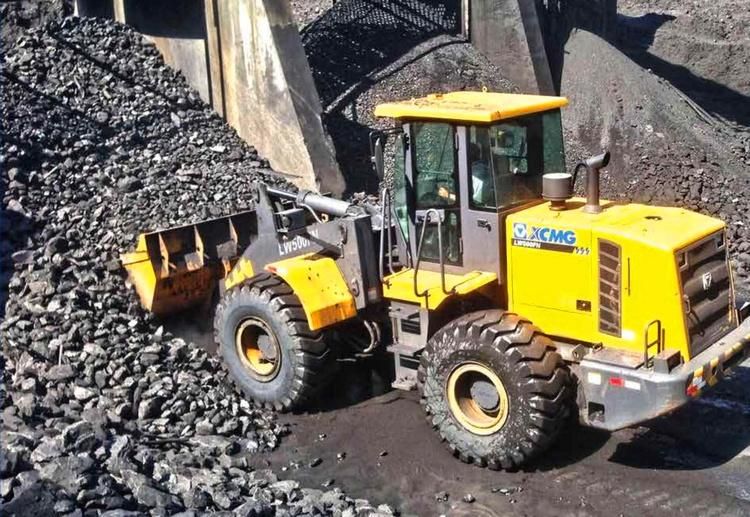

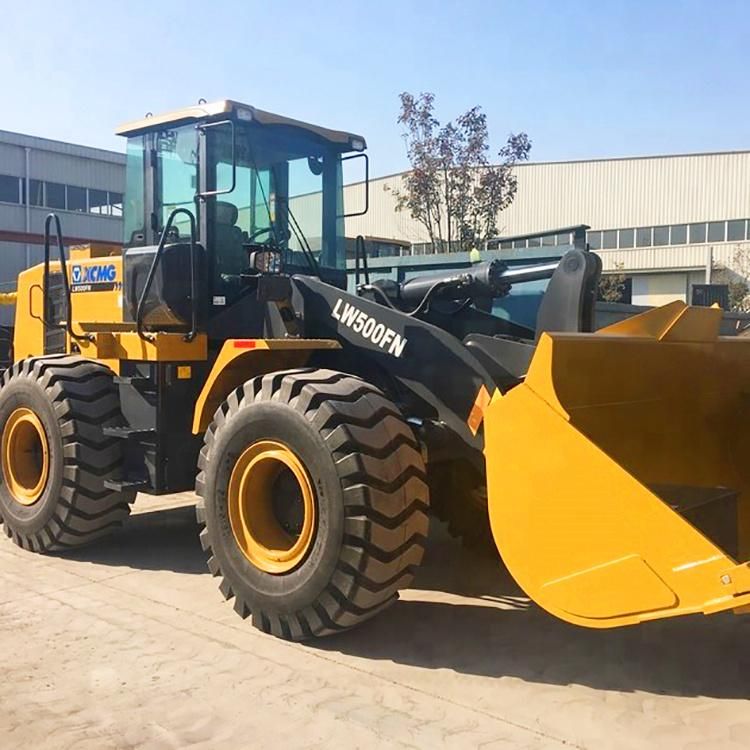

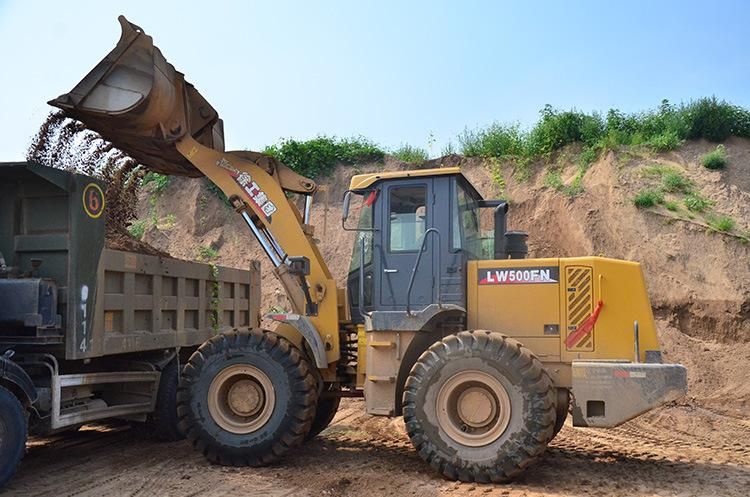

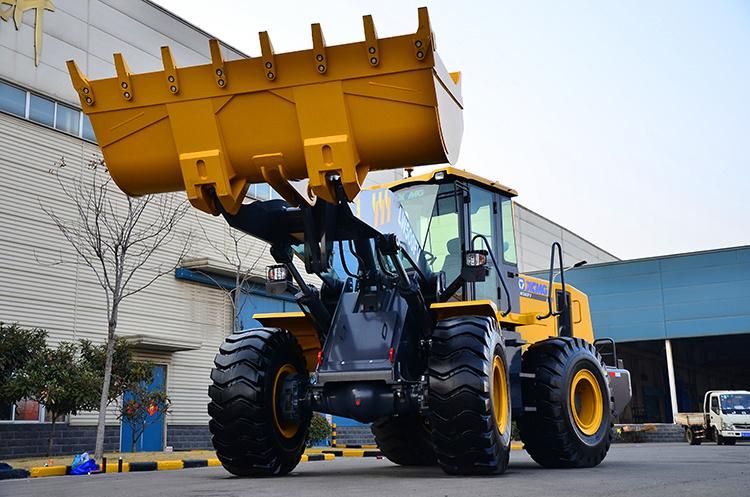

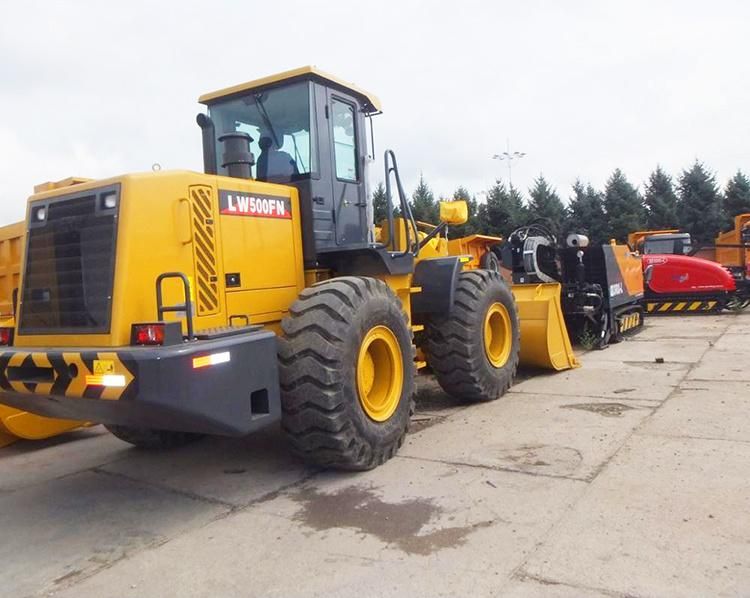

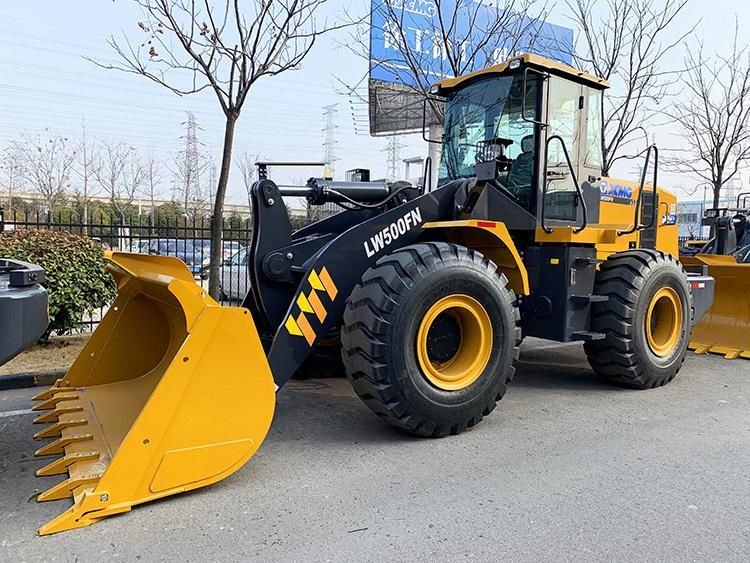

LW500FN wheel loader is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.

Focusing on the customer value and emphasizing the customer experiences, XCMG's new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.

Model Characteristics:

1. XCMG's exclusive high torque and high efficiency drive chain features reasonable matching.
2. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
3. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
4. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

Performance Highlights: The 160kN traction force and ≥3. 5m high dumping capacity handle the severe conditions with ease. ≥7 ,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

Variety attached tools meeting requirements of different working conditions:
Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Pallet fork/ Snowplow.

Product Parameters



DescriptionUnitParameter valueRated operating loadkg5000Bucket capacitym³2.5~4.5Machine weightkg16900Dump clearance at maximum liftmm3150~3560Reach at maximum liftmm1100~1190Wheel basemm2960Treadmm2250Height of hinge at maximum lift heightmm4112Working height(fully lifted)mm5510Max.breakout forcekN170Hydraulic cycle time-raises≤6Total hydraulic cycle times≤10.5Min. turning radius over tyresmm5950Articulation angle°35Gradeability°28Tyre size 23.5-25-16PROverall machine dimension L×W×Hmm7910×3016×3515Model WD10G220E21Rated PowerkW162Fuel TankL250Hydraulic TankL210Travel SpeedI-gear(F/R)km/h13/18II-gear(F/R)km/h40Product Show



Company Profile



FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
