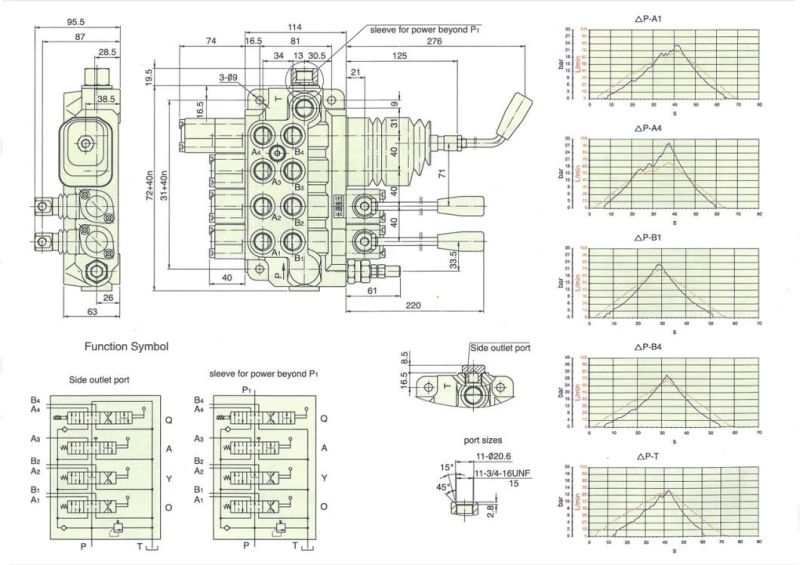

Hydraulic Monoblock Multi-Way Directional Control Valve

HEFEI CHANGYUAN HYDRAULIC CO., LTD.
  • Type：Manual Type
  • Application：Forklift, Tractor, Crane, Construction Machinery
  • Structure：Sectional Valve
  • Nominal Pressure：200 Bar
  • Nominal Size：15 mm
  • Nominal Flow Rate：50 L,Min

Base Info

  • Model NO.：ZD20
  • Spool Number：2,3,4
  • Valve Shaft Stroke：5.5+5.5 mm
  • Weight：2.0+1.8n Kg
  • Warranty：1 Year
  • Certificate：ISO9001
  • Transport Package：Packed in Exported Standard
  • Trademark：HCHC
  • Origin：Anhui, China
  • Production Capacity：5000 Sets Per Month

Description

Nominal Pressure
(bar)Nominal Size
(mm)Nominal Flow Rate
(L/min)Valve Shaft Stroke
(mm)Spool Number
nWeight
(kg)20015505.5+5.52/3/42.0+1.8nHydraulic Monoblock Multi-Way Directional Control Valve
