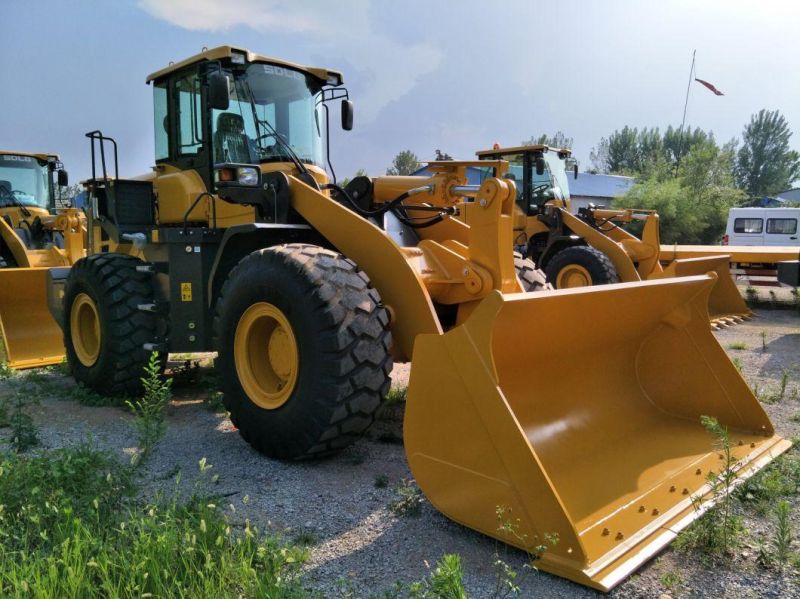

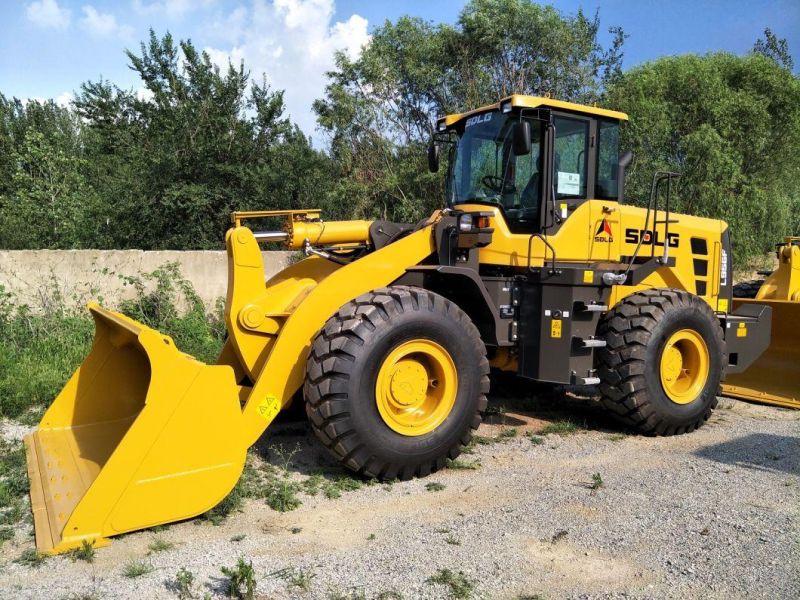

Sdlg Bucket Loader LG956f 5ton Front End Wheel Loader with Pilot Control
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
Base Info
- Model NO.：LG956f
- Rated Operating Load：5000kg
- Rated Capacity：2.7m3
- Operating Weight：17450kgs
- Max.Dumping Height：2950mm
- Engine：Weichai
- Rated Power：162kw
- Max. Traction Force (Kn)：165
- Dumping Clearance(mm)：3040mm
- Dumping Reaching(mm)：1095
- Transport Package：Nude Packing
- Specification：7295*2766*3340mm
- Origin：Jiangsu, China
- HS Code：84295100
- Production Capacity：1000,PCS
Description
Basic Info.
Model NO. LG956f Rated Operating Load 5000kg Rated Capacity 2.7m3 Operating Weight 17450kgs Max.Dumping Height 2950mm Engine Weichai Rated Power 162kw Max. Traction Force (Kn) 165 Dumping Clearance(mm) 3040mm Dumping Reaching(mm) 1095 Transport Package Nude Packing Specification 7295*2766*3340mm Origin Jiangsu, China HS Code 84295100 Production Capacity 1000/PCSProduct Description
Sdlg Bucket Loader LG956f 5ton Front End Wheel Loader with Pilot ControlProduct Description
Reliable
BX50 planetary transmission with high transmission efficiency is used.
LG A515 drive axle is adopted with rear axle swing design to provide strong bearing capacity and high reliability.
Standard 18 ply rating 23.5-25 tyres with superior wear resistance are adopted, which are more suitable to heavy load working conditions in mines.
Parker multiway valves, Permco working pumps and hydraulic components which are reliable and highly efficient are adopted.
Energy-efficient
Energy-efficient low RPM engine meeting China II emission standard requirements and highly-efficient large-capacity torque converter are perfectly combined to realize comprehensive energy conservation by 20%;
Comfortable
Three-level damping;
Cab space increased by 15%, indoor noise reduced to 80dB;
Mechanical suspended seat;
Curved glass with broad view.
Convenient
Engine hood and heat dissipation hood are designed with a large opening respectively to provide larger space for maintenance;
Oil filter, fuel filter and air filter are arranged at the same side to facilitate maintenance.
Parameter
| MODEL | LG956F | LG958F |
| Operating weight (kg) | 17450 | 17200 |
| Rated loading weight (kg) | 5000 | 5000 |
| Rated bucket capacity (m3) | 2.7 | 3.2 |
| Engine model | WEICHAI | WEICHAI |
| Rated power (kw/rpm) | 162/2200 | 162/2200 |
| Travel speed (km/h) | ||
| Max. traction force (Kn) | 165 | ≥150 |
| Max. break-out force (Kn) | ≥175 | ≥180 |
| Tire | ||
| Overall Dimensions (LxWxH) | 8180*3024*3423 | 8079*3024*3382 |
| Dumping clearance(mm) | 3040 | 3120 |
| Dumping reaching(mm) | 1095 | 1130 |
