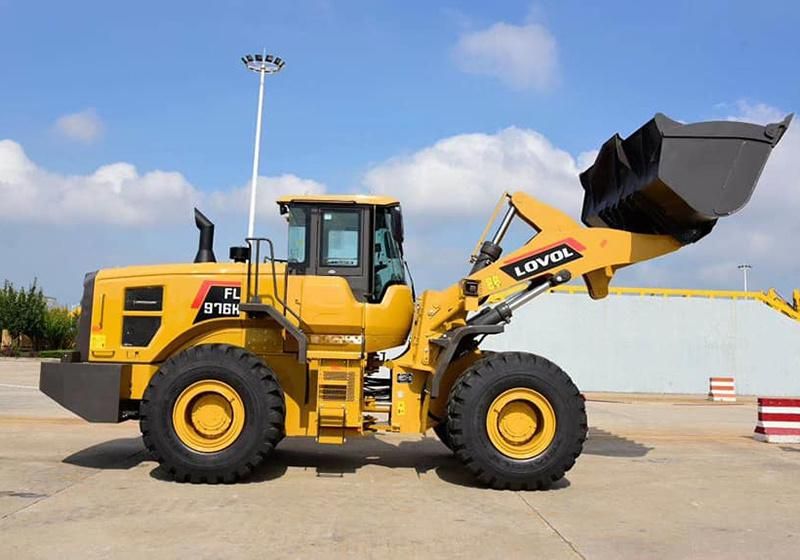

FL976h 23600kg 9150*3200*3380 7 Ton Wheel Loader

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Certification：ISO, RoHS, CE
  • Condition：New
  • Rated Load：6-9t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：FL976H
  • Type：Medium-sized Loader
  • Standard Bucket：4m3
  • Rated Load(Kg)：6500
  • Transport Package：Nude Package
  • Specification：8910*3050*3460mm
  • Trademark：Foton Lovol
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：50000PCS,Year

Description

Main paramaterOperating mass(kg)23600Bucket capacity4.5Rated load(kg)7000Traction(kN)192Digging force(kN)210Gradeability29Unloading height(mm)3490Unloading distance(mm)1320Min. ground diatance(mm)503Wheel tread(mm)2280Wheelbase(mm)3500Bucket outer turning radius(mm)7320Outline distance(mm)9150*3200*3380EngineModelGuangxi Cummins QSL9.3Max. torque(N·m)1190Rated power(kW)180Rated rotational speed(rpm)2200Running systemGearbox shiftFront:4 gears Rear:3 gearsMax. speed37TypePly ratingSteering angle37,39OtherOperating modelPilot controlSum of three items(s)11Fuel tank(L)330Hydraulic oil tank(L)150FL976h 23600kg 9150*3200*3380 7 Ton Wheel Loader
