• Model NO.：SC-D6P
• Productivity：5m3,H
• Feeding Height：200m Horizontal
• Vibrating Amplitude：2.0mm
• Condition：New
• Color：Orange
• Transport Package：Wooden Box
• Specification：1400*800*1100
• Trademark：Yongchuang
• Origin：China
• Production Capacity：500set,Month

Basic Info.

Model NO. SC-D6P Productivity 5m3/H Feeding Height 200m Horizontal Vibrating Amplitude 2.0mm Condition New Color Orange Transport Package Wooden Box Specification 1400*800*1100 Trademark Yongchuang Origin China Production Capacity 500set/Month

Product Description

                                                               Shotcrete Machine for Concete


1. Application :

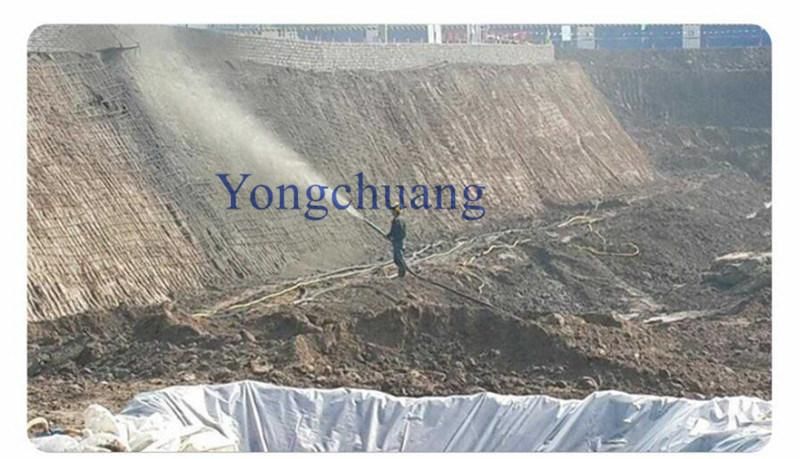

Suitable for tunnels, culverts, subways and underground works, etc.;
The explosive type is suitable for places with high combustible gas environment such as coal mines and chemical mines.
2. Machine Feature  :
1) The feeding port is enlarged, which is easy to continue the concrete material, and the air volume can be quantitatively controlled in time to ensure the concrete material and admixtures.
continuity.
(2) New straight-through rotor, equipped with polymer elastic material cavity, combined soft discharge elbow, lined with plastic elbow,
It eliminates the bonding and clogging of concrete and improves the construction efficiency.
(3) The wearing parts are made of materials with unique structure, and the elastic automatic clamping device is adopted to improve the sealing performance of the machine and reduce the wear of wearing parts
3. Machine Parameter  :


Model	SC-D6P	SC-D7P
Capacity (cubic m/h)	6	7
Tube Diameter (mm)	51	57
Discharge distance (Vertical and Horizontal)	30m,100m	30m,100m
Max Aggregate (mm)	20	20
Feeding height(mm)	1100	1300
Compressed Air Consumption	8~10m3/min	10-12m3/min
Air Pressure (mpa)	0.4-0.6	0.4-0.6
Motor Power(kw)	5.5	7.5
Vibration motor(kw)	0.15	0.25
Rotor Diameter (mm)	438	480
Weight (kg)	750	850
Machine's size	1400*800*1100mm	1500*800*1300mm

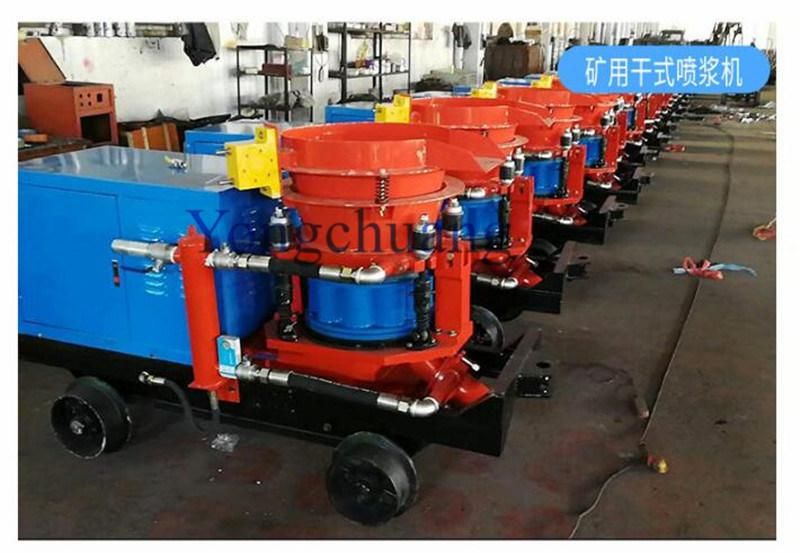

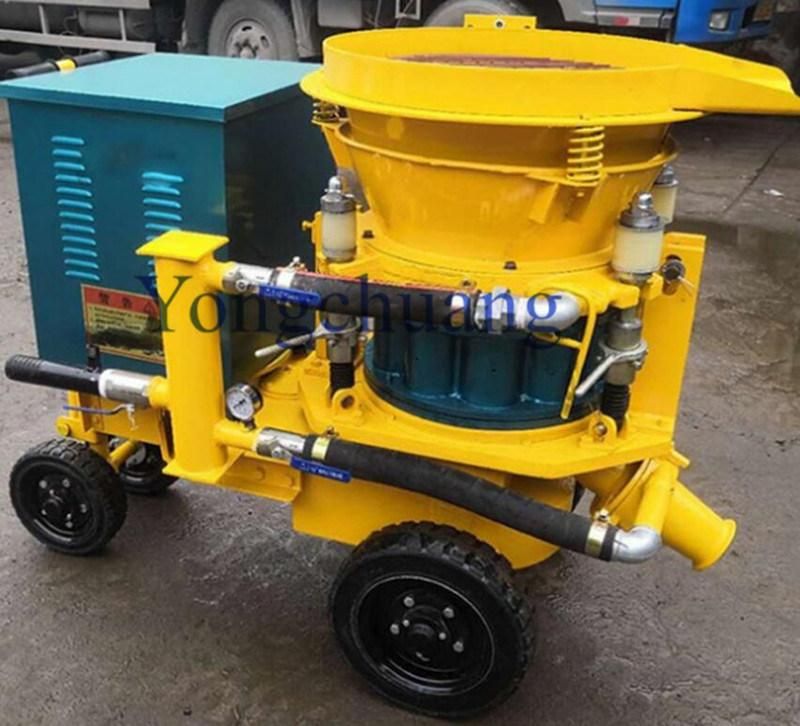

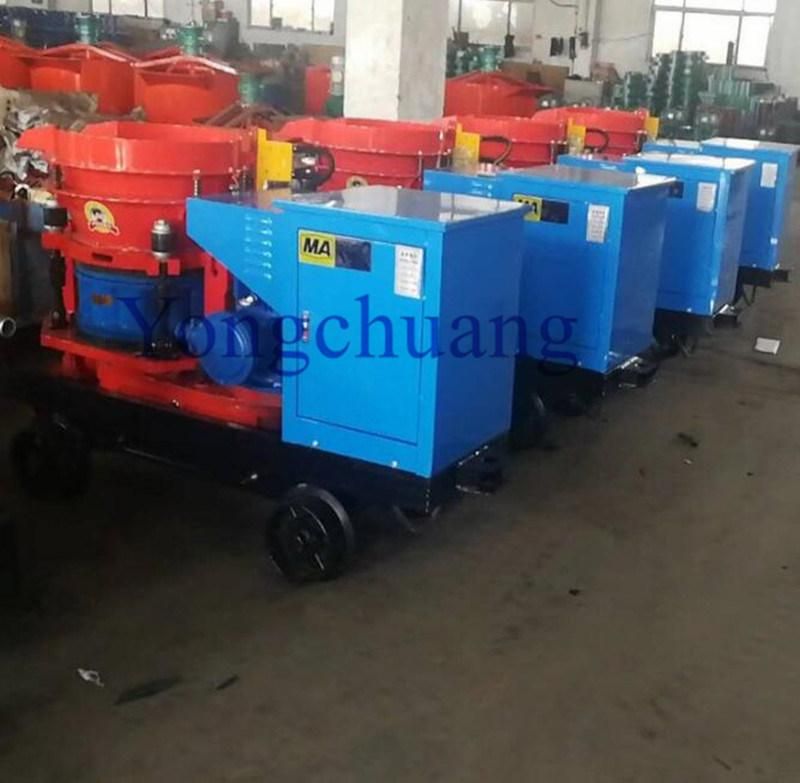

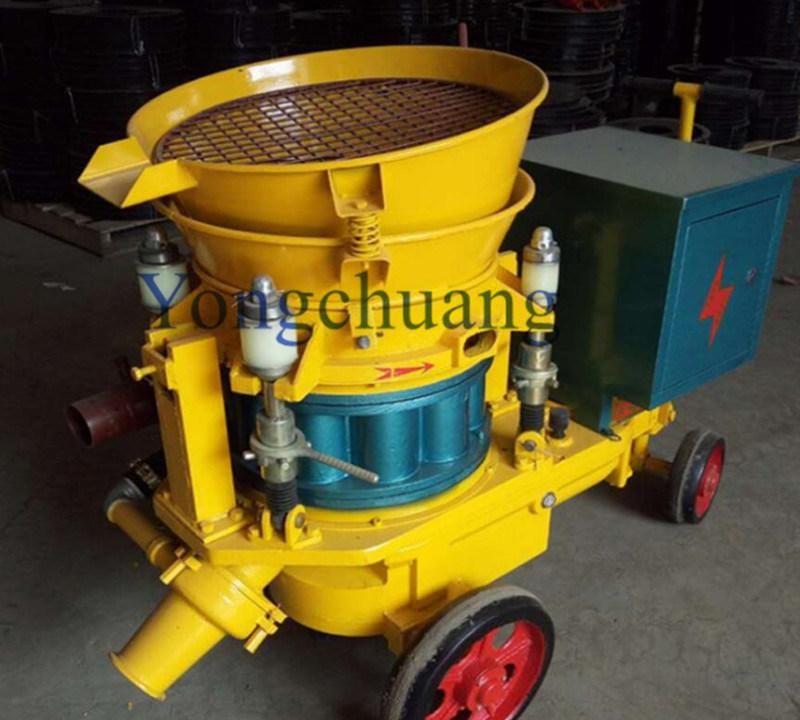

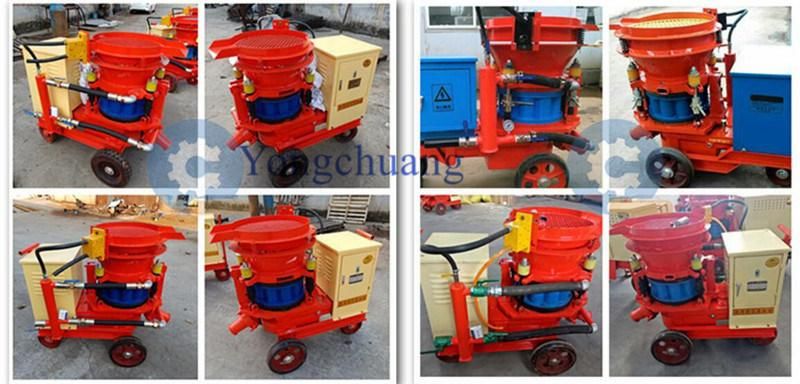

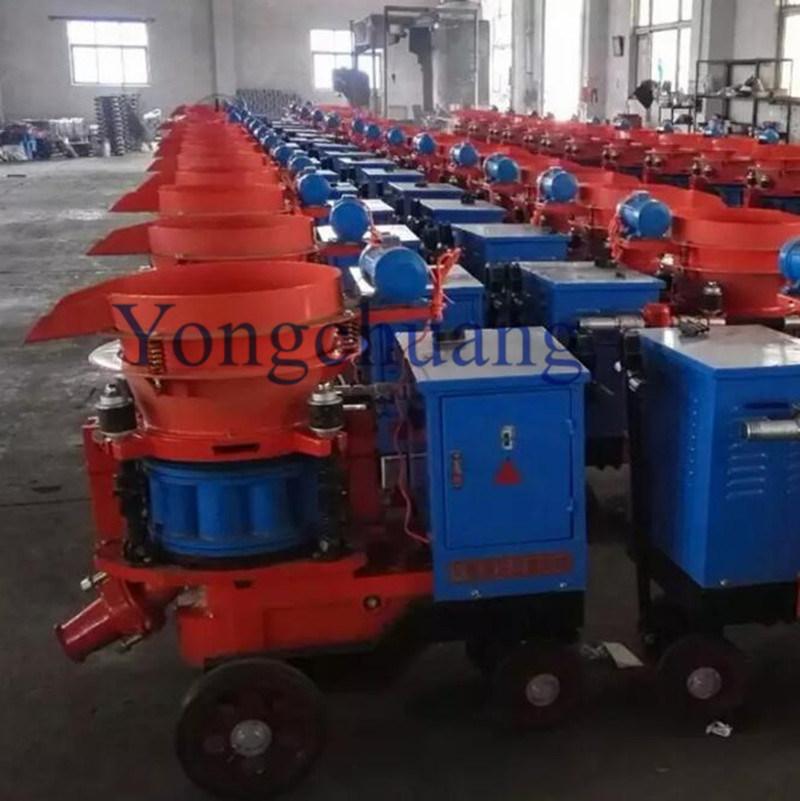

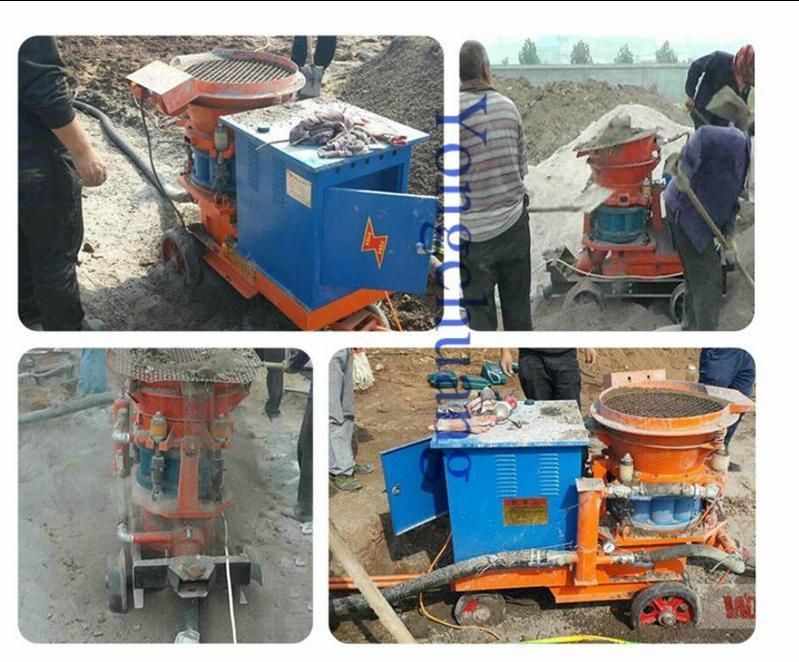

4. Machine Picture :
