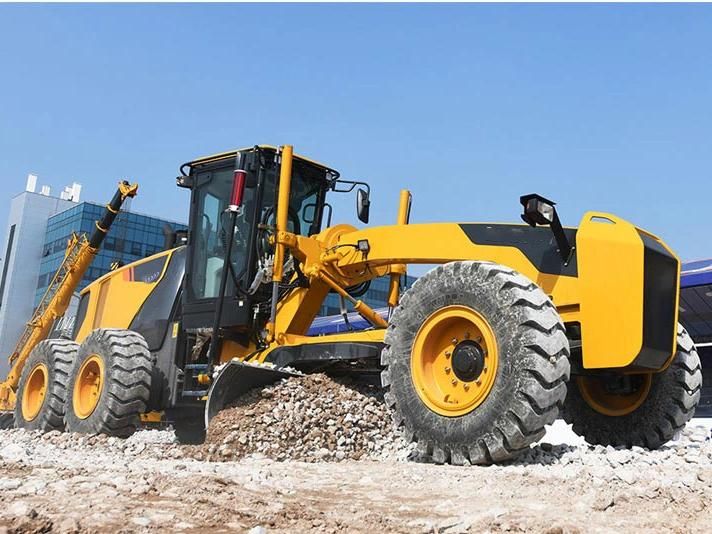

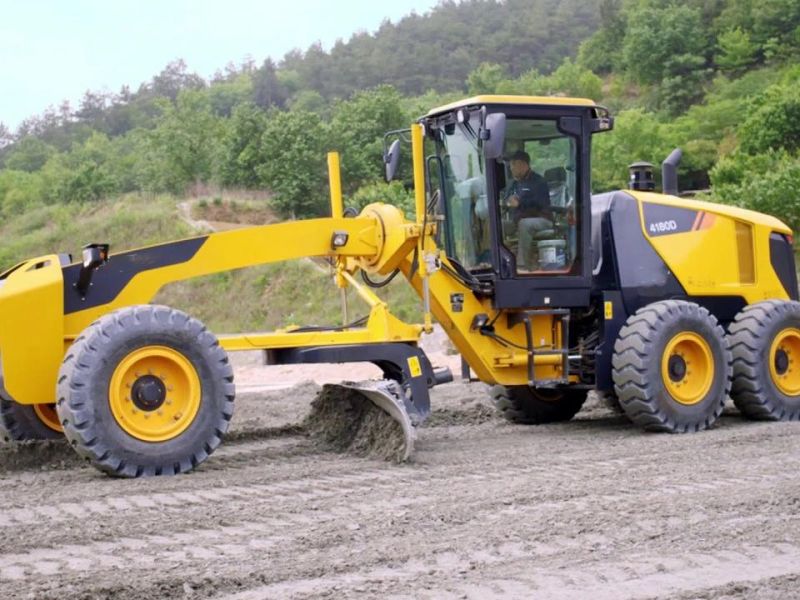

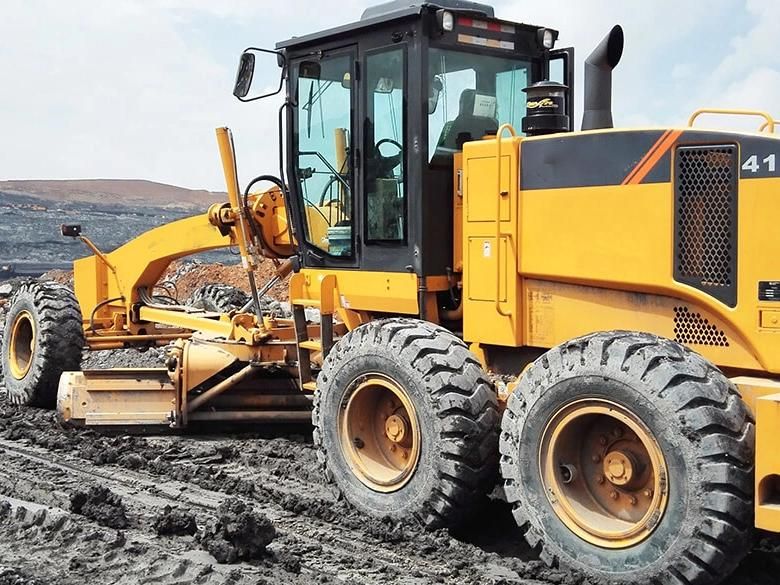

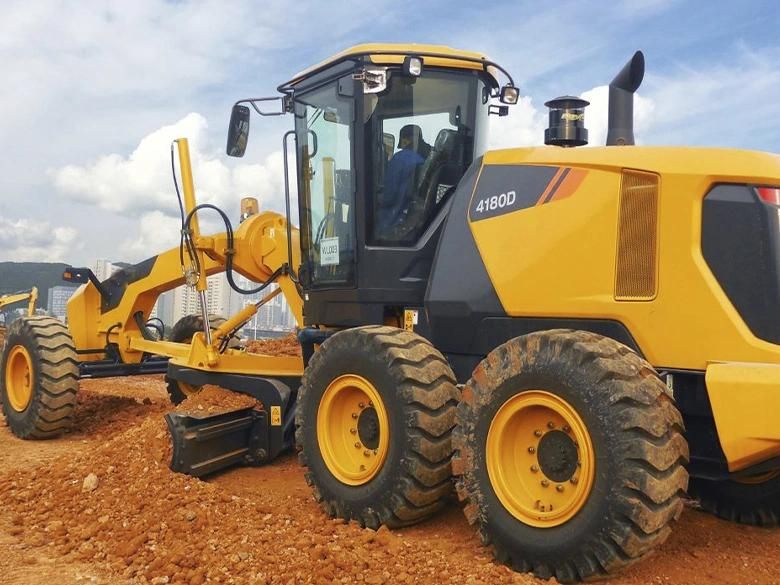

China Road Grader 15.5ton 180HP Motor Grader Hot Sale Clg4180

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1 Year
  • Certification：ISO, CE
  • Condition：New
  • Application：Construct Work
  • Transmission：Hydraulic

Base Info

  • Model NO.：CLG4180
  • Walking Mode：Wheeled
  • Type：Small Grader
  • Rated Power/Speed：142kw
  • Total Weight：15500kg
  • Blade Width：3960mm
  • Turning Radius：7300mm
  • Maximum Overall Height：3500mm
  • Specification：9265*3960*3500mm
  • HS Code：8501109190
  • Production Capacity：200

Description

Operating weight

15500 kg

Weight on front wheels

4650 kg

Weight on rear tandem

10850 kg

Drawbar pull

86 kN

Model

cumis 6BTAA5.9-C190

Emission regulation

Tier 2 / Stage II

Rated power

142 kW (193 hp) @ 2200 rpm

Net power

115W (174 hp) @ 2200 rpm

Type

Power shift

Speeds

6f / 3r

Maximum travel speed, forward

42 km/h

Maximum travel speed, reverse

26.2 km/h

Turning radius

7200 mm

Articulation angle

±27°

Maximum overall height

3380 mm

Width over tires

2600 mm

Blade width

3960 mm

Overall length

9090 mm
