• Model NO.：XS183J
• Certification：ISO9001: 2000, CE
• Condition：New
• Travel Speed：2.54~10.51 Km,H
• Theoretical Gradeability：30%
• Transport Package：Container,Roro,Bulk
• Specification：18000kg
• Trademark：TOP BRAND
• Origin：China
• HS Code：8429401100
• Production Capacity：500unit,Month

Basic Info.

Model NO. XS183J Certification ISO9001: 2000, CE Condition New Travel Speed 2.54~10.51 Km/H Theoretical Gradeability 30% Transport Package Container/Roro/Bulk Specification 18000kg Trademark TOP BRAND Origin China HS Code 8429401100 Production Capacity 500unit/Month

Product Description

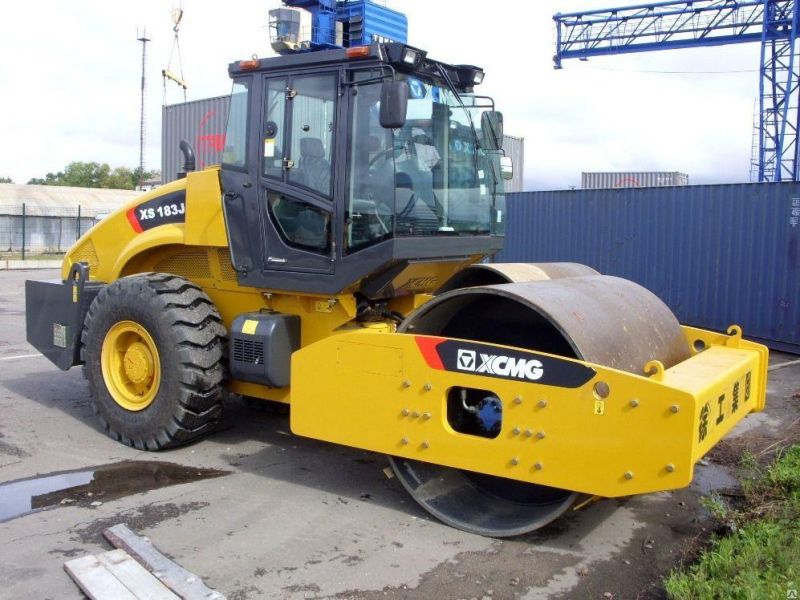

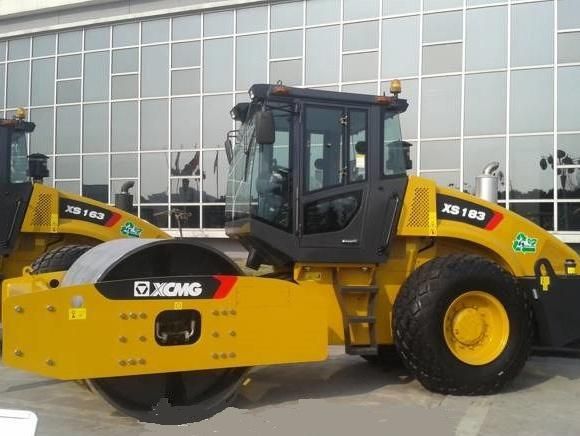

18 Ton Hydraulic Vibratory Road Rollers Compactor Xs183j/Xs183
XS183J is the most popular model of China 18t vibratory compactor ,is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

1.Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

2.High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.



Type	Unit	XS163J	XS183J	XS183
Operating weight	kg	1600	18000	18000
Load applied on front drum	kg	7700	9000	11500
Compacting width	mm	2340	2300	2130
Static linear load	N/cm	362	422	529
Vibration frequency(Low/High)	Hz	28	28	28/33
Nominal amplitude(High/Low)	mm	1.9/0.95	1.9/0.95	1.86/0.93
Exiting force(High/Low)	KN	290/145	320/160	340/240
Travel speed	km/h	2.85-11.17	2.54~10.51	2.54~10.51
Steering angle	°	±33	±33	±33
Swing angle	°	±11	±11	±10
Theoretical gradeability	%	30	30	50
Min. Outer turning radius	mm	6500	6500	6500
Engine model		Shangchai	Shangchai	DEUTZ BF6M2012C
Engine power	kw	103	115	136
Hydraulic oil tank capacity	L	170	170	240
Fuel tank capacity	L	310	310	240
