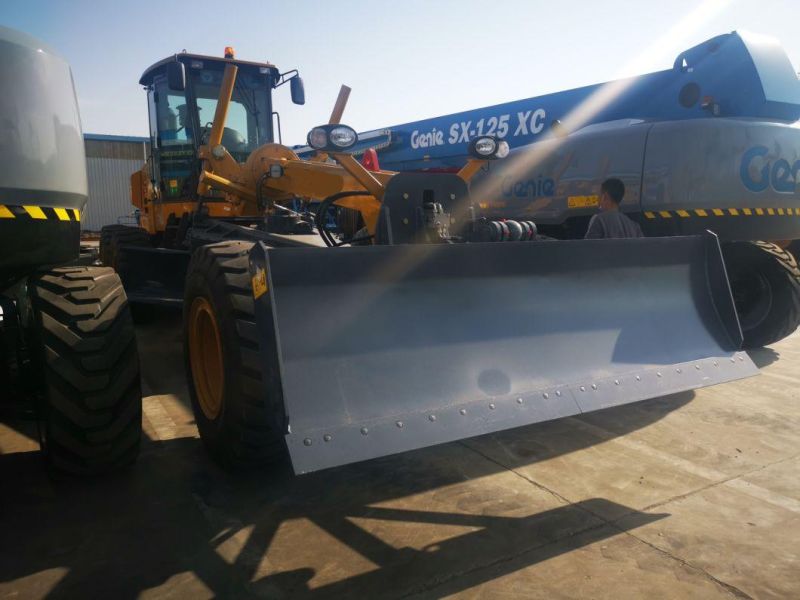

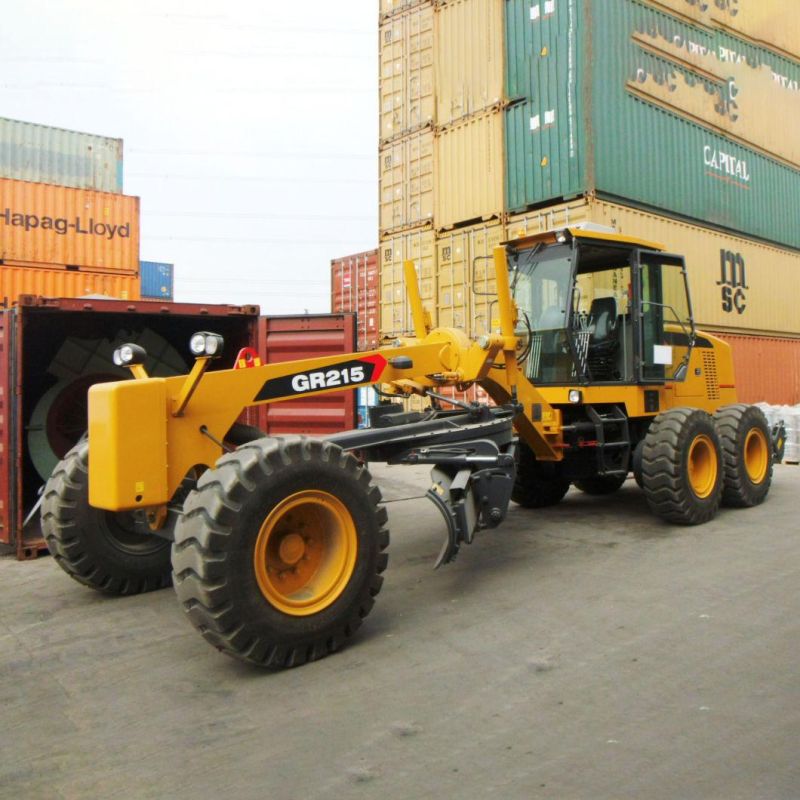

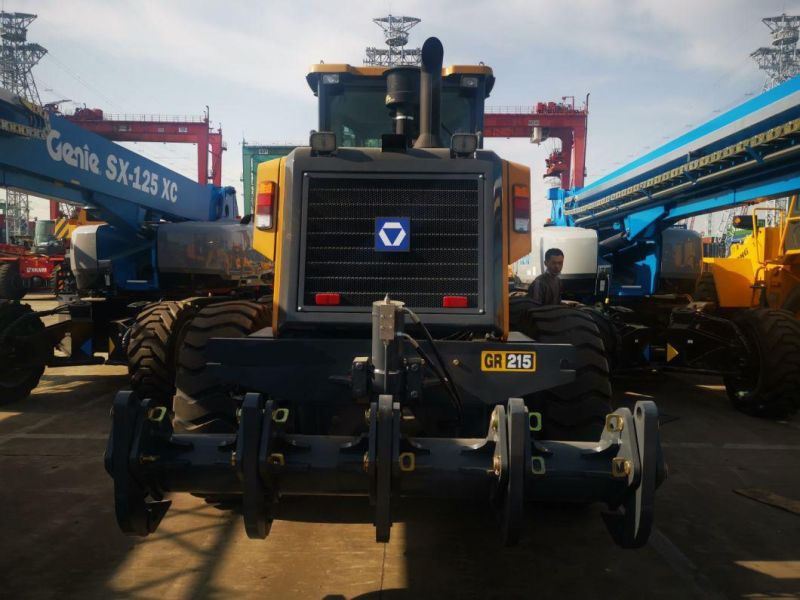

• Model NO.：Gr215
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Transport Package：Roro
• Specification：8015*2380*3050mm
• Trademark：Sinomada
• Origin：Jiangxu, China
• Production Capacity：1000 Pieces,Per Month

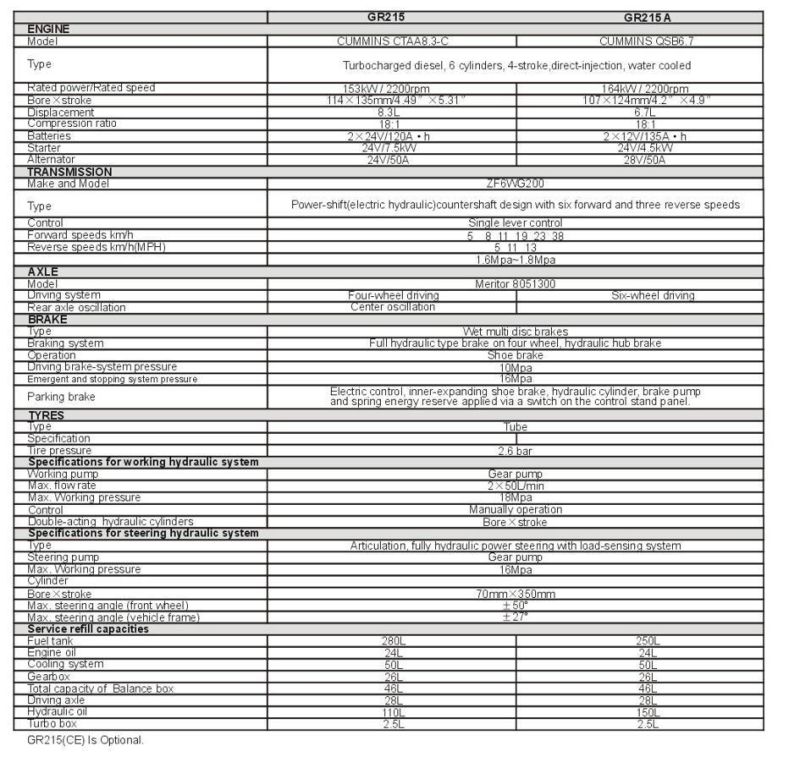

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
We supply all kinds of Machinery & Equipment of most Chinese big brands like, XC--MG , LIUGONG, FOTON , ZOOMLION, SINOTRUK etc to global market with reasonable
price and best service. Most of products are meet with ISO,CE,EPA,GOST standards.
Our advantages are as following:

1. Professionally export construction machinery and spare parts for more than 9  years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.

1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)

2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

3) All machines spare parts.

Please contact us freely to get best price and service.
