High Quality 230HP Crawler Bulldozer Ty230-3 Bulldozer
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：TY230-3
- Condition：New
- Color：Yellow
- Flywheel Power：185kw,230HP
- Operating Wight：24840kg
- Ground Pressure：76kpa
- Track Gauge：2000mm
- Min. Ground Clearance：405mm
- Blade Width：3666mm
- Max. Digging Depth：540mm
- Overall Dimensions：5733*3666*3380mm
- Transport Package：Nude Package
- Specification：5733*3666*3380mm
- Trademark：HBXG
- Origin：China
- HS Code：842919900
- Production Capacity：10000 Units,Month
Description
Basic Info.
Model NO. TY230-3 Condition New Color Yellow Flywheel Power 185kw/230HP Operating Wight 24840kg Ground Pressure 76kpa Track Gauge 2000mm Min. Ground Clearance 405mm Blade Width 3666mm Max. Digging Depth 540mm Overall Dimensions 5733*3666*3380mm Transport Package Nude Package Specification 5733*3666*3380mm Trademark HBXG Origin China HS Code 842919900 Production Capacity 10000 Units/MonthProduct Description

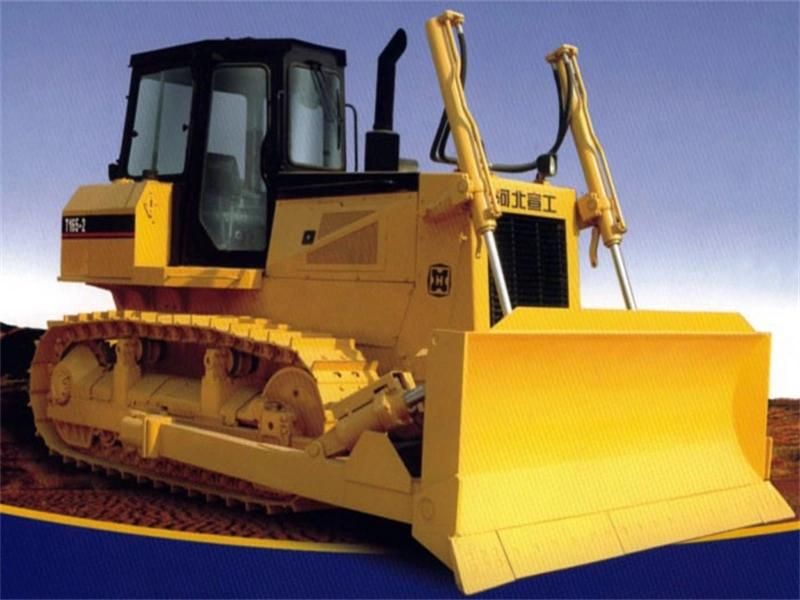

High Quality 230Hp Crawler Bulldozer TY230-3 Bulldozer
Product DescriptionTY230-3 bulldozer is semi-rigid suspended, total hydraulic controlled and hydrnamic driving bulldozer, equipped with new model engine, three-element torque converter, single lever operation planetary gear transmission. Integrality injection molding plastics instrument panel, fully sealed shock absorption hexahedron cabin, the comfortabol system designed according to human and machine engineering; Undercarriage system with split-type fightening spring case structure makes the assembly and maintenance easy and convenient. The whole machine is with the advantage of powerful, high efficiency, excellent performance, and economical efficiency etc. Optianal equipments include U-blade, angle blade handling blade, single and three shanks ripper, ROPS, centralization lubrication, and track aytomatically tightening system. It is the best choice for desert, oil fields, mines, electricity and sanitation construction projects.
Main Parameter
| Flywheel output | 185KW/230HP |
| Operating weight | 24840kg |
| Ground pressure | 76Kpa |
| Track gauge | 2000mm |
| Gradient | 30°/25° |
| Min. ground clearance | 405mm |
| Dozing capacity | 7.8 m³ |
| Blade width | 3666mm |
| Max. Digging depth | 540mm |
| Overall dimensions | 5733×3666×3380mm |
Product Show
