• Electrical Life：100, 000 Times Above
• Insulation Resistance：100 Omega
• Mounting Size：50*24mm
• Max. Current：10A
• Max. Voltage：250VAC
• Operating Speed：5mm-0.5m,S
• Protection Level：IP65
• Transport Package：Standard
• Specification：1 set
• Trademark：SYM; GJJ
• Origin：Shenyang
• HS Code：8131499900
• Production Capacity：500 Set,Sets Per Month

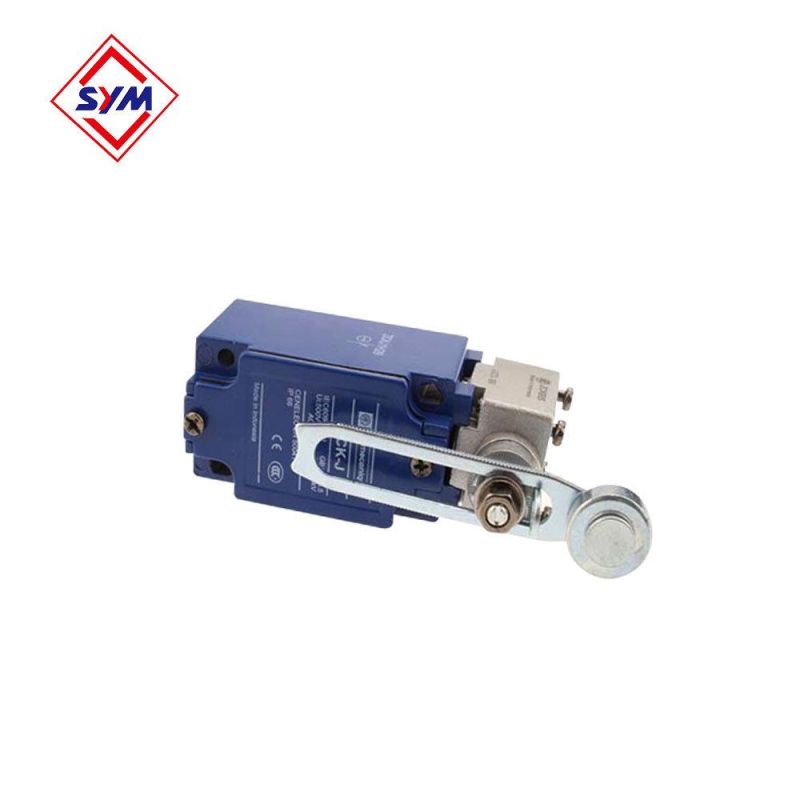

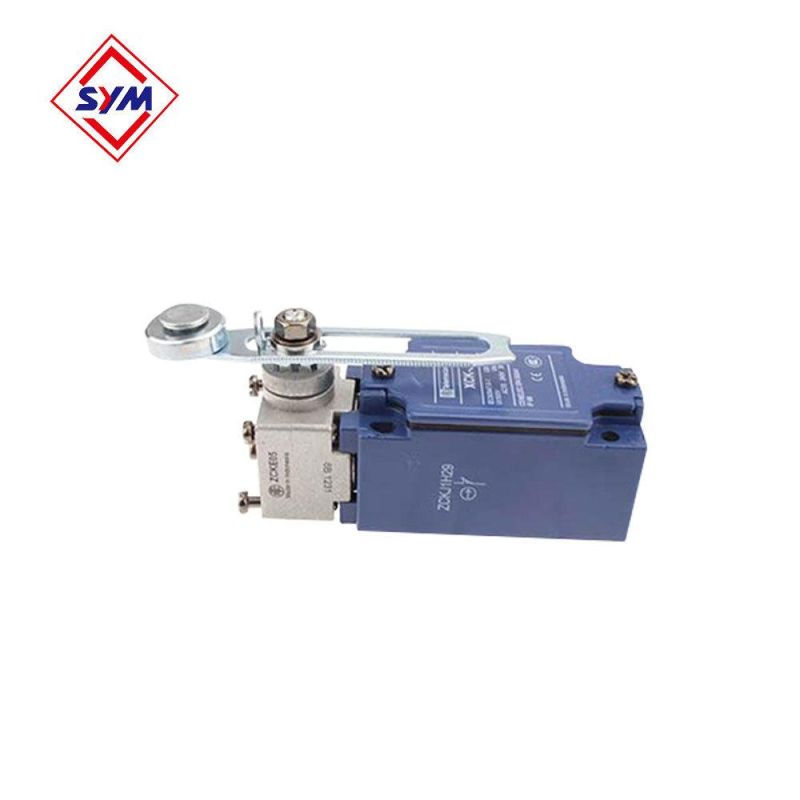

 BrandsSYMModelLHL-C22Voltage:250/125 VACElectric current:10AProtection level:IP65Contact form:SPDTPackage:

CARTON

Size:33*34*81.4*mmCertified:CCC CEOperating speed0.5-50cm/sOperating frequencyMechanical:120 times/minElectrical:30 times/minInitial insulation resistance100MΩmin.(at 500VDC)Initial contact resistance25MΩmax.Dielectric
strengthBetween non-consecutive
terminals1,000Vrms, 50/60Hz for 1 minBetween non-current carrying
metal parts and each terminal1,500Vrms, 50/60Hz for 1 minBetween ground and each
terminal1,500Vrms, 50/60Hz for 1 minVibration resistance10-55Hz,1.5mm double amplitudeShock resistanceMechanical durable:1000m/s2{100G,S}max.
Malfunction: 300m/s2{30G,S}max.

Packing and Shipping:
Cooperative Partner:
Our Advantages:
Certificate:


FAQ:
1.Q:Are you a Manufacturer or Trading company?
    A: We are a trading company and have our own factory. We have both the price advantage of the factory and the thoughtful service of the trading company; and the advantage of taking responsibility.

2.Q:How about your after-sale service?
    A: we have quality guarantee with half-one year once you purchase products from us.

3.Q:Can you satisfy my special requirement?
    A:Definitely!We can make the products based on your requirement.

4.Q:Can I have sample to test the quality?
   A:Yes, you can buy any sample to test the quality,our MOQ is 1 set.

5.Q:How do you transport cargoes?
   A:We will transport the cargoes by container and bulk cargo ship, by sky and express.
