• Model NO.：JDY30-35
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader

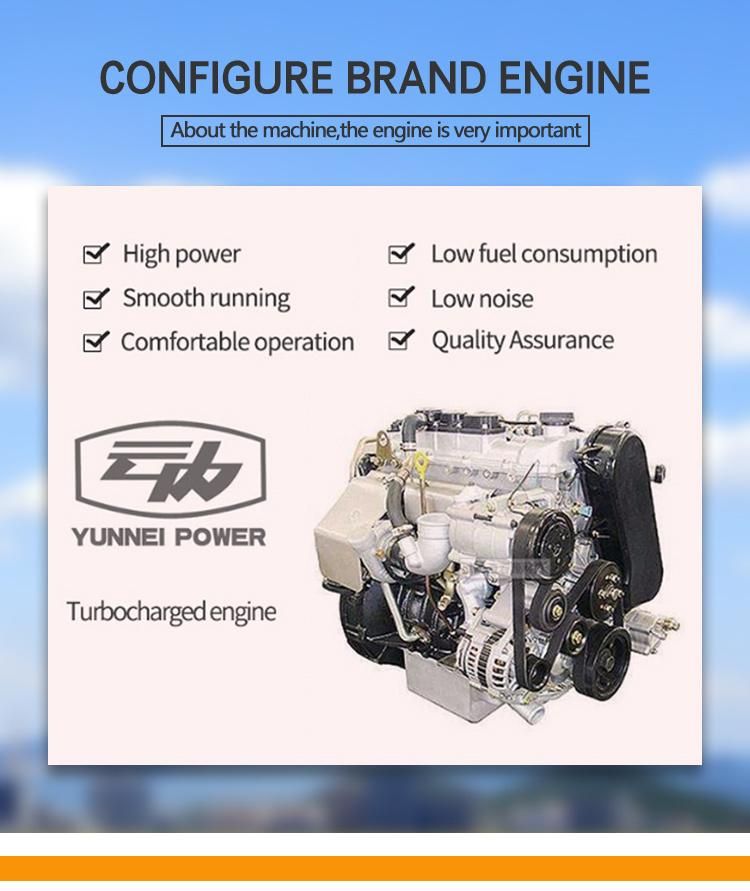

• Engine：Yn33gbzz Turbo
• Rated Power：65kw
• Wheelbase：2200mm
• Gross Weight：4700kg
• Max Travel Speed：28km,H
• Max. Climbing Ability：25%
• Min. Turning Radius：4500mm
• Maximum Digging Depth：2500mm
• Digging and Unloading Height：3000mm
• Mining Bucket Capacity：0.08m3
• Unloading Height：3500mm
• Unloading Time：12s
• Loading Bucket Capacity：1m3
• Loading Maximum Lifting Height：4300mm
• Drive Type：Four-Wheel Drive
• Transport Package：Naked
• Specification：5900*1850*2850 mm
• Trademark：JDY
• Origin：Shandong, China
• HS Code：8408209001

Basic Info.

Model NO. JDY30-35 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Yn33gbzz Turbo Rated Power 65kw Wheelbase 2200mm Gross Weight 4700kg Max Travel Speed 28km/H Max. Climbing Ability 25% Min. Turning Radius 4500mm Maximum Digging Depth 2500mm Digging and Unloading Height 3000mm Mining Bucket Capacity 0.08m3 Unloading Height 3500mm Unloading Time 12s Loading Bucket Capacity 1m3 Loading Maximum Lifting Height 4300mm Drive Type Four-Wheel Drive Transport Package Naked Specification 5900*1850*2850 mm Trademark JDY Origin Shandong, China HS Code 8408209001

Product Description

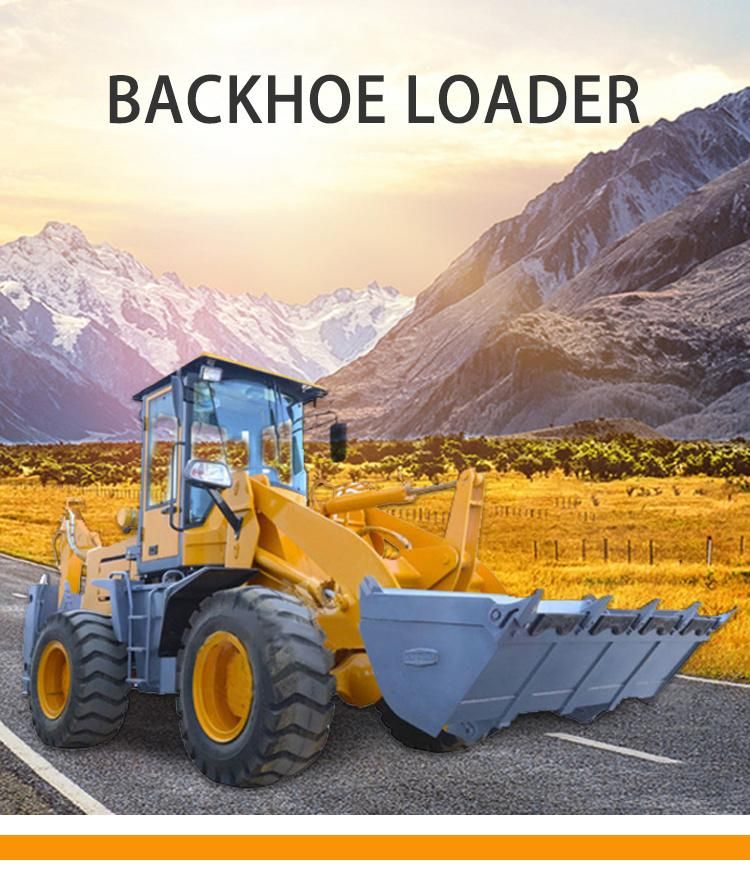

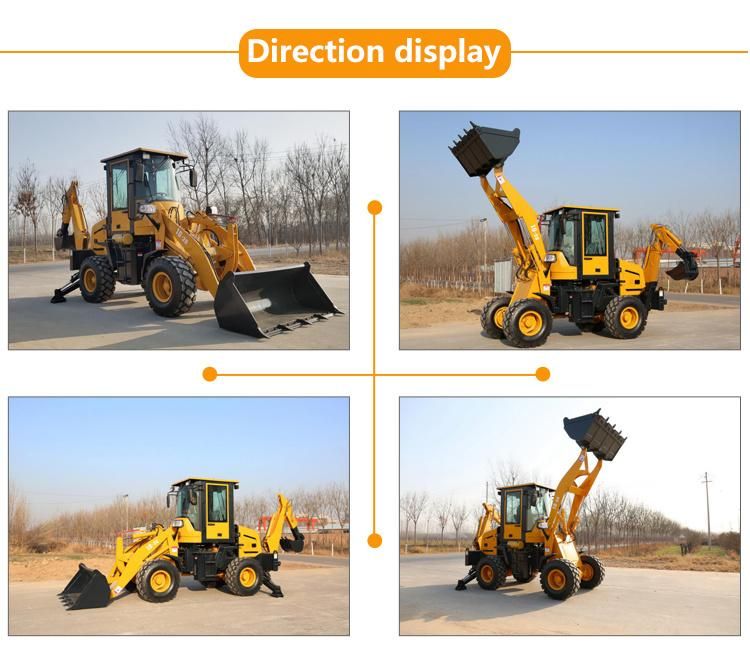

JDY 30-35 MINI BACKHOE LAODER EXCAVATOR

Backhoe loader  excavator is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back. Due to its (relatively) small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.) as well as developing countries. This type of machine is similar to and derived from what is now known as a TLB (Tractor-Loader-Backhoe), which is to say, an agricultural tractor fitted with a front loader and rear backhoe attachment.

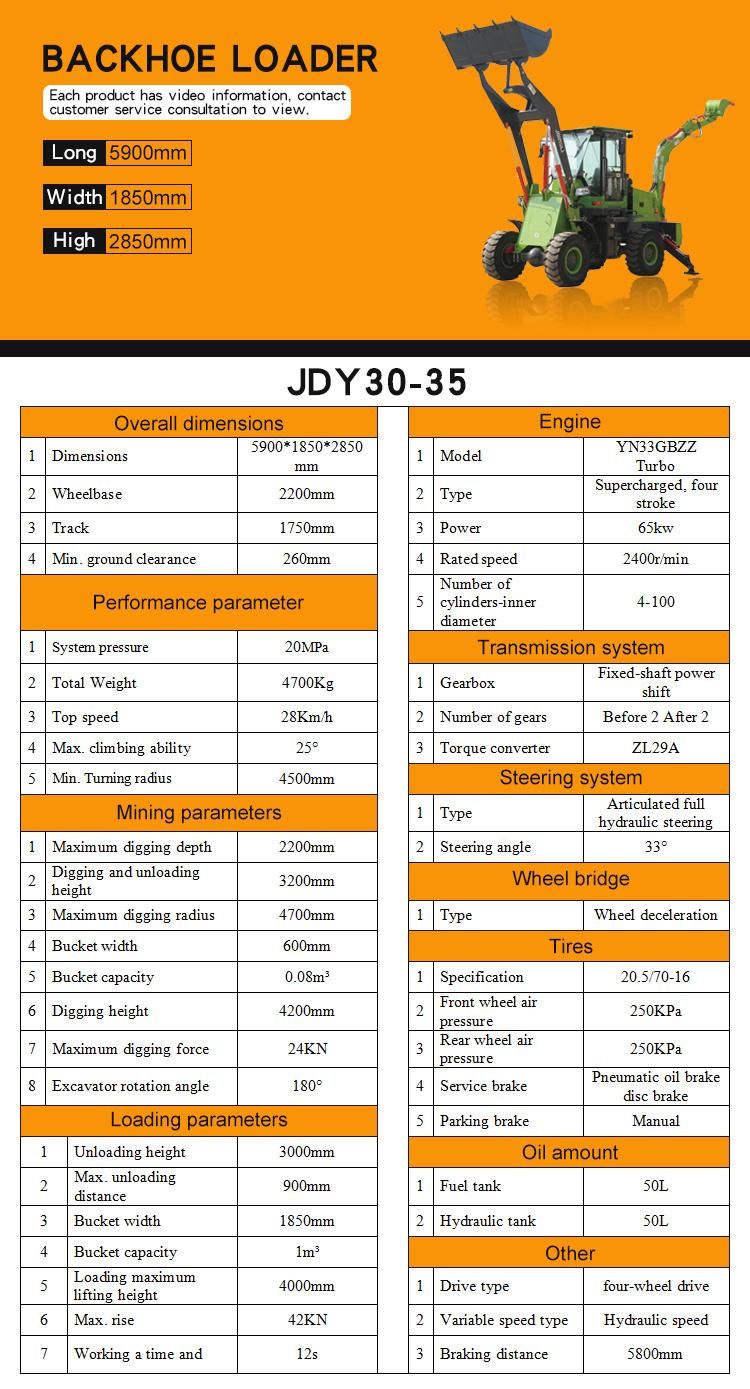

PARAMETERS

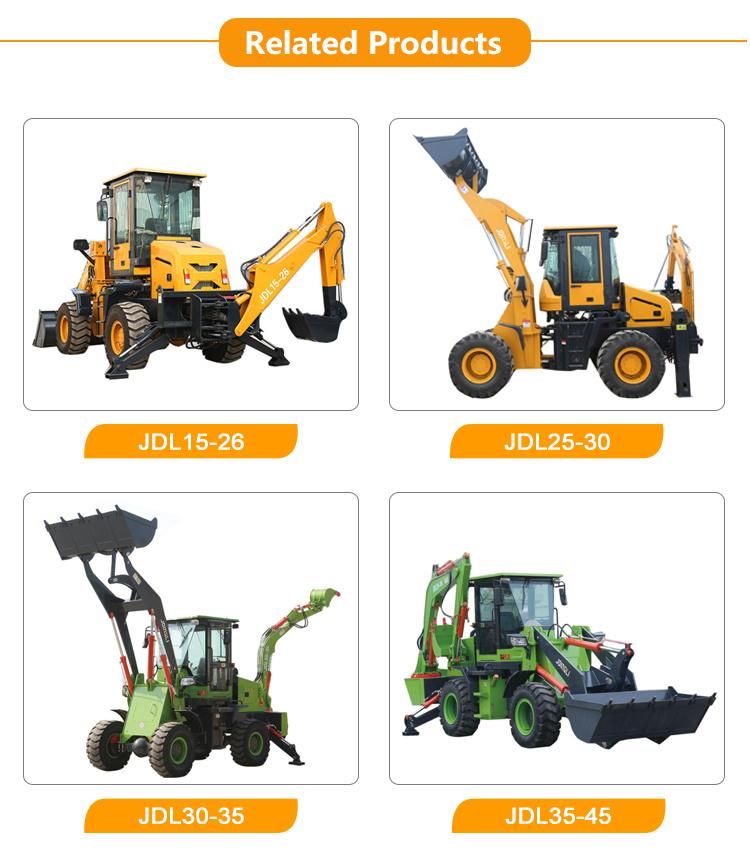

If you need to know about our related products, please contact me!
