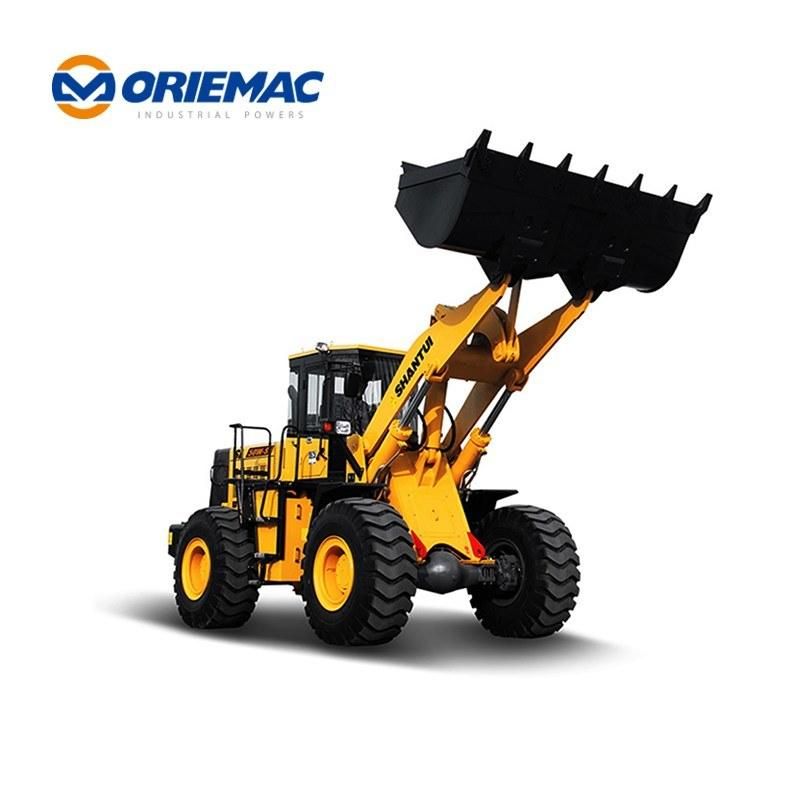

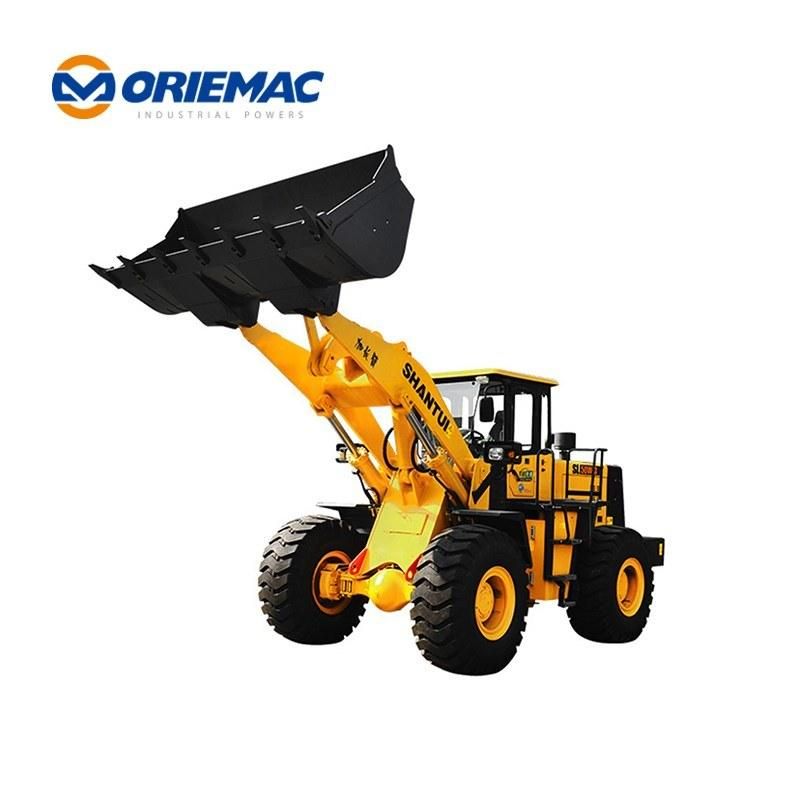

High Performance 3 Ton Wheel Loader in Stock L36-C3 Medium Wheel Loader
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：L36-C3
- Type：Small Loader
- Transport Package：Nude
- Specification：5600 (L) x 2300 (W) x 1400(H)
- Trademark：shantui
- Origin：China
- Production Capacity：1000PCS,Set
Description
Basic Info.
Model NO. L36-C3 Type Small Loader Transport Package Nude Specification 5600 (L) x 2300 (W) x 1400(H) Trademark shantui Origin China Production Capacity 1000PCS/SetProduct Description

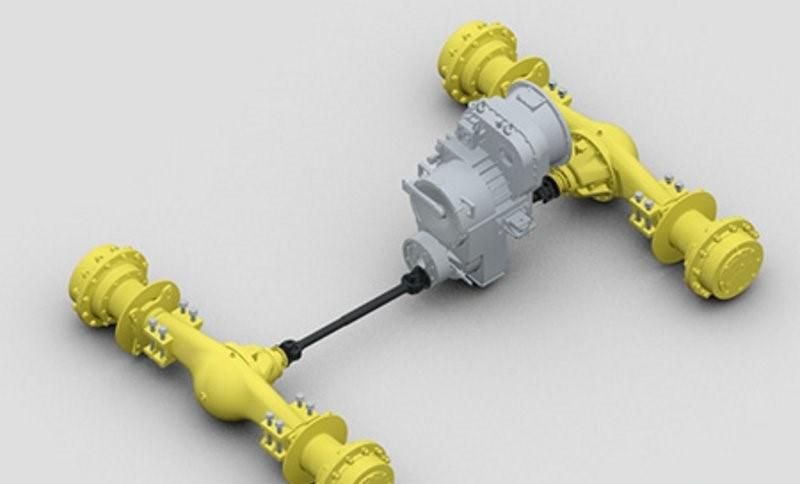

High Performance 3 Ton Wheel Loader In Stock L36-C3 Medium Wheel LoaderPower System
The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.

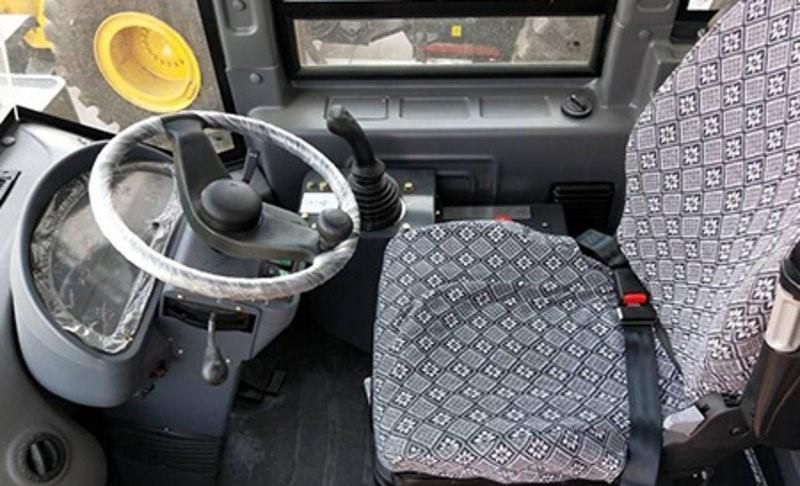

Driving/Riding Environment
The new generation cab with all-new design optimization guarantees broader vision and more fashionable appearance.
The framework structure in four sides guarantees high safety, comfort, and reliability.
The extensively adjustable seat provides the driver with the most comfortable operation;
It provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.
| Parameter name | L36-C3 SG (Sandstone version) | L36-C3 CH (Coal version) | L36-C3 MH (Ore version) | L36-C3 MW (Mining version ) |
| Performance parameters | ||||
| Operating weight (Kg) | 10500 | 10500 | 10500 | 10500 |
| Maximum dumping height (mm) | 3057 (Extended boom)3200 (Long Boom) | 3055 (Long Boom) | 3040 (Extended boom) | 2875 (Standard boom) |
| Dumping reach (mm) | 906 (Extended boom)886 (Long Boom) | 1057 (Long Boom) | 936 (Extended boom) | 955 (Standard boom) |
| Maximum breakout force (kN) | ≥105 | ≥100 | ≥105 | ≥96 |
| Total cycle time (s) | 9 | 9 | 9 | 9.5 |
| Engine | ||||
| Engine model | WP6 | WP6 | WP6 | WP6 |
| Rated power/rated speed (kW/rpm) | 92/2000 | 92/2000 | 92/2000 | 92/2200 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 7240*2484*3235 | 7460*2450*3235 | 7337*2470*3235 | 7113*2484*2775 |
| Driving performance | ||||
| Forward speed (km/h) | F1:0-7,F2:0-12,F3:0-23,F4:0-37 | F1:0-7,F2:0-12,F3:0-23,F4:0-37 | F1:0-7,F2:0-12,F3:0-23,F4:0-37 | F1:0-5.8,F2:0-10.8,F3:0-18.4,F4:0-35 |
| Reversing speed (km/h) | R1:0-8.3,R2:0-28 | R1:0-8.3,R2:0-28 | R1:0-8.3,R2:0-28 | R1:0-7.8,R2:0-27 |
| Chassis System | ||||
| Wheelbase (mm) | 2700 | 2700 | 2700 | 2700 |
| Tank capacity | ||||
| Fuel tank (L) | 150 | 150 | 150 | 150 |
| Working device | ||||
| Rated bucket capacity (m³) | 1.7 | 2.2 | 1.7 | 1.7 |
| Rated loading capacity (t) | 3 | 3 | 3 | 3 |
