• Model NO.：jzc350
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：as Required
• Max Aggregate Size：60mm
• Mixing Motor：5.5kw
• Total Weight：1950kg
• Mixing Cycle：3min
• Charging Capacity：350L
• Overall Size：2766*2140*3000mm
• Stirring Vane Speed：14r,Min
• Voltage：Adapt to Your Local Voltage
• Charging Volume：560L
• Durm-Rotating Speed：14r,Min
• Transport Package：Suitable for Sea Transportation
• Specification：2766x2140x3000mm
• Trademark：Raytone Machinery
• Origin：Shandong, China(Mainland)
• HS Code：84743100
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. jzc350 Vibrating Amplitude 1.0mm Certification ISO9001: 2000, CE Condition New Color as Required Max Aggregate Size 60mm Mixing Motor 5.5kw Total Weight 1950kg Mixing Cycle 3min Charging Capacity 350L Overall Size 2766*2140*3000mm Stirring Vane Speed 14r/Min Voltage Adapt to Your Local Voltage Charging Volume 560L Durm-Rotating Speed 14r/Min Transport Package Suitable for Sea Transportation Specification 2766x2140x3000mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 84743100 Production Capacity 50 Sets Per Month

Product Description

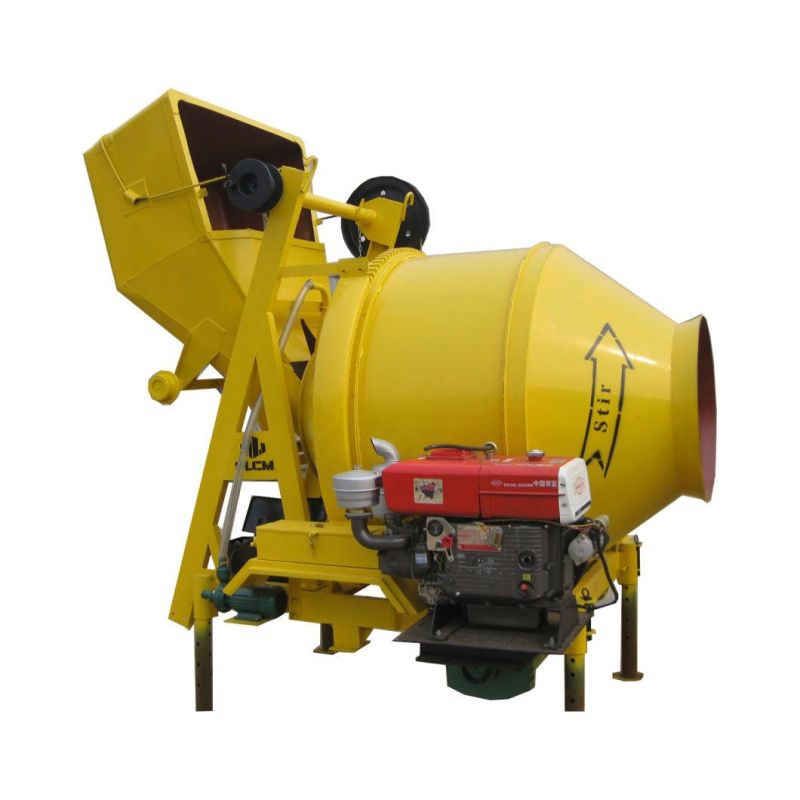

JZC350 Mobile Diesel Mixer Brief Introduction:


1.JZC350 concrete mixer is also called drum mixer, which is to mixer when turning clockwise, and discharge when turning anticlockwise and can mix plastic and semi-stiff-consistency concrete.JZC350 concrete mixer is a portable concrete mixer and is applicable to small construction project,used for the variety of concrete production, mortar and grout, etc.
2.JZC, JZM series mixer including JZC 250,350,500,750 and JZM350, altogether 5 main models, among which, model JZC 750 is stationary type, it can be used as single machine or combined with compounding machine to form simple concrete batch plants. Other models are all models are all moveable type.

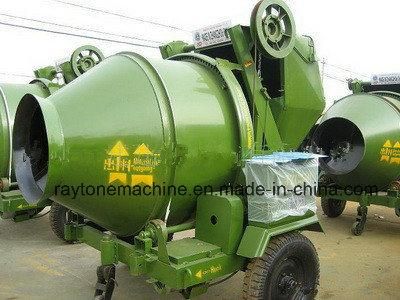

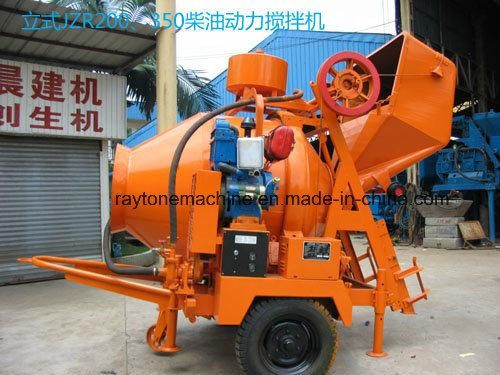

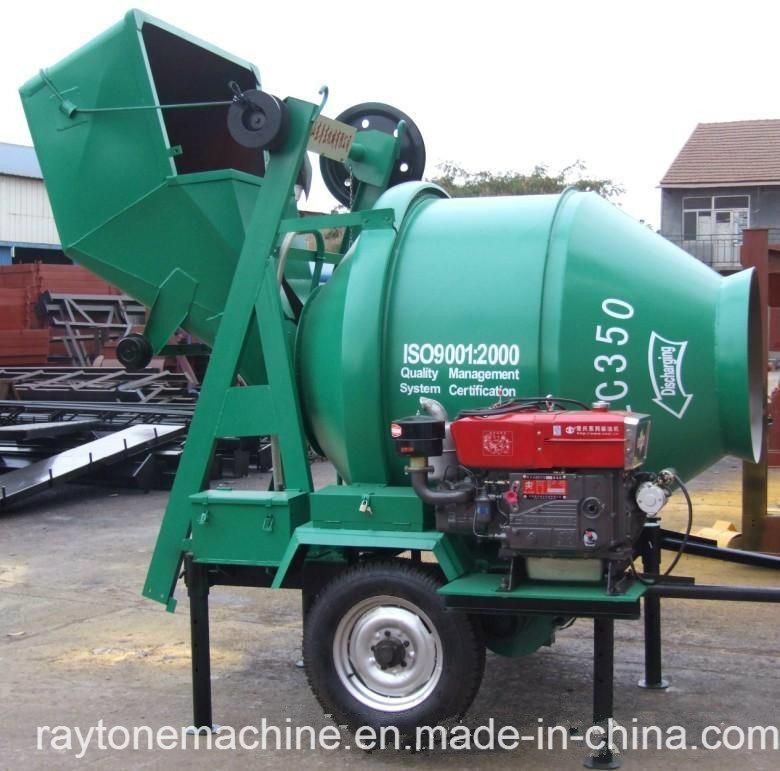

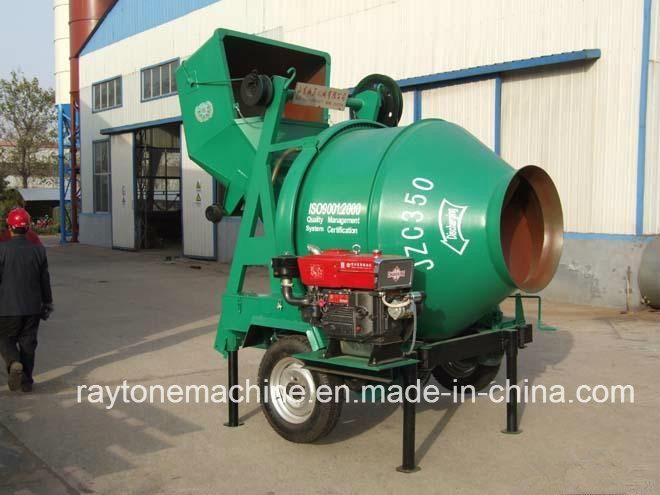

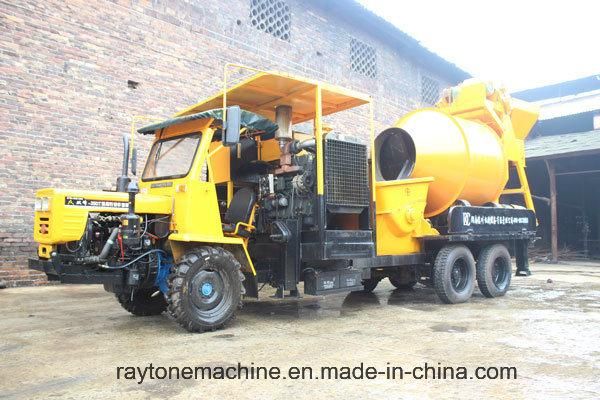

Detailed Pictures:






Main Technical Parameters:

Model	JZC350	JZC500
Overall size	2766x2140x3000mm	3500x2200x3200mm
Discharging capacity	560L	800L
Charging capacity	350L	500L
Mixing cycle	3min	3min
Stirring vane speed	14r/min	13r/min
Productivity	10-14 m3/h	18~20m3/h
Total weight	1950kg	2400kg
Mixing  motor	5.5kw	7.5kw
Hoisting motor	4.5kw	5.5kw
Voltage	Adapt to your local voltage	Adapt to your local voltage
Max trailing speed	20km/h	20km/h
Accuracy of water supply	Error≤2%	Error≤2%
Max. aggregate size	60mm	60~80mm

FAQ
(1)Packing method ?
  Nude packing, or in plastic clothes, or in plywood box, accordingly.
(2)What's motor and electric brand we choose for our machine?
  Siemens/Schneider brand, or Chinese famous brand.
(3) Will you send engineer to install for user?
   Yes, we have technician service team. They will supply service as per needs.
(4) Are there any spare parts together with the machine ?
  Yes, we will send spare parts together with machine, the user could use more than two years.
(5)Do you supply free technical service during later production ?
   Yes, we have online technical service in 24hours.
(6) What is the Warranty for the machine?
 For the machine,we have 1 years warranty(except the wearing part ).If any quality
problems on our side occured in this period ,we will take on the shipping cost and replacement.
