Shield Tunneling Boring Machine

JIANGSU XUAN XUAN HEAVY MACHINERY CO., LTD.
  • Jacking Speed：3-5 Meter,Hour
  • Pipe ID：800
  • Machine Od：1020
  • Power Capacity of The Machine：22kw
  • Motor Power：1X22kw
  • Rotational Speed：4.5r,Min

Base Info

  • Model NO.：NPD800
  • Charge & Discharge Bypass：4inches
  • Number of Hydro-Cylinder：4 PCS of Rectifying Oil Cylinder
  • Cylinder Thrust：48X4ton
  • Correction Angle：The Biggest 3 Degrees
  • Control Mode：PLC Centralized Control with Touch Screen
  • Charge & Discharge Pump Motor：22kw
  • Gear Reducers：Bonfiglioli ,Brevini, Dinamic,Italy
  • PLC Program Controller：Mitsubishi,Japan
  • Touch Screen：Mitsubishi,Japan
  • Transport Package：Woodencase
  • Specification：1020X3600mm
  • Trademark：xuanxuan
  • Origin：China
  • HS Code：8430313000

Description

  Charge & Discharge pump motor
 22kw Important Parts Source Parts  Source No Gear Reducers

Bonfiglioli   /Brevini/  Dinamic,Italy

1PLC program controller MITSUBISHI,Japan 2Touch Screen MITSUBISHI,Japan  3Steering Solenoid valveYuken ,Japan

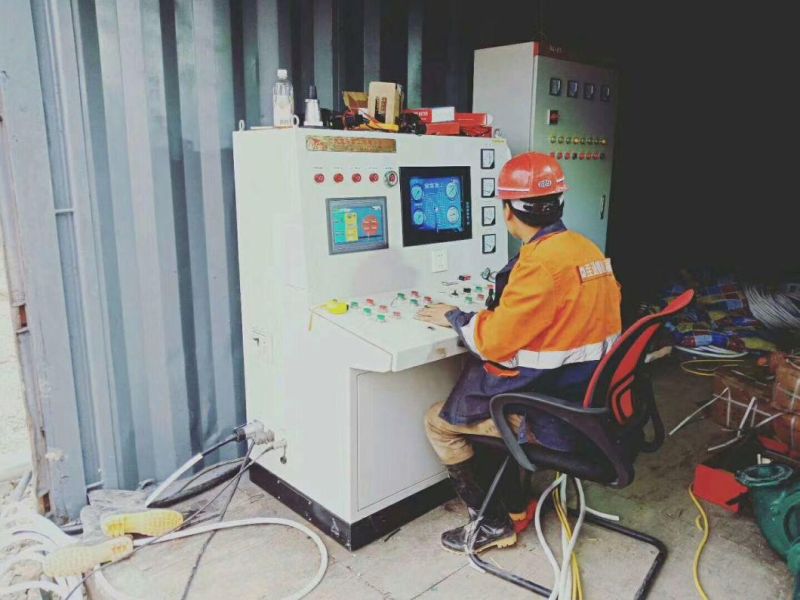

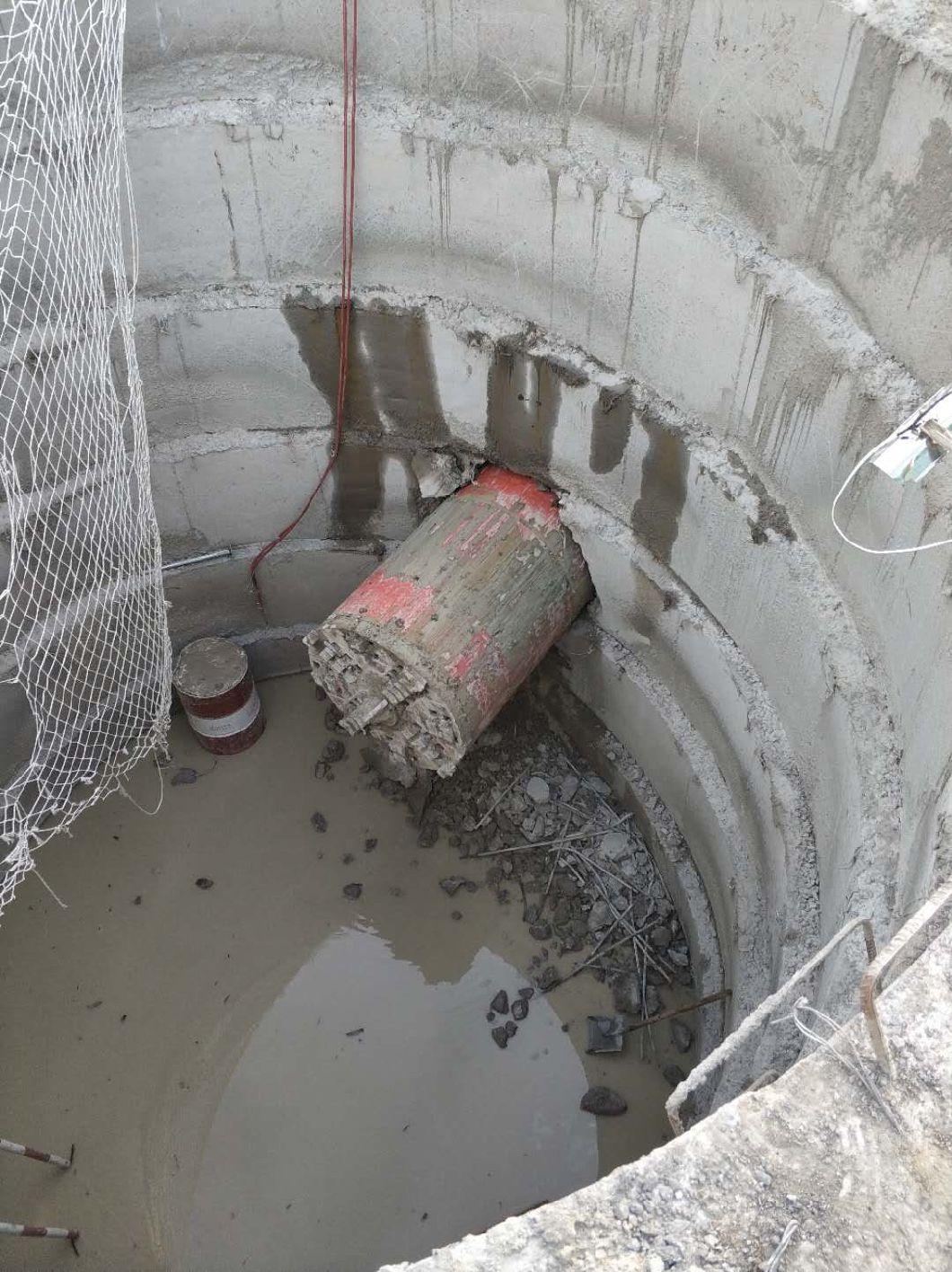

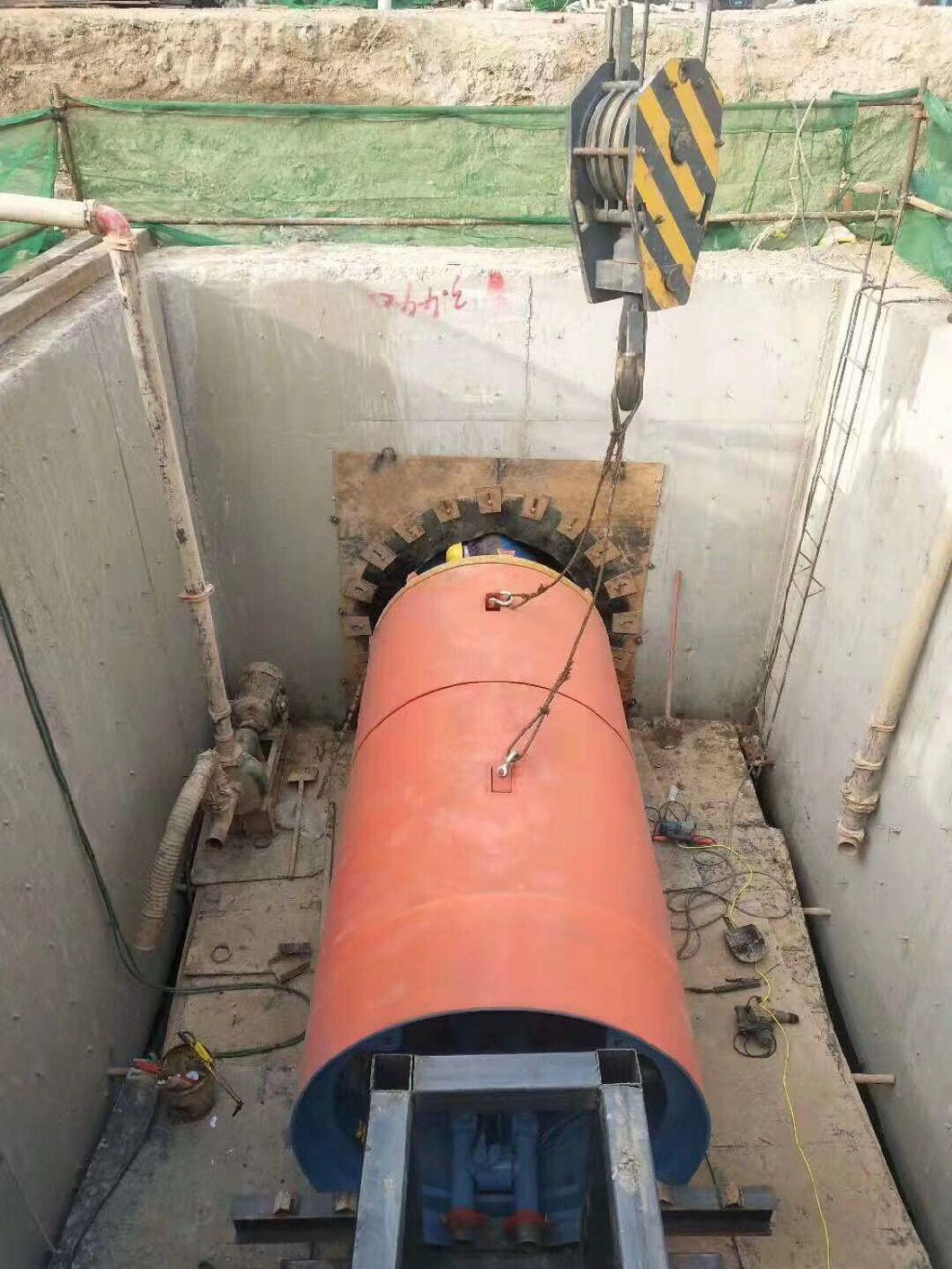

 4Electric motor Siemens 5Main Electrical componentsSchneider Construction Pitures :

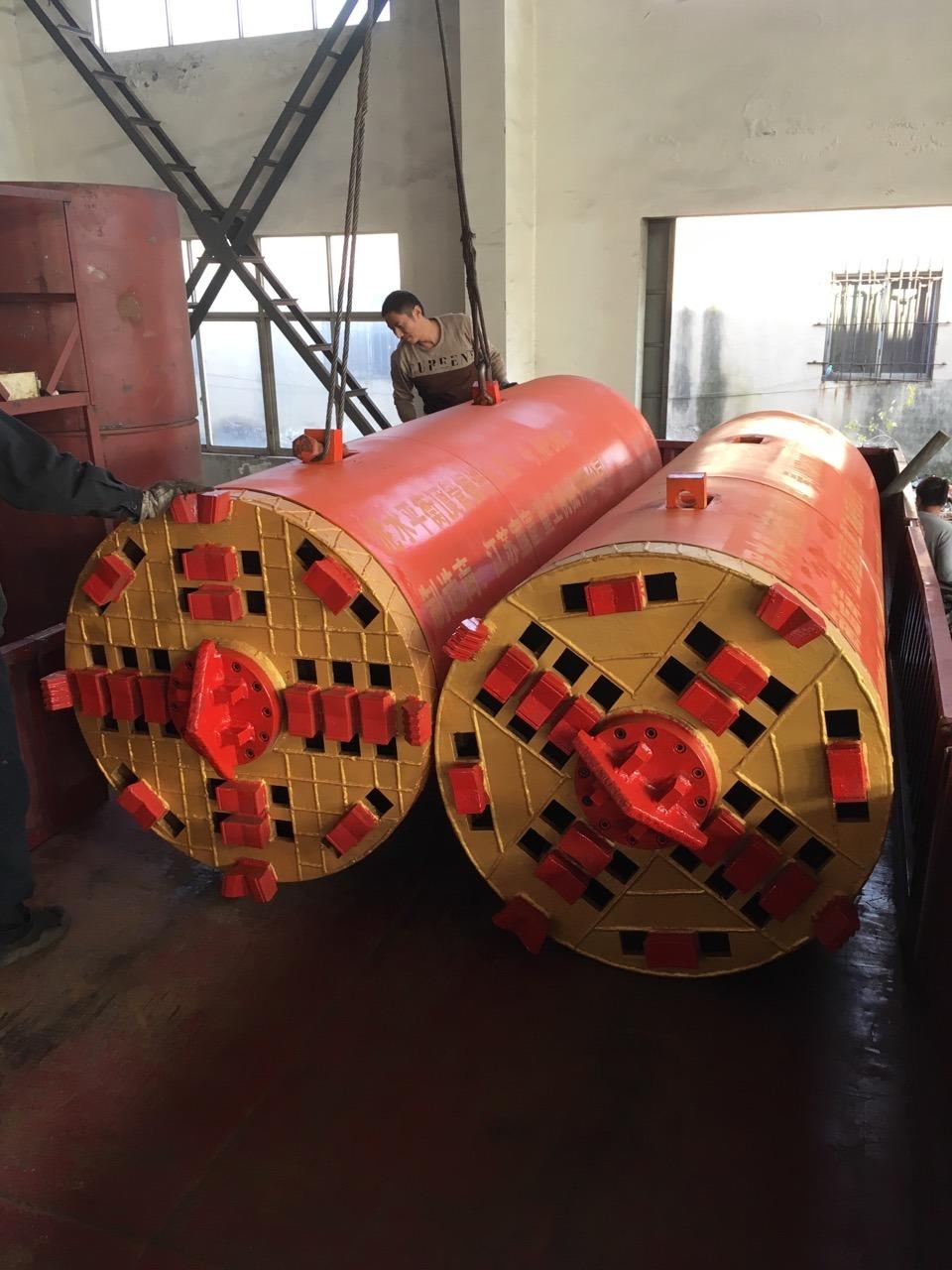

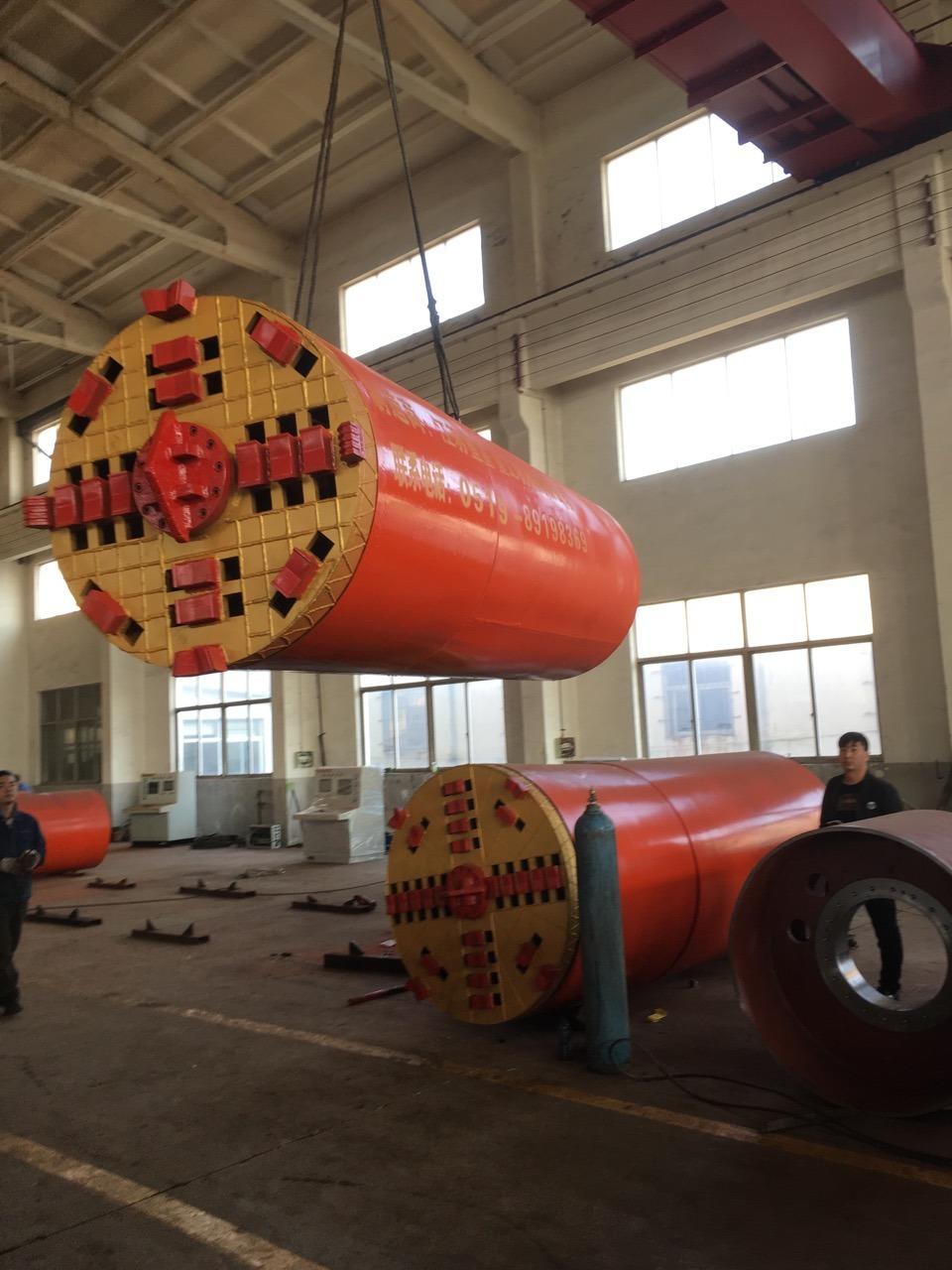

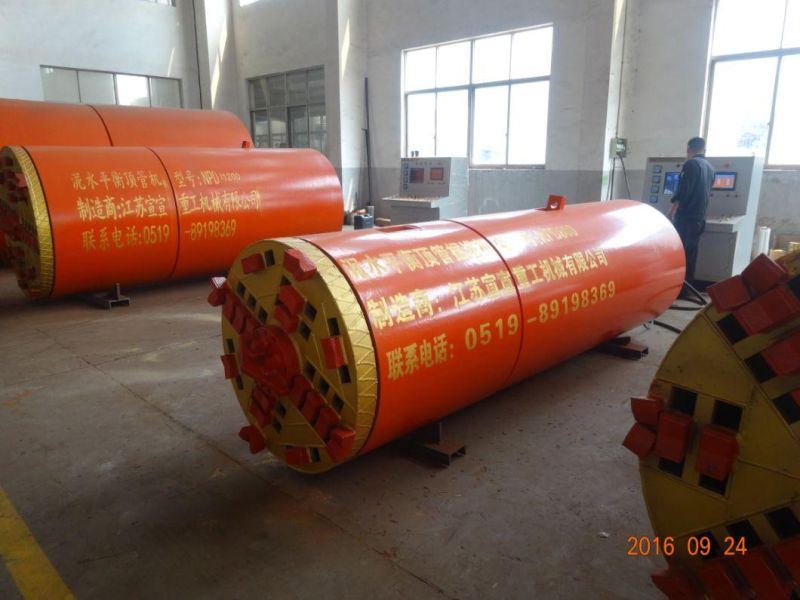

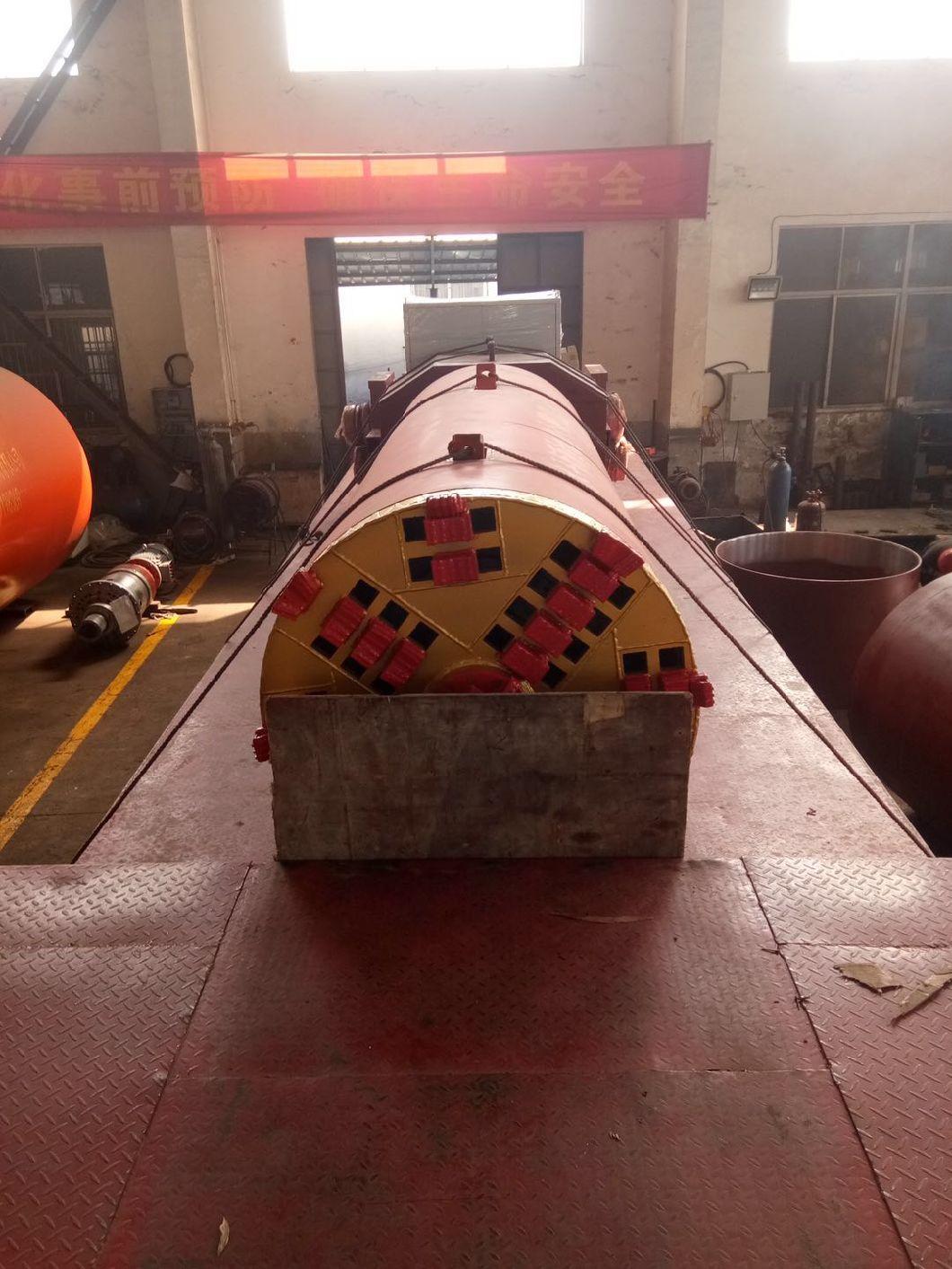

Shield Tunneling Boring Machine
Shield Tunneling Boring Machine
Shield Tunneling Boring Machine

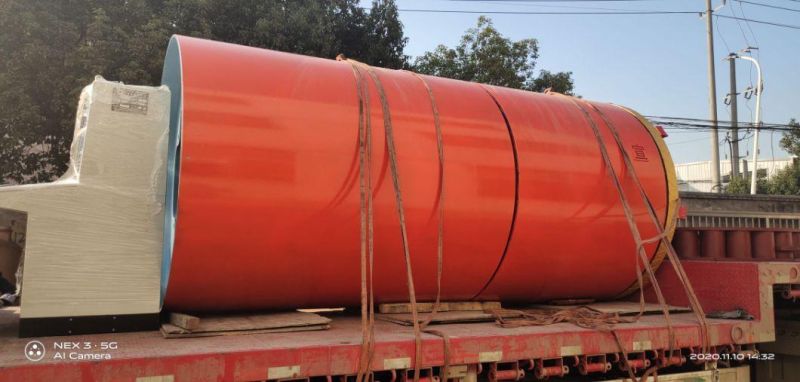

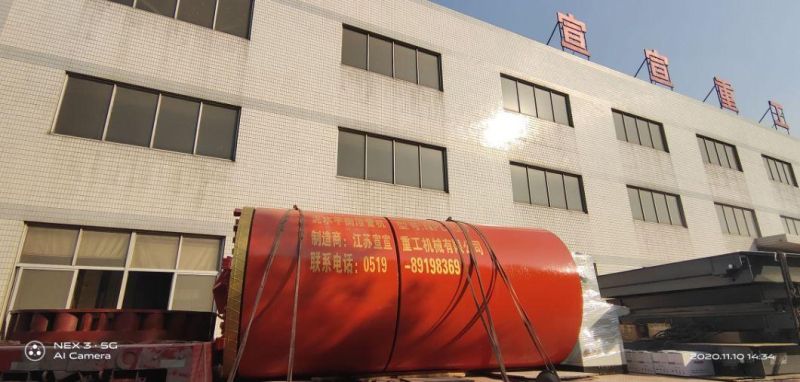

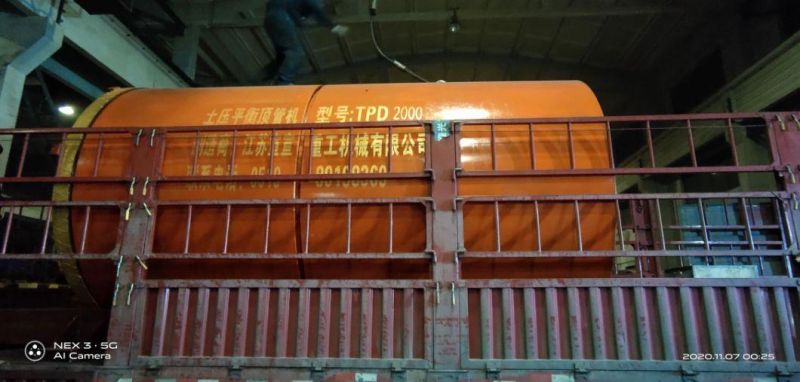

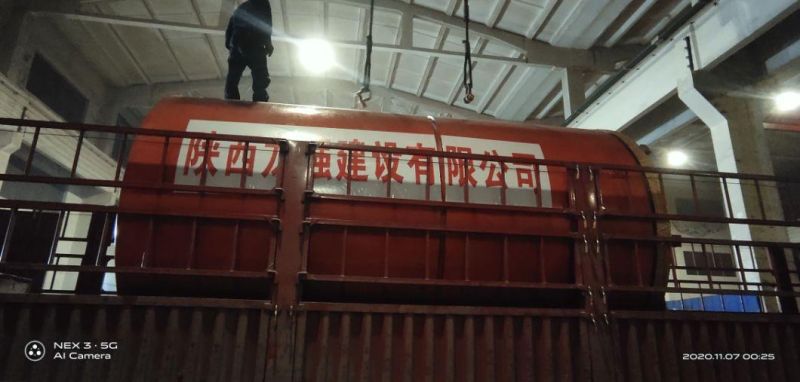

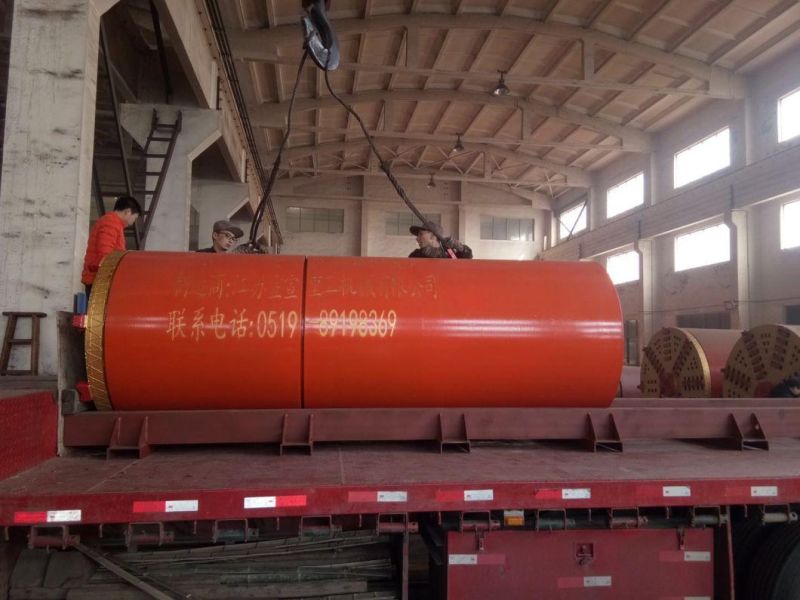

shipment
Shield Tunneling Boring Machine
