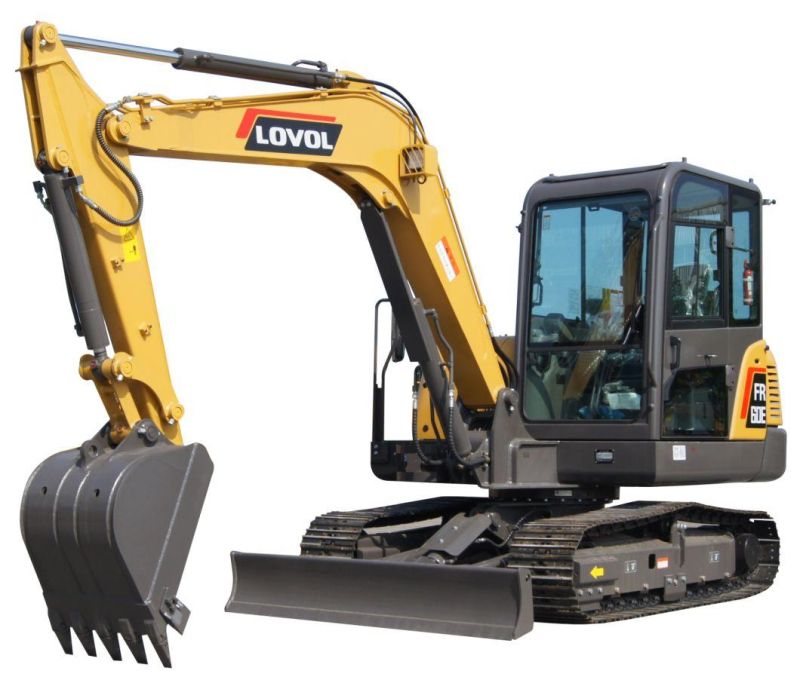

• Model NO.：FR80E
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：7800kg
• Bucket Width：450mm
• Walking Speed：4.3 Km,H
• Operation Hydraulic Pressure：36 MPa
• Power：44.4,2100 Kw,Min-1
• Engine：Yanmar
• Max. Digging Height：7150 mm
• Max. Digging Depth：4050 mm
• Max. Digging Radius：6335 mm
• Transport Package：Nude
• Specification：6100*2275 *2650
• Trademark：YANMA
• Origin：China
• HS Code：8429521200
• Production Capacity：100units Per Month

Operation Weight (Standard Configuration) (KN)7800Standard Bucket Capacity ( m3)0.32Rated Power/Rotate Speed (KW/rpm)44.4/2100Transport Dimensionsmm6100*2275 *2650Bucket Digging Force (KN)56Bucket Rob Digging Force (KN)38Maximum Traction (KN)61DeviceMax. Walking Speed (Km/h)4.3Climbing Performance(°)35Total Length of the Crawler2770Tail Turning Radius (mm)1770Width of the Crawler450Ground Pressure (Kpa)35.8Turning MechanismTurning Speed (rpm)11.5EngineModelYANMAR 4TNV98TypeFour Strokes, Direct Injection, Water-cooling, Overhead Valve, Belt PressurizationRated Torque/Rotate Speed (N.m/rpm)244/1400Cylinder Diameter*Stroke (mm)98*110Output Value (L)3.059Fuel Consumption (g/KW.h)257Fuel Tank Capacity (L) Hydraulic SystemMain Pump Pressure (Mpa)28Main Pump Flow162*2Operating ScopeMaximum Digging Height (mm)7150Maximum Dumping Height (mm)5030Maximum Digging Depth (mm)4050Maximum Digging Radius (mm)6335
