• Model NO.：1000*150*86
• Pitch：150mm
• Links：86
• Length：12900mm
• Color：Black
• Material：Rubber and Steel
• Weight：2863.8kg

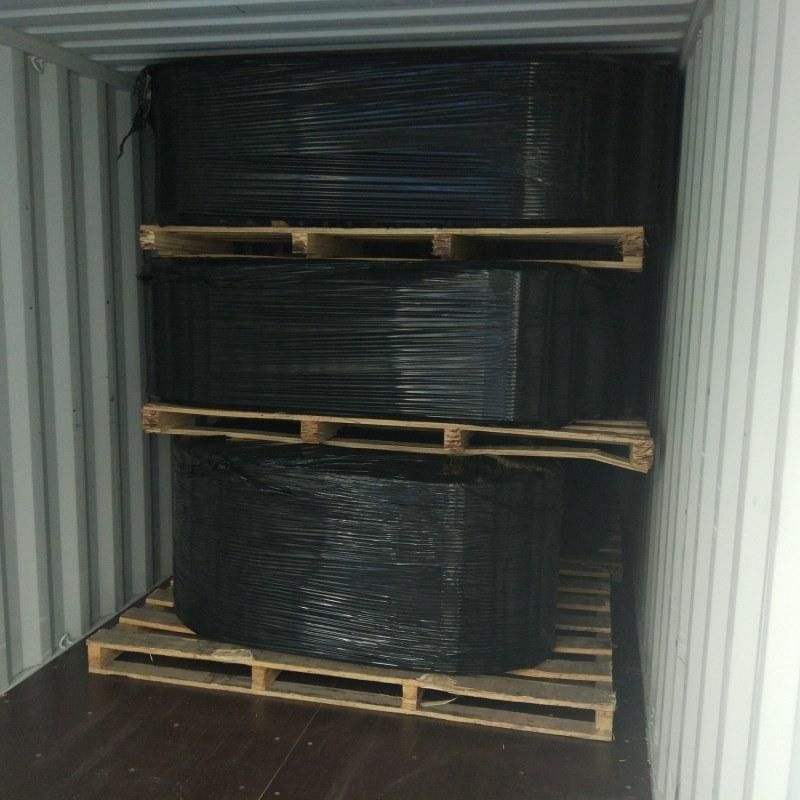

• Transport Package：Bare Packing or Wooden Pallet
• Specification：1000*150*86
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. 1000*150*86 Pitch 150mm Links 86 Length 12900mm Color Black Material Rubber and Steel Weight 2863.8kg Transport Package Bare Packing or Wooden Pallet Specification 1000*150*86 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 Pieces/Month

Product Description

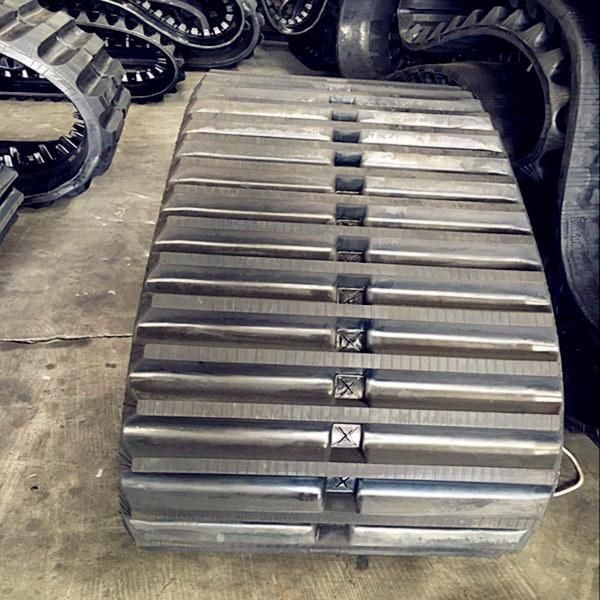

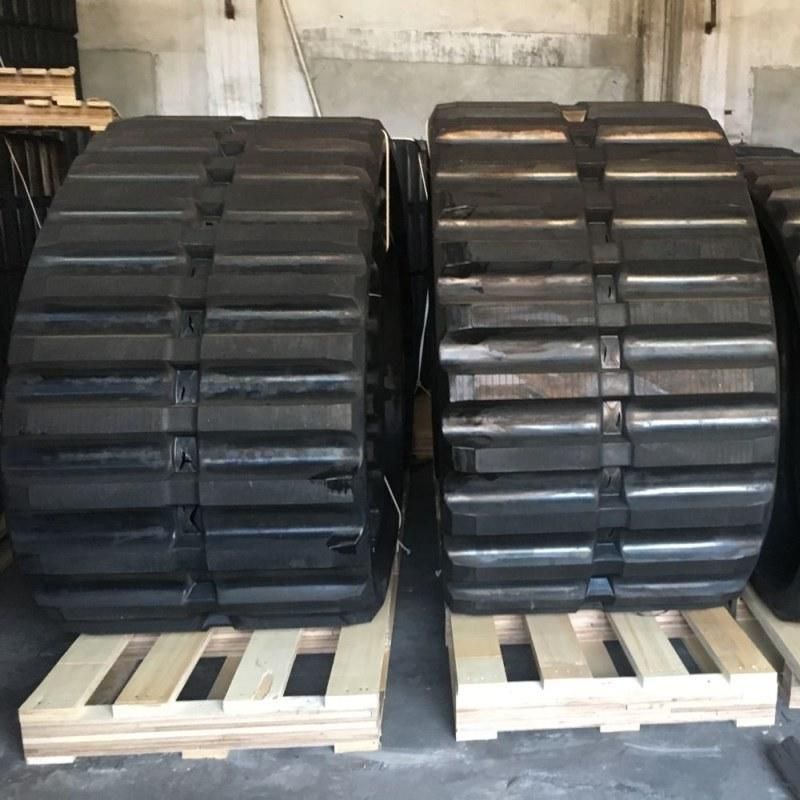

Morooka Mst 3300 Rubber Track 1000*150*86 for Dumper:


Applicable machines	various kinds of dumpers
Material	rubber and steel
Specification	1000x150x86
Installation position	Installed on the dumpers

Size:Width900mm*Pitch150mm*74Links
Width:900mm
Pitch Length:150mm
Link Number:74
Application:Morooka MST3300 crawler carrier dumper





1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks .

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks .

3. Rubber tracks permit machines to travel at a higher speed than steel tracks .

4. Rubber tracks insulated machine and operator from vibraion, extedin the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.



The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed


Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

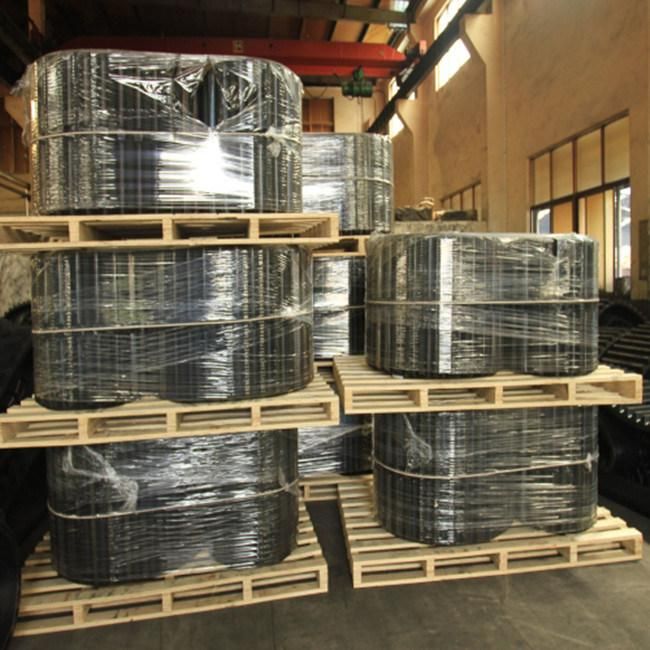

Warehouse:






Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

All Pooyert rubber tracks and rubber pads are2 year(18 months) or 1500 hours working time warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
