• Model NO.：CX-10T
• Transmission：Mechanical Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.025 Cbm
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Product Name：Hydraulic Mini Excavator Bucket
• Operating Weight：1000kgs
• Engine：Changchai
• Rated Power：8.6 Kw,1800r,Min
• Displacement：0.499 L
• Bore Stroke：92X75

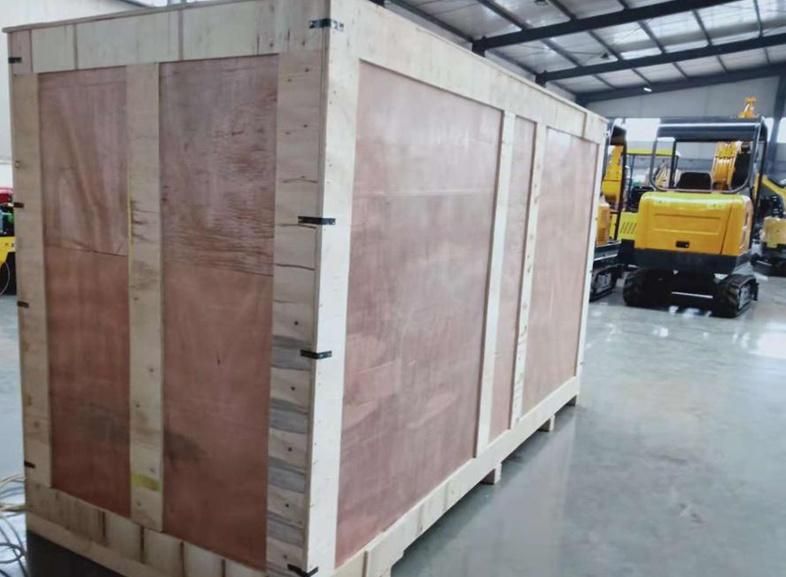

• Transport Package：Hob with Wooden
• Specification：1877x896x1990 mm
• Trademark：ACE
• Origin：Zhejiang, China
• HS Code：84295212
• Production Capacity：5000PC,Year

Basic Info.

Model NO. CX-10T Transmission Mechanical Transmission Drive Type Internal Combustion Drive Bucket Capacity 0.025 Cbm Size Small-Scale Certification CE, ISO9001: 2000 Condition New Product Name Hydraulic Mini Excavator Bucket Operating Weight 1000kgs Engine Changchai Rated Power 8.6 Kw/1800r/Min Displacement 0.499 L Bore Stroke 92X75 Transport Package Hob with Wooden Specification 1877x896x1990 mm Trademark ACE Origin Zhejiang, China HS Code 84295212 Production Capacity 5000PC/Year

Product Description

New Hydraulic Mini Excavator bucket price 1000kgs
Product Uses:

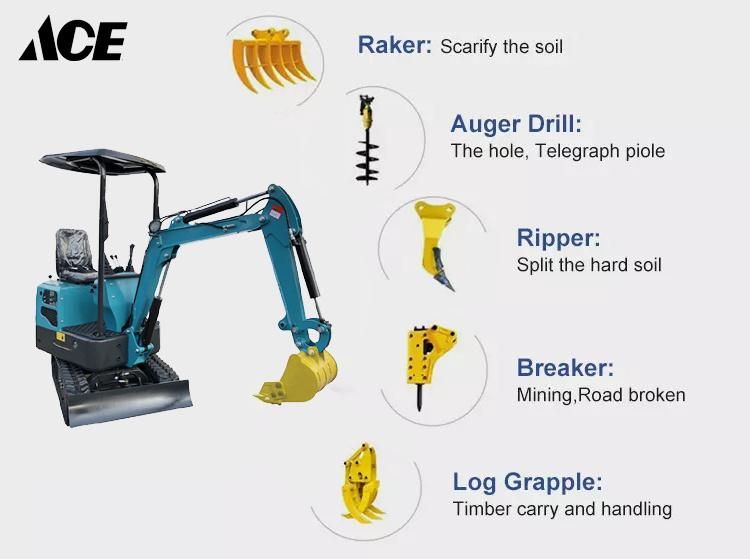

The product is suitable for farming,gardening,orchard ditching fertilization, small earthwork engineering,municipal engineering,road repair,basement and interior construction, concrete crushing,undergroud cables,pipe laying,tap water,river dredging and river garden cultivation engineering and other working environment. With mining,crushing,cleaning,drilling,bulldozing hook functions,fast changing accessories,machine utilization rate is greatly improved,can be applied to various kinds of soil,good use effect,simple operation,compact and flexible,convenient transportatin, can work in small venues.


SPECIFICATION:

Model	CX10T
Dimensions	Specification
Wheel Tread	910 mm
Length of track	1230 mm
Ground clearance of upper platform	380 mm
Turning radius of tail	784 mm
Width	896 mm
Width of track	130 mm
Height of track	320 mm
Length	2770 mm
Height	1490 mm
Operating range	Specification
Working ranges	2850 mm
Maximum digging radius	1650 mm
Maximum digging depth	2610 mm
Maximum digging height	1850 mm
Maximun vertical digging depth	1375 mm
Minimum swing radius	1330 mm
Height of bulldozing plate	345 mm
Depth of bulldozing plate	255 mm
Engine type	KM192FS
Engine power	8.6 KW
Operation Weight	1000 KGS
Bucket capacity	0.025 m³
