Wheel Loader Front End 1.5 Ton Loader China Mini Front End Wheel Loader for Sale
Shandong Honest Machinery Co., Ltd.- After-sales Service：Provide Spare Parts
- Warranty：1 Year
- Certification：CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
Base Info
- Model NO.：M915
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Air Conditioner：Optional
- Oil Flow：30-100L,Min
- Engine：Yanmar,Kohler,Chinese
- Size：3450X1500X2300mm
- Power：30-70HP
- Speed：0-12km,H
- Bucket Capacity：0.5
- Transport Package：1 Set,20′ Gp; 3 Sets,40′ Hq
- Specification：3450X1500X2300mm
- Trademark：STEEL CAMEL
- Origin：Shandong
- HS Code：8429510000
- Production Capacity：5000 Piece, Year
Description
M910 M920 Dimension with cabin (LxWxH) 2690x1300x2285mm 3650x1500x2350mm Max.lifting height (boom retract) 2512mm 3200mm Max.lifting height (boom extend) 3030mm 3900mm Pulling force 12kN 19kN Bucket capacity 0.5cbm 1 cbm Max. loading capacity 1000kg 2000kg Min. turning radius 2120mm 3100mm Turning angle 450 450 Min. ground clearance 268mm 330mm Speed 0-10 km/h 0~12~24km/h, two speed Operating weight 1850 kg 2600kg Standard tire 26X12-12 31X15.5-15 Tire pressure 2.8 bar 2.8 bar Oil tank capacity 45L 80L Pressure 190bar 190bar Working oil flow 33.5L/minx2 50L/min x 2 Tracking oil flow 78L/min 120L/min Oil model(mineral oil) L-HL46 L-HL46 Fuel tank capacity 30L 52L Battery 60Ah, 12V 60Ah, 12V Engine Perkin/Yanma Yanma/Kohle/Chinese Rated power 33hp 68hp-74hp
Detailed images:

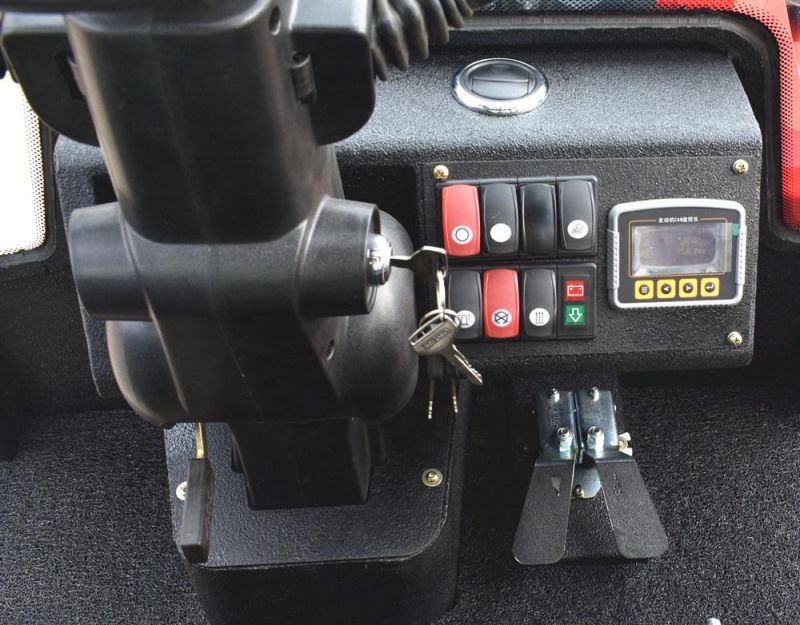

Inside cabin
Telescopic boom
Tipping cabin
Rear hydraulic output and 3 point hitch

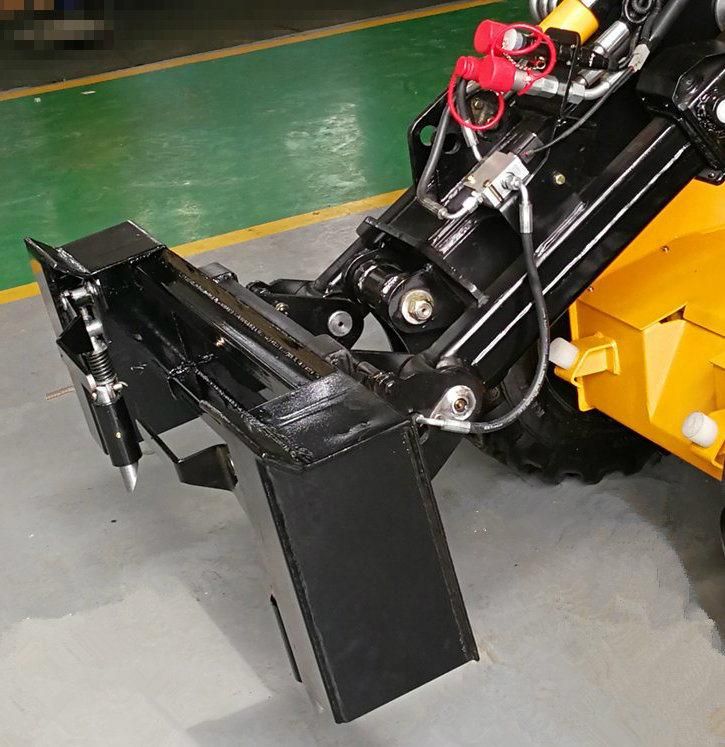

skid steer loader adapter plate (optional). Customers who had some attachments can choose this option to save money buy new ones

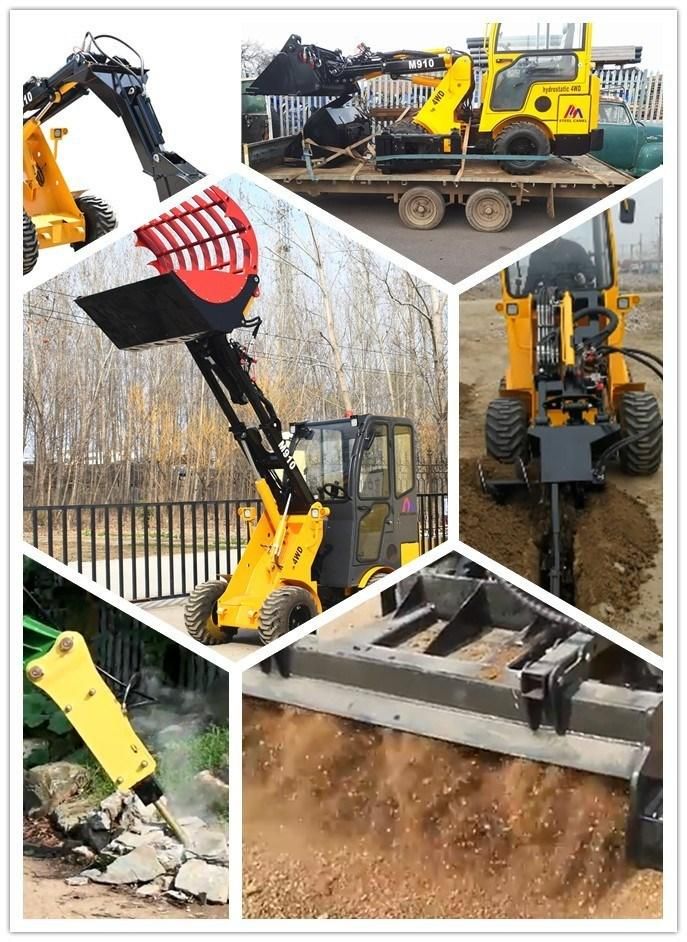

Applications:
Loader+Tractor, one Multi-purpose helper for all your works
Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

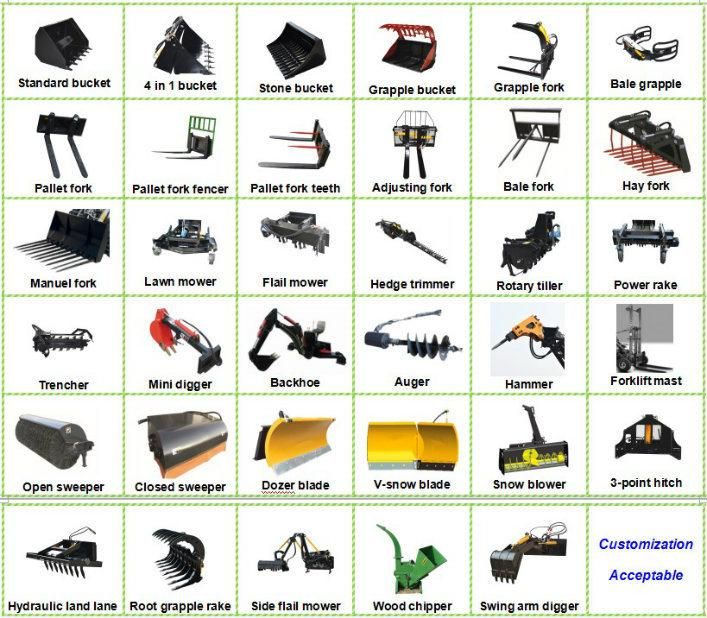

Attachments
Packing and loading:
Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......
Our Service:
Pre-Sales Service:
After Sales Service: * Inquiry and consulting support.
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door * Training how to instal the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole workling life service
Inquiry Now:
With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.
Detailed images:
Inside cabin
Telescopic boom
Tipping cabin
Rear hydraulic output and 3 point hitch
skid steer loader adapter plate (optional). Customers who had some attachments can choose this option to save money buy new ones
Applications:
Loader+Tractor, one Multi-purpose helper for all your works
Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
Attachments
Packing and loading:
Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......
Our Service:
Pre-Sales Service:
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole workling life service
Inquiry Now:
With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.
