• Model NO.：LDS2000E
• Color：Customised
• Drive Type：Electric motor
• Working Pressure：2.5Mpa (Trelleborg Hose)
• Output：4-8m3,h
• Max. Aggregate Size：10mm
• Squeeze Hose ID：50mm
• Conveying Hose ID：50mm
• Squeeze Pump Model：LH50-680
• Power：7.5kw, electric motor
• Hopper Volume：240 Liter
• Requested Air Compressor：6m3,min, 0.6Mpa Pressure
• Vertical Conveying Distance：30m (Trelleborg Hose)
• Horizontal Conveying Distance：80m (Trelleborg Hose)
• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：ISO
• Trademark：Leadcrete
• Origin：China
• HS Code：8413609090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LDS2000E Color Customised Drive Type Electric motor Working Pressure 2.5Mpa (Trelleborg Hose) Output 4-8m3/h Max. Aggregate Size 10mm Squeeze Hose ID 50mm Conveying Hose ID 50mm Squeeze Pump Model LH50-680 Power 7.5kw, electric motor Hopper Volume 240 Liter Requested Air Compressor 6m3/min, 0.6Mpa Pressure Vertical Conveying Distance 30m (Trelleborg Hose) Horizontal Conveying Distance 80m (Trelleborg Hose) Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO Trademark Leadcrete Origin China HS Code 8413609090 Production Capacity 5000 Sets/Year

Product Description

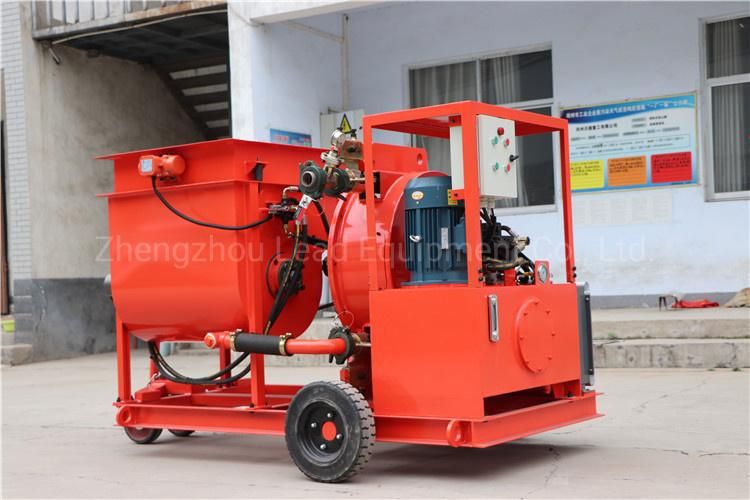

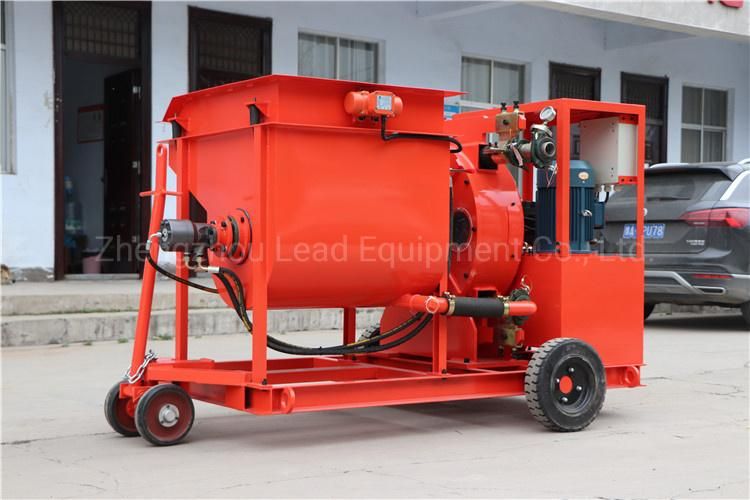

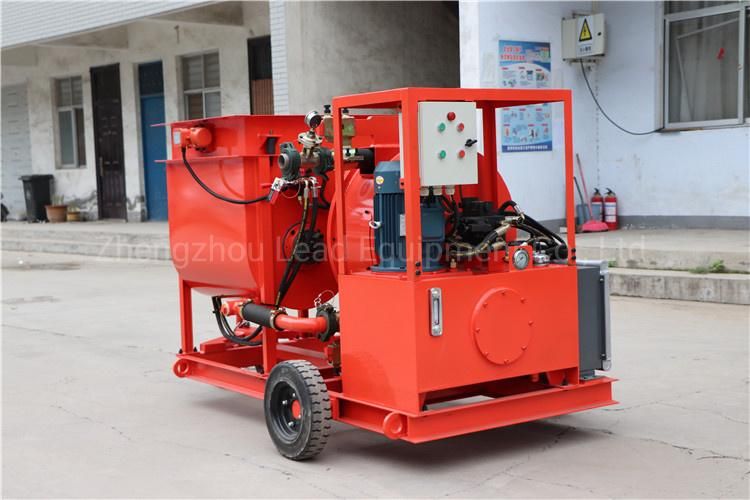

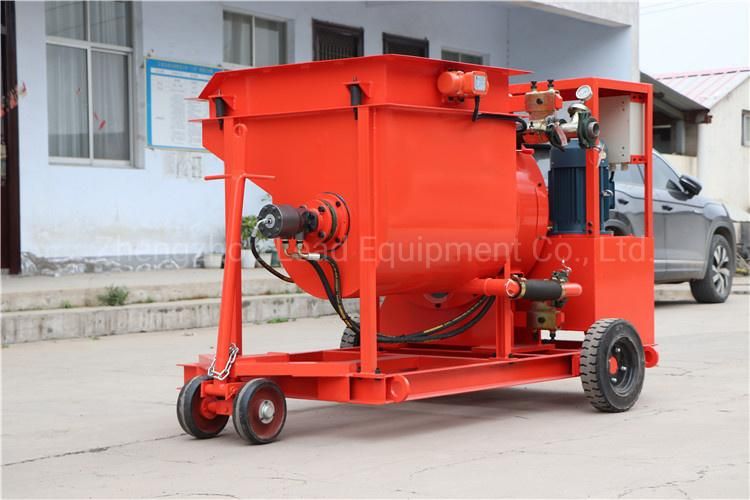

electric mini concrete shotcrete machine/ small concrete shotcrete pump for construction

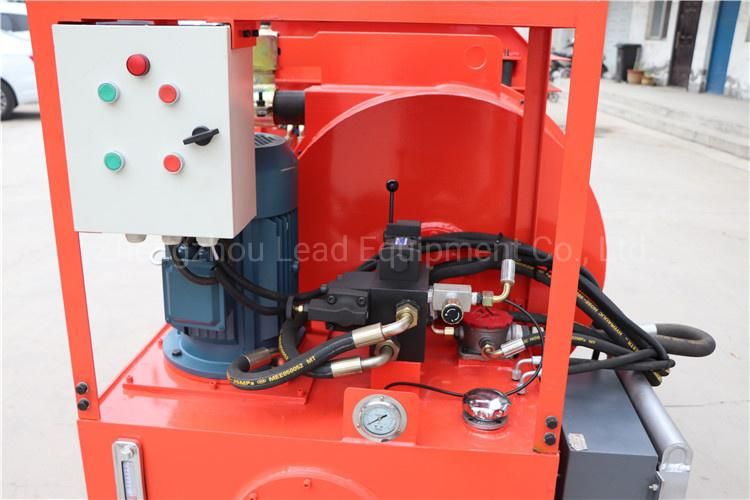

LDS2000E electric shotcrete pump runs by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. LDS2000E electric shotcrete pump is used for building dome, swimming pool etc, and pumping and spraying normal concrete, mortar, plaster and cellular light concrete.




Feature description
1). Planetary gearbox and highly reliable direct drive;
2). Easy to move with wheels;
3). Easily operating on work site;
4). Infinite speed variation;
5). Power, compact and reliable.





Parameter

Item	Description
Drive Type	Electric motor
Working Pressure	2.5Mpa (Trelleborg Hose)
Output	4-8m3/h
Max. Aggregate Size	10mm
Squeeze Hose ID	50mm
Conveying Hose ID	50mm
Squeeze Pump Model	LH50-680
Power	7.5kw, electric motor

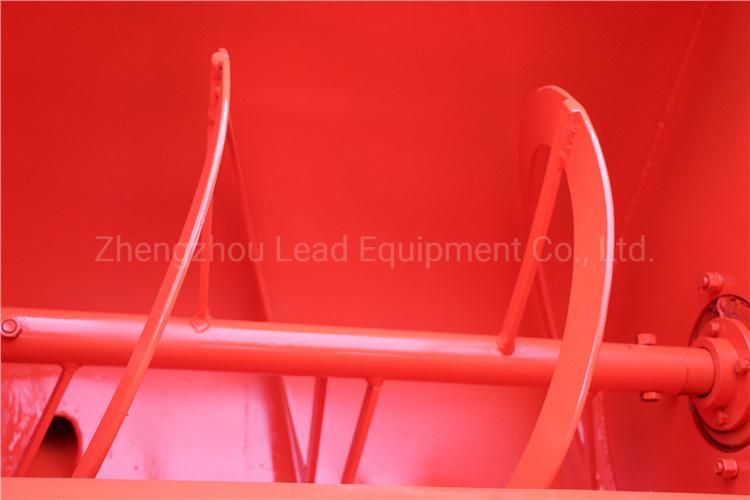

Hopper Volume	240 Liter
Requested Air Compressor	6m3/min, 0.6Mpa Pressure
Vertical Conveying Distance	30m (Trelleborg Hose)
Horizontal Conveying Distance	80m (Trelleborg Hose)

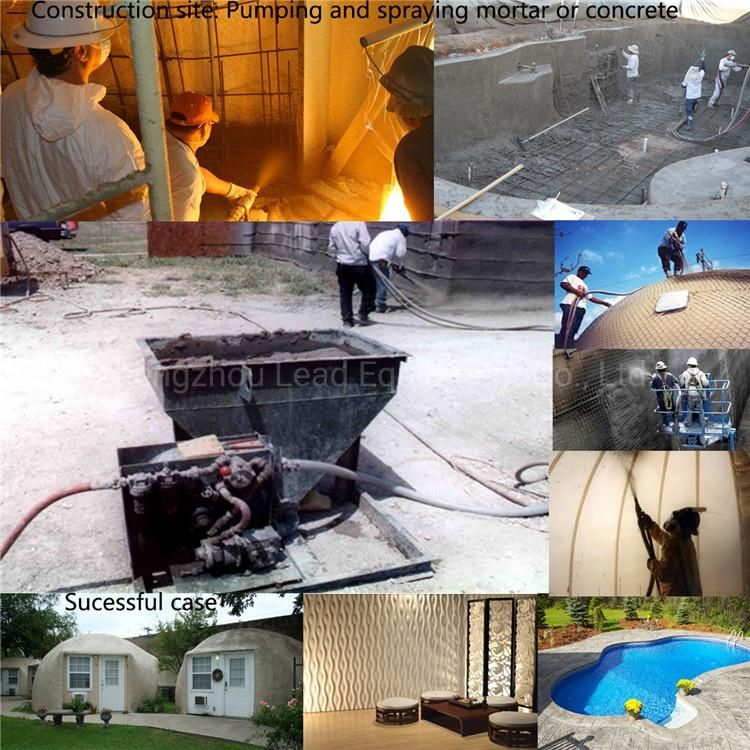

Application

1. Building dome, swimming pool etc;
2. Pump and spray normal concrete;
3. Pump and spray mortar/plaster;
4. Pump and spray cellular light concrete.
