Super Cost-Effective Zl10f Wheel Loader
Taian Zhengtai Construction Machinery Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：ZL10F
- Type：Small Loader
- Standard Bucket：0.25cbm
- Operating Weight：2320kg
- Max Dump Heigh：3260mm
- Tyre Specification：Lr265,75r16
- Min Turning Radius (mm)：4400mm
- Wheel Base(mm)：2050mm
- Tread(mm)：1330mm
- Transport Package：Nude
- Specification：4720*1580*2290mm
- Trademark：ZTMACHINE
- Origin：China
- HS Code：842959000
- Production Capacity：30
Description
Basic Info.
Model NO. ZL10F Type Small Loader Standard Bucket 0.25cbm Operating Weight 2320kg Max Dump Heigh 3260mm Tyre Specification Lr265/75r16 Min Turning Radius (mm) 4400mm Wheel Base(mm) 2050mm Tread(mm) 1330mm Transport Package Nude Specification 4720*1580*2290mm Trademark ZTMACHINE Origin China HS Code 842959000 Production Capacity 30Product Description
| Description | Specification | Description | Specification |
| rated load(kg) | 1000 | ||
| Rated bucket capacity(m³) | 0.25 | ||
| operating weight(kg) | 2320 | ||
| Max.breakout force(kN) | 32 | ||
| Max.dump height(MM) | 3260 | ||
| Type | In line, water cooled, four stroke, dir.inject | ||
| Rated power(kW) | 20 | ||
| Rated speed(rpm) | 2400 | ||
| Min turning radius(MM) | 4400 | Tire model | LR265/75R16 |
| Wheel base(MM) | 2050 | ||
| Tread(MM) | 1330 | ||
| Min.ground clearance(MM) | 190 | ||
| Overall dimensions (l×w×h)mm | 4720×1580×2290 |
Packing & Delivery

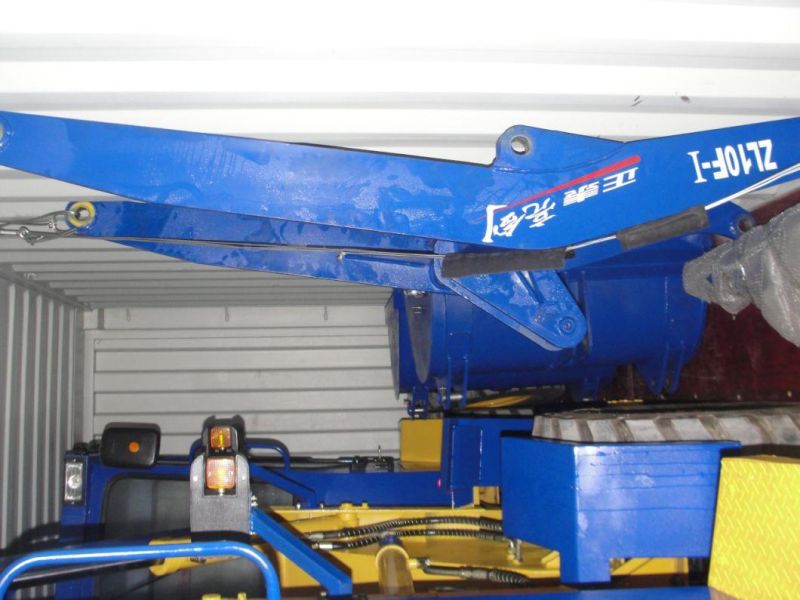

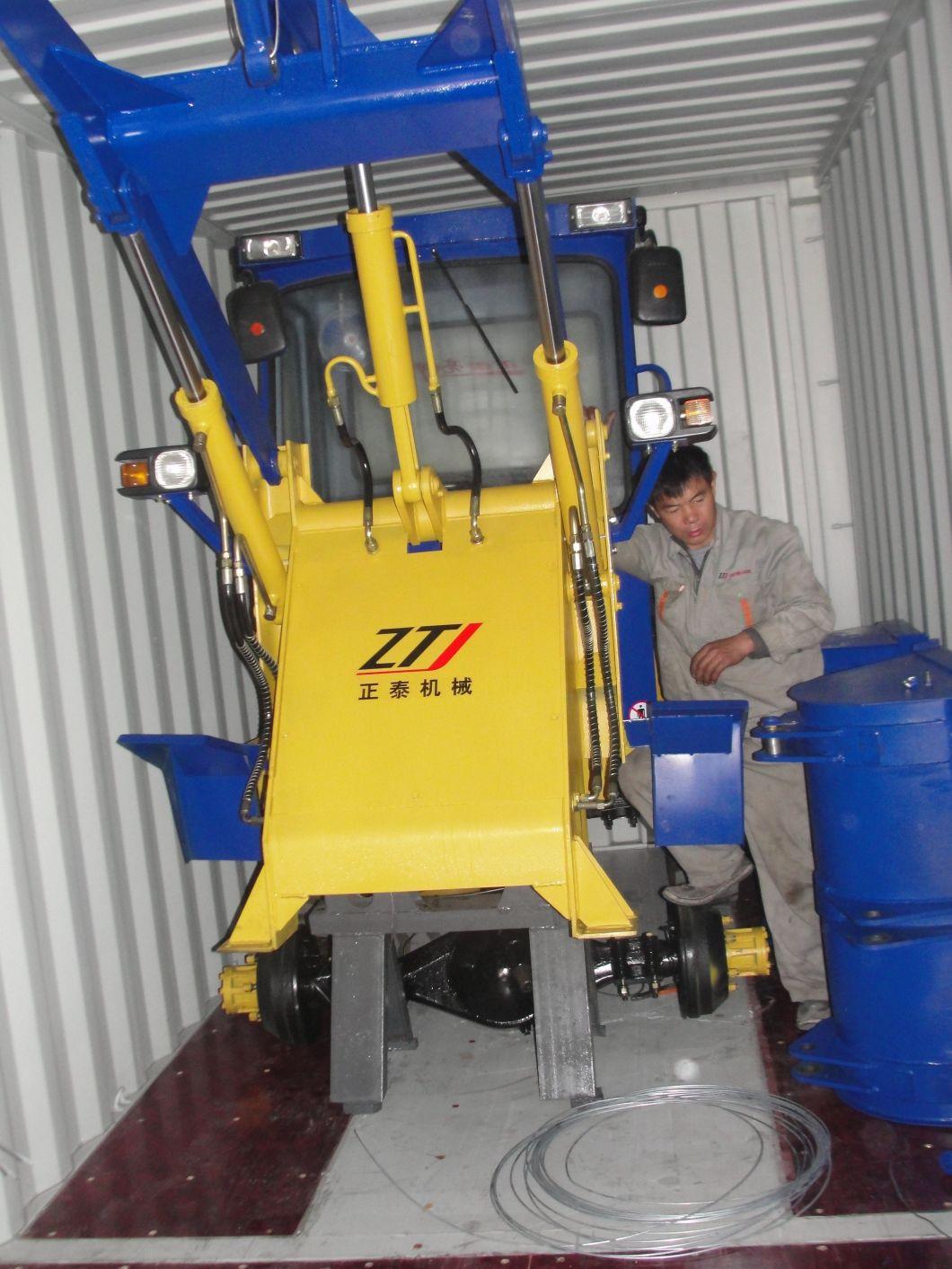

Container 40HC 4 units can be installed

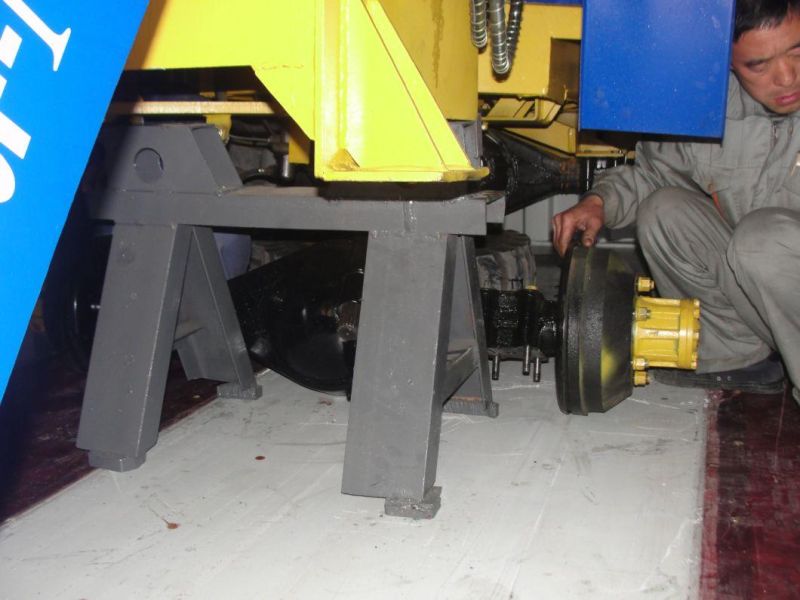

1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
