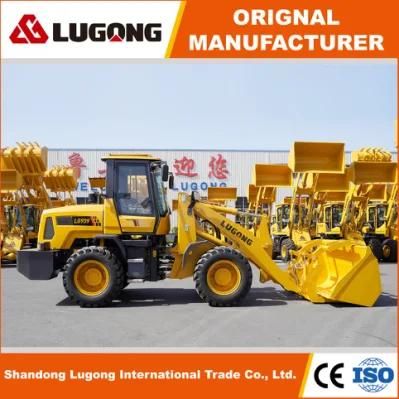

• Model NO.：LG946
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Yuchai
• Axle：Awd, Big Hub Reduction
• Steering：3-Layer Articulation Steering
• Attachment：Kinds of Attachments
• Transmission Box：Automatic
• Bucket Capacity：1.3cbm
• Bucket Width：2400mm
• Max. Dumping Height：3800mm
• Max. Dumping Distance：600mm
• Rated Power：92kw
• Gear Box Pattern：Automatic
• Gear Shift：Double H,L
• Tyre：17.5-25
• Optional Configuration：A,C
• Min. Ground Clearance：440mm
• Transport Package：Container
• Specification：6820*2130*3040mm
• Trademark：LUGONG
• Origin：China
• HS Code：84295100
• Production Capacity：40000

Main technical parameters Transmission bucket capacity1.3m³Gear Box PatternAutomaticrated load2500kgGear shiftDouble H/Lmachine weight7200kgTyre17.5-25overall dimension (mm)6820*2130*3040mmBraking System bucket width2400mmService brakeAir hydraulic disc brakeMax. dumping height3800mmParking brakeHand brakeEngineYuchai 6105 Turbo  rated power/speed92kw/2200optional: A/C, Cabin heater, forkliftPallet fork, log grapple, grass fork, etc.The sheet metal of the whole machine of Lugong LG series loader adopts drawing stamping and electrophoresis baking paint process, and more adopts arc design.

1. High structural strength
2. Good visual effect
3. preservative
4. Effectively reduce resonance



Design of three-layer articulation beam
3 layers of the beam in articulation. lugong makes the crossbeam cross the front chassis and arrange the turning cylinder an independent middle beam.
In the loader chassis , the articulation is the most important and Easy to deform,Lugong has Analysis and testing for many years, it's The concentrated load and the fatigue of the hinge caused by metal fatigue are easily damaged. In addition, the conventional design loads the steering hydraulic cylinder on the bottom beam, which further accelerates the deformation of the hinge plate. They finally designed such a three-layer beam and plugged the upper and lower beam plates. In this way, the Lugong loader has a more flexible operation, better chassis strength and more durability.

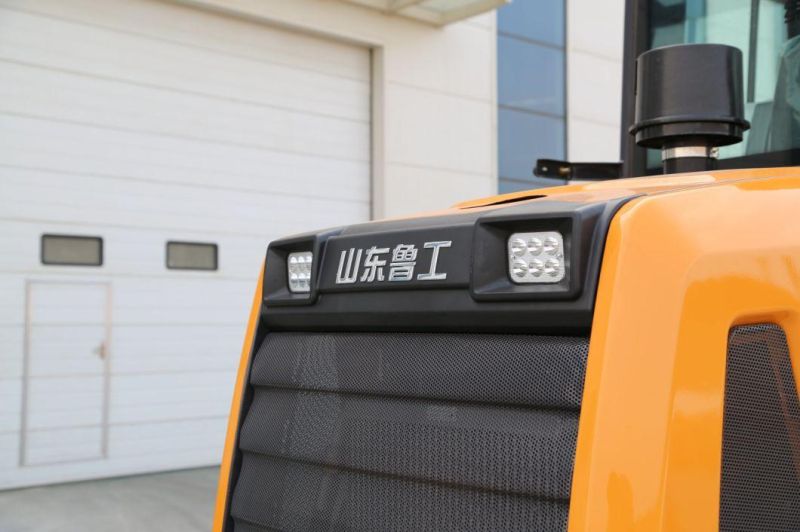

Humanized cab design, large space, more comfortable and stronger

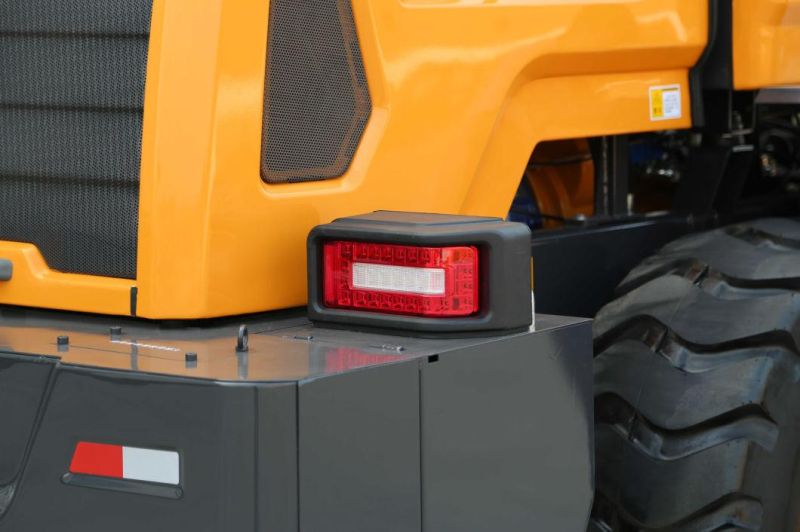

Regardless of whether it is sheet metal or glass, Lugong adopts more curved spherical design, which brings technical test in production, but the benefits brought by this design are many, and the curved eggshell effect brings higher Structural strength, while effectively reducing the noise caused by mechanical resonance. Lugong adopts the leading stamping and drawing and electrophoresis baking process, while effectively improving the corrosion resistance. The stamping technology is integrated, the plate is thickened, the solid materials is used, and the design of multi-space filling is carried out, with emphasis on the paint surface. Practice has proved that the traditional rear counterweight is easy to rust, corrode and deform, so Lugong has made a comprehensive upgrade to the rear counterweight.

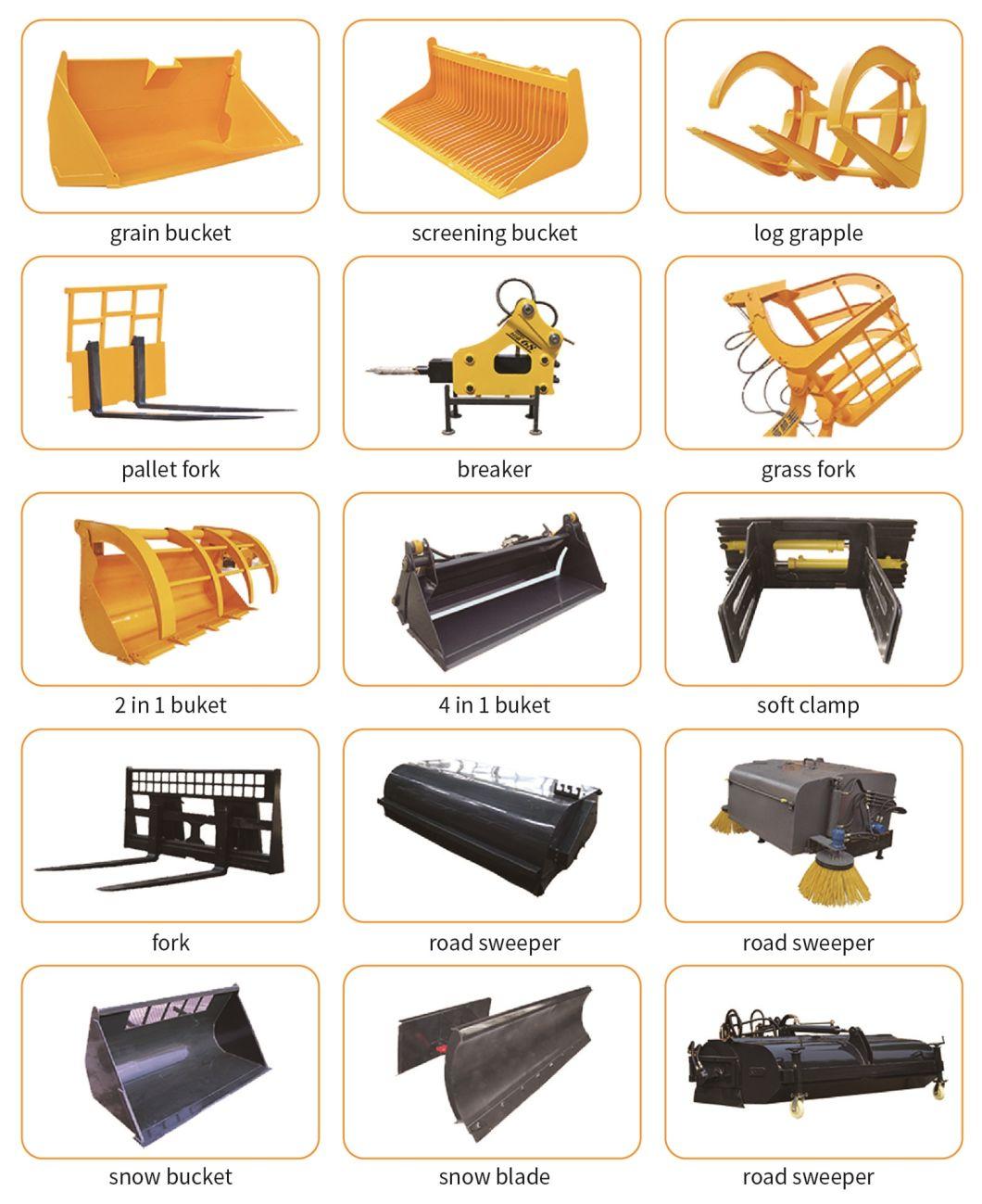

Our Attachments
We have more than 30 kinds of attachments,All kinds of attachments can be replaced,It can be customized to your requirements.
Company Profie

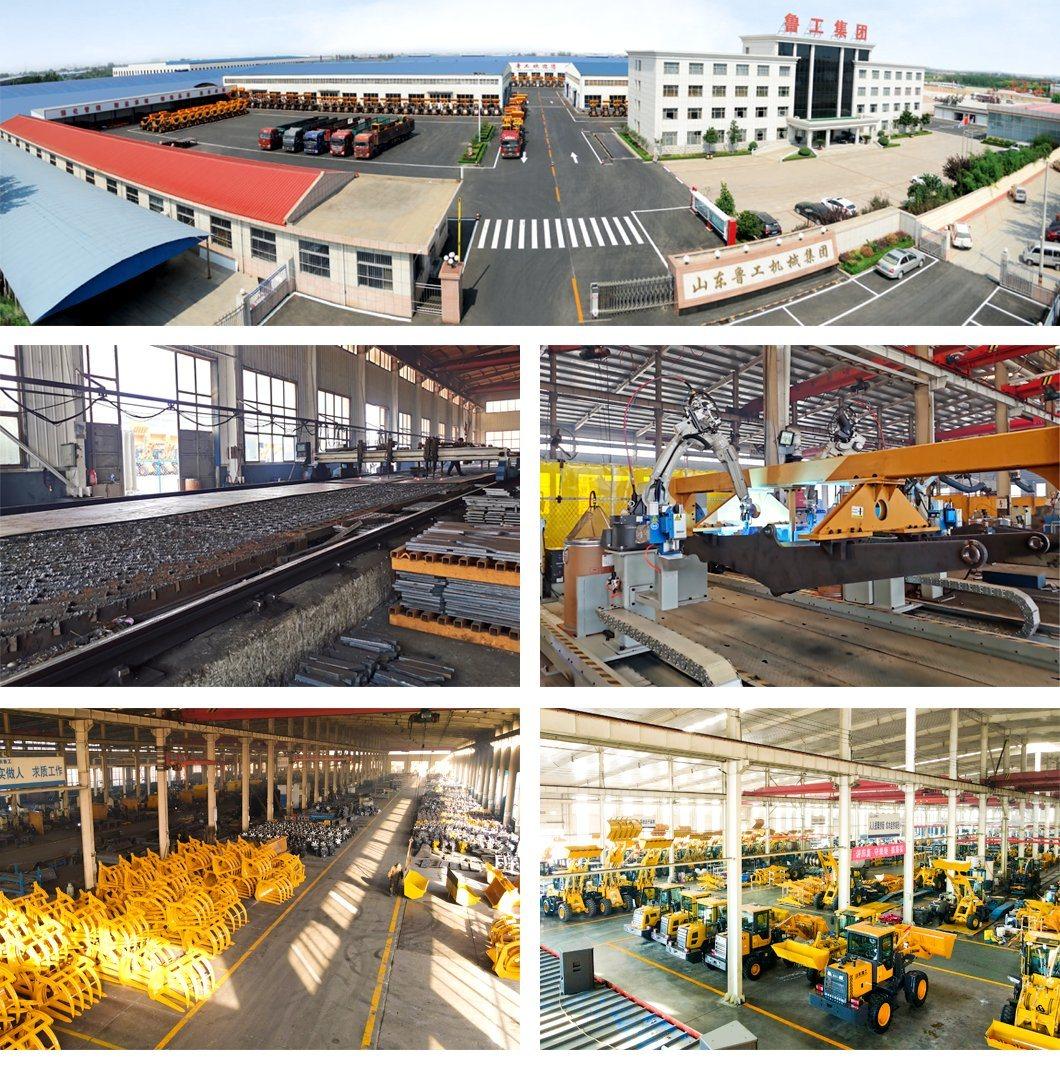

Shandong Lugong Machinery Co., Ltd. was founded in March 2000. Our company is the backbone enterprise of construction machinery national wide. It covers a land of 200 thousand square meters and has 1100 employees, 88 of whom are engineers and technicians.
Our honors

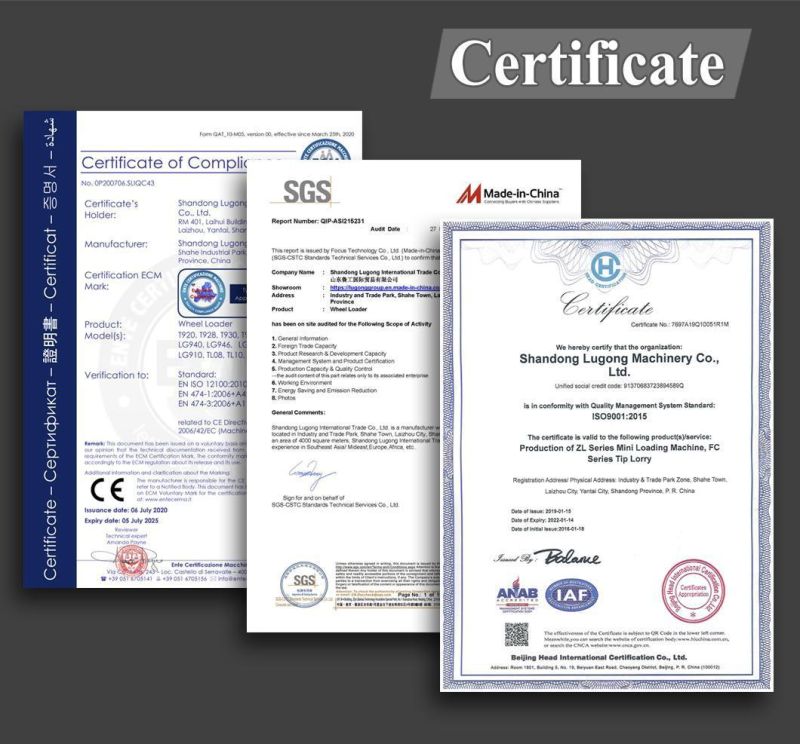

Certificate
We focus on quality, performance and consider of users as always. In management, we've achieved a new level by adopting ISO 9001:2015 international quality management system.

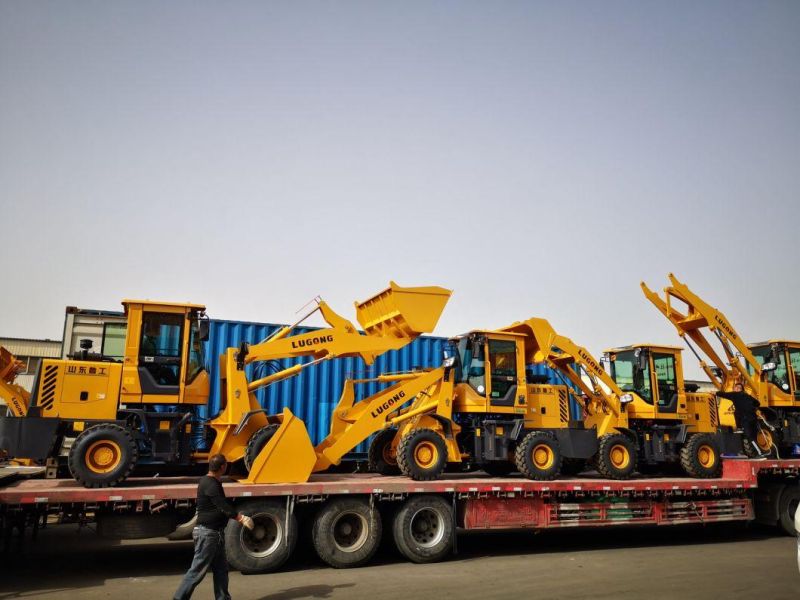

Packing & Delivery
Our company mainly produces loaders, excavators, tippers, tricycles etc. Products are mainly sold to over 20 provinces in China and exported to dozens of countries and regions in Africa, Southeast Asia, South America and Russia. The quality and performance of our small farm-use loaders and construction tippers are in leading position of the industry throughout the nation and well received by users. Now, "Lu Gong" brand loaders and tipper have gained acceptance by dealers and uses all over China.
We focus on quality, performance and consider of users as always. In management, we've achieved a new level by adopting ISO9001:2015 international quality management system. We would like to develop in economic construction by holding our old and new friends and users hands by following our business philosophy of "Driven by science and technology, seeking survival by quality, benefiting by managing and winning market by service" and spirit of "Pioneering, innovating and pursuing excellence".
