• Model NO.：RP601L
• Automatic Grade：Semi-Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Engine：D4114zg2b
• Hopper Capacity (T)：15t
• Maximum Paving Thickness (mm)：350
• Maximum Productivity (T/H)：850
• Transport Package：by Roro, Bulk Cargo or Container Transprot
• Specification：6096× 2580× 3832mm
• Trademark：NEWINDU
• Origin：China
• HS Code：8704109000
• Production Capacity：50 Uint, Month

Basic Info.

Model NO. RP601L Automatic Grade Semi-Automatic Product Capacity >400t/h Certification ISO9001: 2000, CE Condition New Engine D4114zg2b Hopper Capacity (T) 15t Maximum Paving Thickness (mm) 350 Maximum Productivity (T/H) 850 Transport Package by Roro, Bulk Cargo or Container Transprot Specification 6096× 2580× 3832mm Trademark NEWINDU Origin China HS Code 8704109000 Production Capacity 50 Uint/ Month

Product Description

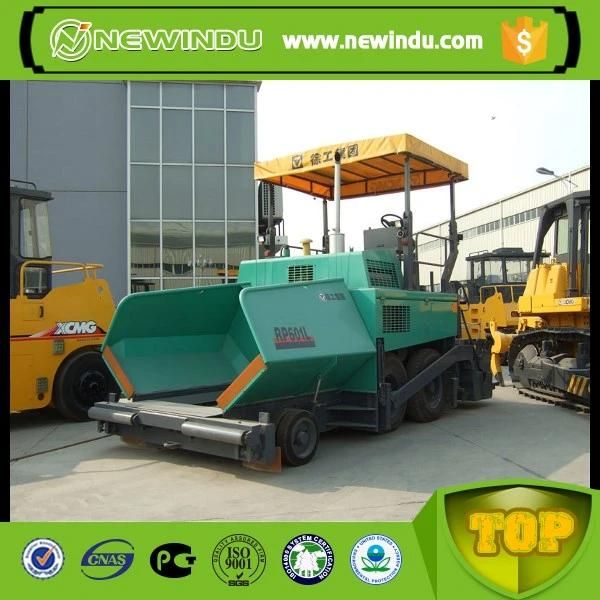

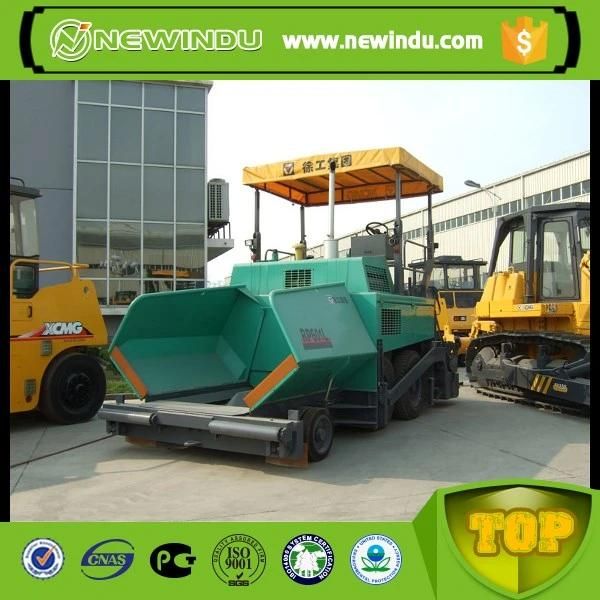

RP601L Multifunctional Road Equipment Asphalt Concrete Paver for Sale

Feature

RP601L, RP701L are elaborately designed with advanced VOGELE pave technology.It uses world advanced techniques:Fully hydraulic driven, constant velocity and automatic control system.Centralized lubricating system.Electric-heating system and the conveyor and auger could be adjusted manually or automatically.The working width is from 2.5m to 7m;The paving thickness could be infinitely adjusted from 0-300m.All the control components are on the control board that can be movable to right and left side.With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.

It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.
RP601L, RP701L are elaborately designed with advanced VOGELE pave technology.It uses world advanced techniques:Fully hydraulic driven, constant velocity and automatic control system.Centralized lubricating system.Electric-heating system and the conveyor and auger could be adjusted manually or automatically.The working width is from 2.5m to 7m;The paving thickness could be infinitely adjusted from 0-300m.All the control components are on the control board that can be movable to right and left side.With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.

It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.
RP601L, RP701L are elaborately designed with advanced VOGELE pave technology.It uses world advanced techniques:Fully hydraulic driven, constant velocity and automatic control system.Centralized lubricating system.Electric-heating system and the conveyor and auger could be adjusted manually or automatically.The working width is from 2.5m to 7m;The paving thickness could be infinitely adjusted from 0-300m.All the control components are on the control board that can be movable to right and left side.With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.

It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.
RP601L, RP701L are elaborately designed with advanced VOGELE pave technology.It uses world advanced techniques:Fully hydraulic driven, constant velocity and automatic control system.Centralized lubricating system.Electric-heating system and the conveyor and auger could be adjusted manually or automatically.The working width is from 2.5m to 7m;The paving thickness could be infinitely adjusted from 0-300m.All the control components are on the control board that can be movable to right and left side.With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.

It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.

Parameters


Item	Unit	RP451L	RP601	RP601L	RP701L
Basic Working Width	M	2	2.5	2.5	2.5
Max Working Width	M	4.5	6.0/7.0	6	7
Max Paving Thickness	Mm	150	150	300	300
Paving Speed	M/min	0~13	0~11	0~18	0~18
Traveling Speed	Km/h	0~13	0~3.2	0~18	0~18
Theoretical Productivity	T/h	240	300	400	400
Hopper Capacity	T	12	13	20(paving shift)	20(paving shift)
Gradient Ability	%	20(paving shift)	20	13	13
Smoothness	Mm/3m	3	3	3	3
Slope Leveling Tolerance	%	±0.02	±0.03	±0.02	±0.02
Crown adjust	%	0~3	0~+3	0~+3	0~+3
Tamper revolution	R/min		0~1500	0~1500	0~1500
Tamper Amplitude	Mm		4/8	4	4
Engine Type		4JR3G1(Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)
Rated power	Kw	55	100	100	100
Rated revolution	Rpm	2200	2400	2400	2400
Weight	T	10.5	17.4~20.5	15.3~19	15.3~19
Overall Dimension	Mm	5670×2070×3590	6400×2500×3830	6096×2580×3832	6096×2580×3832









Our company
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 10 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
