High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Certification：TUV, ISO, CE, SGS,Rops&Fops
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic

Base Info

  • Model NO.：HQ920
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Loading Weight：2000-2500kg
  • Engine：Yunnei 65kw or EPA 4 for Option
  • Operating Weight：5500kg
  • Cabin：Rops&Fops
  • Max Speed：32km,H
  • Size：5900*2100*2860mm
  • Joystick：Electric Joystick
  • Tire：16,70-20
  • Transport Package：2 Units in One Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Specifications of HQ920 wheel loader :1,Engine Details Model:Yunnei engine or Euro 5 or  EPA 4  for optionEngine type:Vertical, in-line, water cooled, 4-stroke diesel engineRated Power:65kwRated Speed: 2400 r/p. Min (rpm) 2,Transmission SystemTorque conventerYJ _ 280Agearbox modelCountershaft power-shiftgear shift2 forward shift  2 reverse shiftmaximum speed32km/h3,Bucket Bucket Capacity:1.2m3Bucket width:1900mmBucket type:Heavy-duty bolt on teeth Max. Breakout Force: 68KN Rated Load: 2000-2500kg Operating Weight:5500kg4,Overall Dimensions  Overall Length (Bucket on ground position):5900mmOverall Height : (a) Ground to Cab Top:2860mm(b) Dumping Height: 3200mm(c) Overall Width: 2010mm5, Operating Specifications Steering System:Articulated Frame with hydraulic power steering Min Turning Radius:4600mm Driving System: Hydraulic converter 6,Brake System Service Brake: Four Wheel Hydraulic spread-shoed brake Parking Brake: Hand operated7,Tyre  Model:16/70 -20 or 16/70-248,Wheelbase : 2350mm9,Track:1500mm

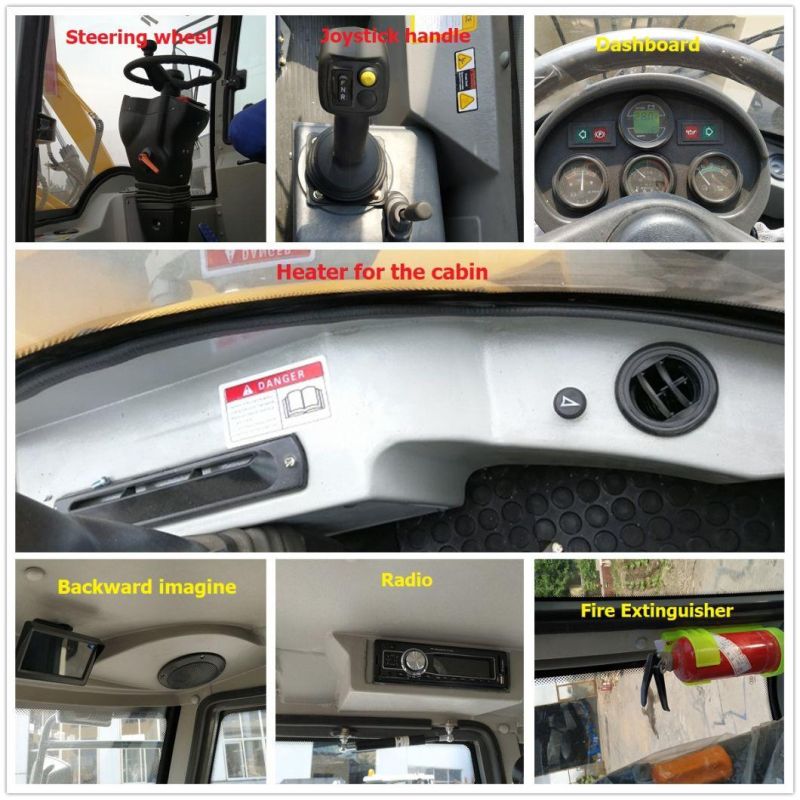

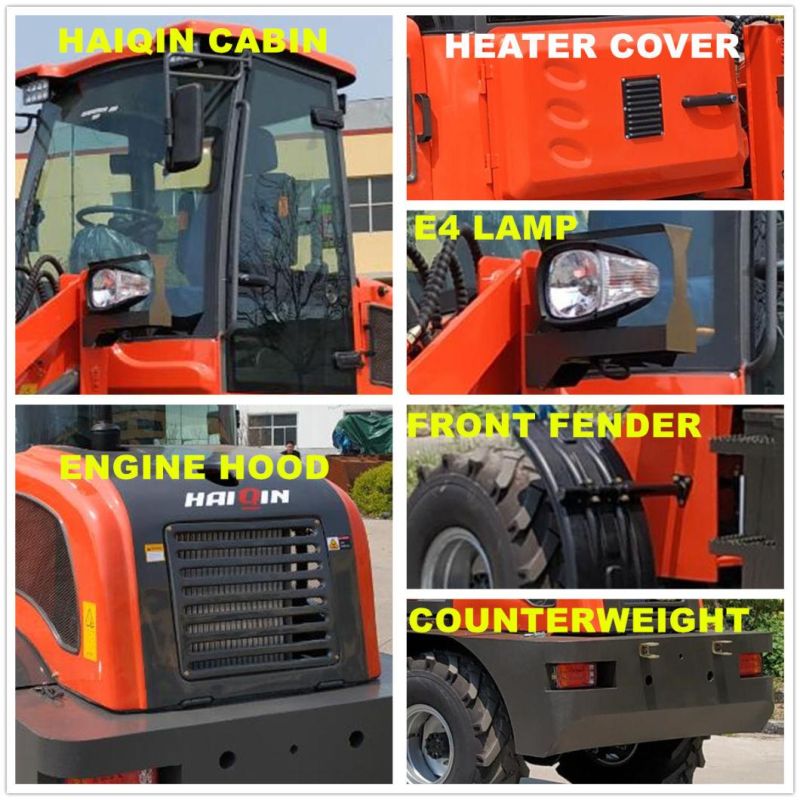

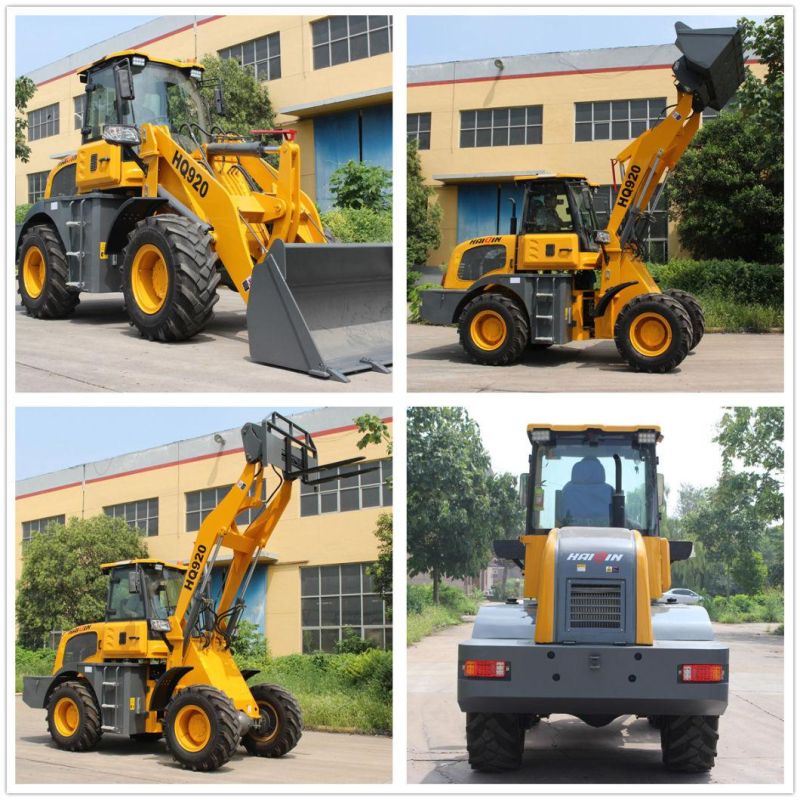

3, Details Photos of HQ920 Wheel Loader

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader
High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

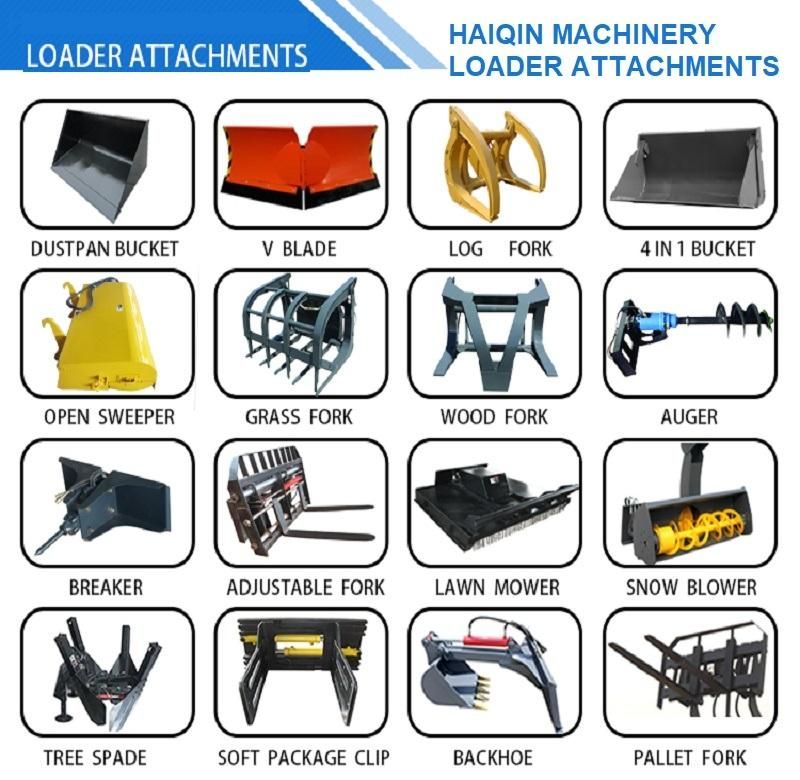

4,Optional Attachments for HQ920 Wheel Loader:


High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

5, Feedback from HaiQin's Customers

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader
6, HaiQin Machinery Participating in foreign Machinery Exhibitions

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

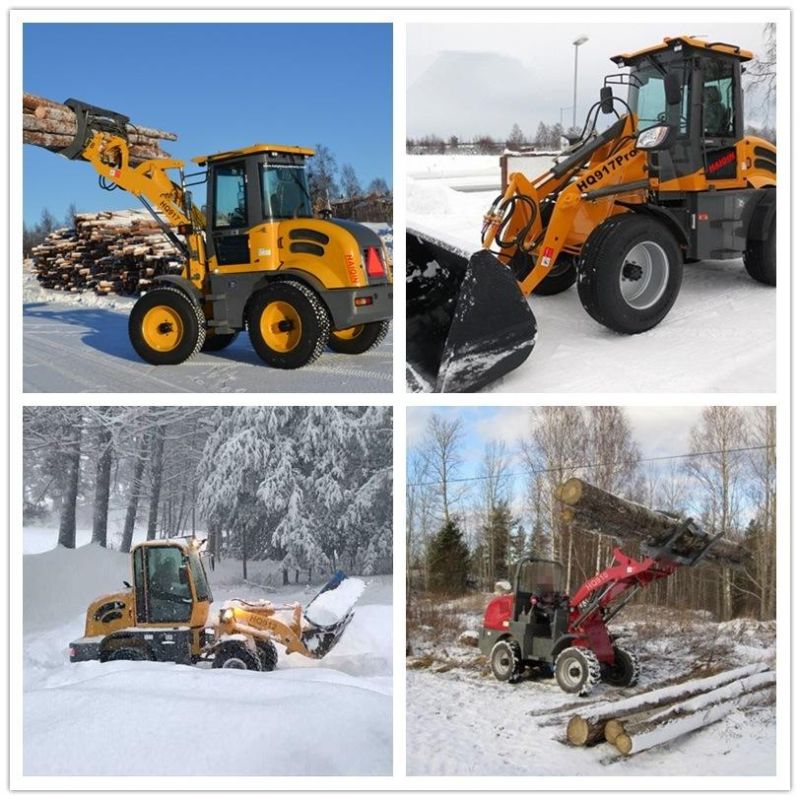

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader
8,Factory introduction of Haiqin Machinery

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader

9,Certificate of Haiqin Machinery

High Quality (HQ920) with Tier 4 Engine Strong Wheel Loader


10, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then good after-service will be guaranteed.
