• Model NO.：50GN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Bucket Capacity：2.5-4.5m3
• Engine Power：162~515kw
• Engine：Weichai & Shangchai & Zf
• Maximum Breakout Force：170kn
• Total Weight：17500 Kgs
• Scraper Type：Tractor-Scraper
• Model：Wd10g220e21
• Transport Package：Container, RO-RO
• Specification：8225*3016*3515mm
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：87059091
• Production Capacity：5000

Basic Info.

Model NO. 50GN Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Rated Bucket Capacity 2.5-4.5m3 Engine Power 162~515kw Engine Weichai & Shangchai & Zf Maximum Breakout Force 170kn Total Weight 17500 Kgs Scraper Type Tractor-Scraper Model Wd10g220e21 Transport Package Container, RO-RO Specification 8225*3016*3515mm Trademark Raygoo Origin Fujian, China HS Code 87059091 Production Capacity 5000

Product Description

RG ZL50GN wheel loader is the latest cross-generation product on the basis of the globalized technologic resources.

Focusing on customer value and emphasizing customer experiences, RAYGOO loader is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics. Model Characteristics:
1. exclusive high torque and high efficiency drive chain features reasonable matching.
2. characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

Performance Highlights:
1. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
2. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

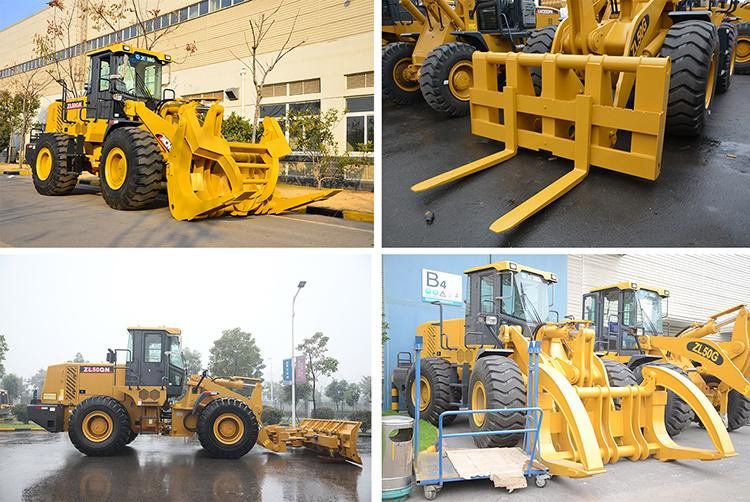

Variety attached tools meeting requirements of different working conditions:

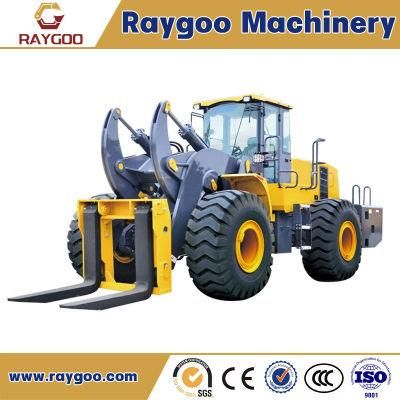

Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork
Wheel loader discription:

Description	Unit	Parameter value
Rated operating load	kg	5000
Bucket capacity	m³	2.5~4.5
Machine weight	kg	17500±300
Dump clearance at maximum lift	mm	3100~3780
Reach at maximum lift	mm	1100~1220
Wheel base	mm	3300
Tread	mm	2250
Max.breakout force	kN	175±5
Max.horse power	kN	160±5
Hydraulic cycle time-raise	s	≤6
Total hydraulic cycle time	s	≤10.5
Min. turning radius over tyres	mm	5925±50
Articulation angle	°	38
Gradeability	°	30
Tyre size		23.5-25-16PR
Overall machine dimension L×W×H	mm	8225×3016×3515
Model		WD10G220E21
Rated Power	kW	162
Travel Speed	1-gear(F/R)	13/17km/h
	2-gear(F)	41km/h

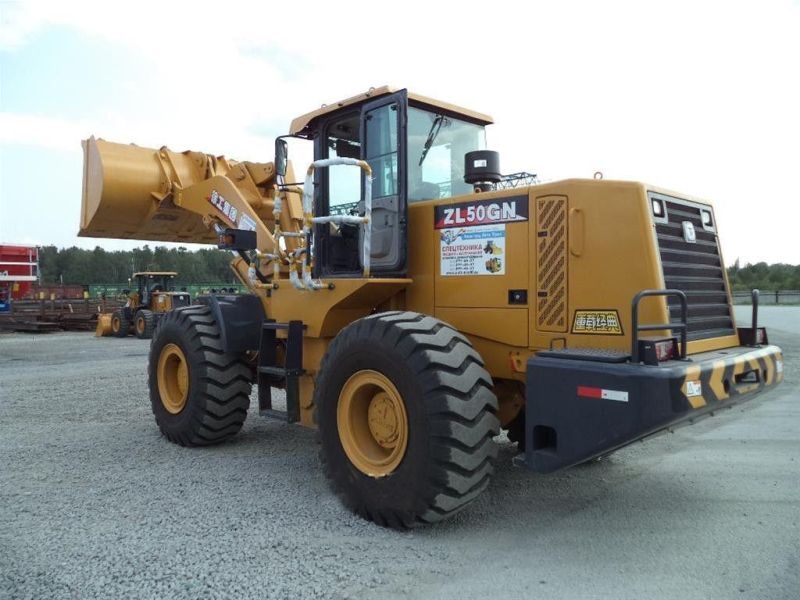

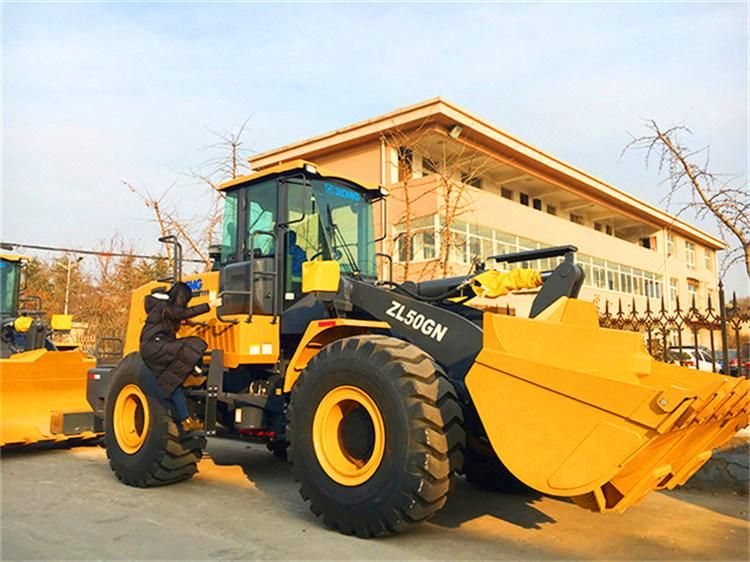

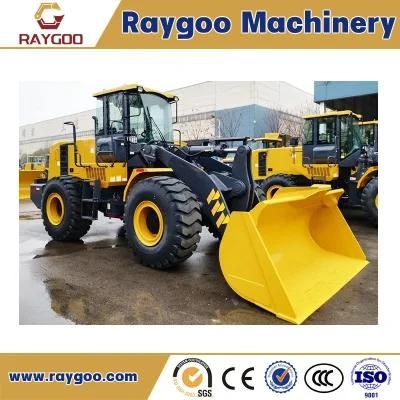

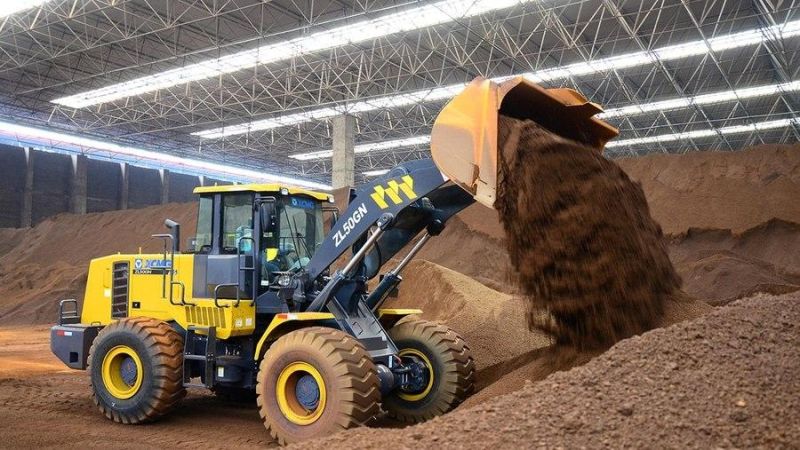

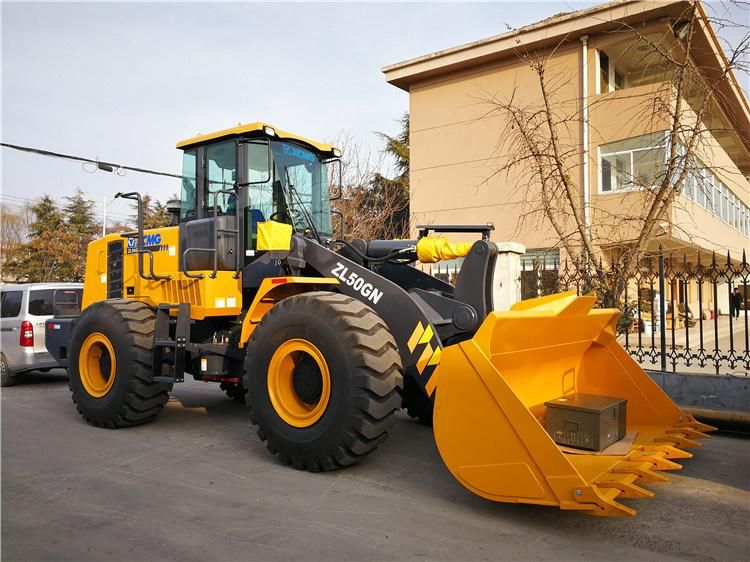

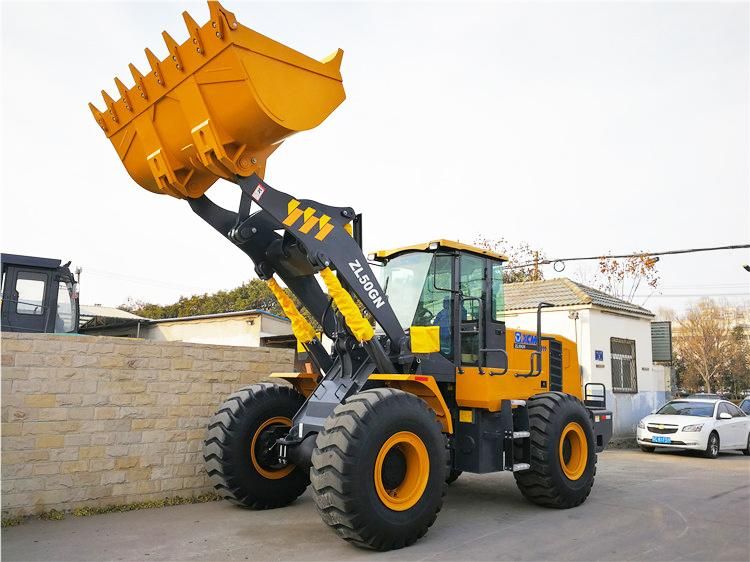

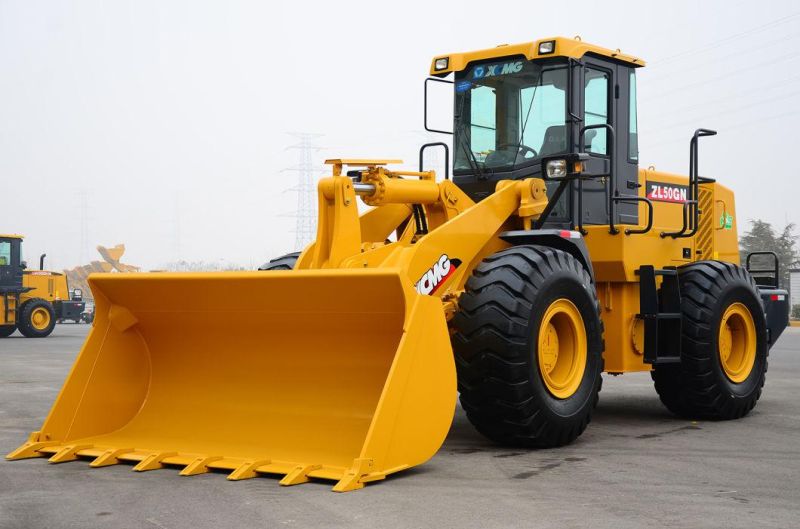

Photos:
