• Model NO.：SC-08,SC-10,SC-15,SC-20,SC-25
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000, TUV
• Condition：New
• Machine Name：Mini Excavator
• Color：Green,Yellow,Red
• Top Speed：4km,H
• Travel Mode：Crawler Traveling
• Climbing Ability：35°
• MOQ：1PC
• Advantage：Simple and Flexible Operation
• Price：Affordable
• Working Time：Adjustable
• Function：Grab Wood, Dig Ditches and Break The Road
• Business Type：Factory
• Shipping：by Sea
• Transport Package：Wooden Cases
• Specification：SC-08,SC-10,SC-15,SC-20,SC-25
• Trademark：SiChuang
• Origin：Xingtai City, Hebei Province, China
• Production Capacity：300PCS,Year

Basic Info.

Model NO. SC-08/SC-10/SC-15/SC-20/SC-25 Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE, ISO9001: 2000, TUV Condition New Machine Name Mini Excavator Color Green/Yellow/Red Top Speed 4km/H Travel Mode Crawler Traveling Climbing Ability 35° MOQ 1PC Advantage Simple and Flexible Operation Price Affordable Working Time Adjustable Function Grab Wood, Dig Ditches and Break The Road Business Type Factory Shipping by Sea Transport Package Wooden Cases Specification SC-08/SC-10/SC-15/SC-20/SC-25 Trademark SiChuang Origin Xingtai City, Hebei Province, China Production Capacity 300PCS/Year

Product Description

The mini excavator is mainly applicable to the underground works, such as digging wasteland, excavating ditches, digging underground pipelines, etc. of our company, and is mainly applicable to the underground works, the underground production, the demolition of greenhouses, the digging of ditches, and the construction of small-scale orchards. The small excavator has the advantages of low cost, light weight and convenient maintenance. It is welcomed by users for its compactness, flexibility, versatility and efficiency. Wide applicability. Small size and strong mobility, suitable for various pipeline excavation, foundation construction, public facilities and house maintenance in cities. The small excavator is specially designed to work in an environment where large excavators cannot work.
The important feature of small excavator suitable for working in narrow areas is the design of special swing arm and stick. The swing arm is hinged with the fuselage and can swing in a large range. Through this design, the excavator can avoid obstacles even when there are obstacles around and work without moving the body often. At the same time, it is convenient to excavate on or near the wall with an excavator. The rubber track of small excavator helps to reduce the landscape area and road damage within the narrow construction range during excavator construction.
Small excavators have small volume and low entry cost. Compared with large excavators, this investment is affordable. Because of its small size, strong mobility and simpler operation, this advantage is to attract friends who want to buy excavators to start a business but have insufficient funds. In addition, the maintenance cost of small excavators is relatively low, so even if there is a failure, the cost of replacing parts is much cheaper than that of large excavators.
Inspection and maintenance of excavator:
1. Clean the air filter in time according to the working environment, at least once every 50 hours.
2. Add antifreeze in time after it is reduced.
3. If you don't work for a long time, you need to remove the negative pole of the battery to avoid battery power loss.
4. Use the crushing hammer to work, and the maintenance cycle is halved.
5. The genuine original maintenance filter element shall be used for machine maintenance accessories.
Structure and advantages of mini excavator:
1. 360 ° rotation saves time and effort.
2. It has the functions of excavation, crushing, hook cleaning, drilling and bulldozing. It can quickly replace accessories and greatly improve the utilization rate of the machine.
3. Boom sideshift device: the front of the machine body is equipped with boom sideshift device. The boom can swing 90 degrees on the left and 50 degrees on the right, so as to truly realize the direct excavation of the wall root.
4. The utility model has the advantages of simple operation, small size and flexibility, convenient transportation, and can operate in a narrow site.
5. Excellent work efficiency and cost performance.
6. The standard bulldozer can level the site, backfill the earth and increase the stability of the whole machine.
7. Beautiful appearance, high configuration, superior performance, low fuel consumption and wide operation range.

Model	SC-08	SC-10	SC-15	SC-20	SC-25
Engine Power	12HP	12HP	18HP	25HP	39HP
Bucket Volume	0.02m³	0.025m³	0.035m³	0.045m³	0.15m³
Bucket Width	300mm	400mm	450mm	450mm	500mm
Shovel Width	720mm	880mm	990mm	1200mm	1250mm
Machine Width	730mm	930mm	1060mm	1250mm	1250mm
Track Grounding Length	1140mm	1200mm	1250mm	1500mm	1620mm
Track Width	150mm	180mm	200mm	230mm	230mm
Machine Height	1550mm	2050mm	2080mm	2380mm	2280mm
Seat Height	1100mm	1470mm	1560mm	1650mm	1750mm
Excavation Height	2350mm	2600	2800mm	3300mm	3700mm
Excavation Depth	1200mm	1400mm	1800mm	2200mm	2500mm
Excavation Radius	2400mm	2500mm	2600mm	3050mm	3200mm
Unloading Height	1600mm	1750mm	1750mm	2200mm	2600mm
Radius of Gyration	1100mm	1000mm	1000mm	1120mm	1320mm
Machine Weight	600Kg	980Kg	1450Kg	1650Kg	2200Kg
Excavation Strength	7.8KN	8KN	9KN	12KN	15KN
Climbing Ability	35°	35°	35°	35°	35°
Travel Speed	0-4Km/H	0-4Km/H	0-4Km/H	0-4Km/H	0-4Km/H
Machine Size(mm)	2100*730*1500	2130*930*2050	2260*1060*2080	2800*1250*2380	3350*1250*2280

FAQ

1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.

2.Are you a trading company or a factory?

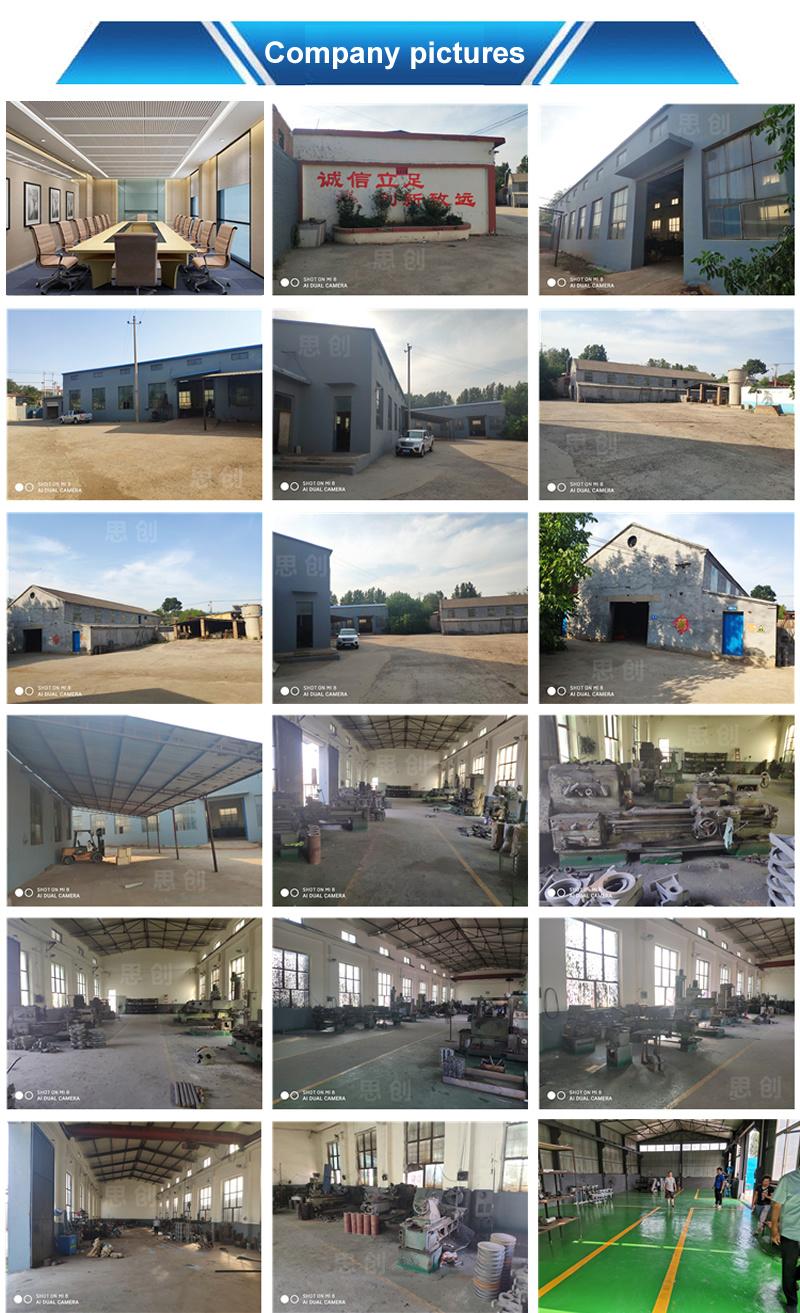

Xingtai Sichuang Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. we have specialized in we have specialized in crane&winch over 10 years, our high quality products were welcomed in many countries.

3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.

4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film

5. What's the delivery time?
Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity, it depends.

6. Questions before quotation?
Capacity? Lifting height? Voltage? Quantity? The more details the more accurate price quotation. Thank you.

7.what about our winches features?
1, Compact structure and reasonable design
2, Easy to install, operate and maintenance
3, Low noise and good working condition
4, Three-phase power supply, suitable for a wide range of applications
5, Simple structure, easy to identify the cause of the failure, easy to repair and maintain
