• Model NO.：ZL16F
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Operating Weight：4170kg
• Bucket Capacity：0.6m3
• Max Dumping Height：2850mm
• Rated Power：36.8kw
• Load Engine：Xinchai A498bt1
• Bucket Width：1780mm
• Wheel Base：2150mm
• Lifting Height：3950mm
• Rated Speed：2400 R,Min (Rpm)
• Shift Gear Control Oil Pressure：1.2~1.5MPa
• Parking Brake：Hand Operated
• Max. Breakout Force：36.8kn
• Ground to Cab Top：2770mm
• Wheelbase：2100mm
• Track：1500mm
• Transport Package：Nude in Container
• Specification：5250*1860*2680mm
• Trademark：TITAN
• Origin：China
• HS Code：84295100
• Production Capacity：5000,Year

Overview

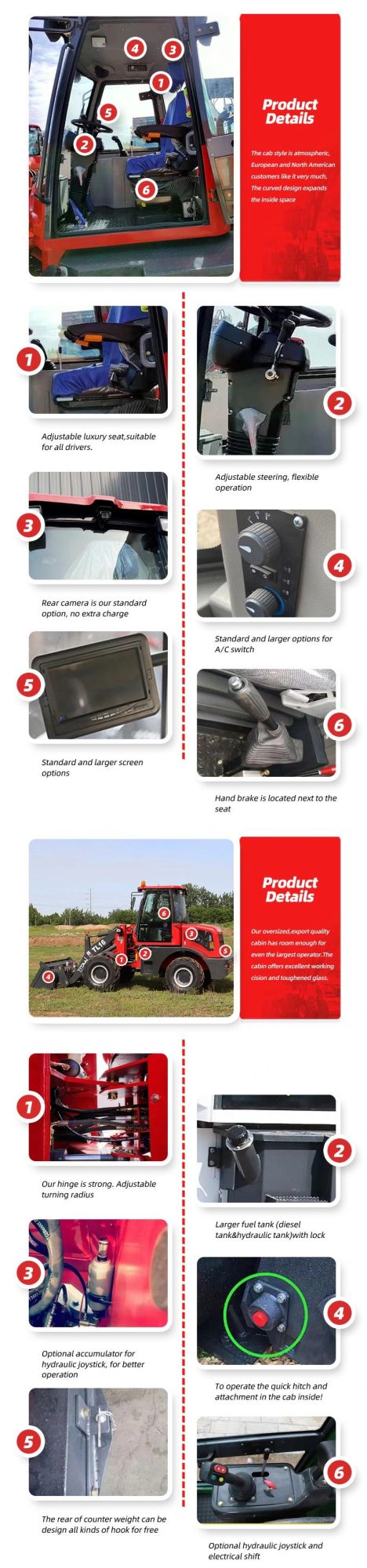

Detailed Photos

Standard:
--Xinchai 498 Euro III Engine.
--4 Cylinder enngine.
--Automatic with Torque Converter.
--4 wheel drive.
--Standard Bucket.
--Wheel reduction axle.
--220V Engine Pre-heater.
--Cabin Heater.
--Air Pre-heater.
--Luxury Cabin.
--Adjustable Steering Wheel.
--Lock For Lifting And Steering Cylinder.
--Quick Hitch.
--Mechanical joystick.
--20.5/70-16 Tire.
--Easy-damaged Spare Parts.

Optional Equipments:
LED Lights. Video For Backward. E-mark Seat. Varta Anti-free Battery. Hydraulic Joystick. Electric Joystick. Tipping Cabin. Floating Function. E4 Lamp. Rear Hydraulic System. 14- 17.5 Tire. 12.00-16

Product Parameters

1. All hydraulic system joy stick control , luxurious cab,adjustable seat,back camera, cab heat, LED light, auxiliary pipes

2. XINCHAI 498(EURO III), 37kw, four cylinder,water-cooled,option xinchai & Yanmar E3 engine
3. 1.6 ton , 0.8cbm bucket 21km/h, 5100x1800x2700mm
4. It also can install different accessories like pallet fork, snow bucket,snow blade,grass cutter,4in 1 bucket for different work condition.Engine DetailsOverall Dimensions
 ModelXinchai A498BT1(EURO III)Overall Length (Bucket on ground position)5100mmEngine typeIn-line arrangement, water-cooled, four-cycle diesel EngineGround to Cab Top2770mmRated Power36.8KWDumping Height2700mmRated Speed2400 r/min (rpm)Min. Base to the Ground290mmFuel Consumption ratio in standard working condition230g/kw.hOverall Width1800mmTransmission SystemOperating SpecificationsTypeFixed-spindle Power shiftSteering SystemArticulated Frame with hydraulic power steeringShift gear control oil pressure1.2~1.5MPaMin Turning Radius4500mmRated input speed2500 (rpm)Driving SystemHydraulic converterBucketBrake SystemBucket Capacity0.8m3Service BrakeFour Wheel drive hydraulic disc brakeBucket width1800mmParking BrakeHand operatedBucket typeHeavy-duty bolt on teethTyreMax. Breakout Force36.8KNModel20.5/70-16Rated Load1600kgWheelbase2100mmOperating Weight4175kgTrack1500mm
Certifications

All the machine with CE ISO SGS certificate.

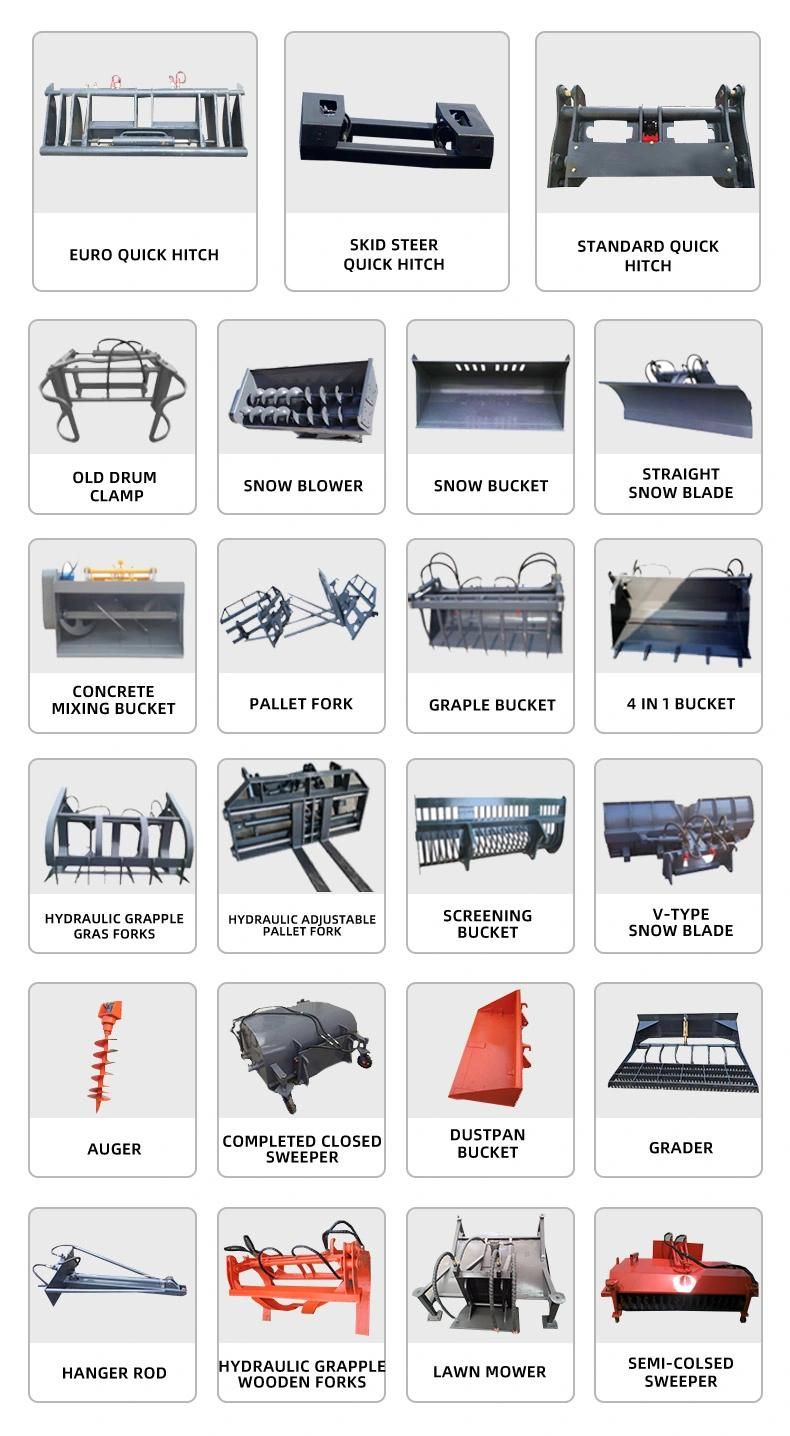

Attachments

Titanhi wheel loader adopts the Hydraulic Quick Hitch. All kinds of accessories can be replaced. Such as: log grapple, grab bucket, pallet fork, road sweeper, ripper, 4 in 1 bucket, snow blade, angle blade, grass fork, hay fork, screening bucket, hydraulic hammer, stick rake,auger and so on.

After Sales Service

Our Service
Our trained Professional service team offers high quality in-time service in a very friendly way.
For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 3 working days.We have professional technician to support trouble clearing and maintenance.

Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.

After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.

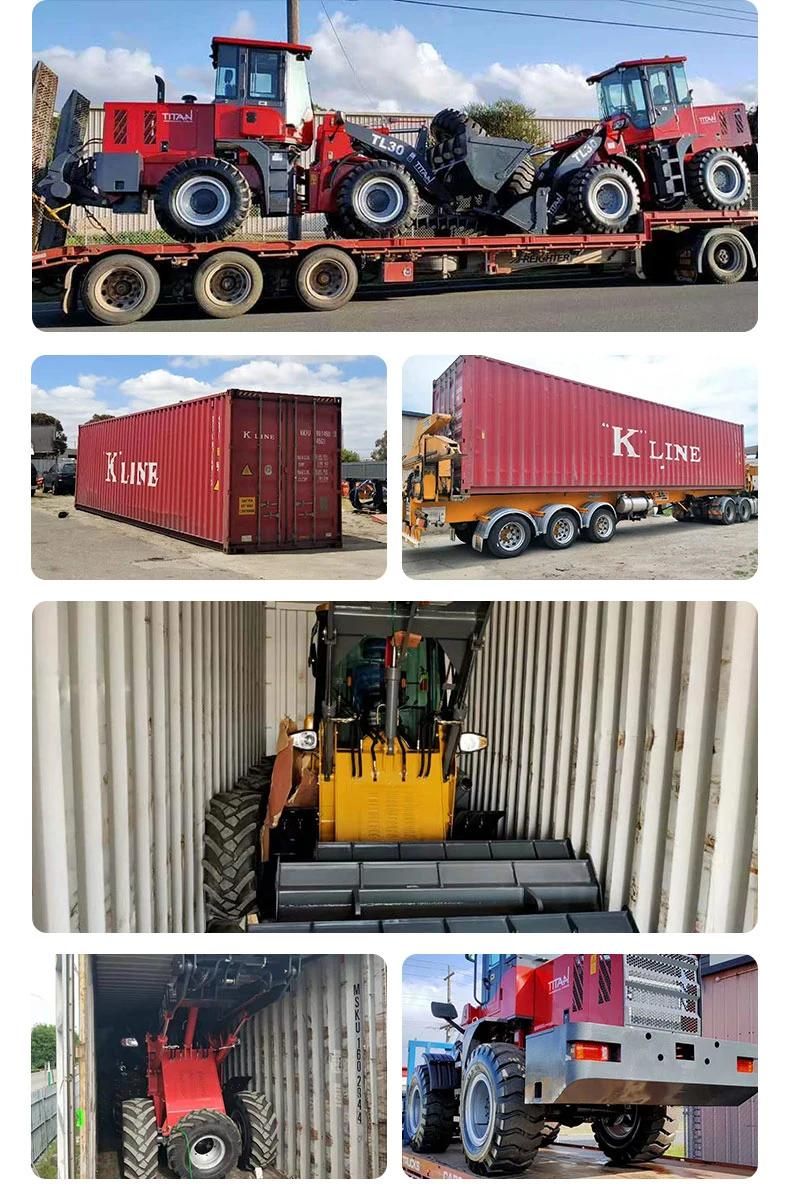

Packaging & Shipping

We use container transportation,according to your requirements,for you to choose the appropriate collccation If container is too tighber,we will use pefilm for packing or pack it accordfng to customers special requset.



Company Profile



Weihai Titan Heavy Machinery Co. Ltd

Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.
In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We sincerely thank all the friend's support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.
Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.

FAQ

Q:Why choose Titanhi?

We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of raw meterial.
We leave the maximum profit to customer.
1) Titanhi: an experienced loader manufacturer with over 11 years.
2) Titanhi team: customers-focused,you'll get reply within 5 minutes.
3)Titanhi: premium quality with reasonable price.
4) Titanhi: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITAN.Our products are tested and granted CE cetificate.

Q:What is Titan warranty?
TITANHI has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titanhi after-sales: life-long, meantime offer one year and one month warranty.
2) Titanhi proposal: order some wearing parts with loader for easy maintenance.

Q:What about Titanhi delivery term?
TITANHI Transport packsging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.

Q:What about the payment term?
30% advance payment,70% balance by T/T.
