Engineering & Construction Machinery

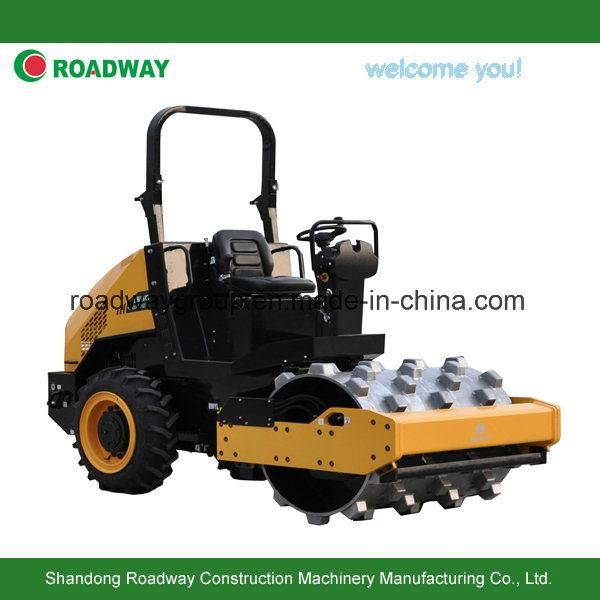

3 Ton Bigger Trench Roller, Ride on Hydraulic Vibratory Trench Roller,

Shandong Roadway Construction Machinery Manufacturing Co., Ltd.
  • Type:Road Roller
  • Working Method:Vibration
  • Axle:Biaxial Dual-Drum
  • Grinding Wheel Type:Tire Grind
  • Compaction Depth:40cm
  • Engine Type:Diesel Engine

Base Info

  • Model NO.:RWYL92
  • Travel Speed:35cm,s
  • Centrifugal Force:85,43kn
  • Certification:CE
  • Condition:New
  • Transport Package:Plywood Package
  • Specification:RWYL92
  • Trademark:ROADWAY
  • Origin:China
  • HS Code:84294019
  • Production Capacity:50sets,Month

Description

TypeRWYL92
Run
Speed0-10km/h
Turning radius2400mm
Climbing capacity in theory55%
Compaction
Static load forward/back150N/cm
Nominal amplitude1.6/0.8mm
Vibration frequency40Hz
Front exciting force85/43KN
Working
DriveVariable plunger pump, radial plunger hydraulic motor
Vibration Gear pump, Gear motor
TurningHydraulic steering
Engine
ModelYanmar 4TNV88
TypeDiesel engine, water-cooled, 4stroke, three cylinder
Power36kW/3000rpm
Fuel tank volume50L
Lubricant L6L
Fuel consumption261g/kWh
Dimension
Width of steel wheel1200mm
Diameter of steel wheel10300mm
Thread1812mm
Total length3424mm
Total width1350mm
Total height2840mm
Packing size3600×1500×2150mm
Weight
Working weight3000kg


3 Ton Bigger Trench Roller, Ride on Hydraulic Vibratory Trench Roller,

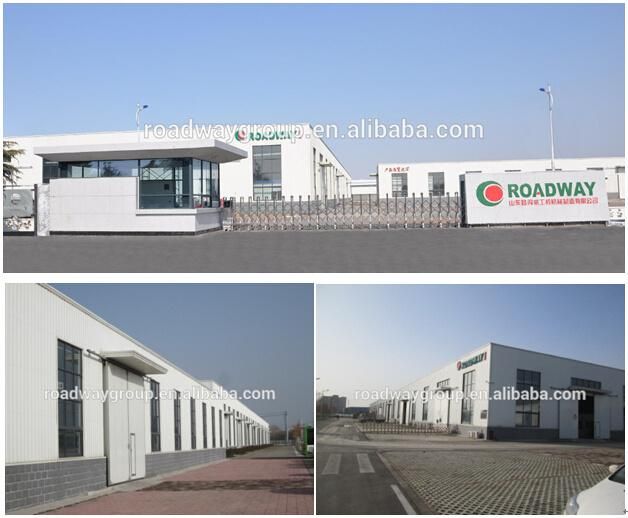

Shandong Roadway Construction Machinery Manufacturing Co., Ltd is located in located in High-Technology Industrial Development Zone, Jining city, China. The company covers about 100000m2. The company is specialized in small and medium and special construction machinery used in the area of highway, railway, water conservancy, etc. The products are up to 40 types, 20 types of which have applied for national patent. The 40 products are divided into five categories, which are Compacting equipments, Concrete construction equipments, Canal construction equipments, Cutting and breaking equipments and Lighting equipments, such as Vibratory Rollers, Plate compactor, Concrete Laser Screed, Ride-on Power Trowel, Shot-blasting machine, Concrete Cutter, Light Tower, etc

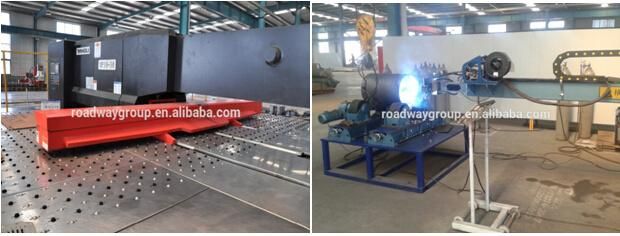

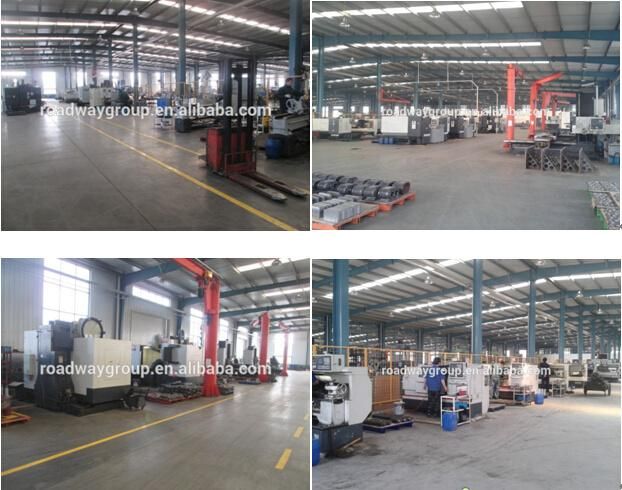

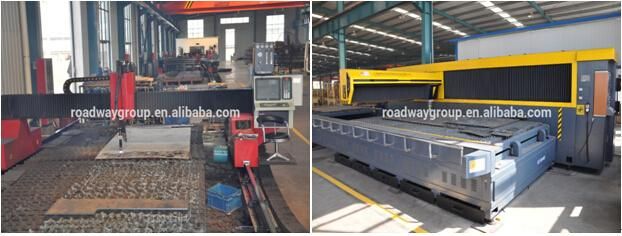

The company has advanced and complete CNC processing equipments, such as Tetra-shaft (Triple-shaft) processing centers, CNC boring machine, CNC Lathe, CNC drilling machine, Digital bending machine, CNC wire-cutting machine, CNC water-cutting machine, CNC turret punch press and Welding robot, and 3 d coordinate measuring, etc.
