• Model NO.：SD16E
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：17346
• Ground Pressure (Kpa)：55
• Engine Model：Wd10(China-II),Wp10(China-III)
• Rated Power/Rated Speed (Kw/Rpm)：131,1850
• Overall Dimensions：5345*3388*3032
• Forward Speed (Km/H)：F1:0-3.29,F2:0-5.82,F3:0-9.63
• Reversing Speed (Km/H)：R1:0-4.28,R2:0-7.59,R3:0-12.53
• Center Distance of Track (mm)：1880
• Width of Track Shoes (mm)：560,510,610
• Ground Length：2635
• Fuel Tank (L)：315
• Digging Depth (mm)：540

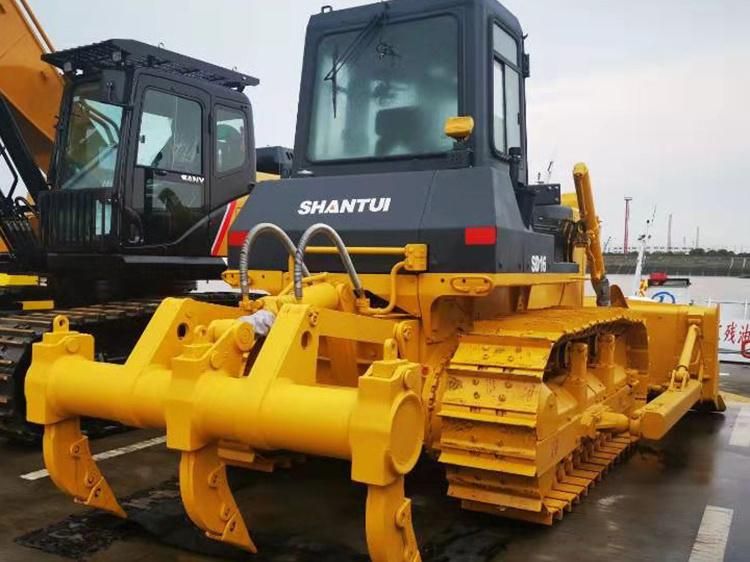

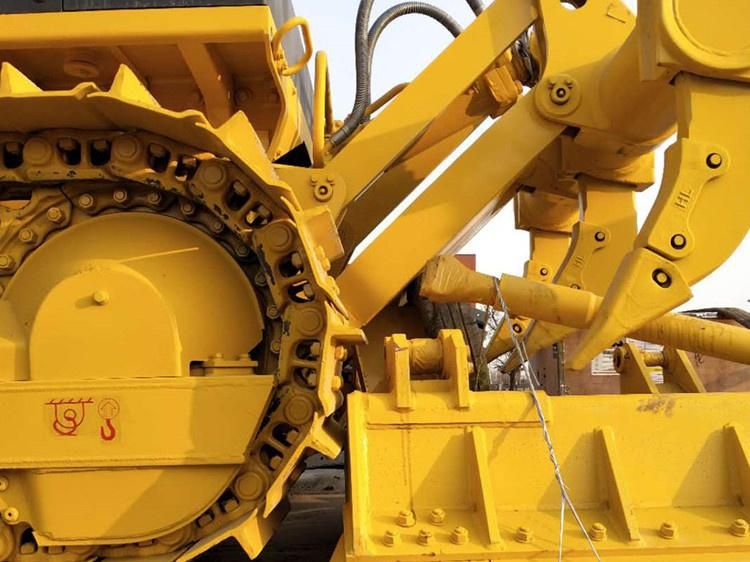

• Ripper Type：Three-Tooth Ripper
• Ripping Depth (mm)：570
• SD16e：Extended Version
• Transport Package：Nude Package
• Specification：5140*3388*3032
• Trademark：Shantui
• Origin：China
• HS Code：8427209000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SD16E Condition New Color Yellow Operating Weight (Kg) 17346 Ground Pressure (Kpa) 55 Engine Model Wd10(China-II)/Wp10(China-III) Rated Power/Rated Speed (Kw/Rpm) 131/1850 Overall Dimensions 5345*3388*3032 Forward Speed (Km/H) F1:0-3.29,F2:0-5.82,F3:0-9.63 Reversing Speed (Km/H) R1:0-4.28,R2:0-7.59,R3:0-12.53 Center Distance of Track (mm) 1880 Width of Track Shoes (mm) 560/510/610 Ground Length 2635 Fuel Tank (L) 315 Digging Depth (mm) 540 Ripper Type Three-Tooth Ripper Ripping Depth (mm) 570 SD16e Extended Version Transport Package Nude Package Specification 5140*3388*3032 Trademark Shantui Origin China HS Code 8427209000 Production Capacity 50000PCS/Year

Product Description

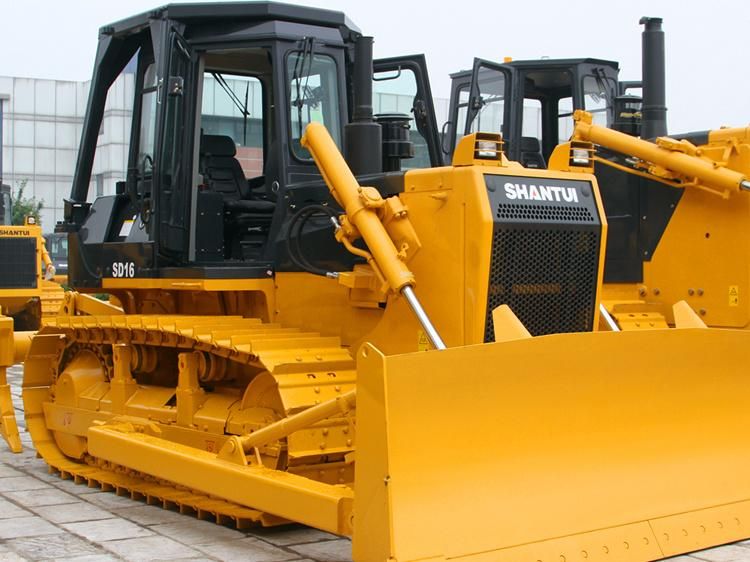

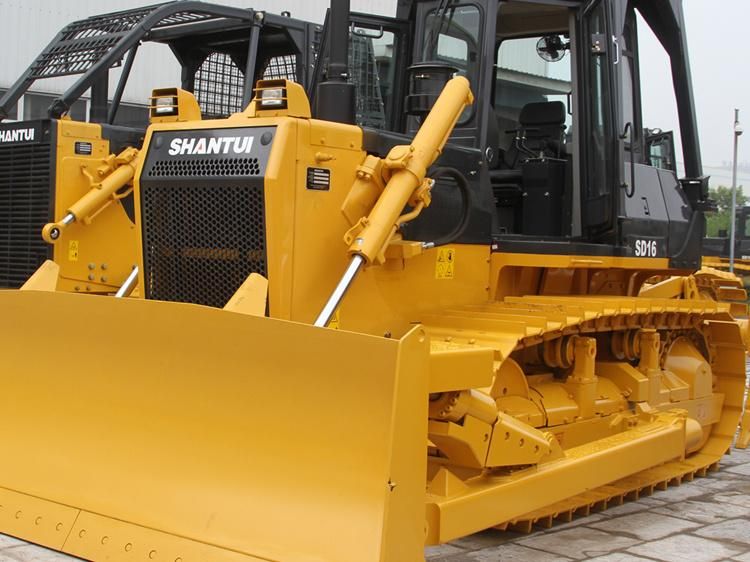

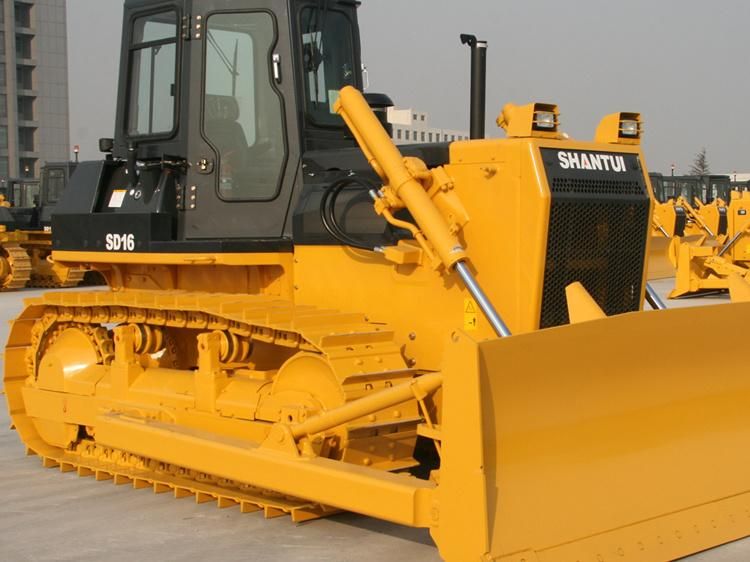

Shantui SD16E 160HP Bulldozer with U-Shaped Blade

Power System

The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 131kW, featuring high torque reserve coefficient.

The radially sealed intake system is applied to effectively prolong the engine life.

Drive system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Working adaptability

Shantui's stable and reliable chassis system is applicable to diversified severe working conditions.

The product features long ground length, high ground clearance, stable driving, and good trafficability.
The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Parameter

Parameter name	SD16 (Standard version)	SD16C (Coal version)	SD16E (Extended version)	SD16L(Super-wetland version)	SD16R (Environmental sanitation version)	SD16D (Desert version)
Performance parameters
Operating weight (Kg)	17000	17500	17346	18400	18400	18200
Ground pressure (kPa)	58	50	55	25	25	33.2
Engine
Engine model	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)	WD10(China-II)/WP10(China-III)
Rated power/rated speed (kW/rpm)	131/1850	131/1850	131/1850	131/1850	131/1850	131/1850
Overall dimensions
Overall dimensions of machine (mm)	5140*3388*3032	5427*3900*3032	5345*3388*3032	5262*4150*3074	5262*4150*3074	5262*4150*3074
