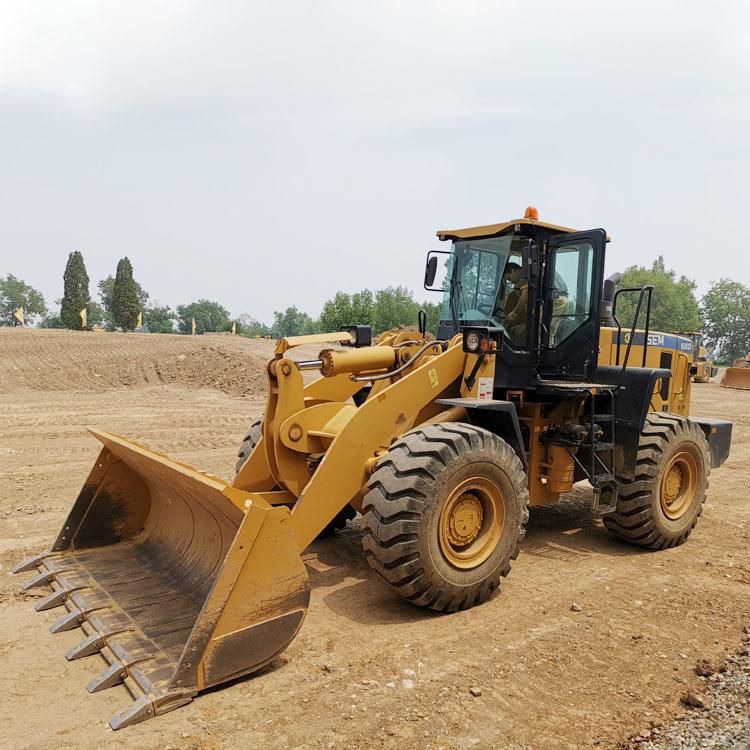

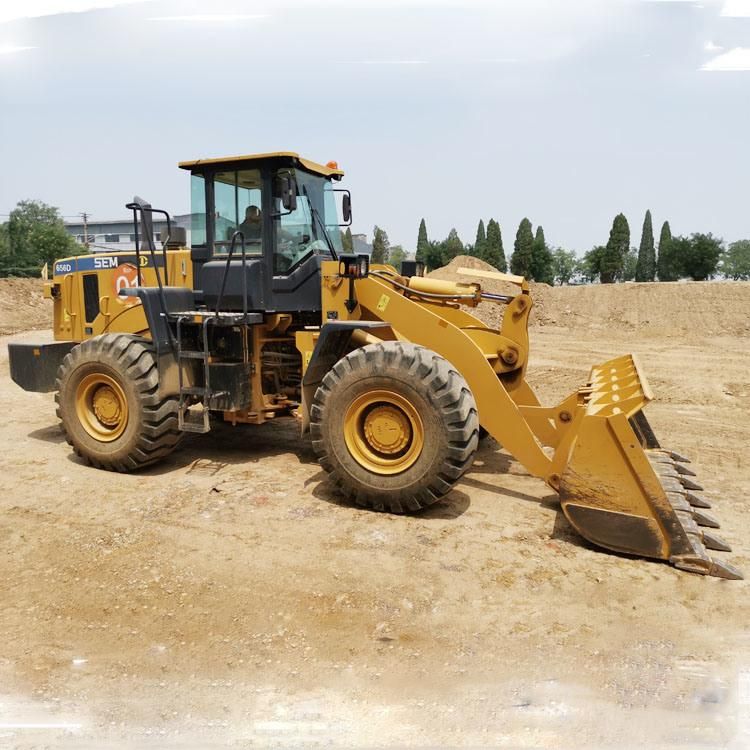

5 Ton Wheel Loader with Weichai Engine (Sem656D)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
Base Info
- Model NO.：Sem656D
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Name：5 Ton Wheel Loader
- Rated Operating Load：6000kg
- Keyword：Front Loader Tractor
- Location：Shandong China
- Color：Yellow
- Rated Power：162kw
- Load Capacity：2.7-4.5m3
- Unique Selling Point：High Operating Efficiency
- Tires：16,70-20
- Machine Weight：16900
- Wheelbase：3300mm
- Max. Tractive Force：168kn
- Turning Radius：6813mm
- Hydraulic Cycle Time：9.3s
- Displacement：9.7L
- Transport Package：Nude
- Specification：8279*2963*3457mm
- Trademark：Caterpillar SEM
- Origin：China
- HS Code：8429510000
- Production Capacity：500pices,Year
Description
Main SpecificationsRated operating load 5000 kg Bucket capacity 2.7-4.5 m³ Machine weight 16900 kg Wheel base 3300 mm Overall Dimension 8279*2963*3457 mm Breakout Force 178 KN Dump Clearance 3113 mm Transmission Transmission Type Countershaft, power shift Transmission Gears F4/R4 Torque Converter Type Single stage, 3 elements Maker & Type TR200 Forward I/Reverse I 7.8/7.8 Forward II/Reverse II 15/15 Forward III/Reverse III 22/22 Forward IV/Reverse IV 39/39 Engine Model Weichai WD10G Rated Power 162 kW Rated Speed 2000 r/min Displacement 9.726 L Implement Hydraulic Implement System Type Single load sensing flow sharing system Boom Raise Time 5.13 s Hydraulic Cycle Time 9.3 s System Pressure Setting 18 Mpa
