• Model NO.：NPD1400
• Transport Package：Nude Packing
• Specification：NPD800-4000
• Trademark：GREATWALL TUNNELING SYSTEM
• Origin：Zhenjiang, Jiangsu, China

Basic Info.

Model NO. NPD1400 Transport Package Nude Packing Specification NPD800-4000 Trademark GREATWALL TUNNELING SYSTEM Origin Zhenjiang, Jiangsu, China

Product Description

NPD series of Slurry balance pipe jacking machine are most suitable for condition of high underground water pressure and various soil strata, commonly used for pipe diameter ranges from Φ800 to Φ4000 . The slurry system maintains the stability of the soil surrounding the pipe, enabling effective control soil settlement. It can also perform continuous unearthed action and the speed of pushing forward is fast.

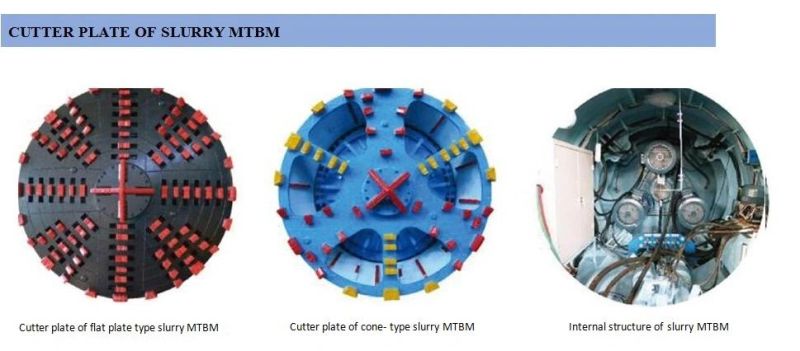

Slurry shield pipe jacking machine has two types according to their different design in different application: Disc-wheel and Cone-wheel. each type can be manufactured in different size and configuration.
Slurry shield pipe jacking machine is capable of running for single long shaft length (up to 200m) without interjack shell.

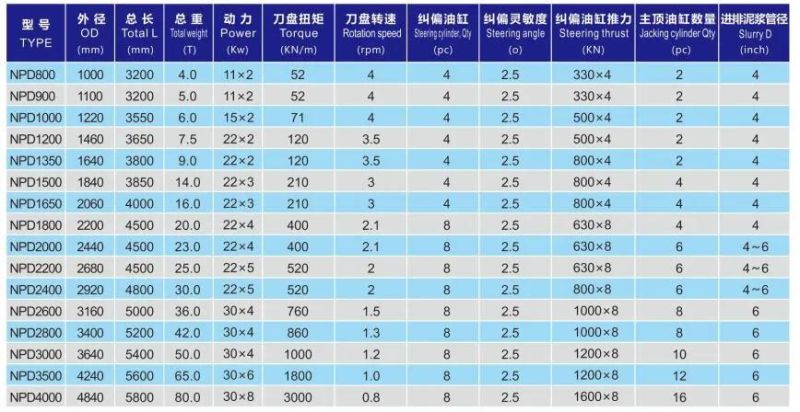

1. Technical Parameter.





2. Application scope:

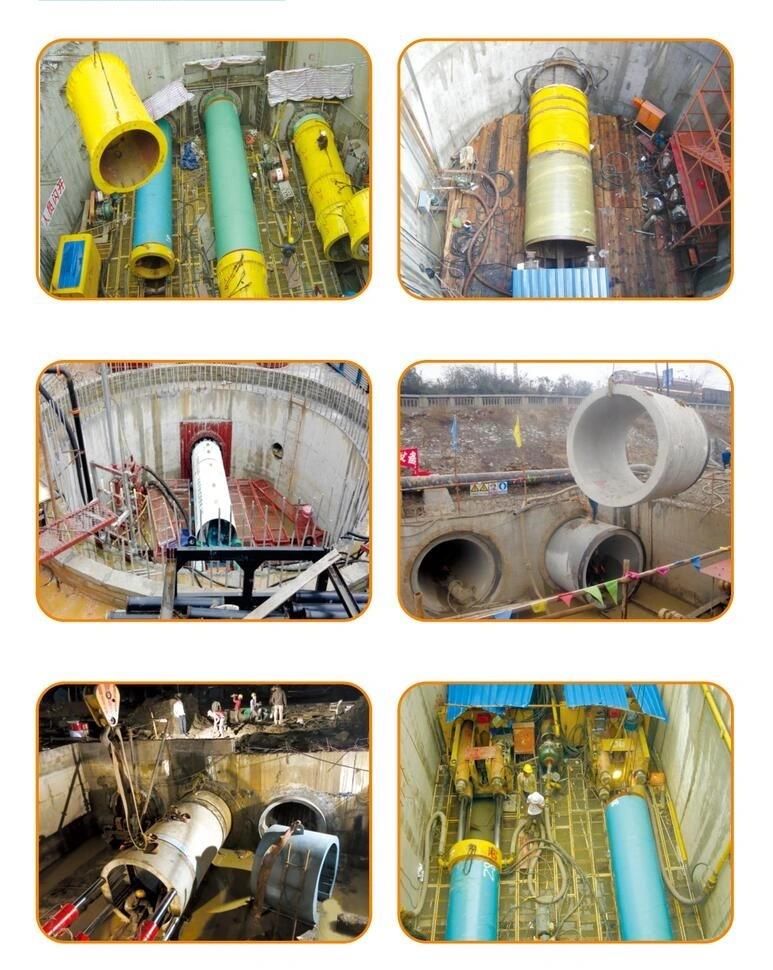

Widely used in trenchless underground projects such as metro tunnels, pedestrian crossing under streets, crossing passageway under railway, sewage & water treatment system, gas and oil pipeline etc.

3. Delivery time
45-60 days on reception of the 30% down payment


FAQ
1). Drawings of launching pit and reception pit (Width, Length and Depth)
2). Project data: total shaft length, max length of single shaft, quantities of shafts
3). Production pipe drawings: Concrete or steel etc, length, ID & OD
4). Soil property report: soil type, water level and so on





















Zhenjiang Greatwall Microtunnel Equipment Science & Technology Co., Ltd is a factory specializes in the manufacturing of the underground pipe jacking equipment more than 20 years. It is located in Zhenjiang City, Jiangsu Province, China, which is only 1 hour away from Nanjing airport and 3 hours away from Shanghai city. It is a company combined R&D, produce, sale and after-service together. Products main include NPD series slurry balance pipe jacking machine, TPD series earth pressure balance pipe jacking machine, JD series rectangular pipe jacking machine, YD series rock pipe jacking machine, mini tunneling boring machine, which have already exported to most of the southeast Asia countries like India, Malaysia, Thailand, Viet Nam, etc. Professional engineers will design different machines according to your soil conditions of the project site. After machine reaches to the project site, our machine operators will come to service for you until one jacking section finished. One-year's accessories will also be provided freely.
The company persists in the principle of Quality First and Clients Supreme all along and provide clients with high-quality products,considerate after-sales services and true management ideas.We will provide excellent machines and good service to you. Welcome to visit us!
