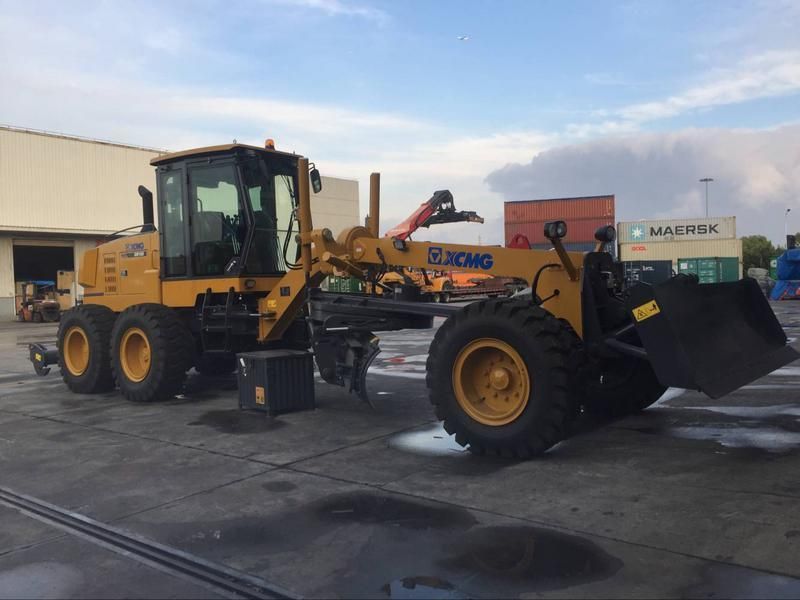

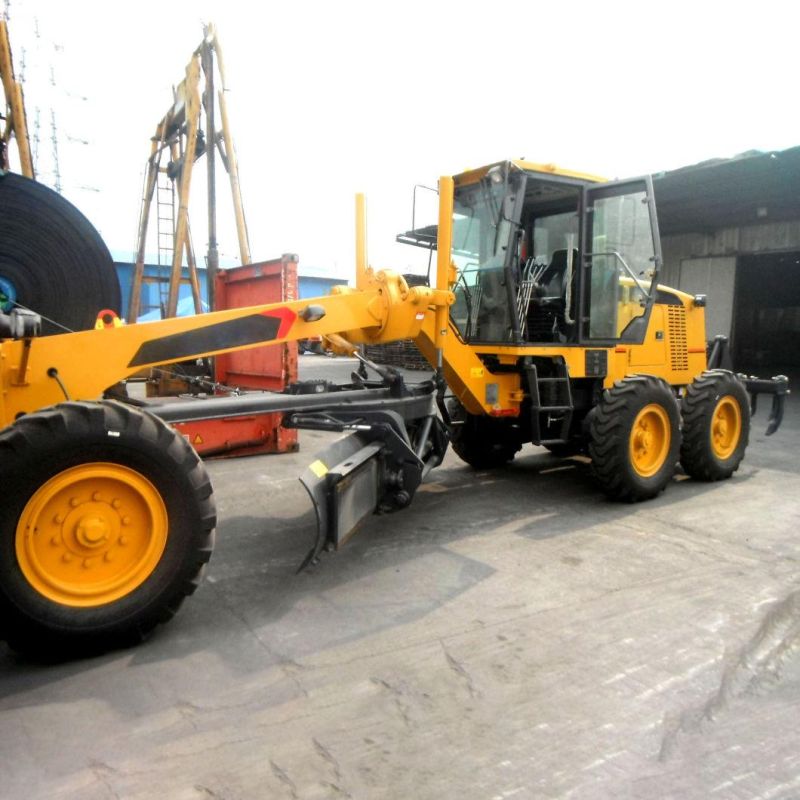

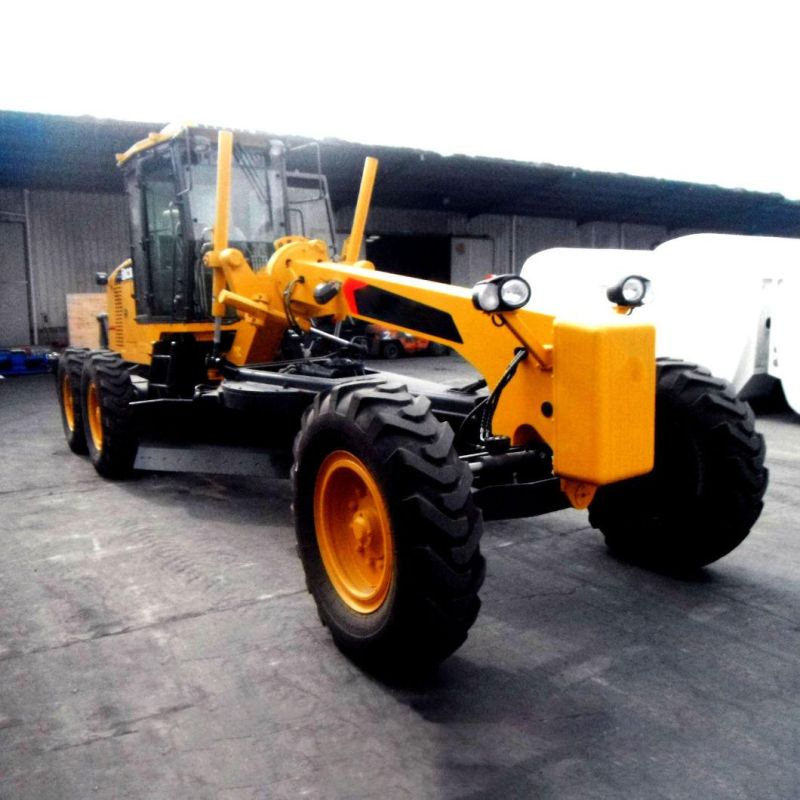

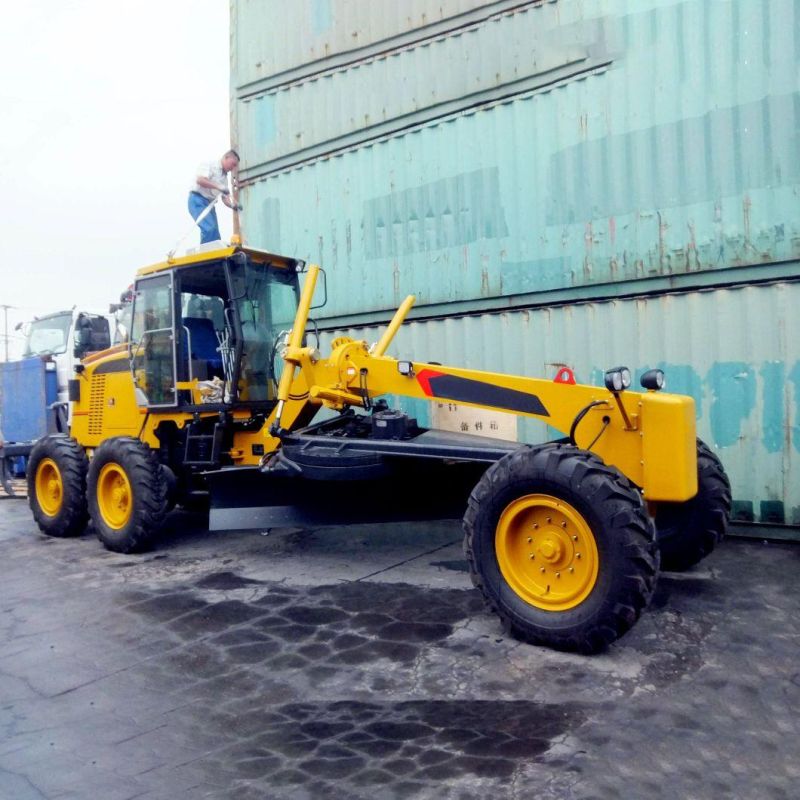

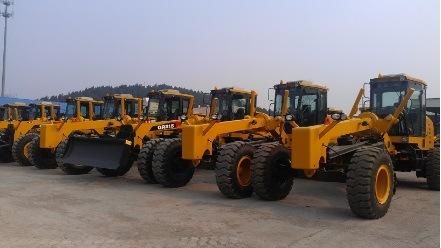

Brand New 350HP Earthmoving Machinery Motor Grader Gr3505 with Accessories

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Field Maintenance and Repair Service
  • Warranty：1 Year Warranty
  • Certification：ISO, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：GR3505
  • Walking Mode：Wheeled
  • Type：Large Grader
  • Minimum Turning Radius：8.9m
  • Maximum Lift Height：450mm
  • Working System Pressure：25MPa
  • Maximum Cutting Depth：500mm
  • Weight：34000kg
  • Rated Power/Speed：261kw,2100rpm
  • Total Weight (Standard)：30000kg
  • Maximum Gradeability：25%
  • Transport Package：Roro,Nude,Container
  • Specification：11250*3180*3820mm
  • Trademark：TOP BRAND
  • Origin：China
  • HS Code：84292090
  • Production Capacity：100units,Month

Description

Basic parametersEngine modelQSM 11Rated power/speed261kW/2100rpmOverall dimension (standard)11250X3180X3820Total weight (standard)30000kgTire specification23.5R25Ground clearance (front axle)500mmTread2580mmSpace of front and rear axles7200mmSpace of middle and rear wheels1960mmPerformance parametersForward velocity5,8.5,13,20,30,45km/hReverse speed5,13,30km/hTractive effort f=0.75165kNMaximum gradeability25%Tire inflation pressure320kPaWorking system pressure25MPaWorking parametersMaximum steering angle of front wheel±45°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±15°Maximum steering angle of frame±22°Minimum turning radius8.9mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle65°Cutting angle28°-70°Angle of revolution360°Length & chord height4877x787mmOil filling amountCoolant50LFuel tank550LEngine37LTransmission38LBalancing box186LDrive axle106LHydraulic oil310LBrand New 350HP Earthmoving Machinery Motor Grader Gr3505 with Accessories
