• Model NO.：JL-3000
• Application：Sideboom Crane
• Condition：New
• Work Pattern：Continuous
• Function：Automatic Control, Safety Protection, Monitoring
• Material：High-Pressure Cast Aluminum
• Customized：Customized
• Transport Package：Carton
• Specification：43X 28 X 22 CM
• Trademark：JL
• Origin：China
• HS Code：8708996000
• Package size per unit product：48.00cm * 35.00cm * 26.00cm
• Gross weight per unit product：18.000kg

Operating VoltageAC 220V±20%  or  DC 12~ 24V Working temperature- 20 ºC ~ + 60 ºCRelative humidity<95% (25 ºC)Control output capacityDC24V/1A or AC 220V/1APower dissipation<20wResolution0.1tComprehensive error<5%Alarm Error<3%

 System composition

The system is mainly composed of weight sensor, length angle sensor, hook limiter, and safe load indicator.

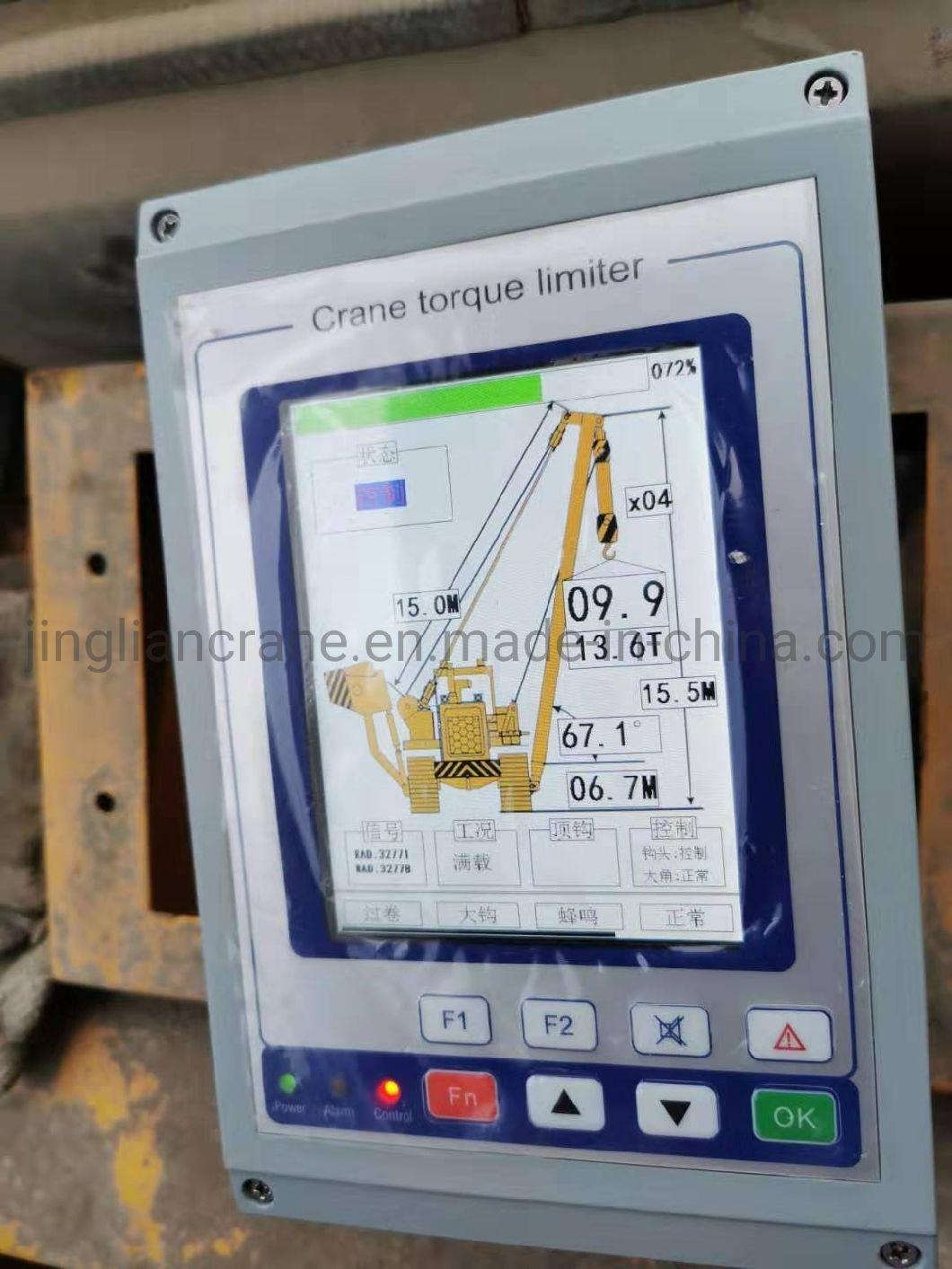

1.  Chinese character LCD dot matrix display

      Full LCD color display in English and Chinese. It can display all data that the user cares about, e.g.:current load, rated load, current angle, current radius, load rate, overload records, etc.

2.   Analog signal amplification module

Its a special design for safe load indicator,up to 4 analog amplifications can be provided as needed.

3.   CPU module

Industrial-grade new-generation enhanced micro-processing chip, Faster than the same processor , Strong anti-interference ability and high efficiency.

4.   Power Module

Wide voltage switching power supply module, good output waveform, Strong load capacity, With overload, over current protection, and self-recovery function.

Shipment packing & Details

Export packing:  carton
Carton size:43 x 28 x 22cm       carton quantity: 1 carton
Gross weight:  6 kgPort: Shanghai china;
Delivery days: 3-7 days

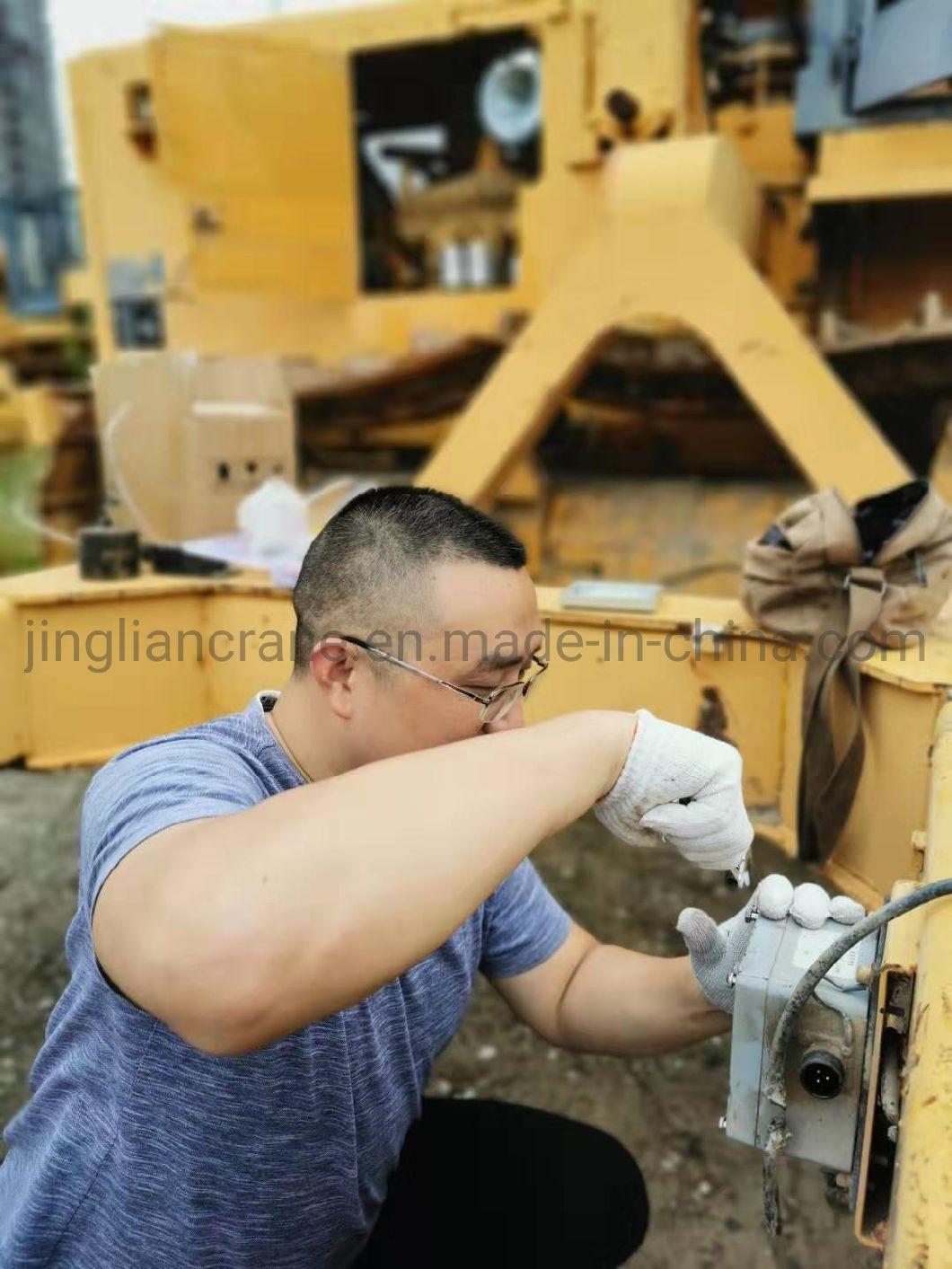

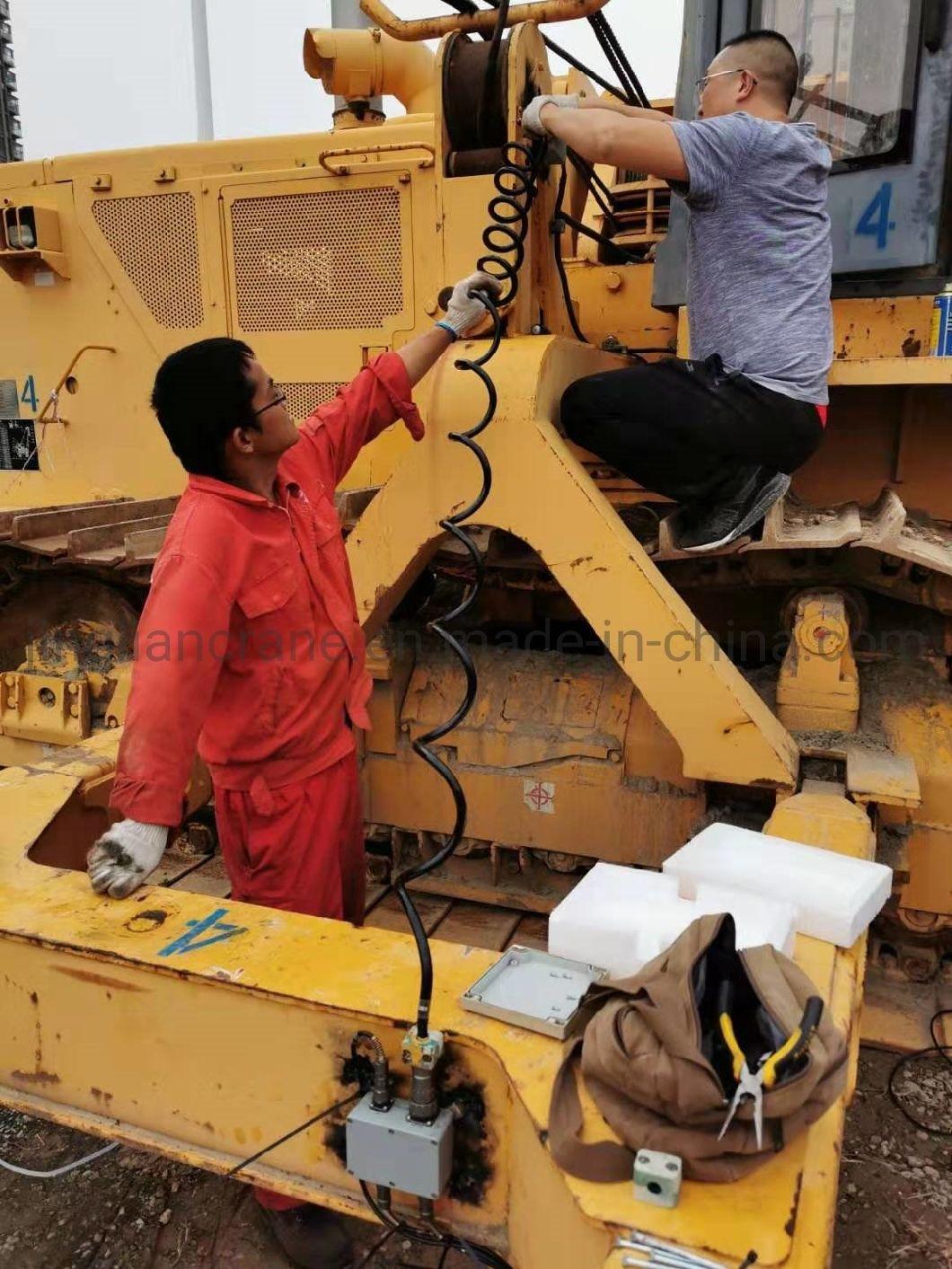

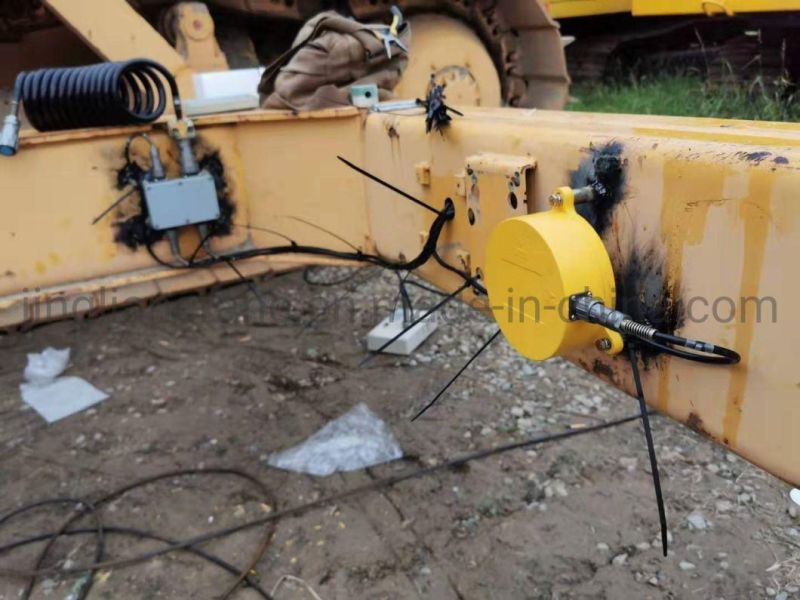

Installation photo
