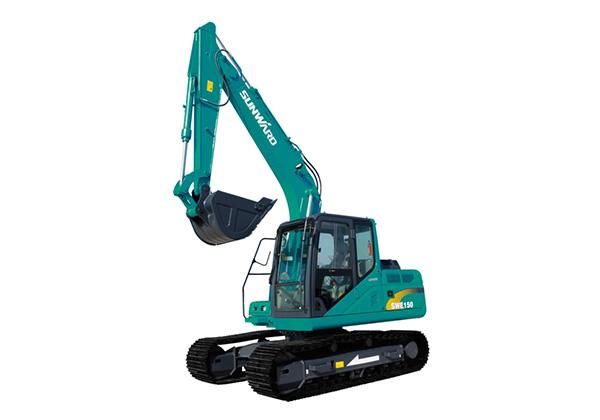

Sunward 0.8 Ton- 100 Ton Mini Small Digger Excavator, Hydraulic Wheel Excavator, Mining Crawler Excavator Machine, China New Excavator with Parts for Sale
Sunward Intelligent Equipment Co., Ltd.- Size：7815X2600X2825 mm
- Certification：ISO9001
- Condition：New
- Enginebrand：Isuzu
- Rated Speed：5.4,Km,H
- Hydraulictank：150L
Base Info
- Maximum Digging Depth：5640mm
- Hydraulic Valve Brand：Kyb
- Hydraulic Pump Brand：Kyb
- Moving Type：Crawler Excavator
- Video Outgoing-Inspection：Provided
- Unique Selling Point：Low Fuel Consumption
- Wheelbase：3000mm
- Core Components：Engine, Bearing
- Applicable Industries：Manufacturing Plant
- Machinery Test Report：Provided
- Max Digging Radius：8355
- Engine Brand：Isuzu
- Trademark：SUNWARD
- Origin：Hunan, China
- Production Capacity：100000 Set,Sets Per Year
Description
Product DescriptionSize(L×W×H)7815×2600×2825 mm A)Wheel-base 3000mm B)Crawler length 3735mm C)Ground clearance of platform 915mm D)Tail slewing radius of platform 2350mm E)Width of upper body 2520mm F)Gauge 2000mm G)Chassis width 2600mm H)Track width 600mm I)Chassis ground clearance 410mm J)Cab roof height 2825mm K)Transport boom height 2600mm L)Transport length 7815mm a)Max.digging height 8630mm b)Max.dumping height 6130mm c)Max.digging depth 5640mm d)Max. vertical digging depth 4540mm e)Max.digging radius 8355mm f)Max.digging reach at ground level 8230mm h)Min.slewing radius 2510mm Operating weight(steel track) 14.8t Standard bucket capacity 0.6m3 Bucket digging force 100kN Bucket rod digging force 72.5kN Travel speed(Max./Min.) 5.4/3.3 km/h Ground pressure 36kPa Swing speed 11.1rpm Engine Brand ISUZU Model GI-4JJ1XKSC Type 4-cylinder, 4-stroke, water cooled, turbocharged Power 84kW/2200rpm Displacement 2.999L Fuel tank 245L Hydraulic tank 150L
Outline dimension
Operating range
Performance parameters
Oil tank capacity
