• Model NO.：AL10
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.022
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine model：KOOP KD192F-1
• Rated power：7kw,3000r,min
• Swing motor：C108-57A-01000A0
• Traveling motor：C108-56A-01000A0
• Hydraulic pump：C108-51A-01000A0
• Transport Package：6units in 20gp Container
• Specification：2796x880x2225 mm
• Trademark：ACTIVE
• Origin：Shandong China
• HS Code：8429510000
• Production Capacity：500pieces,Year

Basic Info.

Model NO. AL10 Drive Type Internal Combustion Drive Bucket Capacity 0.022 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine model KOOP KD192F-1 Rated power 7kw/3000r/min Swing motor C108-57A-01000A0 Traveling motor C108-56A-01000A0 Hydraulic pump C108-51A-01000A0 Transport Package 6units in 20gp Container Specification 2796x880x2225 mm Trademark ACTIVE Origin Shandong China HS Code 8429510000 Production Capacity 500pieces/Year

Product Description

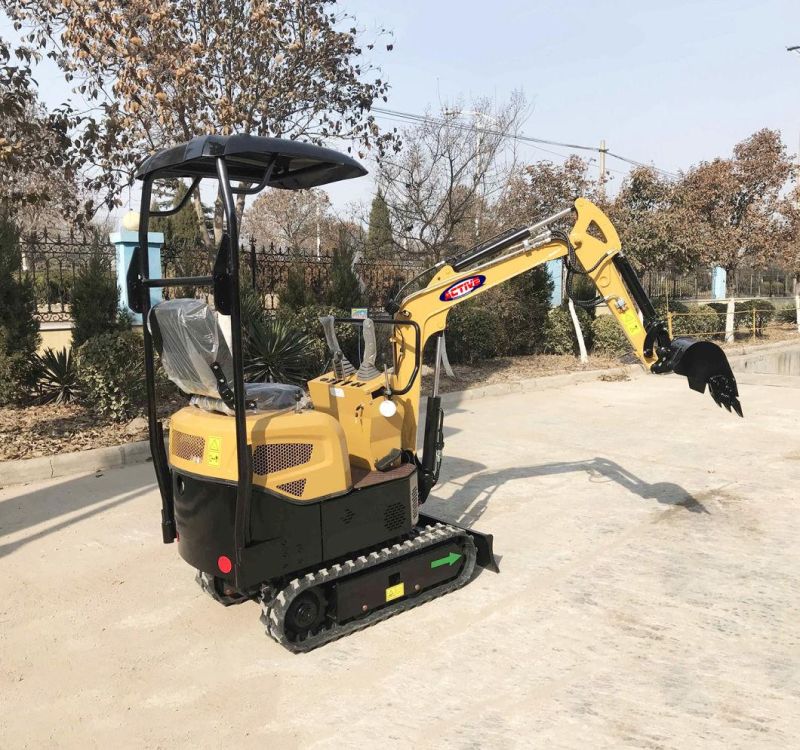

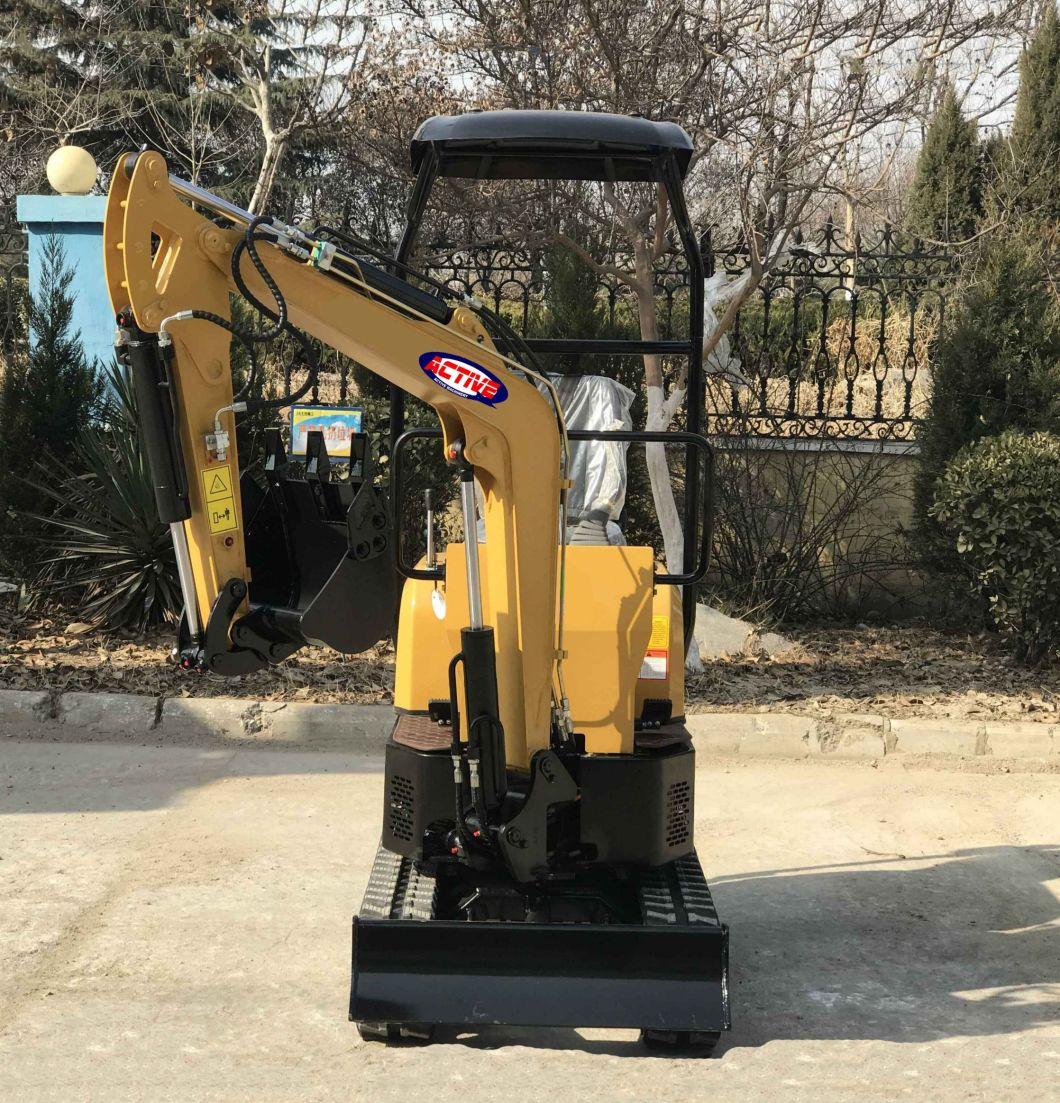

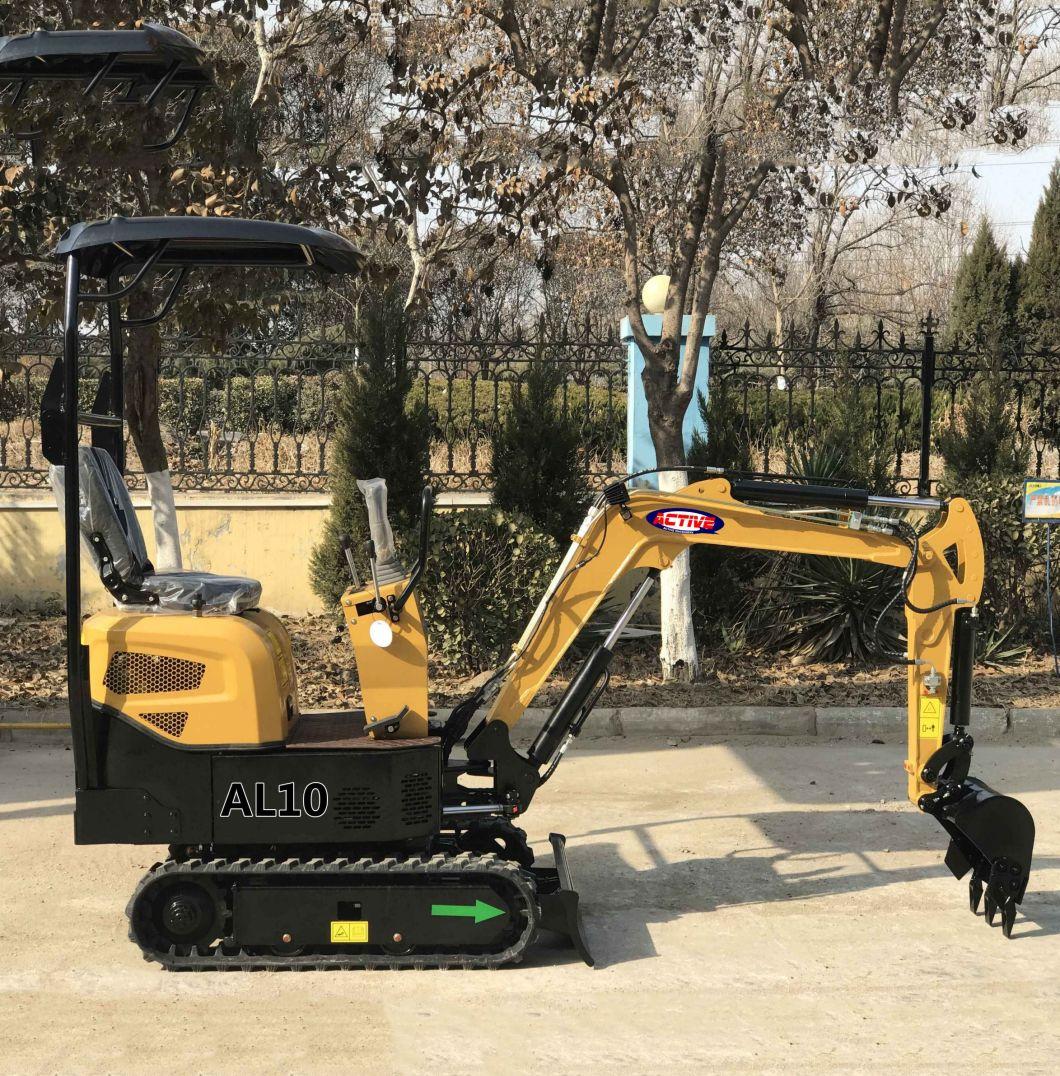

Main photo:

AL10 mini excavator specifications:

Model	AL10 (Koop Euro 5)	AL10 (Yanmar Euro 5)
Operating weight (ton)	1.02	1.02
Bucket capacity (cbm)	0.022	0.022
Engine model	KOOP KD192F-1	YANMAR 2TNV70-PYU
Rated power (kw/r/min)	7.0/3000	7.5/2400
Hydraulic pump model	C108-51A-01000A0	C110-51A-01000A0
Max.flow (L/min)	18	19.2
Working pressure (Mpa)	16	16
Control valve model	DL80	DL80
Swing motor model	C108-57A-01000A0	C108-57A-01000A0
Travel motor model	C108-56A-01000A0	C108-56A-01000A0
Fuel tank capacity (L)	7	10
Hydraulic oil tank capacity (L)	9.4	9.33
Travel speed (km/h)	1.9	2
Swing speed (r/min)	13	13
Max. climbing degree (%)	58	58
Arm digging force	4.6	4.6
Bucket digging force (KN)	7.2	7.2
Average grounding pressure (Kpa)	20	20

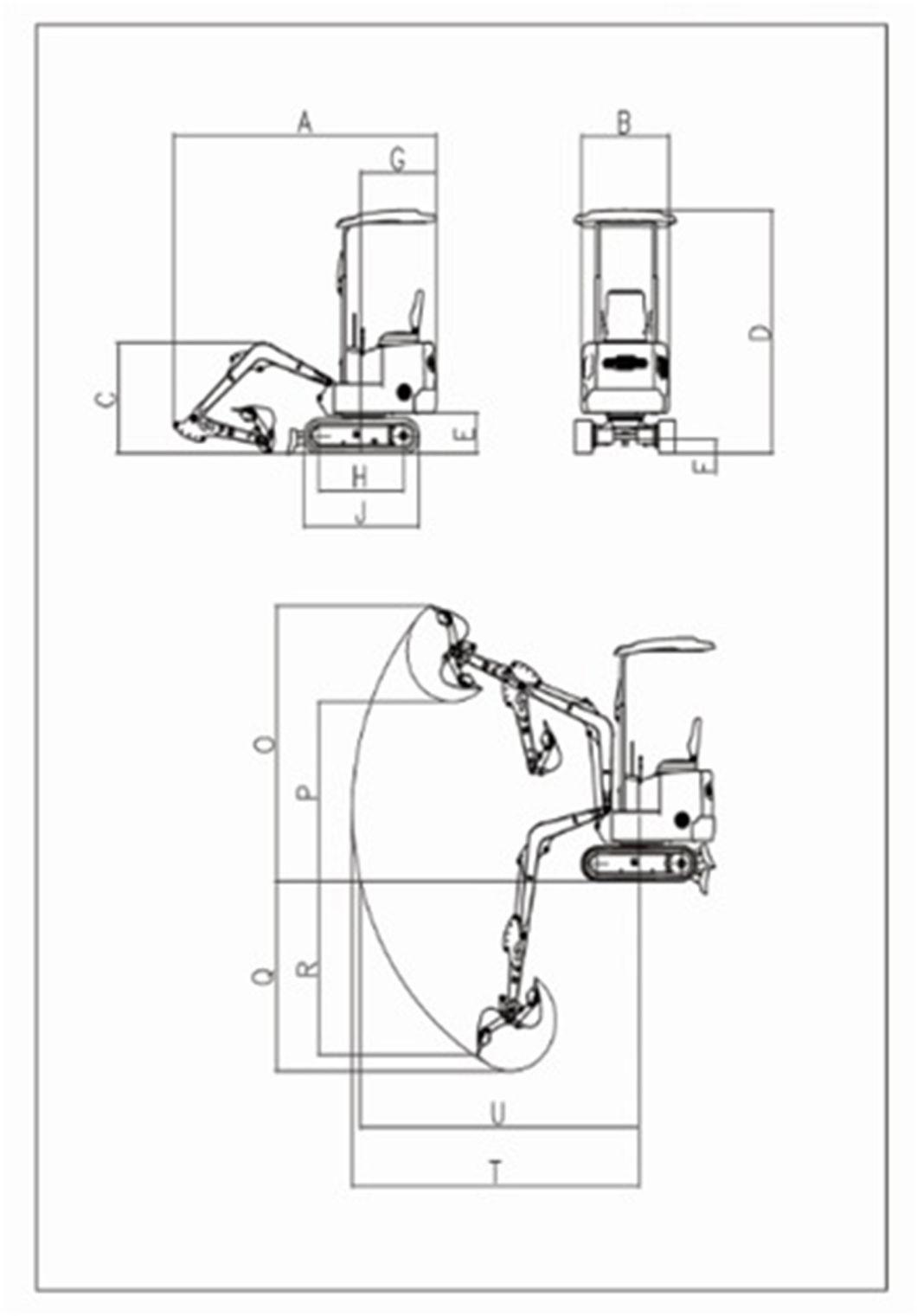

A-Overall length (mm)	2976	2976
B-Overall width (mm)	840/880	840/880
C-Overall height (to top of boom)(mm)	1110	1110
D-Overall height (to top of cab)(mm)	2225	2225
E-Counterweight ground clearance(mm)	370	370
F-Min. ground clearance (mm)	132	132
G-Tail swing radius (mm)	815	815
H-Track Ground Length (mm)	900	900
J-Track length (mm)	1233	1233
K-Track gauge (mm)	660	660
L-Track width (mm)	840	840
M-Track shoe width (mm)	180	180
N-Turntable width (mm)	760	760
O-Max. digging height (mm)	2585	2585
P-Max. dumping height (mm)	1715	1715
Q-Max. digging depth (mm)	1520	1520
R-Max. vertical wall digging depth (mm)	-	-
T-Max. digging reach (mm)	3210	3210
U-Max. digging reach at ground level (mm)	3125	3125
V-Min. swing radius (mm)	1595	1595
X-Distance between center of rotation and tail length (mm)	815	815
Y-Track shoe thickness (mm)	-	-
Z-Height of counterweight (mm)	416	416
A1-Ground length (in transportion)(mm)	1755	1755
Arm length (mm)	800	800
Boom length (mm)	1480	1480
Boom deflection angle left/right(°)	50°/70°	50°/70°
Max.pushing height/depth(mm)	146/261	146/261

Package: 6units in 20GP container; 12 units / 40HQ container
Delivery time: 10 DAYS AFTER RECEIVE FULL PAYMENT
Payment: 100% T/T in advance
Warranty time: 12months

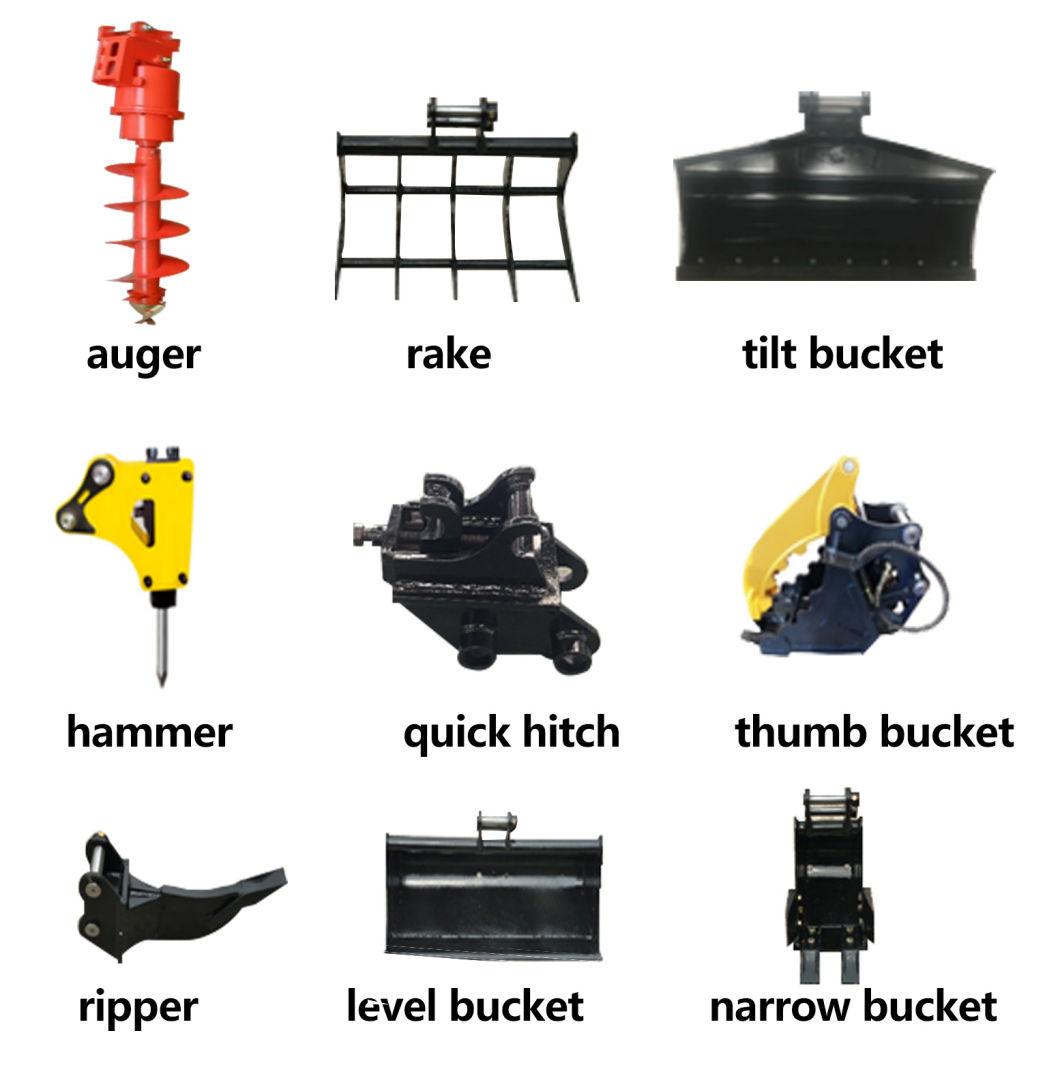

Attachments:

Our customers:

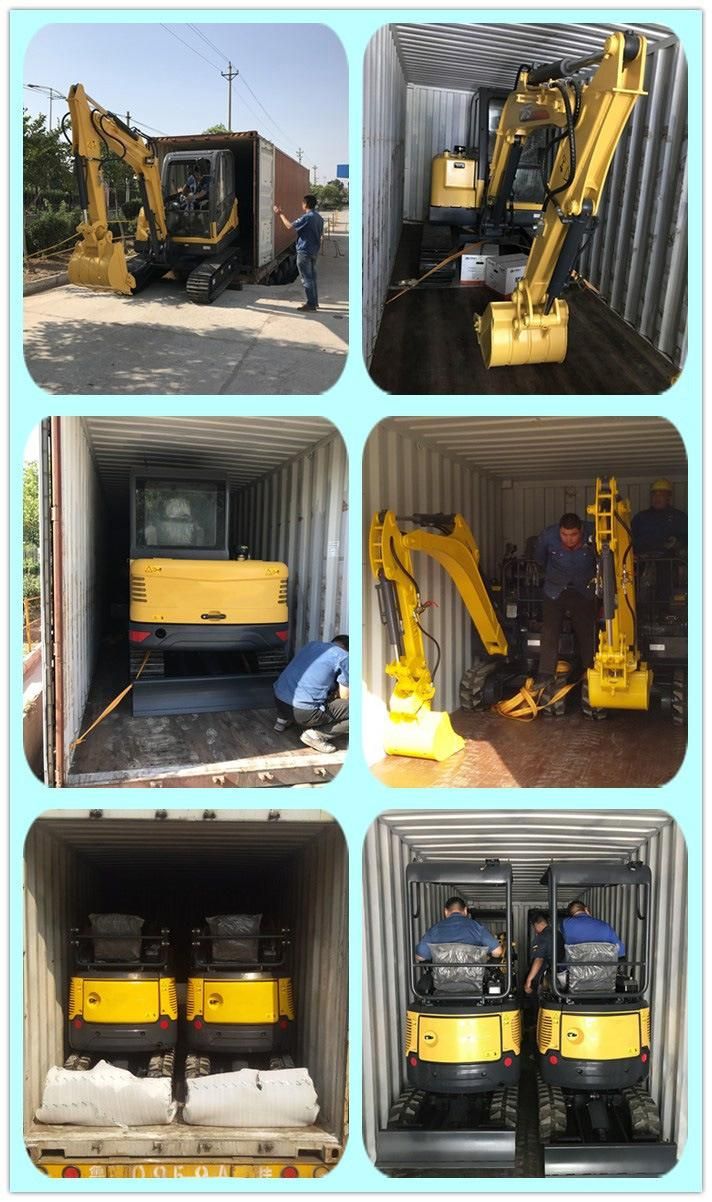

Delivery and shipping:
