• Model NO.：XX-P180
• Thickness Tolerance：+0.05mm
• UV Stable：Yes
• Test Certification：SGS, Ce, TUV, ISO
• Weight：1-100kgs
• Density：0.94-0.96
• Quality Guarantee：3 Years
• Name：UHMWPE Shape Properties Plastic Machined Part
• Molecular Weight：0.5-9 Million
• Production Method：CNC Machined, Injection
• Lead Time：15-25 Days
• Production Size：by Drawing
• Logo：Available

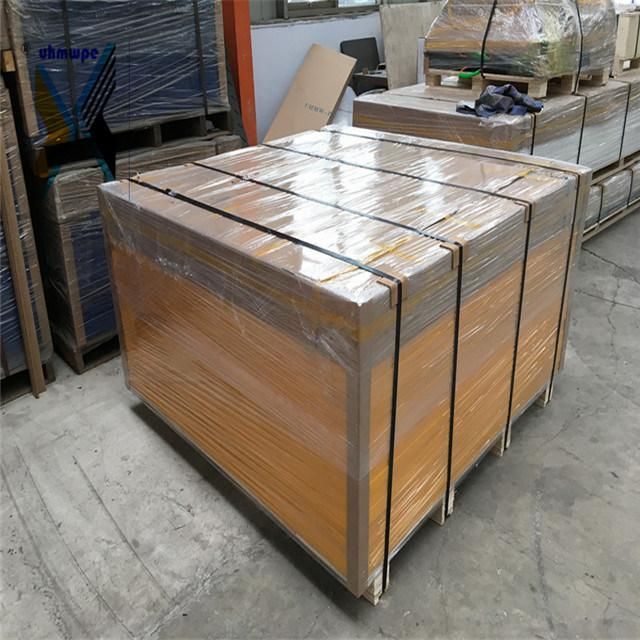

• Transport Package：by Pallets or Carton Box
• Specification：200x200mm, 300x200mm
• Trademark：Xinxing
• Origin：China
• HS Code：392010
• Production Capacity：5000 Pieces Per Month

Basic Info.

Model NO. XX-P180 Thickness Tolerance +0.05mm UV Stable Yes Test Certification SGS, Ce, TUV, ISO Weight 1-100kgs Density 0.94-0.96 Quality Guarantee 3 Years Name UHMWPE Shape Properties Plastic Machined Part Molecular Weight 0.5-9 Million Production Method CNC Machined, Injection Lead Time 15-25 Days Production Size by Drawing Logo Available Transport Package by Pallets or Carton Box Specification 200x200mm, 300x200mm Trademark Xinxing Origin China HS Code 392010 Production Capacity 5000 Pieces Per Month

Product Description

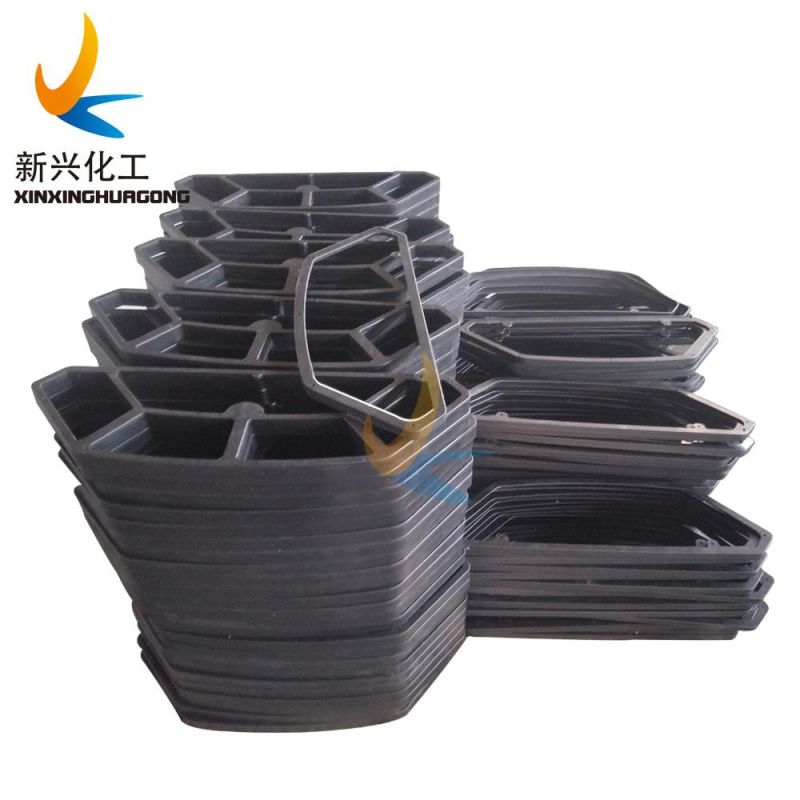

UHMWPE Shape Properties Plastic Machined Part

Product Name	UHMWPE Shape Properties Plastic Machined Part
Material	Virgin PE1000, PE500 Material
Color	White, Black, Yellow, Blue, any Panton Color or Ral Color
Standard	ISO9001, SGS etc.
Grade	PE100, PE300, PE500, PE1000, PE2000 etc.
Brand	Xinxing
Density	0.94-0.96 g/cm3
Dimention tolerance	+0.2/-0 mm

Abosn is the leading manufacturer for Drawing Customize UHMWPE Machined Component Block, UHMWPE Plastic Blocks for Machining, customized plastic parts, UHMWPE Plastic Blocks for Machining, UHMWPE Pad, Plastic Machined Engineering component etc. for equipment, production line, harbor port etc. with nearly 30 years history.

Products Description

Our advantages:
Material: UHMWPE/HDPE/PP
Produce Procedure: CNC, Injection etc.
Shape: Any, according to the drawing
Size: Any size is available
Color: Black, White, Yellow, Green, Blue etc.
Fast shipment, short production time, superior quality
Here, we could meet all your requirements for customized plastic parts

UHMWPE Shape Properties Plastic Machined Part Characters:

• very flat on the surface
• The thickness tolerance is +2 -0mm,some made according to your requirements.
• The color is pure and any color can be made by us.
• We can give you an accurate size of UHMWPE Components with advanced machine.
• Different shaped UHMWPE components also can be made by us like bending sheet.
• According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
• Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
  Very low water absorption
  Excellent impact resistance
  Good corrosion & chemical resistance
  Noise-absorption & Vibration-absorption

UHMWPE Shape Properties Plastic Machined Part Application

1. Conveyor Paddle
2. Impact Bar
3. Dock Bumper
4. Pipe Support Block

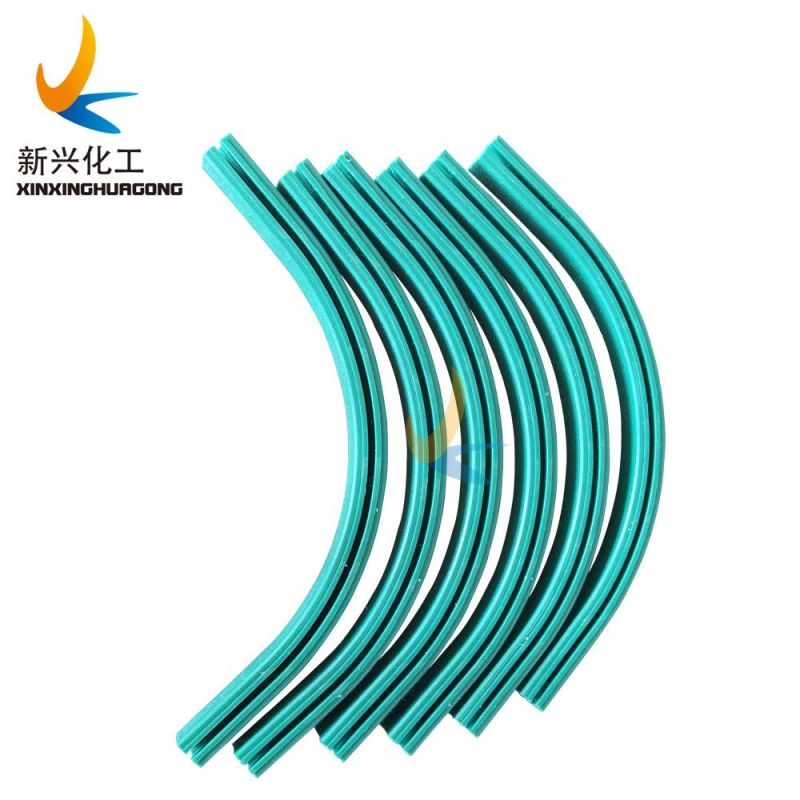

5. Chain guide

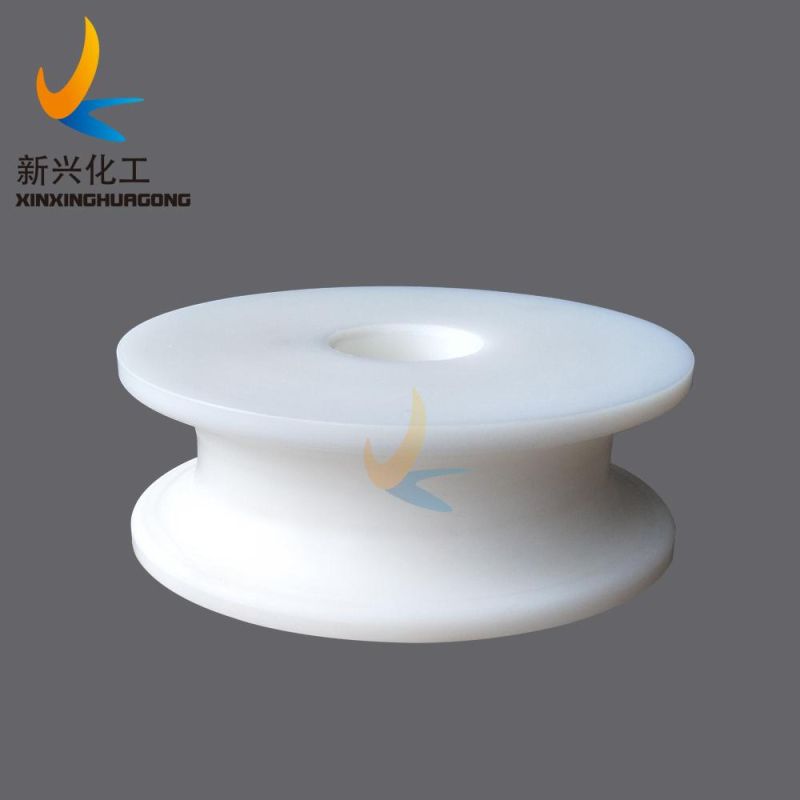

6. Pulley and Roller
7. UHMWPE Saddle or Block

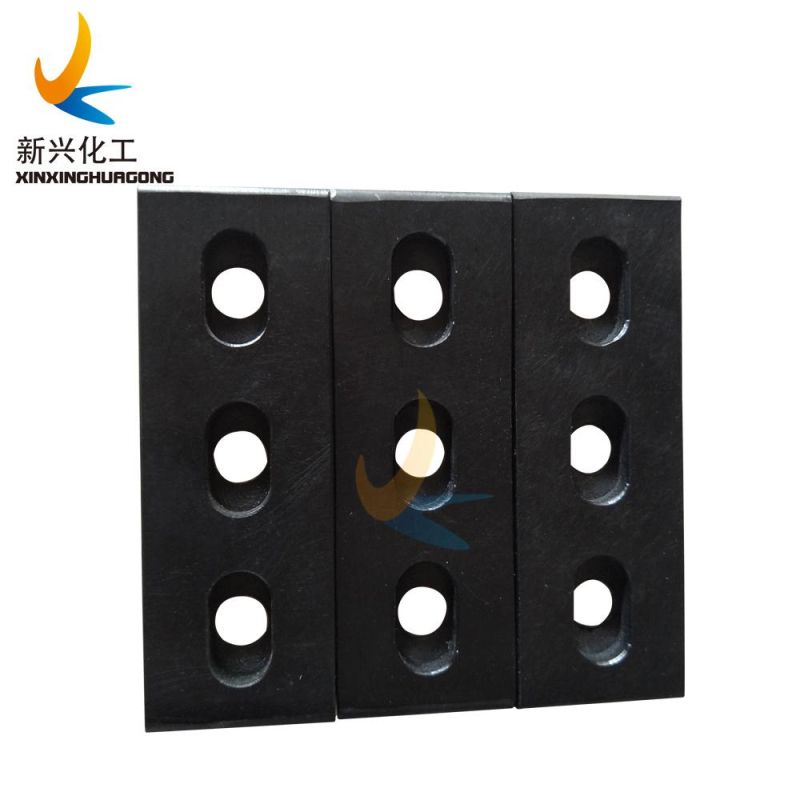

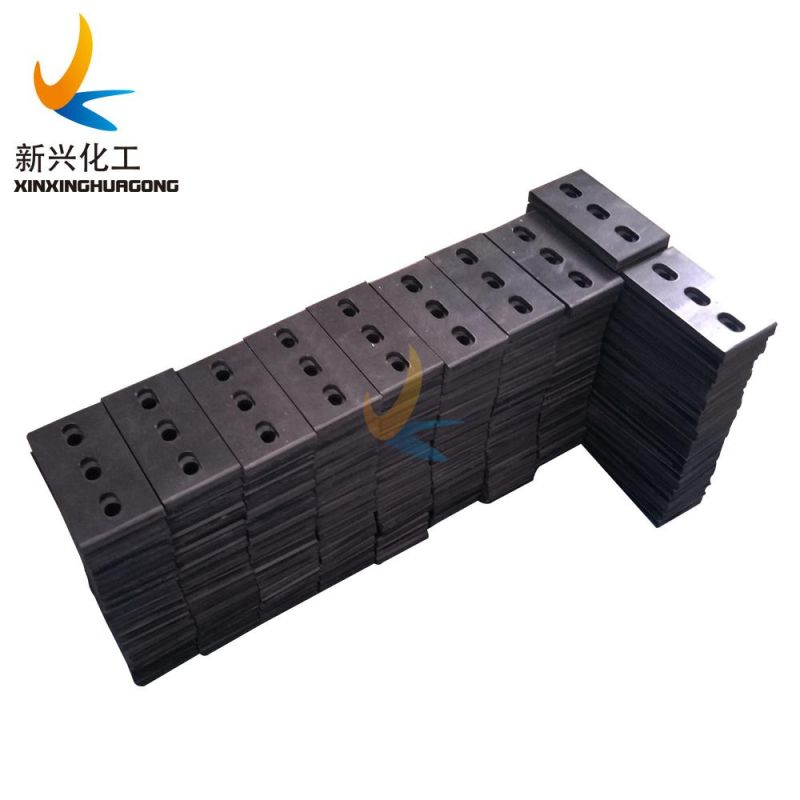

8. Machine wear block and strips
9. Other machined parts

Any size, Shape are available with us.

Advantages of UHMWPE Shape Properties Plastic Machined Part

Self-lubricating.
Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel).
Corrosion & impact resistant.
low temperature resistant.
Non-water absorption
Easy to machine

UHMWPE Shape Properties Plastic Machined Part Techinal Data Sheet

Property:	Test Method (Standard)	Ticona GUI4152	Ticona GUI4150,4120	Unit
Molecular weight		3-9 million	3-9 million
Density	ISO 1183-1:2012/DIN53479	0.92-0.96	0.93-0.96	g/cm³
Compression strength	ISO 604:2002	≥30	≥32	Mpa
Tensile strength	ISO527-2:2012	≥20	≥22	Mpa
Elongation at break	ISO527-2:2012	≥300	≥300	%
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Notched impact strength (Charpy)	ISO179-1:2010/GB/T 1043.1-2008	≥100	≥100	kJ/m2
Abrasion wear index	ES-X60210-2008	≤30	≤30	mg
Vicat softing point	ISO306:2004	≥80	≥80	°C
Hardness shore-D	ISO 868:2003	65	66	D

Our Company

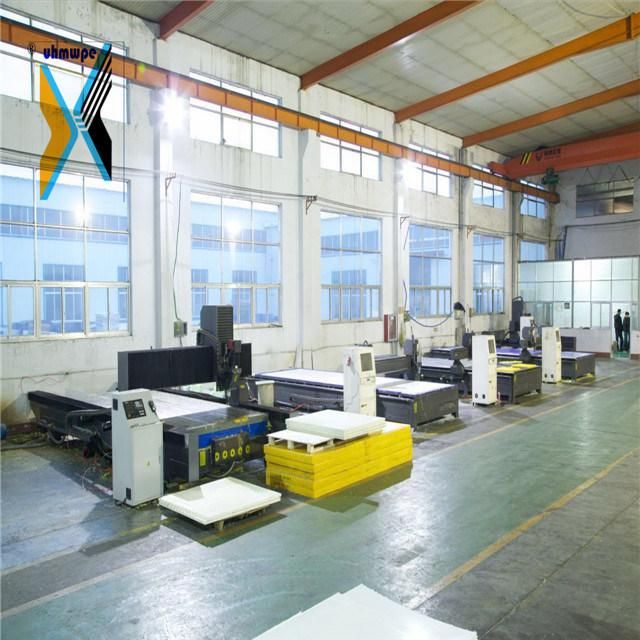

The largest factory in China about Drawing Customize UHMWPE Machined Component Block, UHMWPE Plastic Blocks for Machining, customized plastic parts, UHMWPE Plastic Blocks for Machining, UHMWPE Pad, Plastic Machined Engineering component etc, 8 workshops, 12 sets CNC machines, all kinds of certification and industry standards could be met. In addition, we could provide the best after-sale service, 24 hours online for you!




FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
