Jzc350 350L Factory Price Portable Concrete Mixer for Sale

Zhengzhou Focus Machinery Co., Ltd.
  • After-sales Service：Engineers Available to Service Machinery Overseas
  • Warranty：12 Months
  • Type：Concrete Mixer
  • Shotcrete Type：Semi-Dry
  • Machining Process：Concrete Mixer
  • Structure：Spiral Type

Base Info

  • Model NO.：Jzc350 portable concrete mixer
  • Productivity：10-14.5m3;,H
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：All Colors
  • Output Capacity：10-14.5m3;,H
  • Aggregate Size：60mm
  • Material：Manganese Alloy Steel
  • Mixer Shaft-End：Multi Layer Sealed
  • Gearbox Reducer：Original-Imported Parts
  • Matched Plant：Hzs90,120 Concrete Batching Plant
  • Weight：1950kg
  • Charging Vol.：560L
  • Rotating Speed：14r,Min
  • Max. Drag Speed：20km,H
  • Transport Package：Standard Packing for International Transport
  • Specification：2766x2140x3000
  • Trademark：FOCUS portable concrete mixer
  • Origin：Zhengzhou, Henan
  • HS Code：847431000
  • Production Capacity：10-14.5m3; ,H

Description

Basic Info.

Model NO. Jzc350 portable concrete mixer Productivity 10-14.5m3;/H Certification ISO9001: 2000, CE Condition New Color All Colors Output Capacity 10-14.5m3;/H Aggregate Size 60mm Material Manganese Alloy Steel Mixer Shaft-End Multi Layer Sealed Gearbox Reducer Original-Imported Parts Matched Plant Hzs90/120 Concrete Batching Plant Weight 1950kg Charging Vol. 560L Rotating Speed 14r/Min Max. Drag Speed 20km/H Transport Package Standard Packing for International Transport Specification 2766x2140x3000 Trademark FOCUS portable concrete mixer Origin Zhengzhou, Henan HS Code 847431000 Production Capacity 10-14.5m3; /H

Product Description

Jzc350 350L factory price  portable concrete mixer for sale

      Model
parameter		JZC350JZC500JZC750
Discharge vol.350L500L1200L
Charging vol.560L800L750L
Output capacity 18-20 m³/h25-30 m³/h
Aggregate dia.60mm60mm70mm
Rotating speed14r/min13r/min13r/min
Max. drag speed20km/h20km/h20km/h
Mixing motor5.5kw7.5kw12kw
Lifting motor4.5kw5.5kw7.5kw
Pump motor0.55kw0.75kw0.75kw
Weight1950kg3100kg3300kg
Dimension
LxWxH(mm)		2766x2140x30005230x2300x54506200x2465x5450
Characteristics:
FOCUS JZC Series climb bucket concrete mixer is a kind of reversal discharging mobile concrete mixer, which can mix semi-rigid and plastic concrete.
The mixing drum is gear-driven and has characteristics of balance running, simple operation and high mixing quality. FOCUS JZC concrete mixers can be composed as a medium-sized mixing station matched with feeding and weighing equipments, widely used in different kinds of construction projects, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction.
Sizes:
JZC: Gear ring type reversal discharging
JZC350-1/JZC500-1: Electric Motor with climb bucket(lift bucket)
JZC350-2/JZC500-2: Electric Motor with climb bucket(lift bucket)

JZC350-3/JZC500-3: Diesel Motor with skip bucket(tipping bucket)

Mini Concrete Mixer Sand and Cement Mixer
Mini Concrete Mixer Sand and Cement Mixer

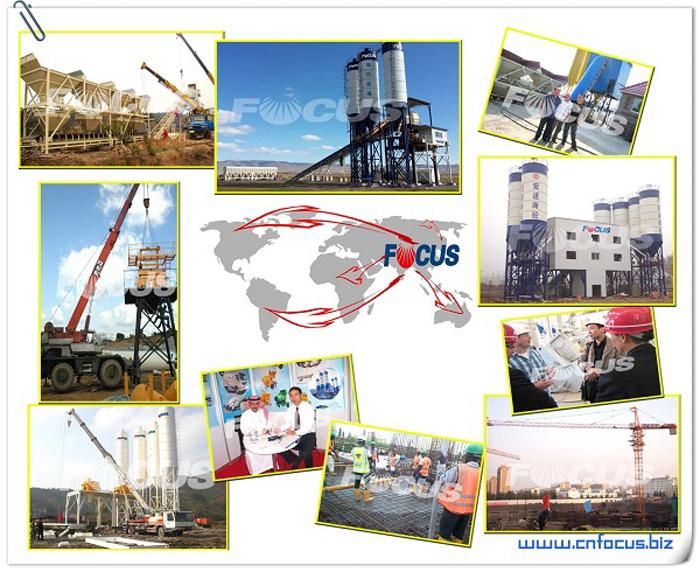

sucessful cases

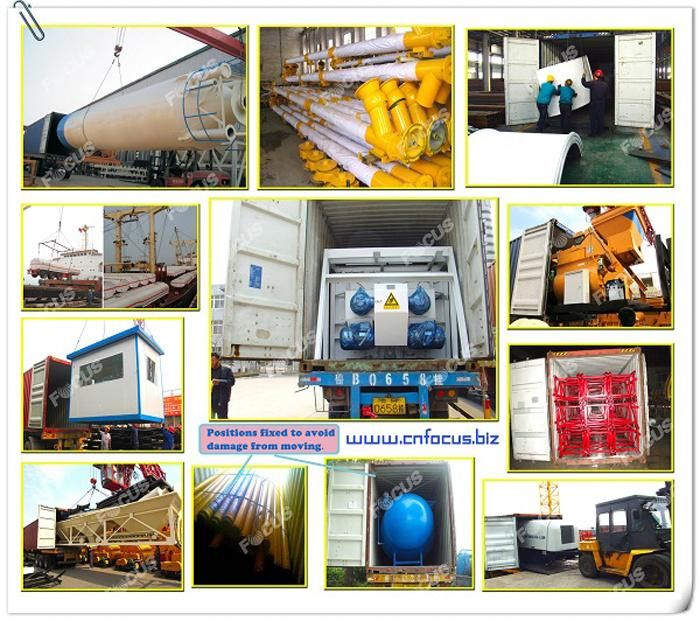

Jzc350 350L Factory Price Portable Concrete Mixer for Salepacking&delivery
