• Model NO.：Doosan 215
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Moving Type：Crawler Excavator
• Guarantee：One Year
• Power：89.5 Kw
• Color：Red
• Transport Package：Nude on Board, Shipped by RO-RO , Bulk Vessel
• Specification：SGS
• Trademark：UCM
• Origin：Japan
• HS Code：3111968887
• Production Capacity：200sets,Year

EngineModelDoosanTypeSix-cylinder, mechanical injection, turbocharged, water cooledRated power106.5kwRated speed2050rpmMain Technical SpecificationOperating weight30000kgStandard bucket capacity0.9m3Slewing speed11rpmStick digging force97.64KNBucket digging force122.85KNHydraulic SystemMain pumpKawasakiMain valveKawasakiMotorKoreaHydraulic pressure32MpaTraveling SystemTraveling speed0~5.4Km/hGrade ability65%Ground pressure0.014MpaDimensionsOverall length11200mmOverall width5350mmOverall height3900mmGround clearance1192mmRear-end length/Slewing radius2801mmWidth of pontoon1700mmLength of pontoon8500mmHeight of pontoon1800mmOperating ScopeStick length2900mmA: Max cutting height10577mmB: Max dumping height7810mmC: Max digging depth5704mmD: Max reach19900mm

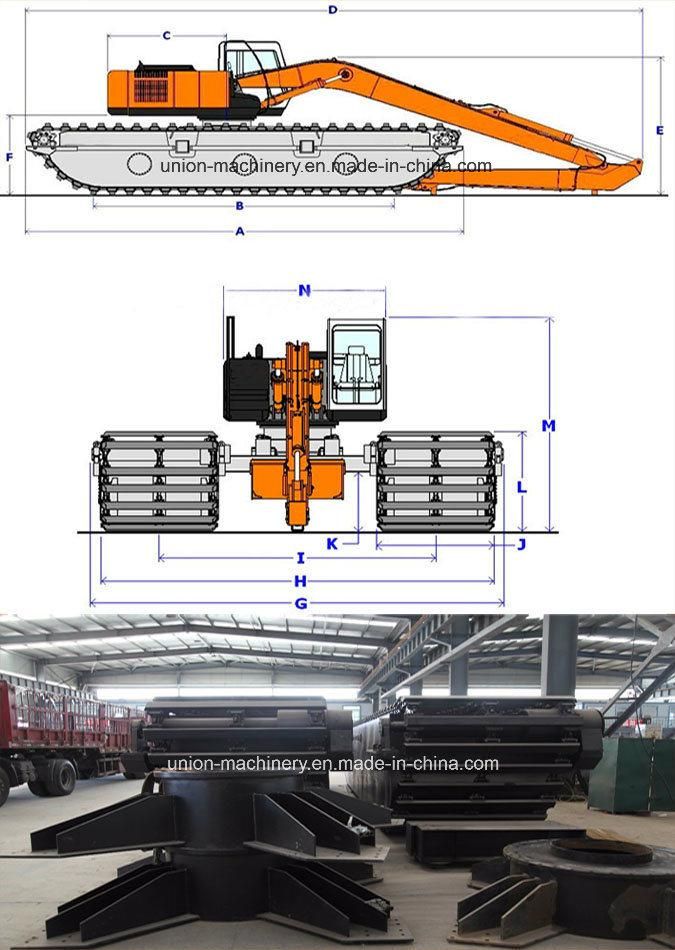

 Dimensions ( UCM200FT )mmATrack length9000BGround contact length of tracks5200CTail swing radius2750DOverall length11200EOverall height (to the top of arm)3880FGround clearance of counter weight2025HOverall width4940ITrack gauge3440JTrack width1500KGround clearance1140LTrack height1840MOverall height (to the top of cab)3870NWidth of the top part2710

Machine Parts
Name: Pontoon Undercarriage
Brand:UCM Machinery
Amphibious excavator undercarriage (Pontoons) is manufactured from Q345B (40 Cr) or A36 steel plate. So, they are allowed to be used in brackish water without affecting the pontoon's structural integrity.
The pontoon bottoms are also reinforced for rough terrain operation. Each pontoon has 3 independent watertight compartments ensuring pontoon buoyancy ,if one of them is broken.

Except for selling complete set of new amphibious excavators, we also provide service of refiting the land excavators into amphibious excavators. We will design, manufacture and assemble the matching pontoon undercarriage, and you provide the specitication or the working conditions of the land excavator.
Our business
Complete set of Amphibious excavator
If customer is ordering a complete set of new amphibious excavator, please tell us the desired Brand and model of the upper excavator body, we will purchase it from it's manufacturer directly and produce the matching turntable (X-frame) and pontoon undercarriage;
Please note that we have long term cooperation with all major brands of excavator manufacturers (including DOOSAN,HITACHI, CAT,KOMATSU,SUMITTOMO, HYUNDAI and all domestic brands), thus enjoys discounted price;
Modify land excavator into amphibious
If customer is modifying his existing land excavator to an amphibious one, please provide us the brand and model or ideally the drawing or picture and dimension of the ring gear/slewing ring of the excavator upper body, we can design and manufacture the matching turntable (X-frame) to connect to our Pontoon undercarriage;
Information required for Pontoon design & manufacture:
- the purpose and expected working condition;
- maximum water depth for excavator to work;
- maximum water depth for excavator to travel;
so we will see the necessity of adding the optional spuds and secondary pontoons;

Details for manufacture


♦  It realizes optimal balance between high operational capacity and low fuel oil consumption,   realizes the  best performance-price ratio, brings outstanding efficiency by strong power and    quick action, and has reliability and durability proven by markets.
♦ For excavator that has many dangerous surrounding working environments, safety is the first   considering factor during design, and it can meet global design of international safety standards.
♦ Capacious and comfortable cab can make the driver operate conveniently and comfortable, focus spirit and ensure safety and efficinecy.
♦ Main machine design is suitbale for different application fields, is easy for installing different   implements and can reach maximum productivity under situations.
♦ The new type excavator owns pre-warning functions, monitoring working status, warming   automatically and sending abnormal information to serviceman, which can minumum the   slowdown time.
Packing and delivery

FAQ

Q: How to install ?
A: 1., a floating box landing, the two through the tube into the floating box hole, inserted in the side of the tube, a piece of
wood pad, so that the lateral tilt
2. drop another pontoon and point it through two tubes
3. after the tube is inserted, the tube is fixed by the bolt
4.. Enlarge the plate to the tank and use the U card to fix it
5., the upper part of the excavator hoist, put on the market, with wide eyes on the Qi, tighten the screws
6. connect the hydraulic oil pipe, connect the oil pipe of the motor on the float box to the excavator

Q:How to operate?
A : 1., prohibit the operation of more than 1.6 meters water depth, silt is not limited to depth
2., prohibited in the uneven, the left and right sides of the floating box, the focus of great disparity in the situation, walking operations
3. amphibious excavators use slow gear while walking, and do not use fast gear
4., start the walking state, the first step on the foot of the throttle, and then walk
5. do not press hard objects while walking
6. avoid long walking on the hard surface
7. when turning, the front of the floating body can be lifted by the power of the bucket, and when the angle is shifted, the running
of the chain plate can be avoided, and the derailment of the chain plate can be avoided

Q: How to maintain?
A:1. ensure the chain tension, loose situation should be adjusted to 3-5, a chain wheel suspension track shall prevail
2. ensure that the seat four screws, and ensure ten days (or work 80 hours) to beat the butter
3. top silk, beat butter once a week
Check the screws between the 4. chains and the chain, check the screws frequently and keep the screws tight

Brand:DOOSAN
Model: 215
Type: Amphibious Excavator
Year: 2018
Condition: Used/new
Standard: Excellent
Packing: In Bulk or in Container
Port: Shanghai
Delivery Time: Within 15 days

We have the most detailed info about the machines, if you need, please contact we freely, we'll try our best to satisfy you.
We also supply crawler cranes, truck cranes, bulldozers, , wheel loaders, road rollers, motor graders, etc
