• Model NO.：LG6060
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Medium-Sized
• Certification：CE
• Condition：New
• Self Weight：6050kg

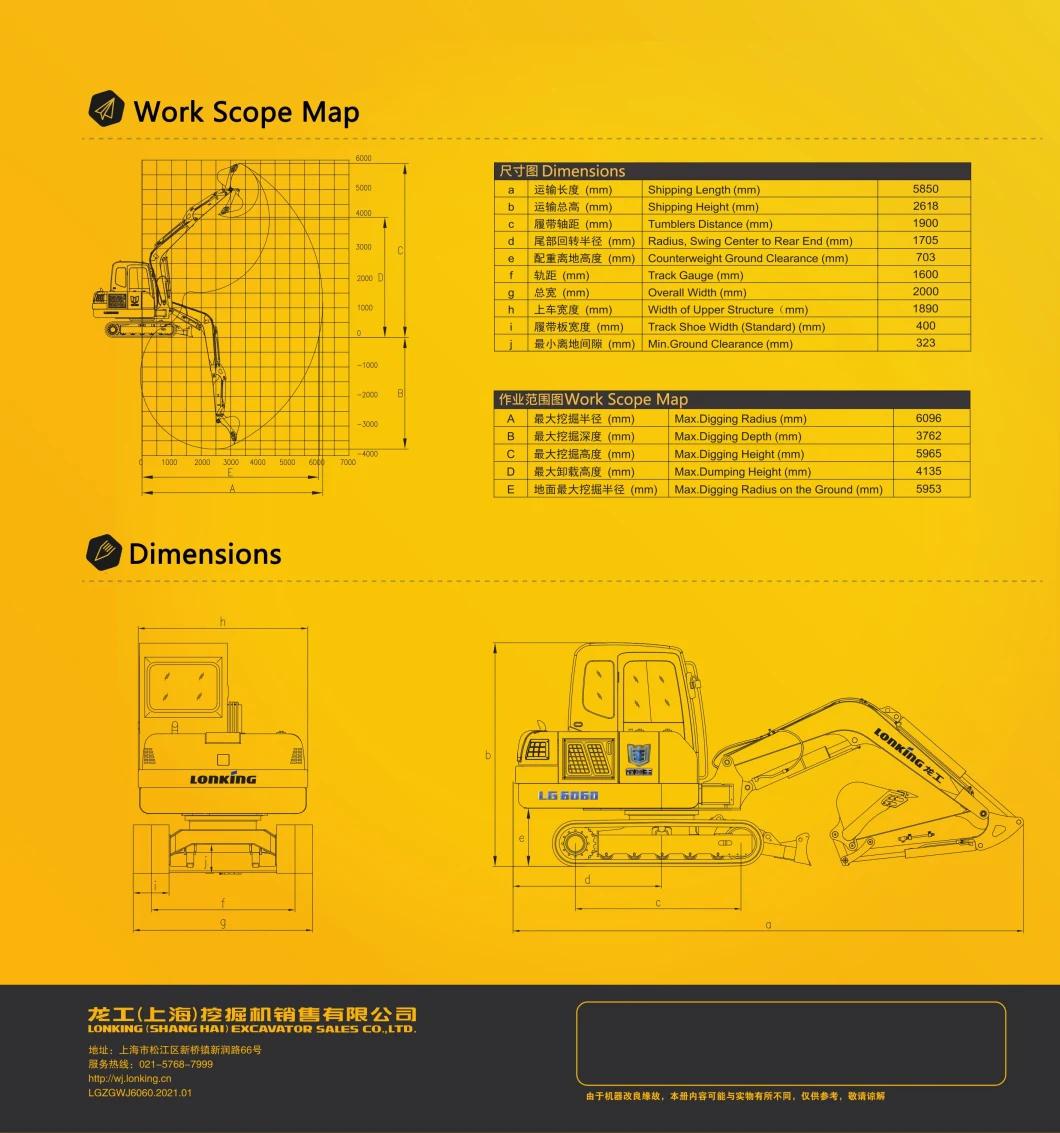

• Shipping Length：5850mm
• Shipping Height：2618mm
• Tumbers Distance：1900mm
• Radius Swing Center to Rear End：1705mm
• Counterweight Ground Clearance：703mm
• Track Gauge：1600mm
• Overall Width：2000mm
• Width of Upper Structure：1890mm
• Track Shoe Width(Standard)：400mm
• Min. Ground Clearance：323mm
• Origin：China
• HS Code：8429521200

Overview Product DescriptionWhole machineApproximate Weight (kg)6050Bucket Volume (m')0.25Pressure to the Ground (kPa)32Travel Speed (Low/High)(km/h)2.5/5.0Rotation Speed (rpm)11Gradeability(' )35EngineModelYanmar 4TNV94L-BVLKCPower (kW/rpm)36.2/2100Displacement (L)3.054Fuel Tank Capacity (L)95Hydraulic systemWork Pressure (MPa)24.5Flow (L/min)151Hydraulic Tank Capacity (L)115Digging forceMax. Bucket Digging Force(kN)40Max. Arm Digging Force (kN)28BulldozerSize(width*height)(mm)2000*306Work Range(Ground/Underground)(mm)366/386  Detailed Photos

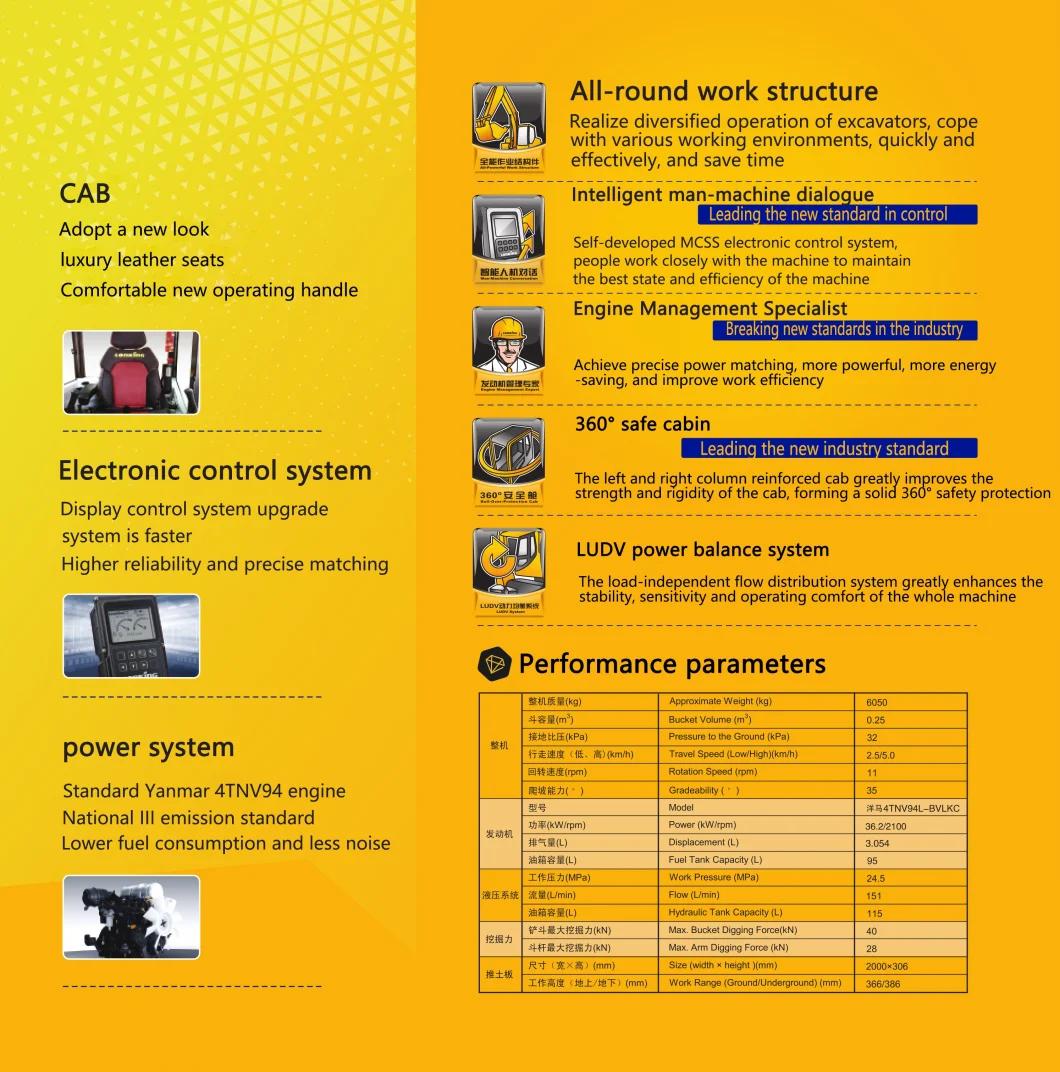

Product advantageAll-round work structureRealize diversified operation of excavators, cope with various working environments, quickly and effectively, and save timeIntelligent man-machine dialogueSelfdeveloped MCSS electronic control system,
people work closely with the machine to maintain the best state and efficiency of the machineEngine Management Specialist
 Achieve precise power matching, more powerful, more energy -saving, and improve work efficiency360· safe cabinThe left and right column reinforced cab greatly improves the strength and rigidity of the cab, forming a solid 360' safety protectionLUDV power balance systemThe load-independent flow distribution system greatly enhances the stability,sensitivity and operating comfort of the whole machine.
 Shipping By Sea
