• Model NO.：SYC-2.0
• Productivity：240m²,h
• Feeding Height：1390mm
• Vibrating Amplitude：0.9mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Drum Capacity：1.2m3
• Engine：Yuchai
• Engine Power：78kw
• Minimum Turning Radius：3.5m
• Axle：Hub Reduction
• Transport Package：Nude Packing in The Container
• Specification：5600*2400*2500(mm)
• Trademark：LEHMAN
• Origin：China
• HS Code：87054000
• Production Capacity：15000 Units,Year

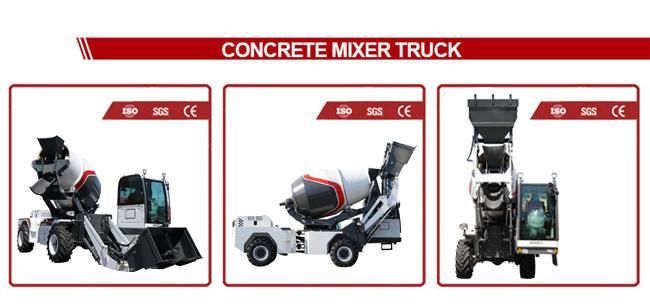

1.2cbm Concrete Mixer Truck





Diesel engineModel; Yunnei engine(55kw) with turbo Optional: Cummins engine
Total displacement cylinder number:2700ml--4 cylinder inline
Injection:Direct injection ,mechanical control
Cooling system:Water--cooling,Dry air filter
Max power:55kw
Max torque:237nm@2000 r minuteElectrical systemAlternator:28V--500WA  (18A)
Battery:2*12V--60AH (272A)
Road Lighting SystemSteering System:2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels

4*4 Four-wheel driveHydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed"
Speed: 2 forward gears     2 reverse gears
The first gear:   0--7kmhour   0--7kmhour
The second gear: 7--20kmhour    7--20kmhour
Axle Front axle, steering ,the axle is equipped with a planet reduction gear
Rear axle ,Swing (  ± 28° ) , the axle is equipped with a planet reduction gearTiresTyre: 12-16.5-12PR, max load: 2540kg,450kPa,   RIM:9. 75BrakeThe internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pressure type parking brake, the front axle is equipped with an internal hub.
Water Supply System"Self-priming" 24v large capacity pump,with fast absorption function.
Max flow: 90Lminute
Total capacity of a water tank: 175L
The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water.
Sit on the side of the driver's seat to enable the pump
Equipped with high pressure pump to flush vehicle




Mixing And UnloadingDouble cone cylinder with double spiral stirring screw and middle convex bottom
Drum geometric capacity: 2200L

Drum rotation speed: 30rminute
Concrete Production: 1.2.cbmtank
The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump.
The unload chute is tilted by a manually adjustable handle.
Removable chute can be guaranteed to be unloaded directly through the hopper.
As a standard configuration , 1 chute extension is provided.
Removable chute can be guaranteed to be unloaded directly through the hopper.
As a standard configuration , 2 chute extensions are provided.Equipment Hydraulic SystemGear Pump: De Hong brand
Maximum Flow: 2040Lminute
Maximum Pressure: 16MPa
3 handle multi-function joystick
Aluminum heat exchanger for cooling hydraulic oil
Open oil inlet,hydraulic oil filter can be replaced from outsideLoadThe loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function
Capacity: 270L
Be filled with 5 times
Operating Room
Closed operating room with heatingcooling system inclined front window.
Humanized seat with flexible suspension and height adjustment functionMaintenance fillerFuel tank: 110L
Total capacity of hydraulic system: 110L
Machine oil: 16L
Operating weight: 4500kg
Maximum  total weight: 6900kg
Maximum  load weight: 2400kg
 Overall dimension5.6m*2.4m*2.5m





FAQ
1. Are you factory supplier?
A: Yes, we are real factory supplier for over 11 years, own a super technical team to serve adjusting design for customers
2. How about the products range do you produce ?
We are specilized in producing wheel loaders cover 0.6ton to 5tons. Model: ZL-939, ZL-936, ZL-932, ZL-928, ZL-922, ZL-920, ZL-918, ZL-916A, ZL-912, ZL-910, ZL-930,ZL-926,producing site dumpers with 2tons, 3tons, 4tons, 5tons, 7tons and 10tons load capacity.

3. Can you supply site dumpers with adjustable design to adapt customers' using requirment ?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment, like to change the transmission system, tires, bucket dimension, operation plate, cabin and so on.
4. Which brand engine do you have for site dumpers?
We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
5. What advantages of your products and company?
 1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
 2) ROPS cabin, double-layer thick cab, more strong and resistant
 3) adjusting steering wheel and adjusting seat, with fan, radio, heater and so on, more comforable drive environment for driver
4) All of our dumpers passed the strict test before sale to customers
5) More easy wear spare parts will be attached with the wheel loader for free
6) We serve 1 year warranty for customers, supply after-sale service for wheel loaders' whole life

Service & Warranty
1-Spare parts supply:
 We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.

2- After-sale:

We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.

3 - warranty

1 year warranty from the date of receiving the loaders.

During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.

4- packing

one set by one 40HQ (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
