High Quality Mortar Pump Machine China Mortar Grouting Pump

Henan Yugong Machinery Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：1year
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Cylinder Type

Base Info

  • Model NO.：Yg-MP6
  • Productivity：5-6 M3,H
  • Feeding Height：10-20 M
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Red
  • Product Name：Mini Concrete Pump
  • Model：Yg-MP6
  • Voltage：380V 50Hz
  • Motor：11 Kw
  • Max Flow：5-6 M3
  • Max Output Pressure：15 MPa
  • Max Convey Distance：Horizontal 30-40 M, Vertical 10-20 M
  • Max Partical Size：<20 mm
  • Hydraulic System：Full Hydraulic
  • Hydraulic Oil Cooling：Air-Cooled
  • Transport Package：Standrad Wooden Case
  • Specification：380V three-phase 50Hz
  • Trademark：YUGONG
  • Origin：China
  • HS Code：8413400000
  • Production Capacity：2000 Sets,Month

Description

Max Convey DistanceHorizontal 30-40 mVertical 10-20 mMax Partical Size≤20 mmCylinder Diameter*Travelφ110*360 mmPipe Diameterφ80(65) mmHydraulic SystemFull HydraulicHydraulic Oil CoolingAir-cooledDimensions1750*700*1100 mmWeight650 kg

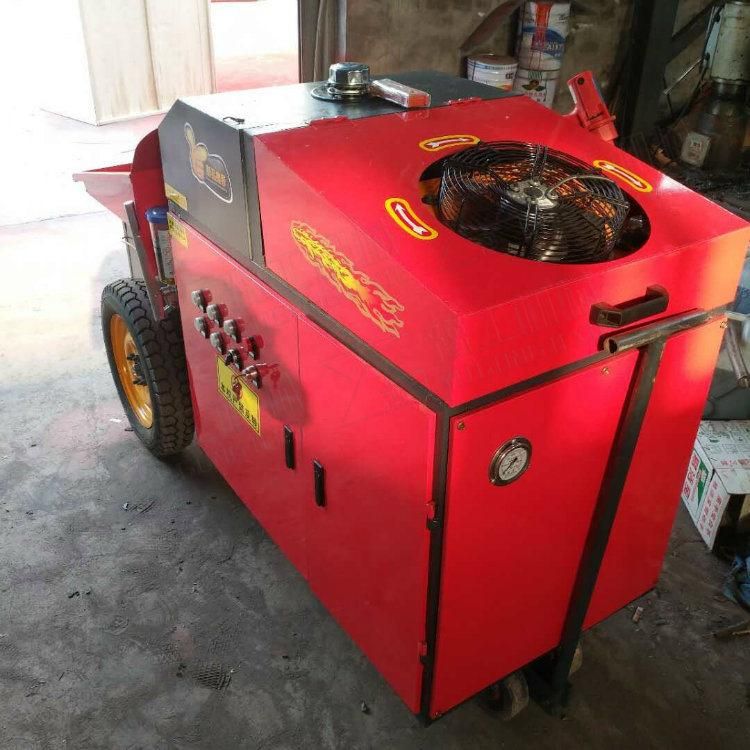

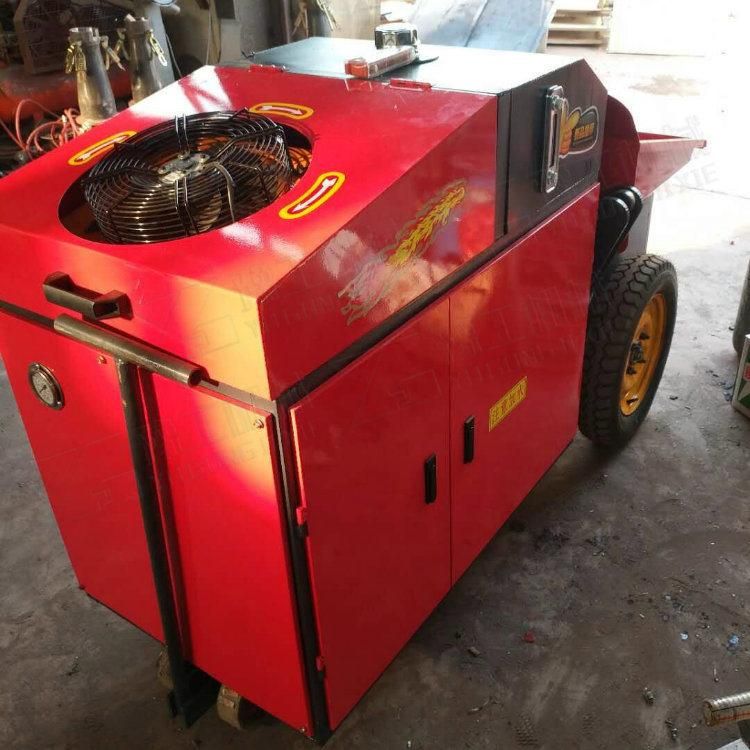

Product Display

  • The use of S-tube distribution valve to convey the small aggregate concrete, mortar etc.
  • Main pump uses deformation piston pump, high efficiency, strong pressure.

High Quality Mortar Pump Machine China Mortar Grouting Pump
  • Hydraulic system uses an independent three-loop control, high reliability glasses panel, cutting ring uses carbide, wear-resistant, long life.
  • Pumping mechanism uses dual-piston, advanced performance, good continuity.

High Quality Mortar Pump Machine China Mortar Grouting Pump

High Quality Mortar Pump Machine China Mortar Grouting Pump

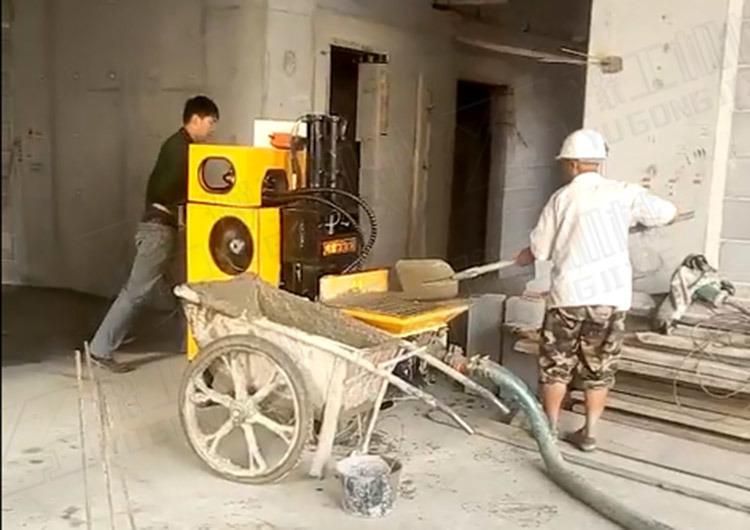

Working

This machine is widely used in high-rise building mortar and fine aggregate concrete pumping, secondary structural column grouting, reservoirs, hydropower stations, ports, docks in a variety of pressure grouting, foundation treatment, soft foundation, grouting, tunnels,  backfill grouting bolt support in mine construction. Secondary structural column irrigation, and slope spray anchor support.

High Quality Mortar Pump Machine China Mortar Grouting Pump
