• Model NO.：XXU-002
• Breaking Enlongation：350%
• Heat Deflection Temperature：85ºC
• Fusion Point：136ºC
• Water Absorption：≤0.01
• Expansion Coefficient：1.5X(10)^-4,ºC
• Transport Package：Pallet
• Specification：customized
• Trademark：XINXING
• Origin：Shandong, China
• Production Capacity：5000tons Per Year

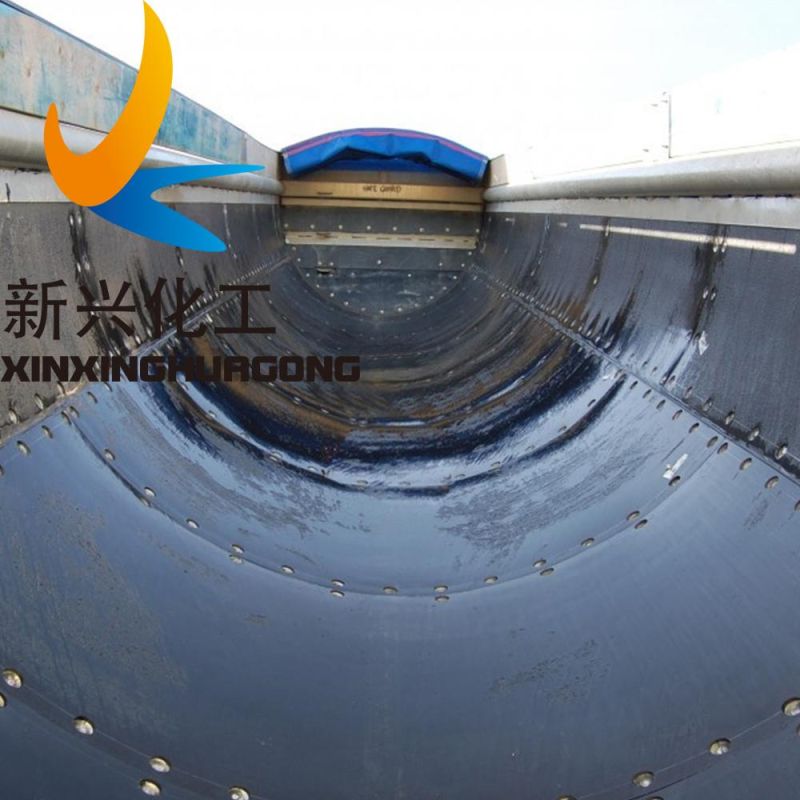

Application of UHMWPE sheet wear liners

⇒ Fender panel facing pads
⇒ Fender pile rubbing strips
⇒ UE-V fender shields
⇒ Facing strips for jetties and wharves
⇒ Lock entrance and lock wall protection
⇒ Mitres on lock gates
⇒ Bridge buttress protection
⇒ Pontoon pile guide bearings
⇒ Fast-launch lifeboat slipways
⇒ Beltings for smaller workboats



Features of UHMWPE Sheets and Components:

 · Very Low Co-efficient of Friction

· High Impact Strength, will not break or shatter

· High Abrasion Resistance

· Zero Water Absorption

· Chemical Inert, Works with almost all chemical including HCL

· Survive in Freezing Conditions from ( -200 Degree C to 80 Degree C )

· Anti Sticking Property· Self Lubricated Material


Technical data of UHMWPE sheet:


Project NameUnitTest   MethodTest   ResultDensityg/cm3ASTM   D-15050.94-0.98Compressive   StrengthMpaASTM   D-638≥42Water   Absorption%ASTM D-570<0.01Impact   StrengthKJ/m2ASTM   D-256≥140Heat   Distortion TemperatureºCASTM   D-64885Shore   HardnessShore DASTM   D-2240>40Friction   Coefficient ASTM   D-18940.11-0.17



Parameter of UHMWPE sheet:

ItemsUnitDataASTM Test   MethodMolecular   Weightbillion3~9D2857Specific   Gravityg/cm^30.935~1.0D1505Tensile   StrengthMPa40~45D638Elongation   at break%300~400D638Impact   StrengthkJ/m^2≥140D250Rockwell   HardnesskJ/m^340~60D747Abrasion   Lossmg/1000 times70D1175Distortion   TemperatureºC85D648

Packaging

1. pallet with carton.

2. Plastic pallet with carton.

3.  wooden pallet with wooden case.

4. According to customer requirements.
